BRUGSANVISNING EPL550PB AVF

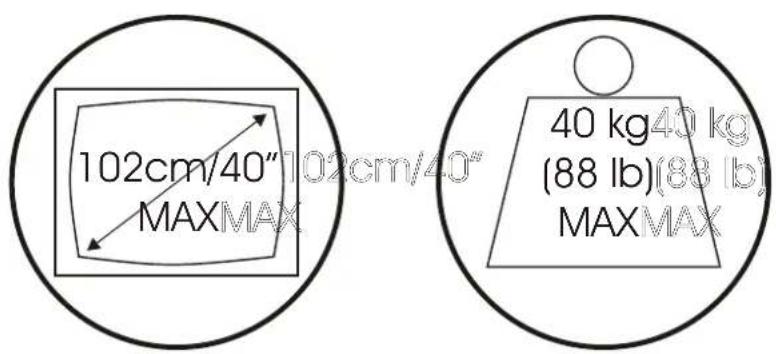

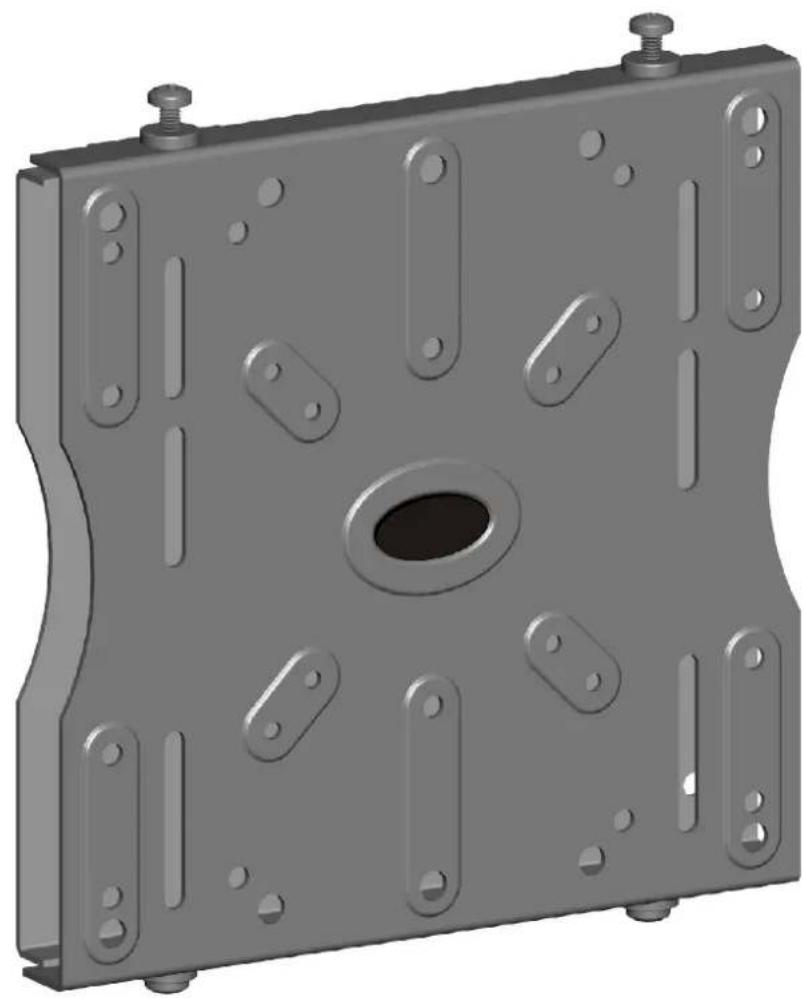

3D rendering of a metallic mechanical component with multiple mounting holes and a central oval opening (no text or symbols)

1

	A x1			M6 x 16	C1-x4	M6 x 20	C8-x4
M6 x 25	C3-x4	M6 x 35	C4-x4	M6 x 45	C5-x4	M6 x 70	C6-x4
M5 x 16	C7-x4	M5 x 25	C8-x4	M5 x 35	C9-x4	M5 x 45	C10-x4
M4 x 16	C11-x4	M4 x 25	C12-x4	M4 x 35	C13-x4	M4 x 45	C14-x4
M8 x 20	C16-x4	M8 x 25	C16-x4	M8 x 35	C17-x4	M8 x 45	C18-x4
M4	D1-x8	M6	D2-x4	M4	E1-x4	M5	E2-x4
M6	E5-x8		E6-x8		F1-x4		F2-x4
F x4	G x8		M6		H x4		?
J x4	K x4		6mm		L x1

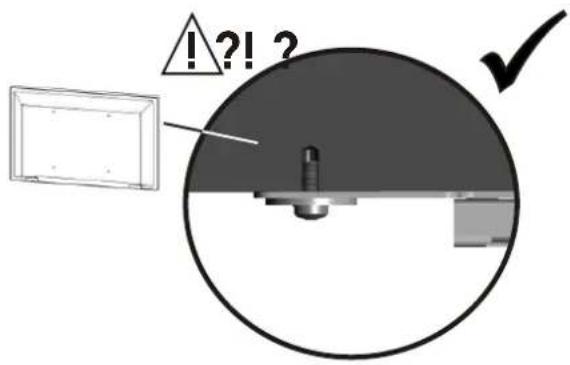

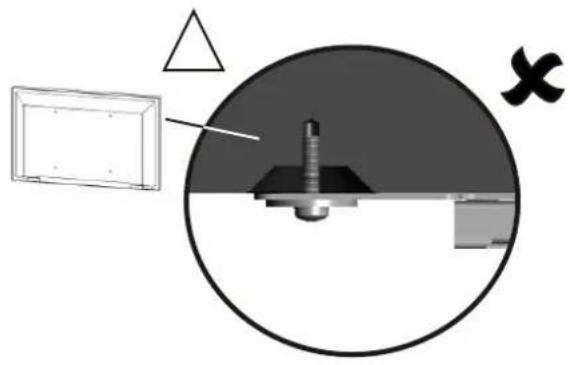

②

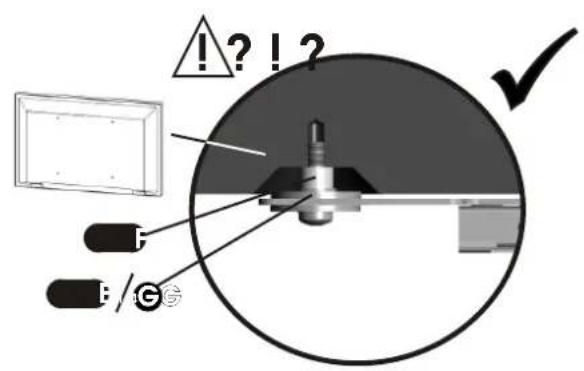

③

④

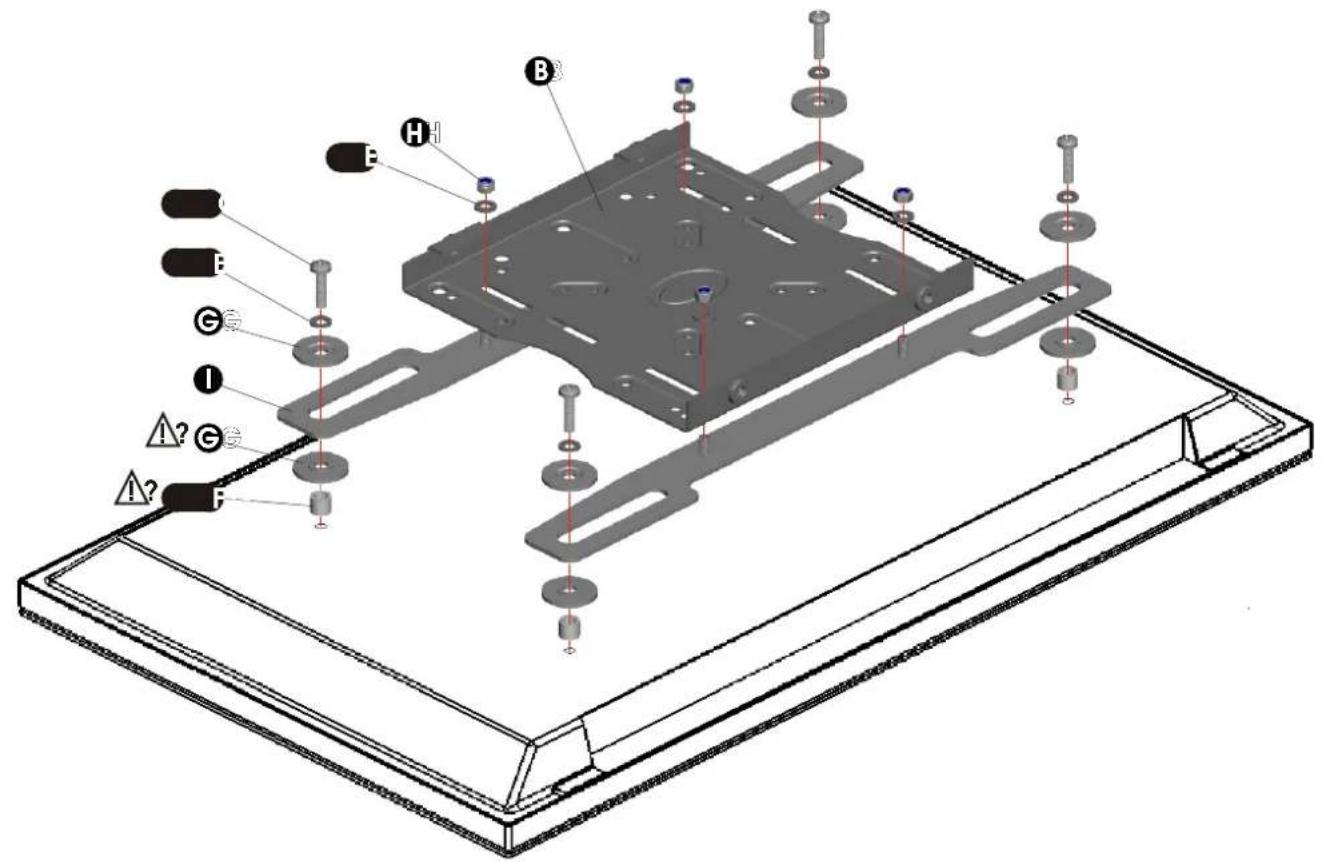

OP2	75mm(2 15/16")	75mm(2 15/16")
	100mm(3 15/16")	100mm(3 15/16")
	100mm(3 15/16")	200mm(7 7/8")
	120mm(4 3/4")	180mm(7 1/16")
	160mm(6 5/16")	100mm - 175mm(3 15/16" - 6 7/8")
	200mm(7 7/8")	100mm(3 15/16")
	200mm(7 7/8")	180mm(7 1/16")
	200mm(7 7/8")	200mm(7 7/8")
OP1	400mm-265mm(15 3/4"-10 7/16")	75mm-200mm(2 15/16"-7 7/8")

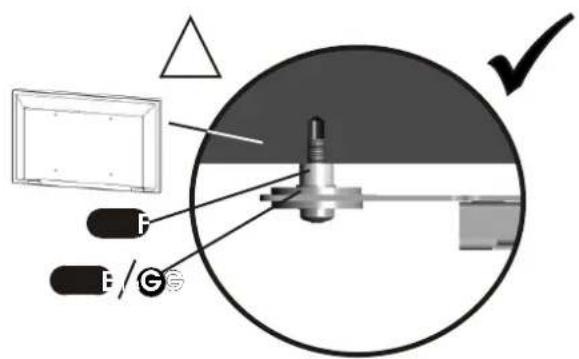

Diagram showing a circular object with internal components and geometric shapes (triangle, cross, and rectangle) without any readable text or symbols.

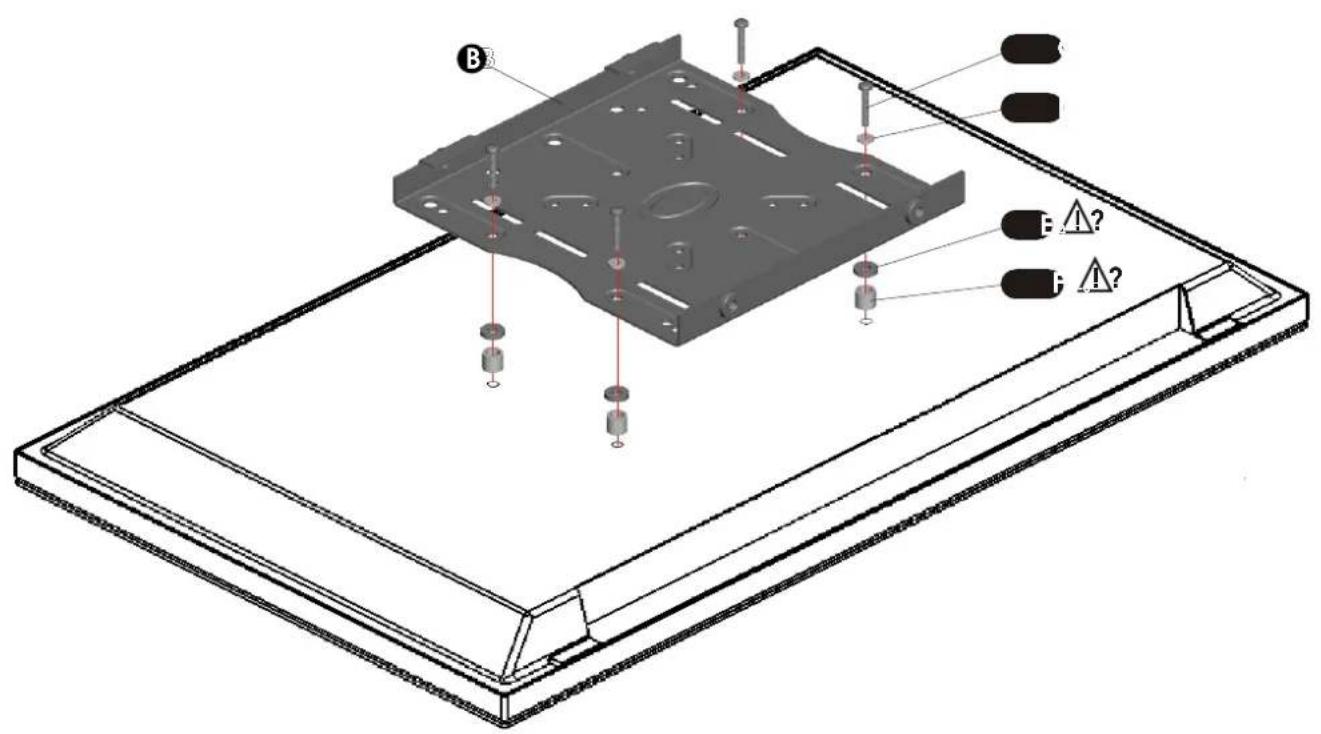

OP 1

OP 2

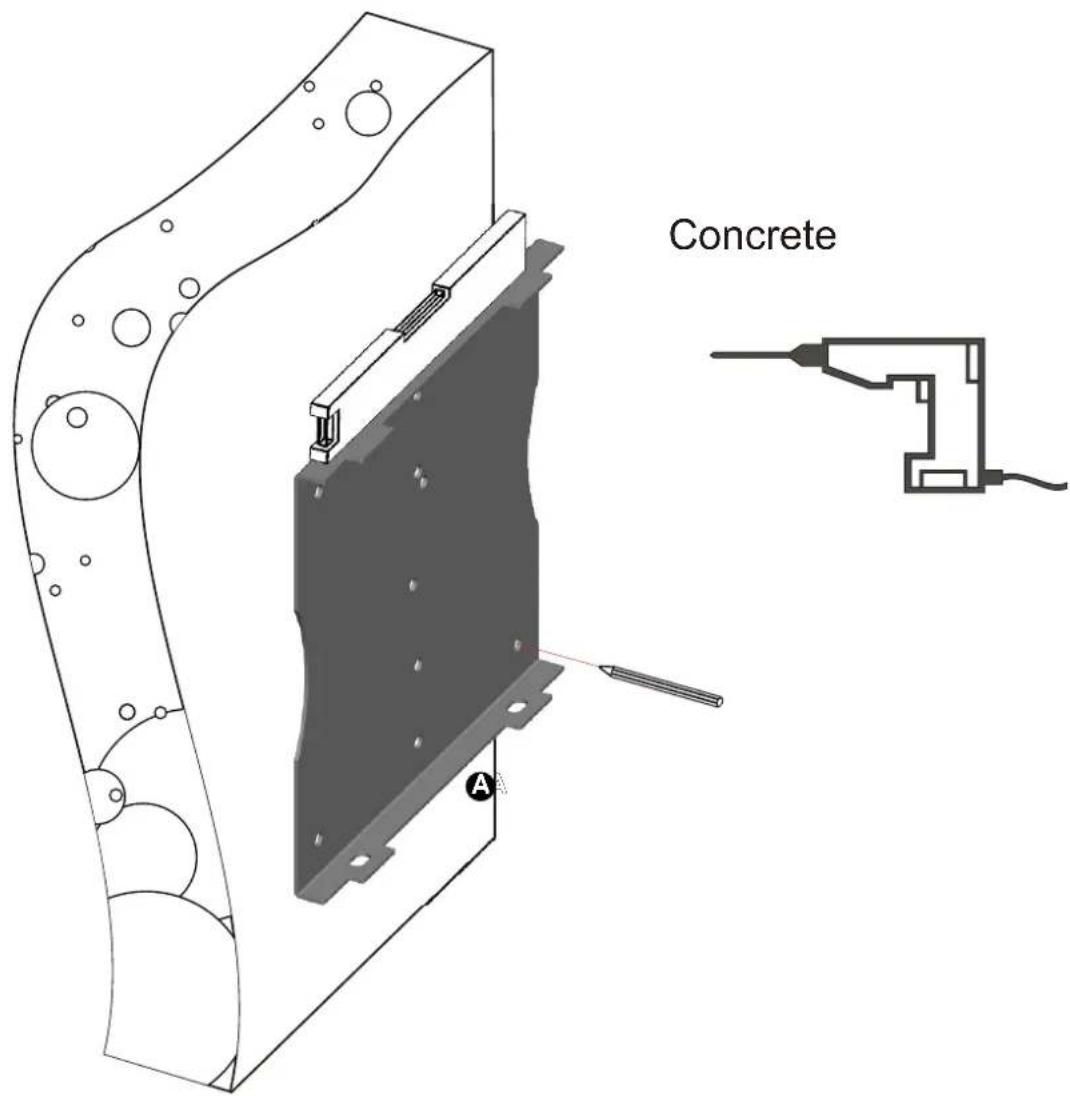

5
5a

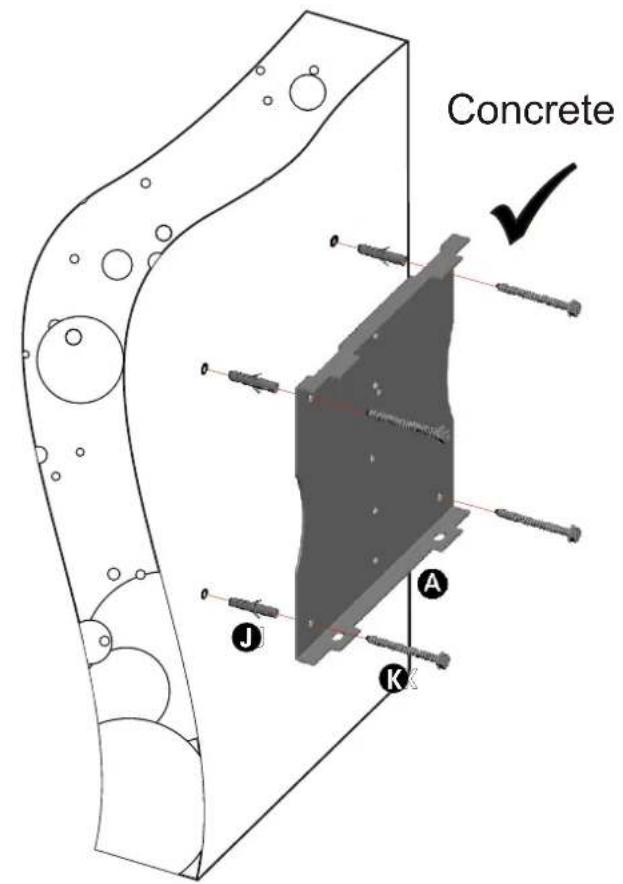

Pure diagram of a mechanical or architectural component with no visible text, numbers, or symbols

5b

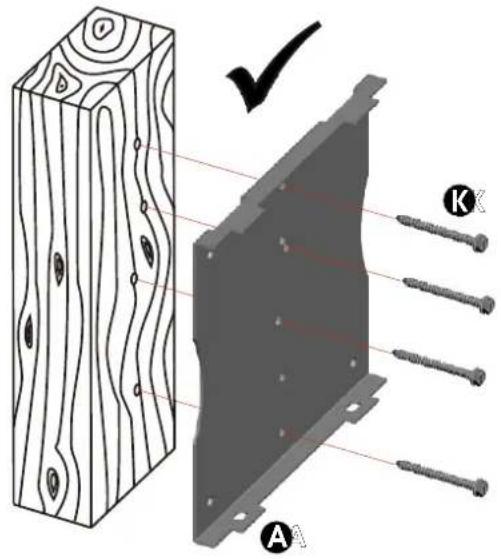

3D diagram of a mechanical assembly with a black panel and white bracket, no visible text or symbols

5c

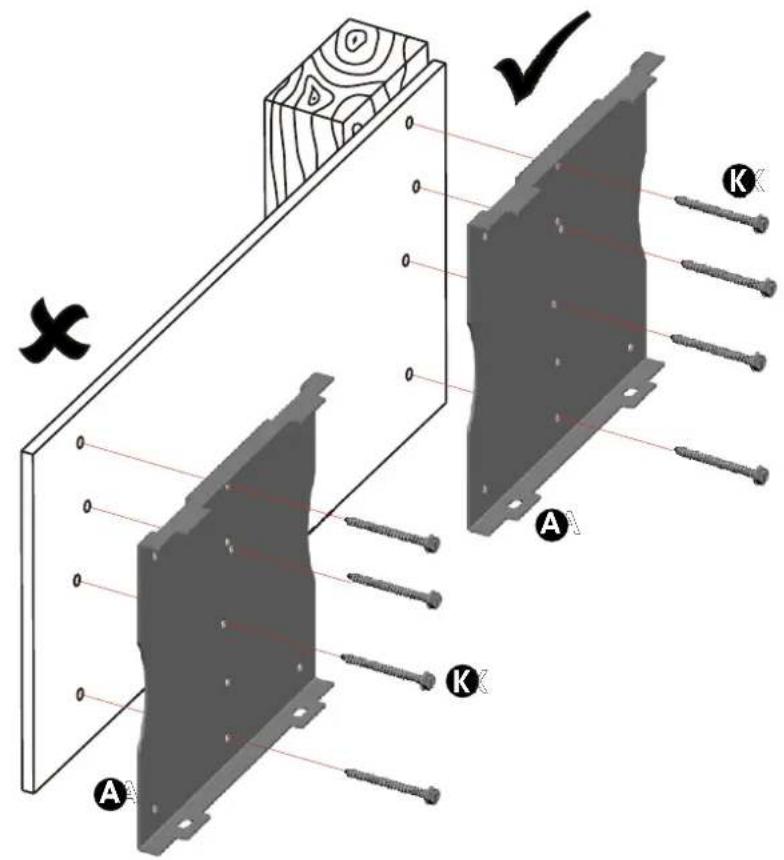

Pure diagram of a vertical panel with a black base and white connectors, no text or symbols present.

5d

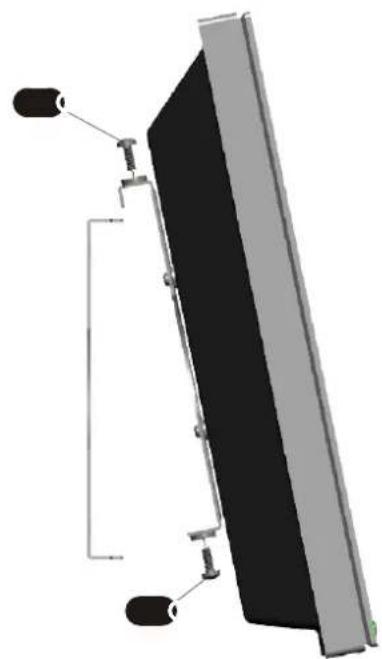

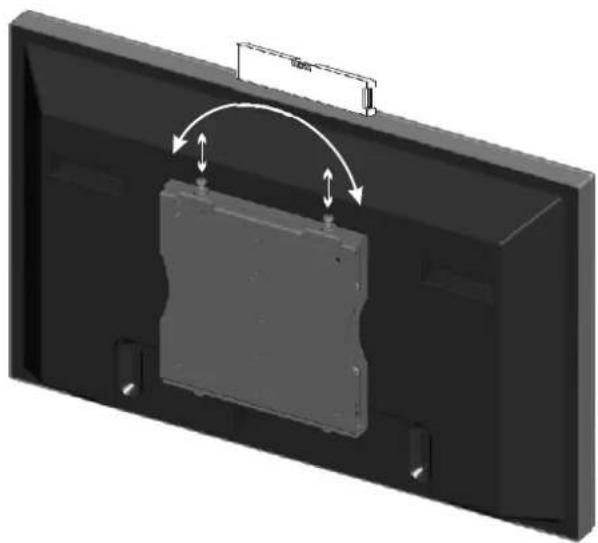

3D rendering of a black rectangular device with a central component and directional arrows indicating motion (no text or symbols)

Silhouette of a classic telephone handset with keypad (no text or symbols)
