BRUGSANVISNING Gyro II E24785 ET2
Contemporary
Lighting

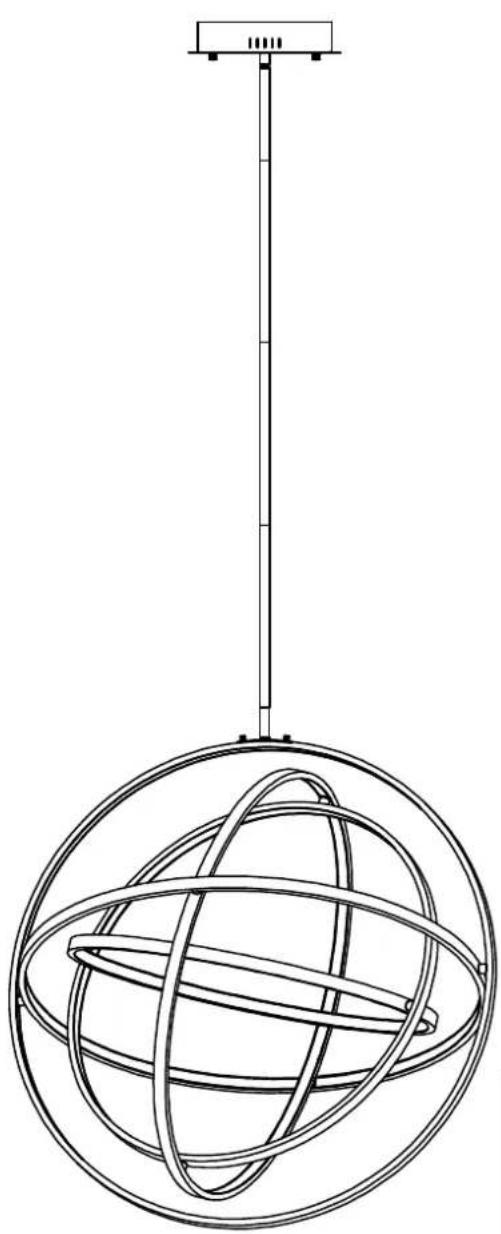

PRODUCT NAME: Gyro II
ITEM NUMBER: E24785
Please consult your electrician for hanging fixture and wiring.
Below is a list of recommended dimmers:
Lutron MACL-153M
Lutron DVL-153P
Lutron SCL-153P
Leviton IPL06-10Z
Leviton 6674-POW
Due to inrush current wattage should not exceed 150 watts of product for a 600 watt dimmer.
Warning! Wires need to be connected to driver found in canopy and should not be connected directly to power source or a short may occur.
Bulb (included): LED 78W
IMPORTANT: Turn off the power at the main fuse or circuit breaker box before starting installation
(A)
Mounting Bracket
(1)
Finial
Locate all hardware & components before discarding packaging

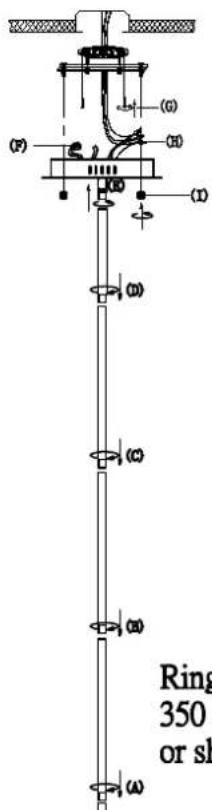

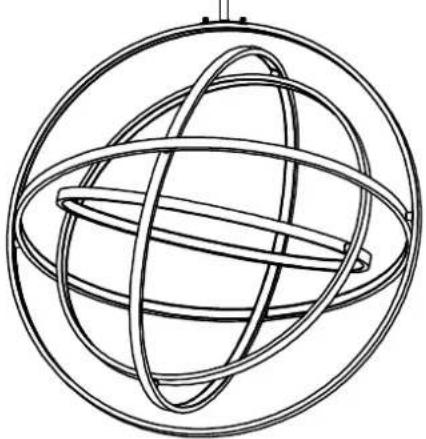

Rings are adjustable up to 350 degrees. Do not overturn or short may occur.
Step.1:

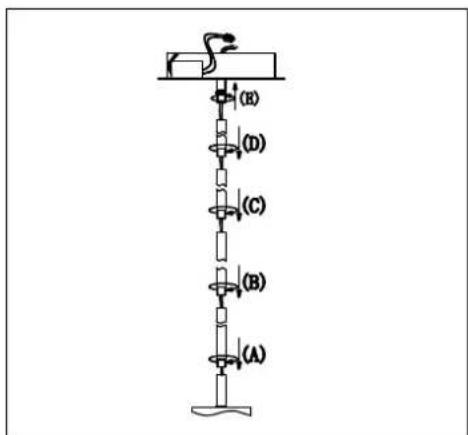

Run wire through stems and combine stem lengths to meet desired mounting height.
2.)
Step.2: Using wire terminal block in the canopy to wire the low voltage red/black wire to the driver.
3.)
Step.3: Remove mounting bracket (G) from fixture and install to electrical box.
Cleaning & Care:
Clean with soft cloth and a mild detergent.
Do not use abrasive cleaner.
IMPORTANT: Turn off the power at the main fuse or circuit breaker box before starting installation
(A) Mounting Bracket
Locate all hardware & components before discarding packaging
4)

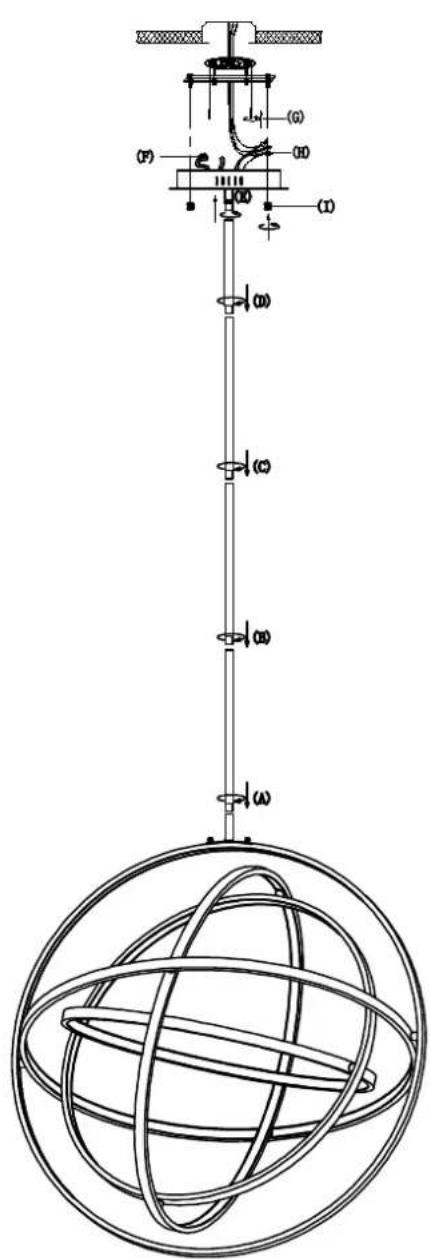

Step.4: Wire fixture to wires (H) in outlet box. Copper wire is for Ground.
5.)
Cleaning & Care:
Clean with soft cloth and a mild detergent.
Do not use abrasive cleaner.
