BRUGSANVISNING MAXIMERA 402.046.32 IKEA

MAXIMERA

IKEA MAXIMERA 402.046.32 - MAXIMERA - 1

natural_image Technical line drawings of two identical mechanical housing compartments with mounting brackets and internal components (no text or symbols)

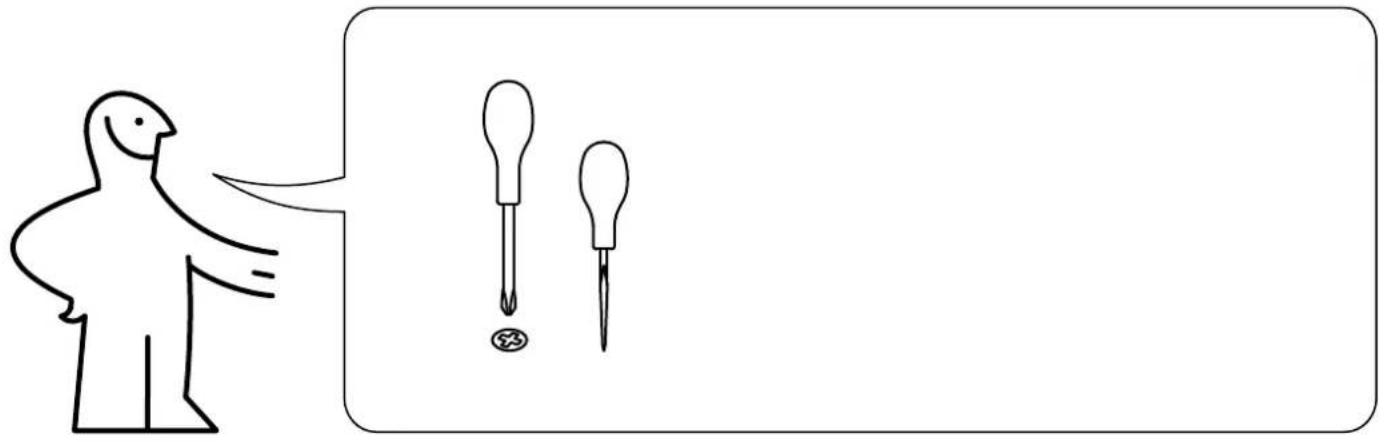

Diagram showing a person pointing at two droppers with a numbered marker, likely illustrating a medical or laboratory procedure.

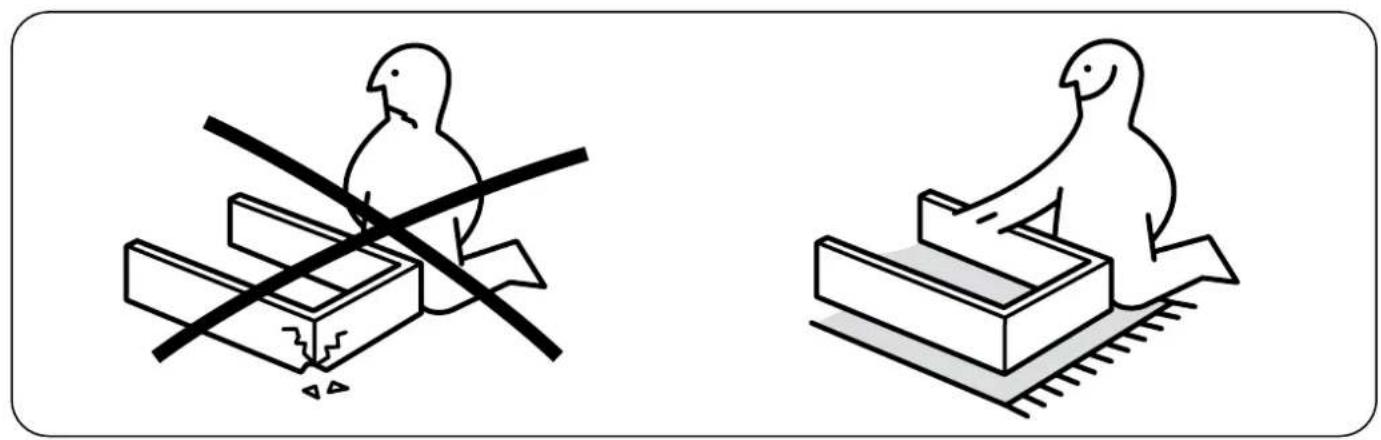

IKEA MAXIMERA 402.046.32 - MAXIMERA - 3

natural_image Two line drawings of birds on different platforms: one with a crosshair and the other with a bird (no text or symbols)

Illustration comparing two scenes: one showing a person with a hammer and question mark, the other showing a person holding a book next to an IKEA store.

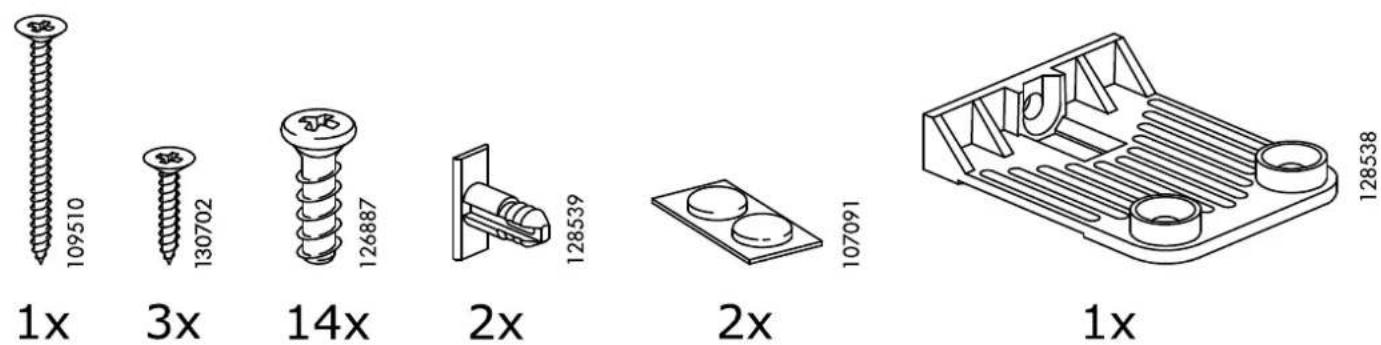

1x 109510 3x 130702 14x 126887 2x 128539 2x 107091 1x 128538

IKEA MAXIMERA 402.046.32 - MAXIMERA - 6

natural_image Technical line drawing of a vertical structural component with a notch, labeled 128537 (no text or symbols on the diagram itself)

2x

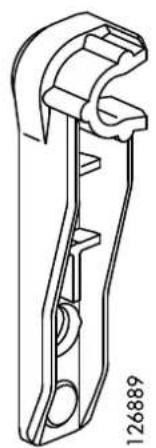

IKEA MAXIMERA 402.046.32 - MAXIMERA - 7

natural_image Technical line drawing of a mechanical clamp or tool component (no text or symbols)

2x

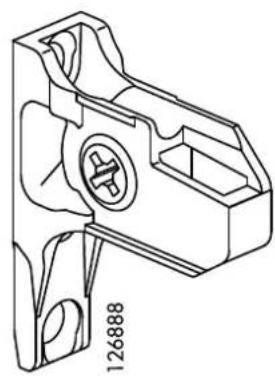

IKEA MAXIMERA 402.046.32 - MAXIMERA - 8

natural_image Technical line drawing of a mechanical bracket component (no text or symbols)

2x

IKEA MAXIMERA 402.046.32 - MAXIMERA - 9

natural_image Isometric view of a rectangular panel with four corner clips, no text or symbols present

2x

IKEA MAXIMERA 402.046.32 - MAXIMERA - 10

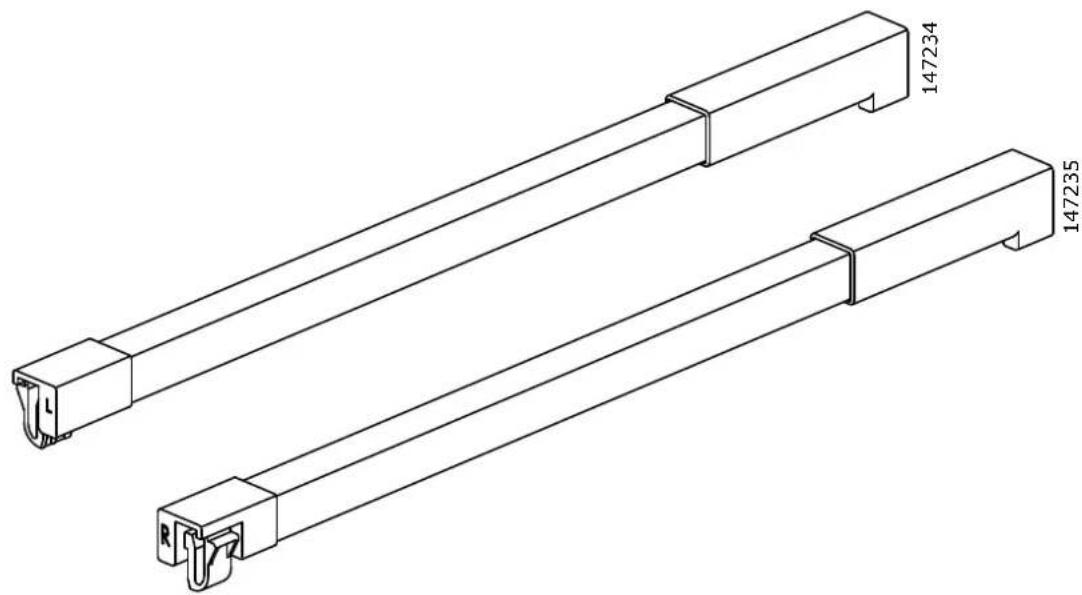

natural_image Technical line drawing of two mechanical components with labeled parts (147234 and 147235), no readable text or symbols beyond labels.

1x

IKEA MAXIMERA 402.046.32 - MAXIMERA - 11

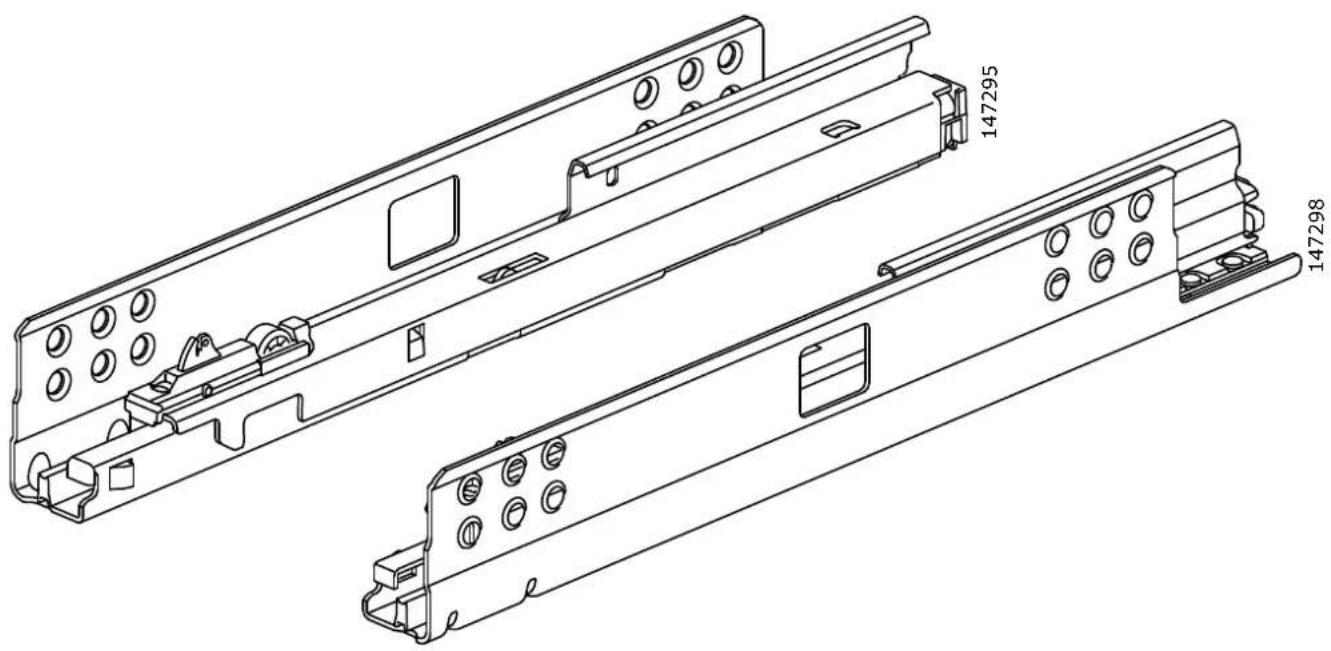

natural_image Technical line drawing of a mechanical assembly with two views (147295 and 147298), showing internal components and mounting holes (no text or symbols beyond part numbers)

1x

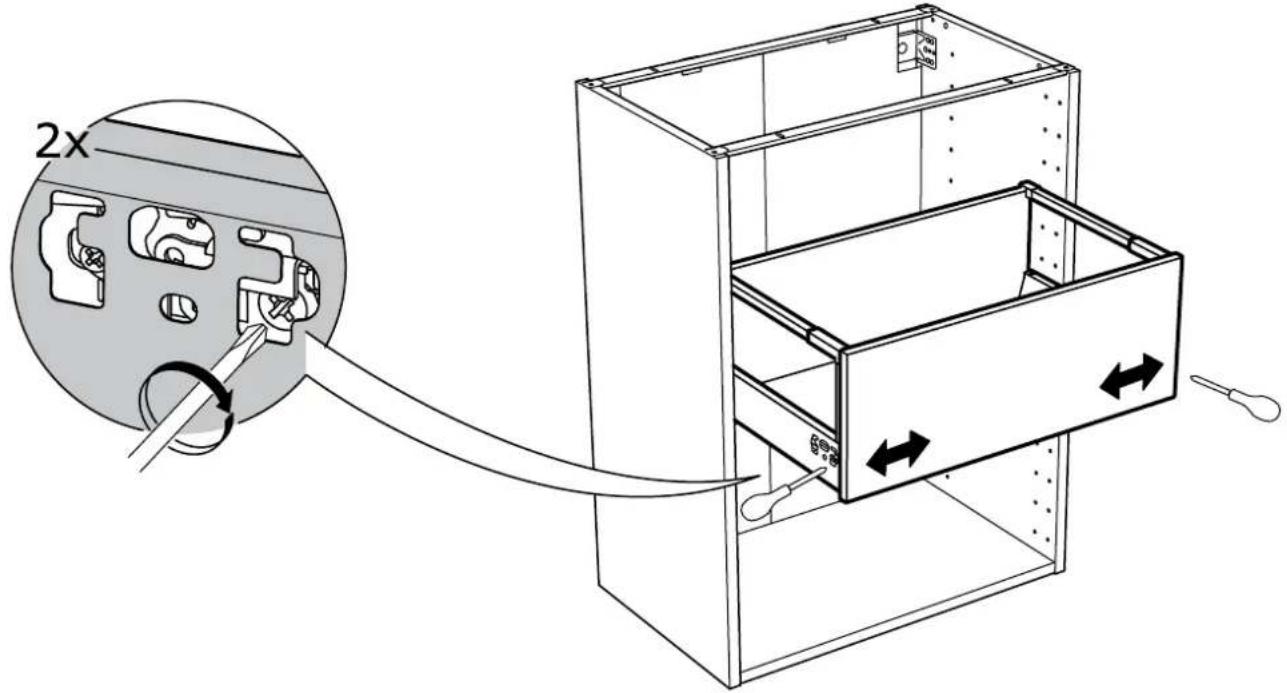

1
2x

2 CLICK! 2x CLICK! CLICK!

3

4 1x 109510

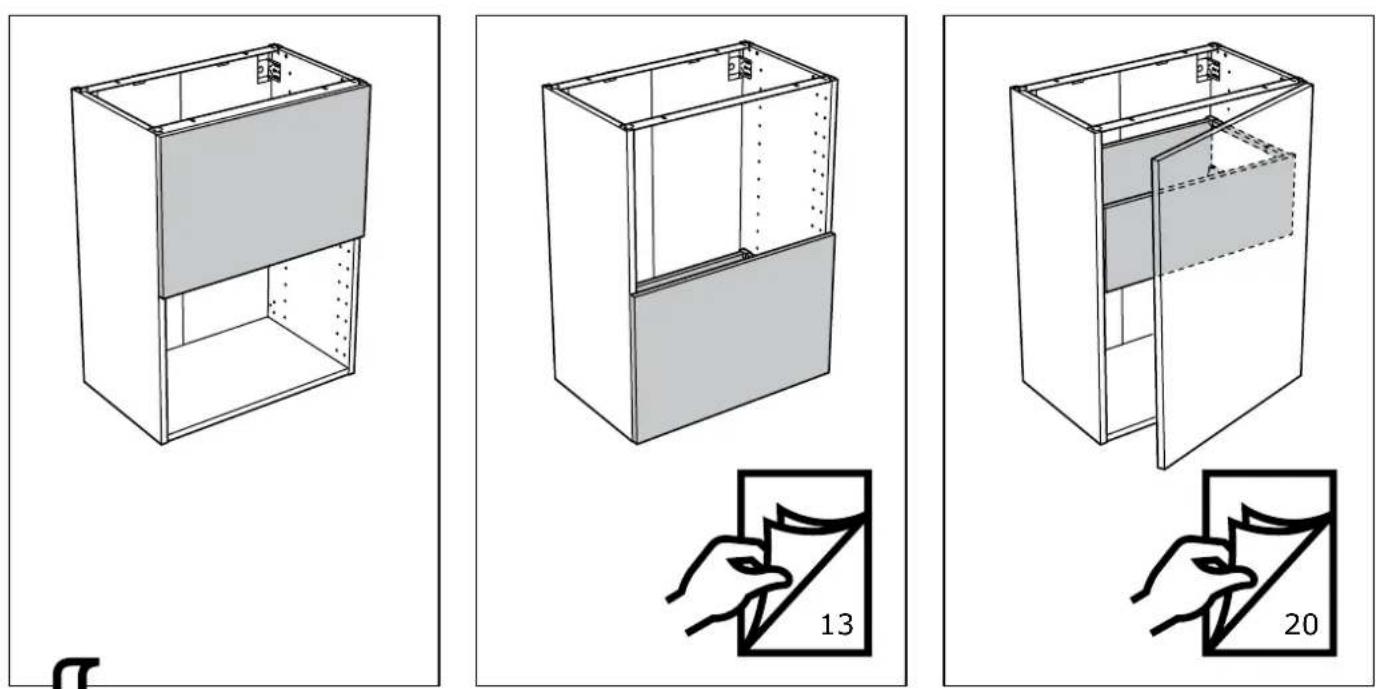

IKEA MAXIMERA 402.046.32 - MAXIMERA - 16

↓ 5
2x 1268887 126888

6
Technical diagram showing a mechanical assembly with labeled parts and a 2x ratio indicator for measurement.

7

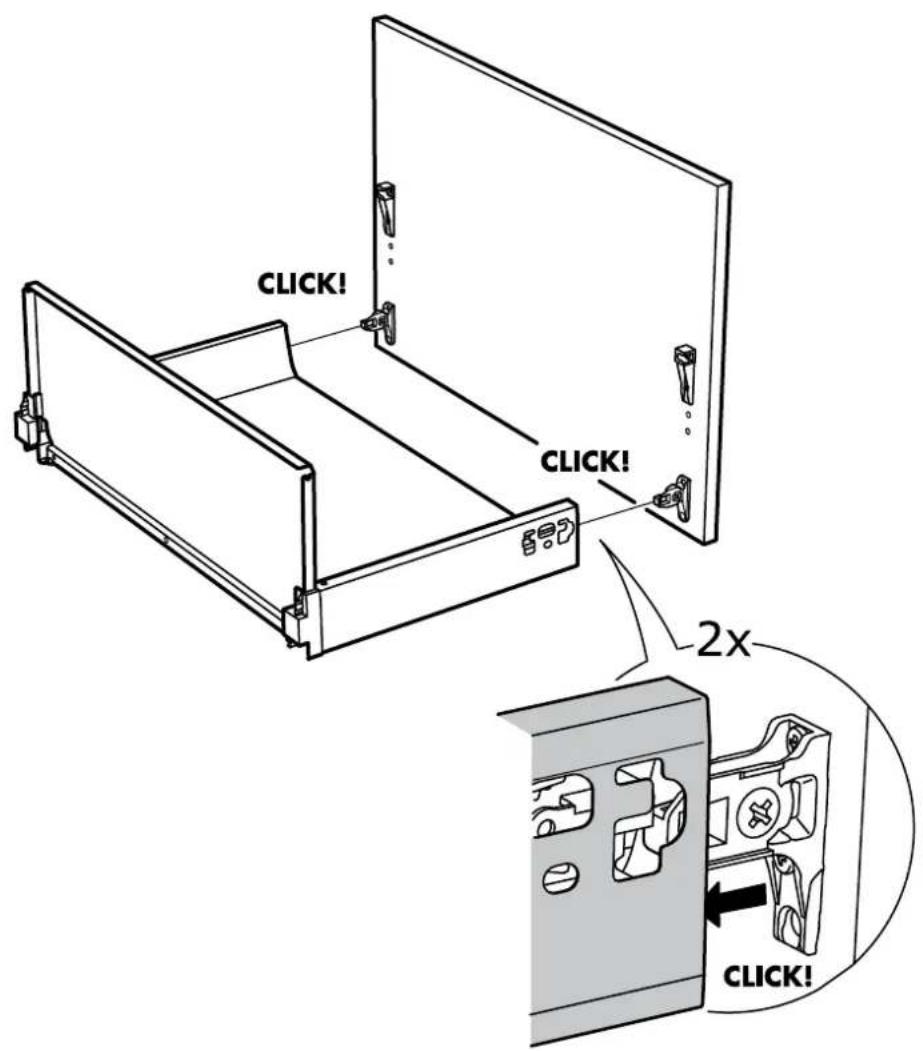

CLICK! CLICK! 2x CLICK!

8
Technical diagram of a mechanical device with labeled parts and cross-sectional views showing 2x magnified detail.

9

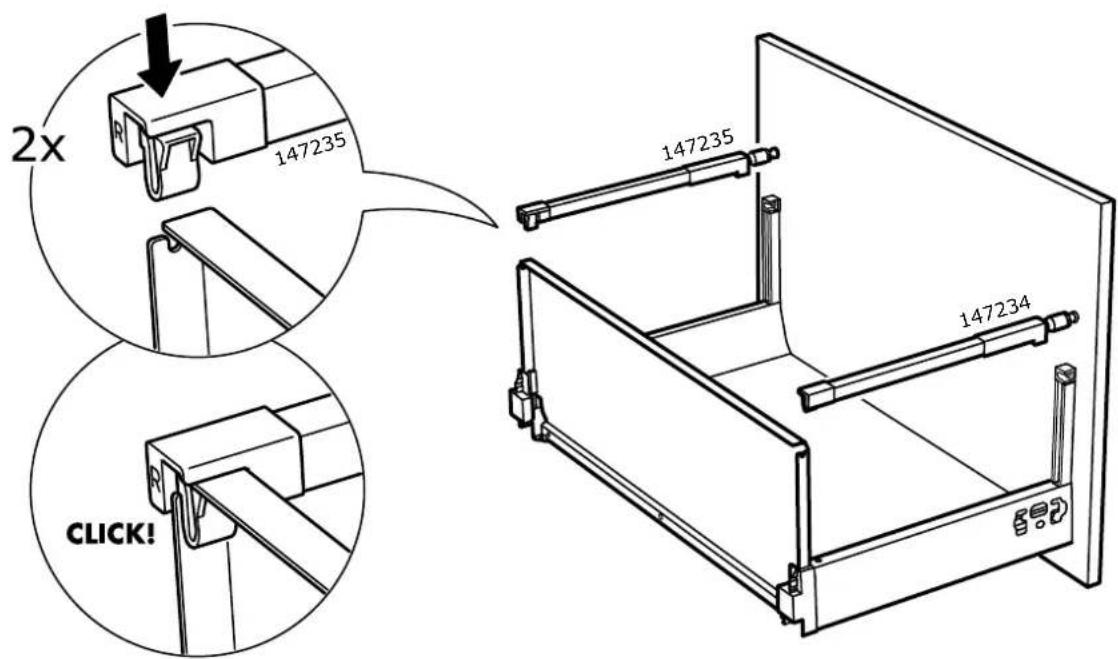

2x 147235 147235 147234 CLICK!

10
Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or flow.

11

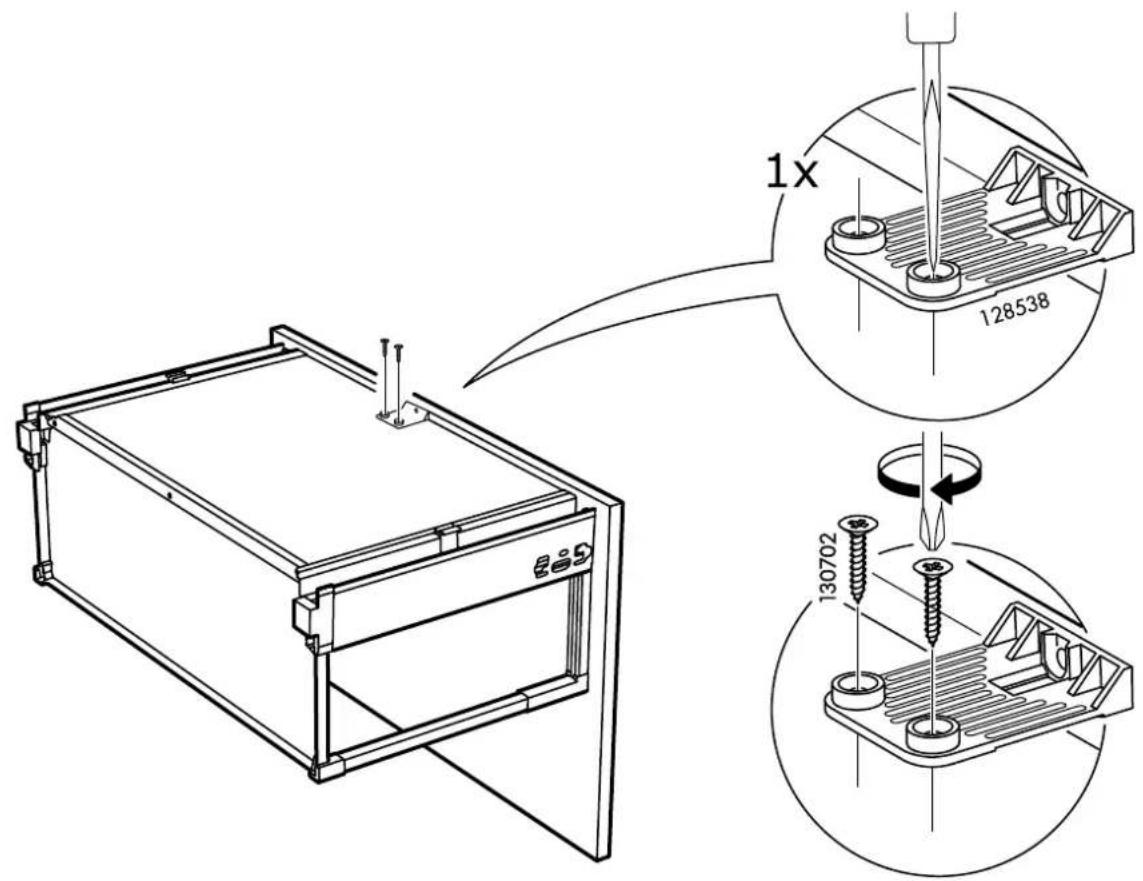

1x 128538 130702

12

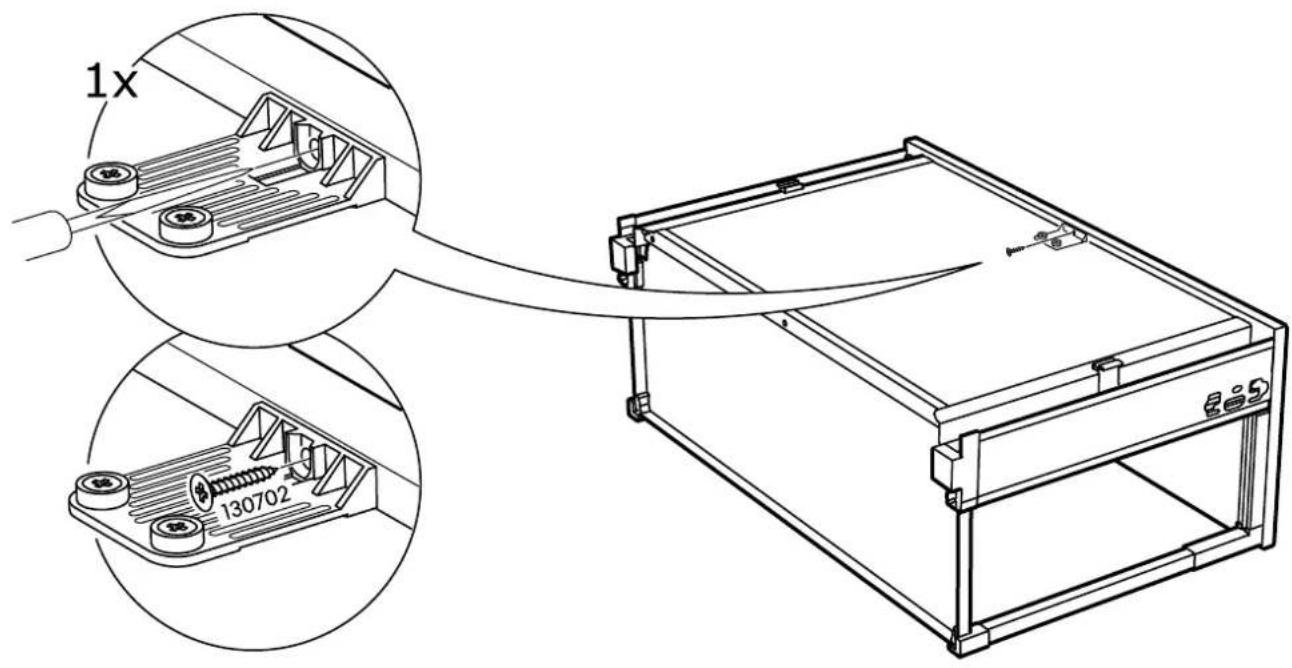

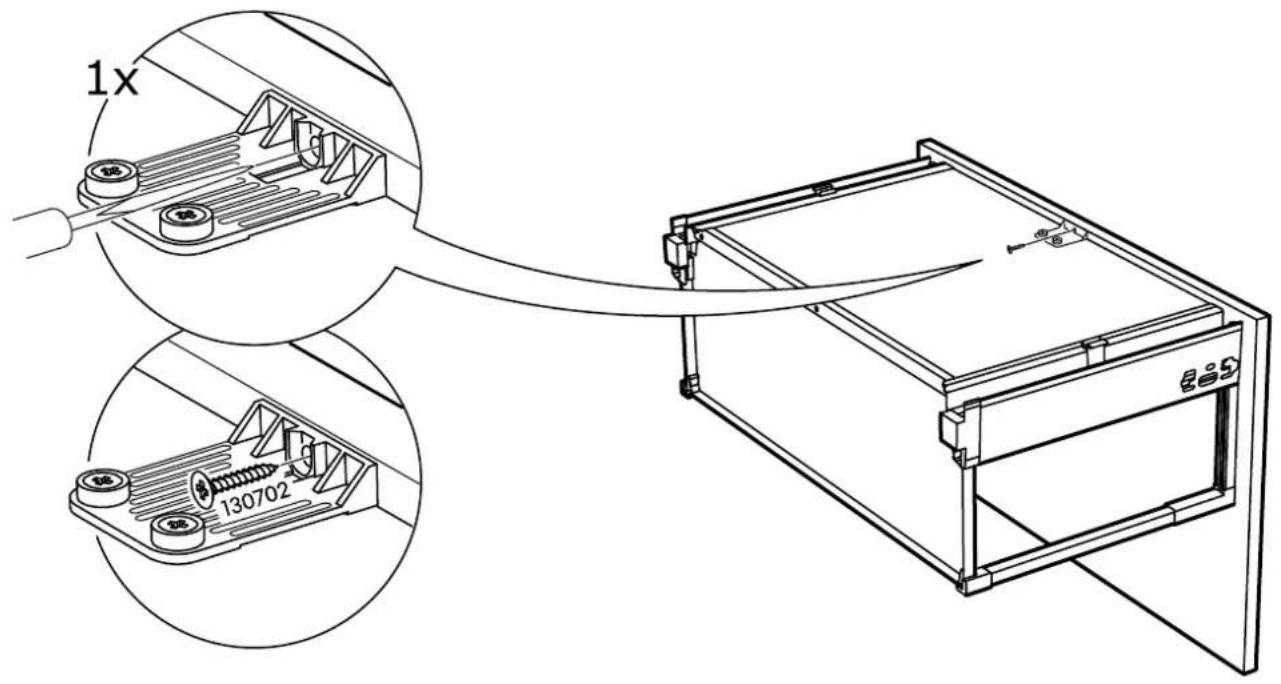

1x 130702

13
IKEA MAXIMERA 402.046.32 - MAXIMERA - 25

14
IKEA MAXIMERA 402.046.32 - MAXIMERA - 26

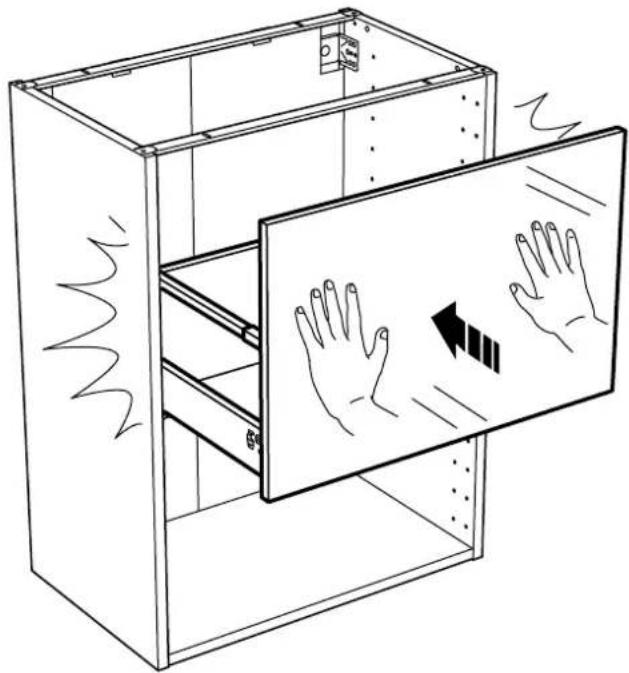

natural_image Line drawing of a cabinet with open door and hand gestures, no text or symbols present

15

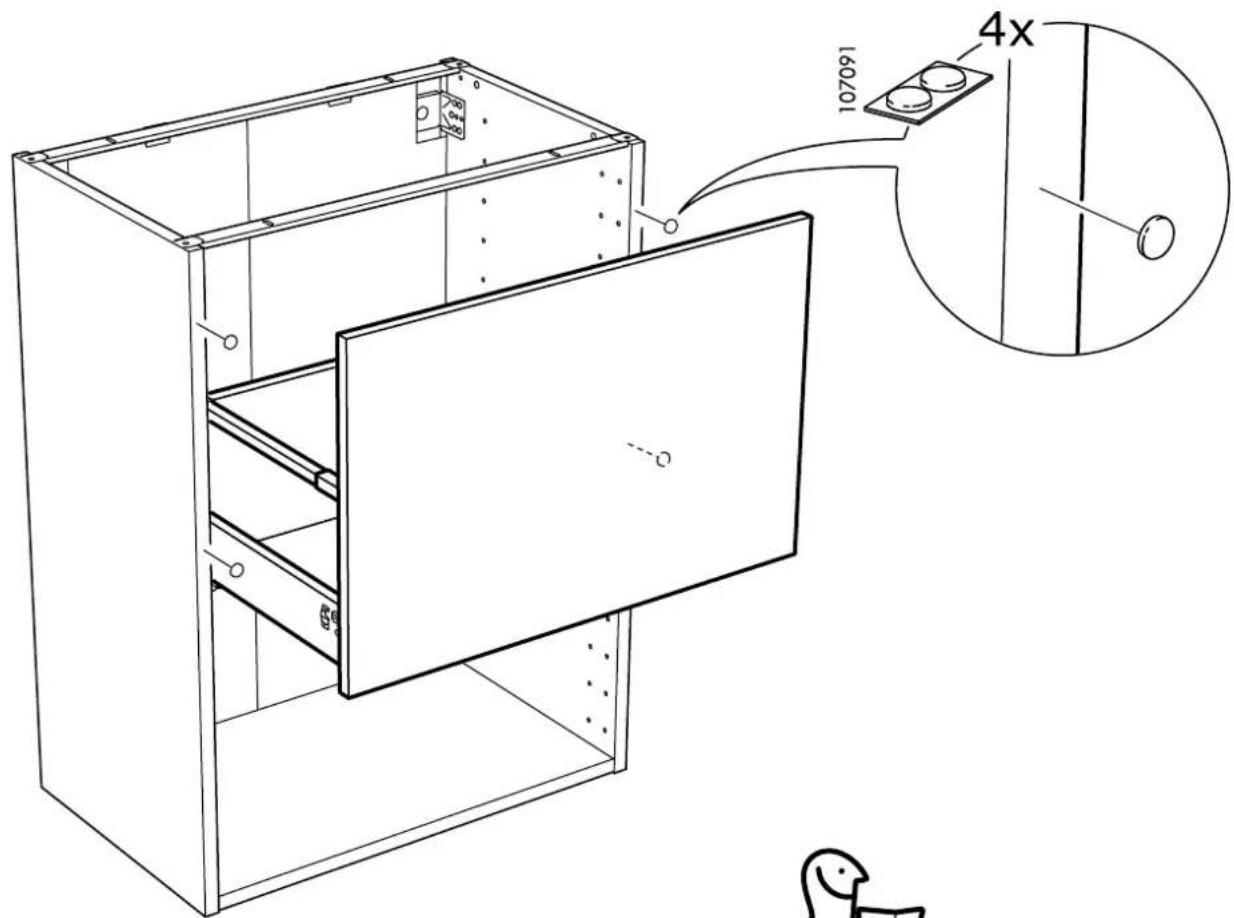

107091 4x

27

IKEA MAXIMERA 402.046.32 - MAXIMERA - 29

natural_image 3D diagram of a rectangular enclosure with internal partition and mounting holes, shown with a downward arrow indicator (no text or symbols)

5
2X 126887 126888

6
2x 126889 126887

7
2x CLICK! CLICK! CLICK!

8
Technical diagram of a mechanical device with labeled parts and cross-sectional views showing 2x magnified detail.

9
2x 147235 147235 147234 CLICK!

10
Technical diagram showing a mechanical assembly with labeled components and directional arrows indicating motion or force.

11
1x 128538 130702

12
1x 130702

13
IKEA MAXIMERA 402.046.32 - MAXIMERA - 38

14
IKEA MAXIMERA 402.046.32 - MAXIMERA - 39

natural_image Line drawing of a cabinet with hand gestures and a panel, no text or symbols present

15
107091 4x 27

5

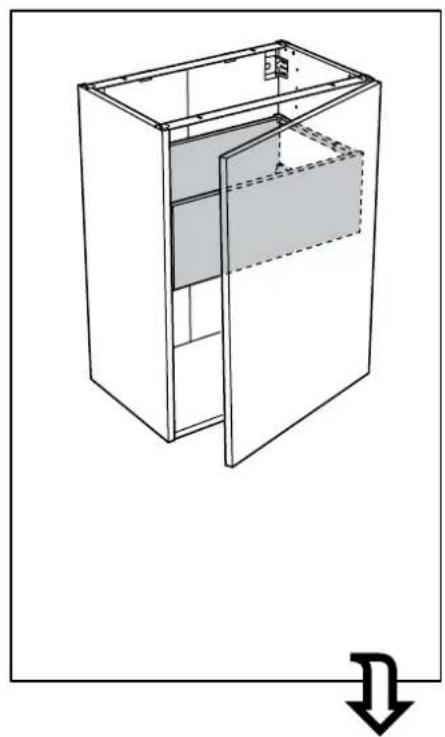

IKEA MAXIMERA 402.046.32 - MAXIMERA - 41

natural_image Technical line drawing of a cabinet with open door and internal partition (no text or symbols)

Technical diagram showing assembly steps with labeled components and a 2x magnified view of a mechanical device.

6
2x 126887

7
CLICK! CLICK! 2x CLICK!

8

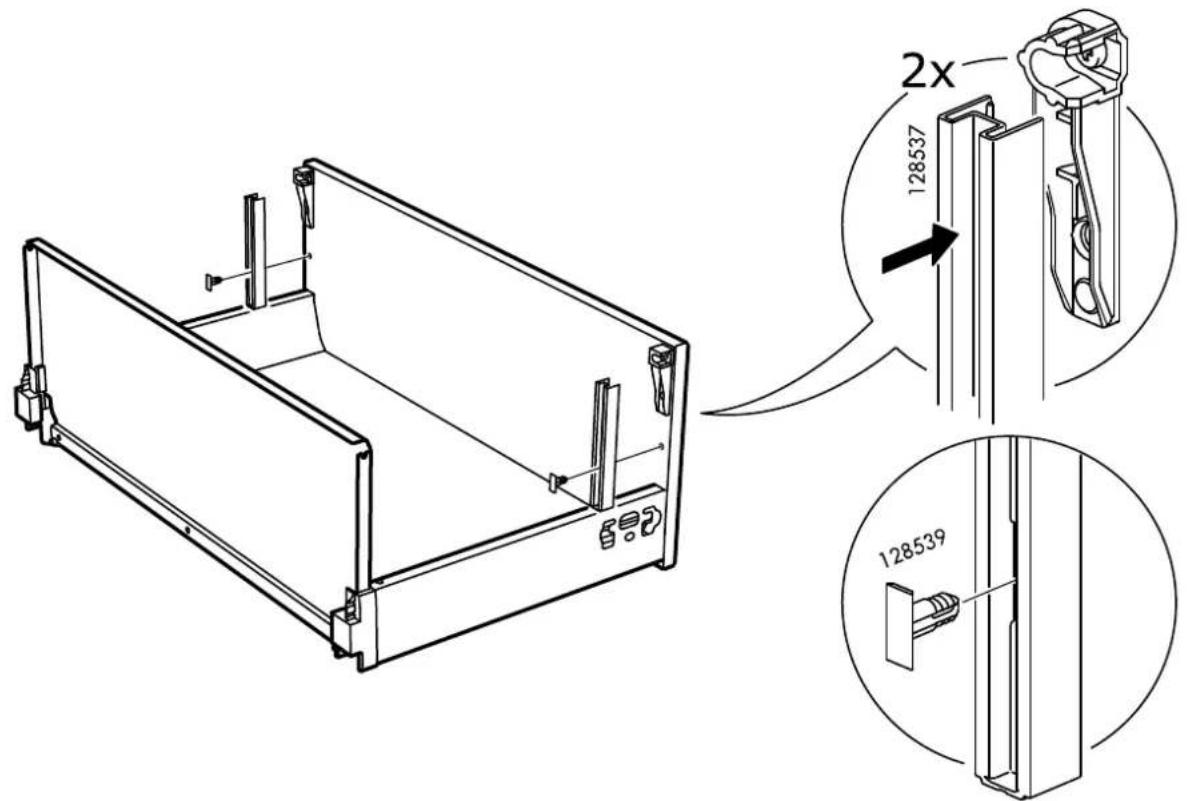

2x 128537 128539

9
2x 147235 147235 147234 CLICK!

10
Technical diagram showing a device with 2x speed measurement and mechanical assembly, including directional arrows and magnified views.

11
1x 128538 130702

12
1x 130702

13

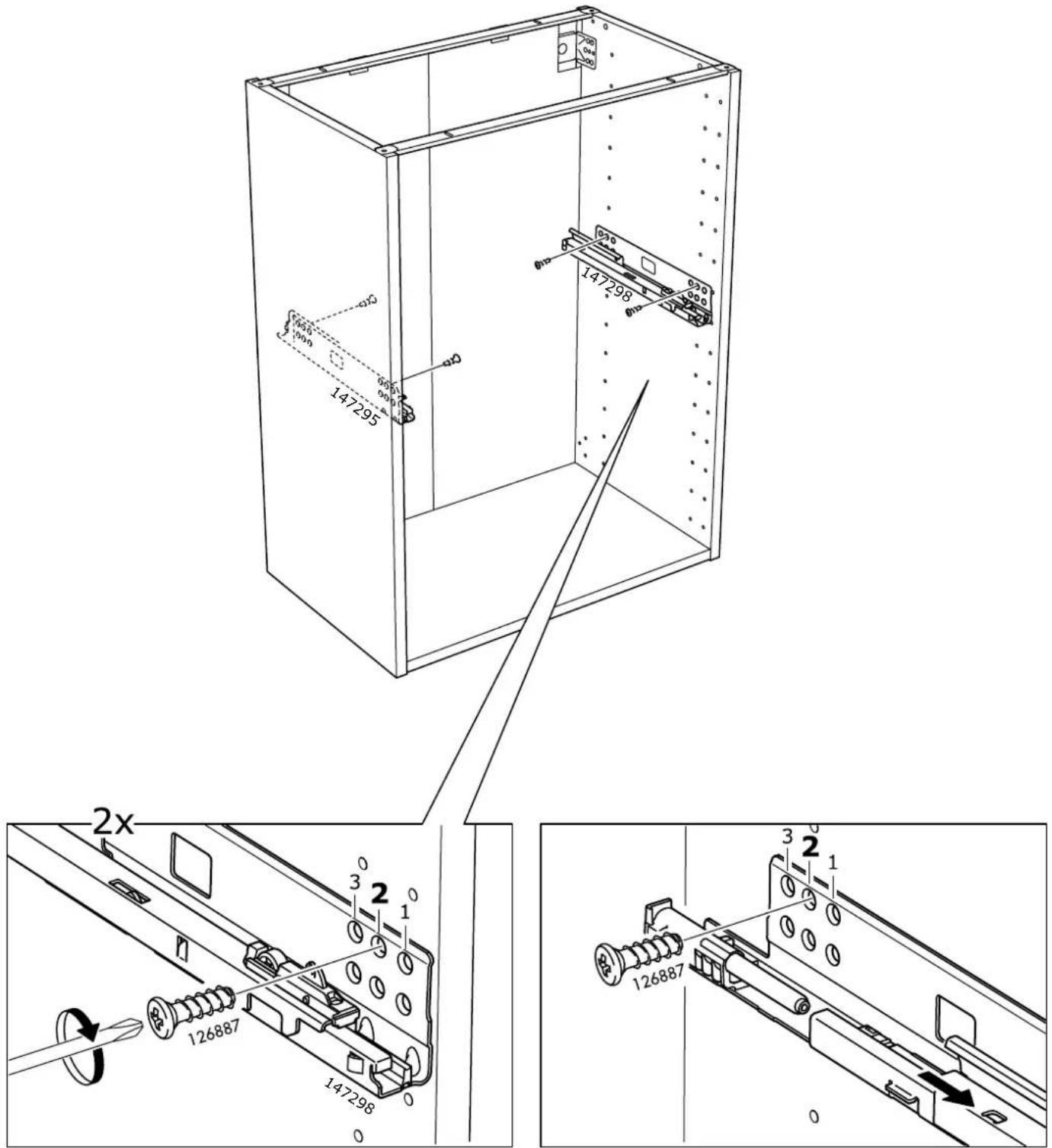

147295 147298 2x 3 2 1 126887 147298 3 2 1 126887

14

IKEA MAXIMERA 402.046.32 - MAXIMERA - 51

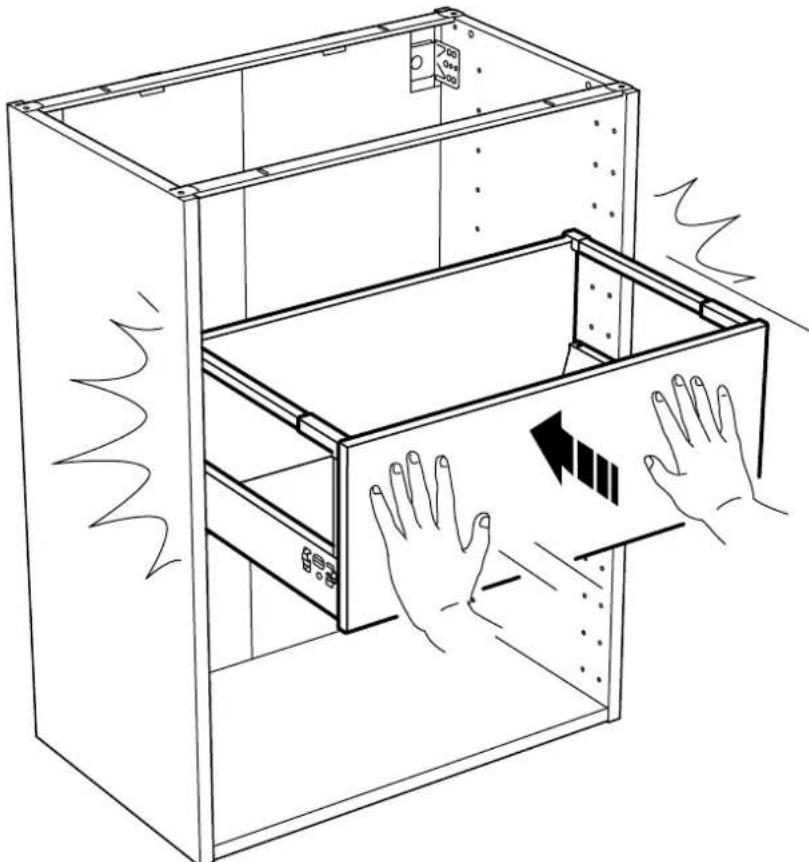

natural_image Line drawing of a cabinet with open door and hand gestures, no text or symbols present

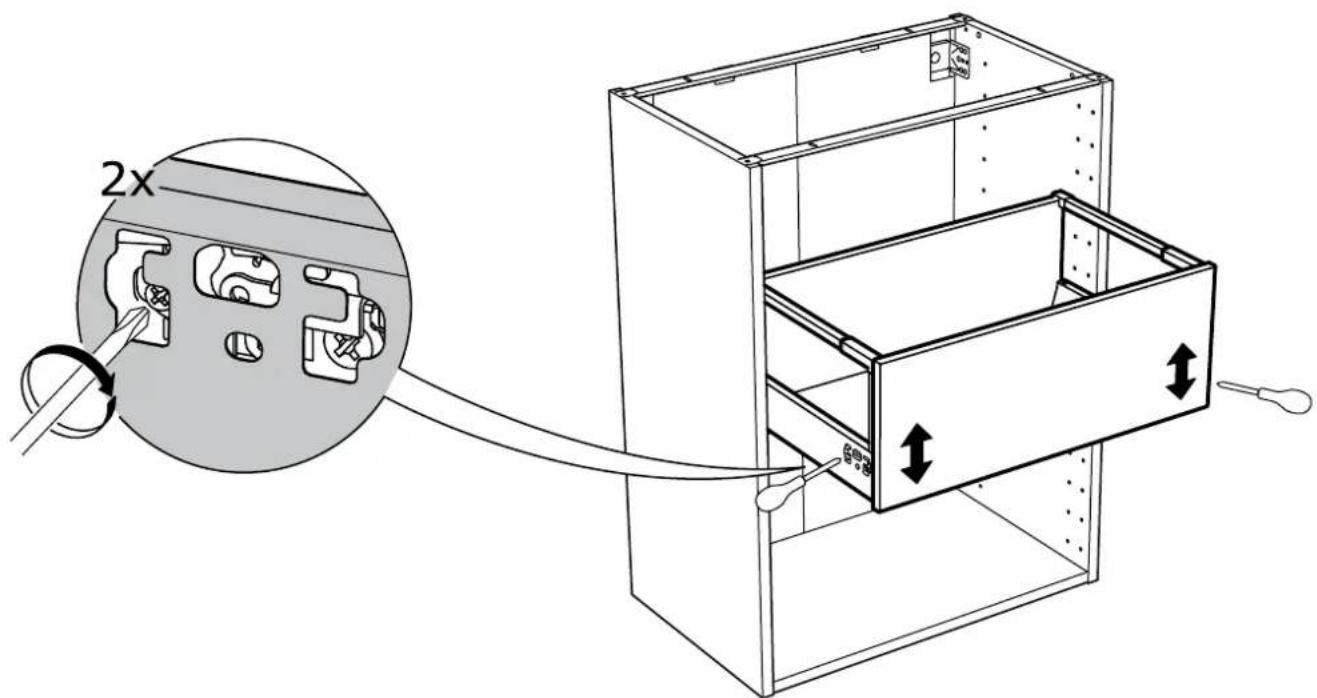

i→

2x

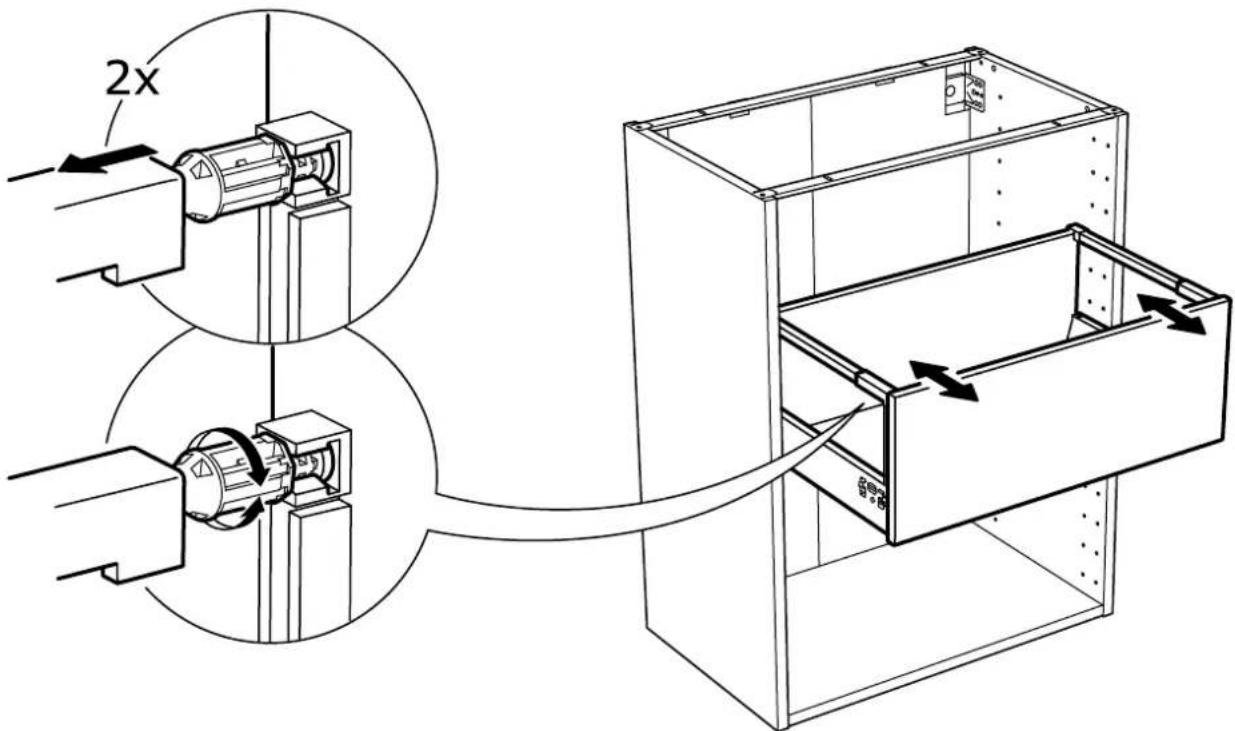

i→

2x

15
5 2x 128535

i

IKEA MAXIMERA 402.046.32 - MAXIMERA - 55

natural_image Diagram showing a structural change from a rectangular frame to a rectangular panel, with an arrow indicating direction (no text or symbols present)

2x

IKEA MAXIMERA 402.046.32 - MAXIMERA - 57

natural_image Technical line drawing of a two-part cabinet or enclosure with internal compartments and mounting holes (no text or symbols)

1

IKEA MAXIMERA 402.046.32 - MAXIMERA - 58

natural_image Line drawing of a person installing or adjusting an open refrigerator cabinet (no text or symbols present)

IKEA MAXIMERA 402.046.32 - MAXIMERA - 59

natural_image Simple line drawing of a folding box with a downward arrow indicating direction (no text or symbols)

1

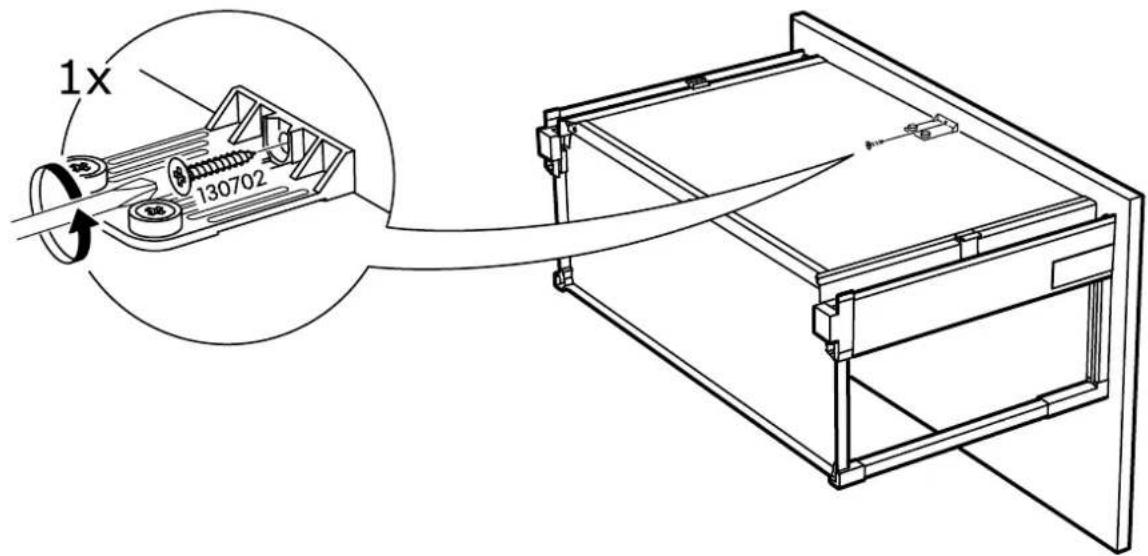

1x 130702

2

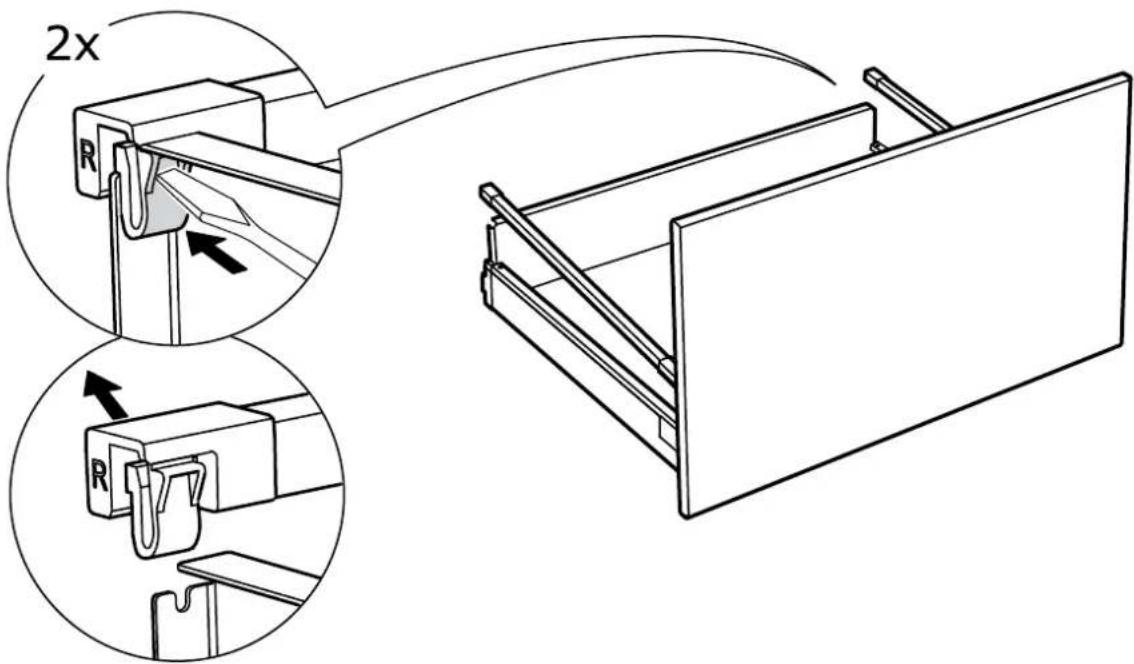

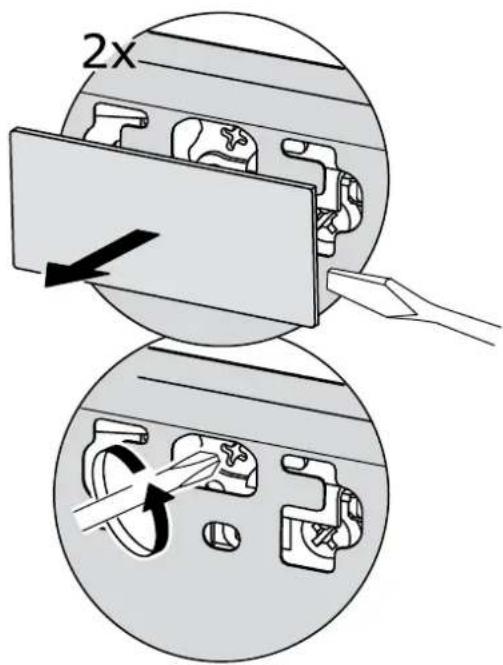

2x R R

3
2x

IKEA MAXIMERA 402.046.32 - MAXIMERA - 63

natural_image Line drawing of a mechanical device with two compartments and a handle (no text or symbols)
