BRUGSANVISNING YGL N.G. 1101 Yellow Garden Line

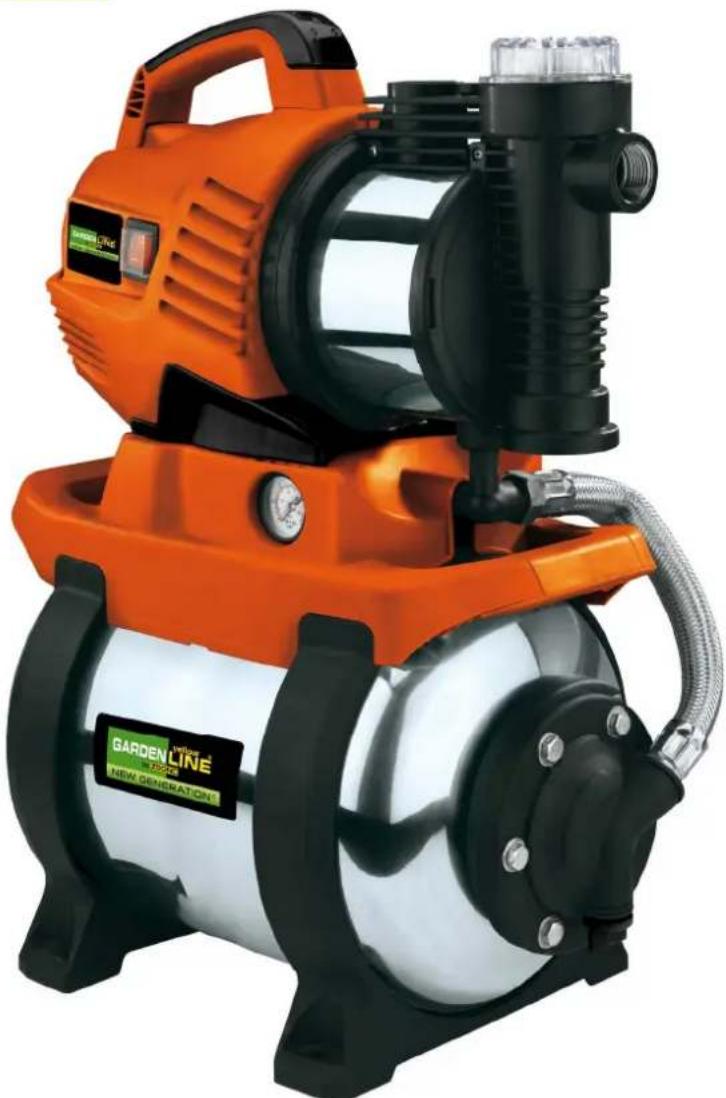

The profi water works unit pumps water from wells and cisterns automatically with stable water pressure. Toilets, washing machines and garden watering are just a few of its numerous applications. The vessel is made of corrosion resistant stainless steel, therefore not rusty colouring of the water supplied. Furthermore the garden pump is equipped with a pre-filter, which prevents that dirt arrives into the pump inside. The unit is powered by a sturdy asynchronous motor with thermal protection. The water works is supplied complete with pressure switch and pressure gauge.

Yellow Garden Line YGL N.G. 1101 - 1

natural_image Orange and black industrial air purifier with attached hose and control panel (no visible text or symbols on device body)

Performance data:
Yellow Garden Line YGL N.G. 1101 - 2

area | H (m) | Q (L/h) | |---|---| | 50 | 48 | | 40 | 4200 | | 30 | 3600 | | 20 | 3000 | | 10 | 2400 | | 0 | 1800 | | -10 | 1200 | | -20 | 800 | | -30 | 400 | | -40 | 100 | | -50 | 0 |

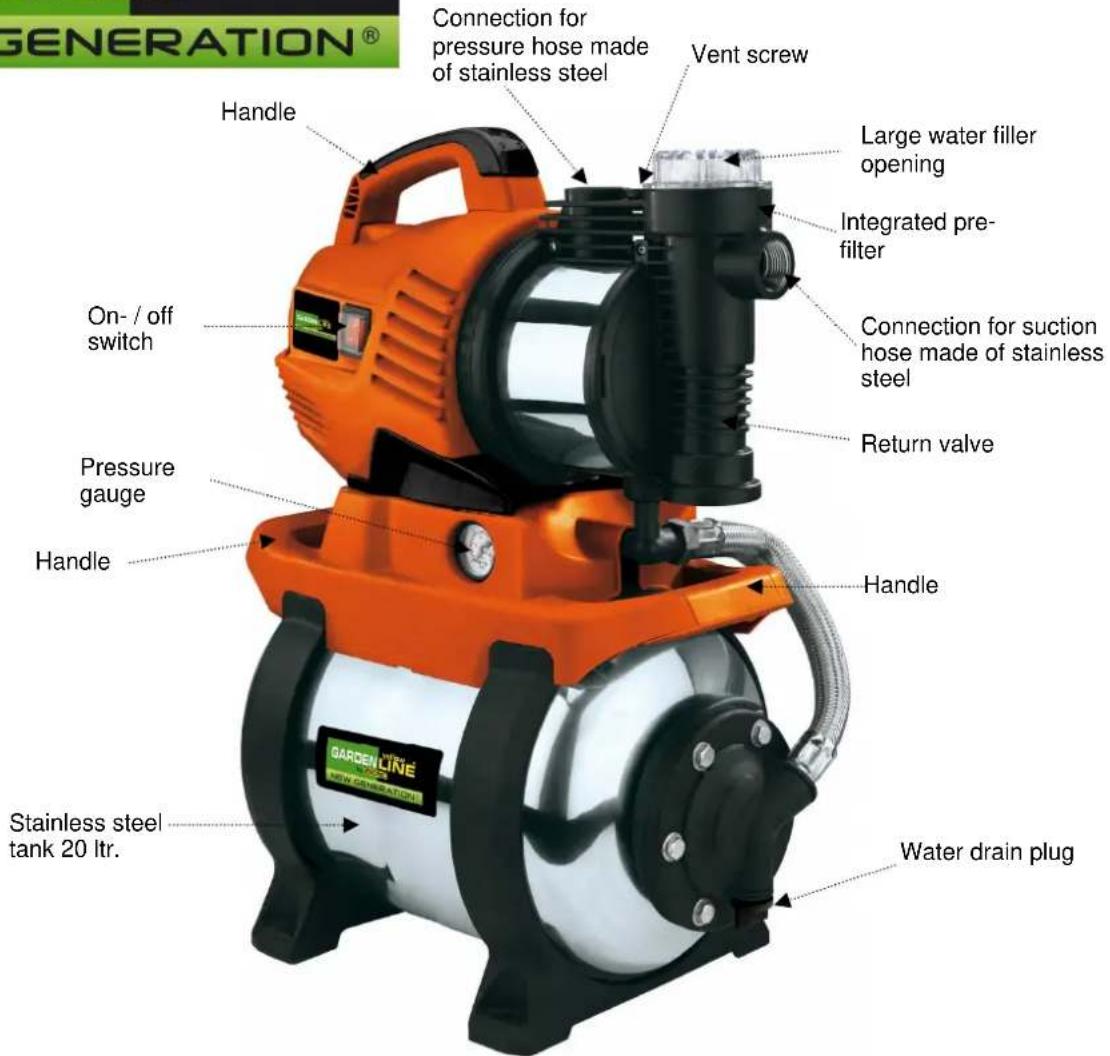

Features

Pressure switch
Pressure gauge
■ Stainless steel tank 20 ltr.
Water drain plug
■ On- and Off switch
Return valve
■ Integrated pre-filter
3 handles
Vent screw
■ Large water filler opening

■ Connection for pressure hose made of stainless steel

■ Connection for suction hose made of stainless steel

GENERATION® Connection for pressure hose made of stainless steel Vent screw Handle Large water filler opening Integrated pre- filter On-/ off switch Pressure gauge Handle Connection for suction hose made of stainless steel Return valve Handle Stainless steel tank 20 ltr. Water drain plug

CE

As special accessory available:

Suction hose 4 m plastic

Suction hose 7 m plastic

Suction hose 4 m brass

Suction hose 4 m high-quality plastic

Suction hose 7 m brass

Suction hose 7 m high-quality plastic

Art.No.:

41.736.10

41.736.20

41.736.30

41.736.35

41.736.40

41.736.45

Logistic Information
Technical Data

Type:YGL N.G. 1101■ Mains: 230 V ~ 50 Hz
Art.-No.:41.734.41■ Power: 1,100 W
Ident-No.:01018■ Delivery capacity max.: 4,200 l/h
Bar code:4006825 555219■ Delivery height max.: 48 m
Packing:545 x 350 x 700 mm■ Pressure max.: 4.8 bar
■ Activation pressure max.: 1.5 bar
Sales unit:1 pc■ Cut-off pressure max.: 3 bar
20":207 pcs■ Tank volume: 20 l
40":423 pcs■ Suction and pressure connection: 1" female thread
40" HC:478 pcs■ Water temperature max.: 35 °C
Net weight:16.1 kg■ Suction height max.: 8 m
Gross weight:18.5 kg
