MAINTENANCE MANUAL

BASIC VERSION

Empty white rectangle with a thin purple corner line, no text or symbols present.

1 IQ all-in-one 4
2 IQ Frame 6
3 IQ Carrycot 19
4 IQ Seat unit 34
5 IQ Buggy 47
6 IQ Accessories 58

IQ ALL-IN-ONE

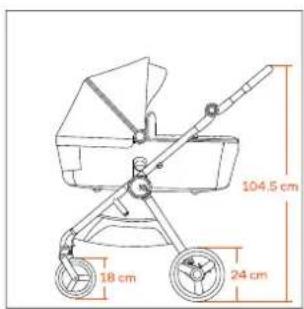

Line drawing of a stroller with wheels and a 54.8 cm dimension label (no other text or symbols)

Line drawing of a stroller with wheels and a 48.9 cm dimension label (no other text or symbols)

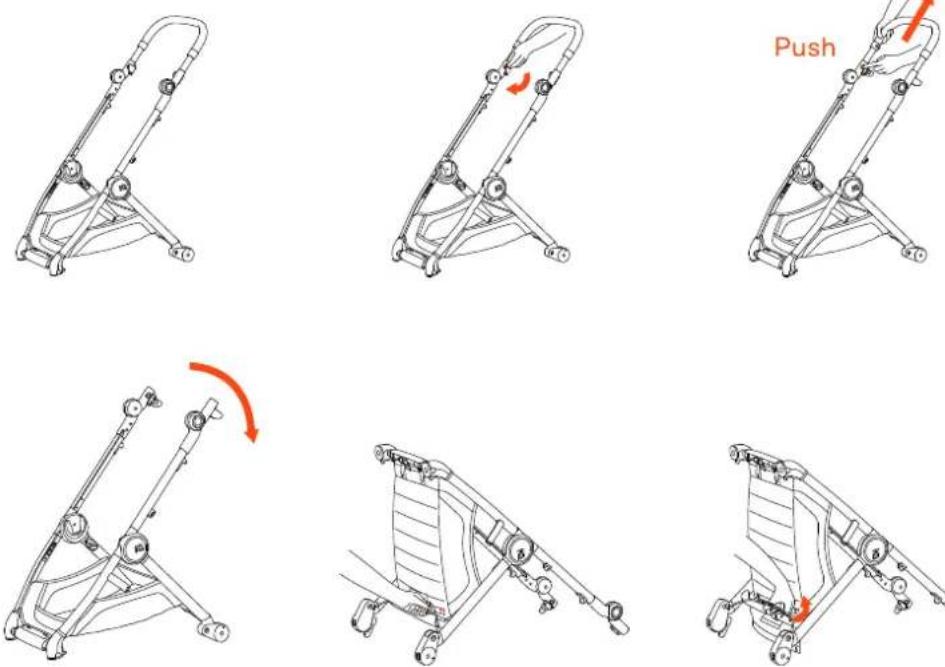

Folding of the frame

IQ FRAME

Line drawing of a two-wheeled cart with wheels and handle (no text or symbols)

Illustration of a stroller with wheels and an orange curved arrow indicating rotation (no text or symbols)

Line drawing of a two-wheeled stroller with wheels and handle (no text or symbols)

Folding of the frame

IQ FRAME

Line drawing of a two-wheeled baby stroller with wheels and handle (no text or symbols)

Line drawing of a two-wheeled cart with wheels and a handle (no text or symbols)

Illustration of a hand using a stroller to lift a two-wheel, with a red arrow indicating motion direction (no text or symbols)

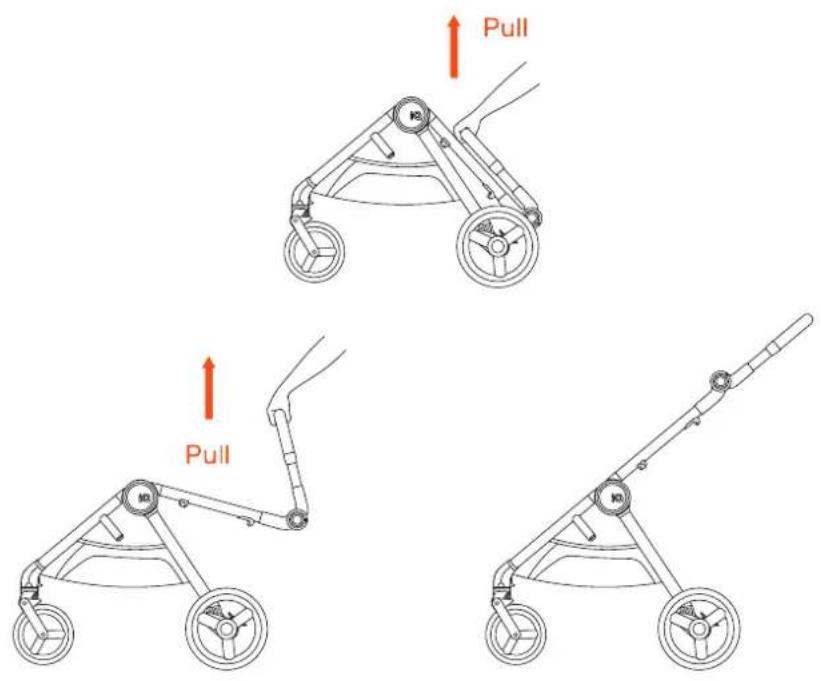

Unfolding of the frame

IQ FRAME

Diagram of a hand operating a wheeled cart with wheels, showing motion direction (no text or symbols)

Line drawing of a two-wheeled bicycle with wheels and suspension components (no text or symbols)

Unfolding of the frame

IQ FRAME

9

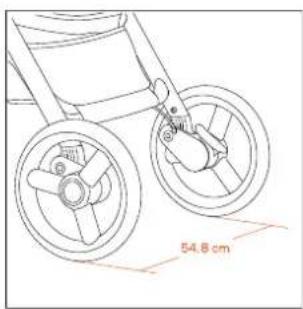

Attaching of the front wheels

IQ FRAME

Locking front swivel wheels

IQ FRAME

Line drawing of a bicycle with wheels and a red arrow indicating motion (no text or symbols)

Line drawing of a stroller with wheels and handle (no text or symbols)

Attaching of the rear wheels

IQ FRAME

Line drawing of a stroller with wheels and a hand holding the wheel (no text or symbols)

Line drawing of a hand holding a stroller with a red arrow indicating motion (no text or symbols)

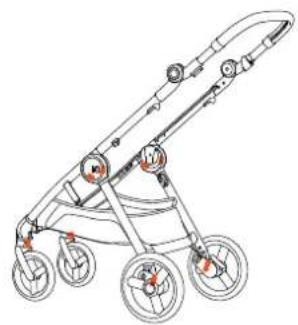

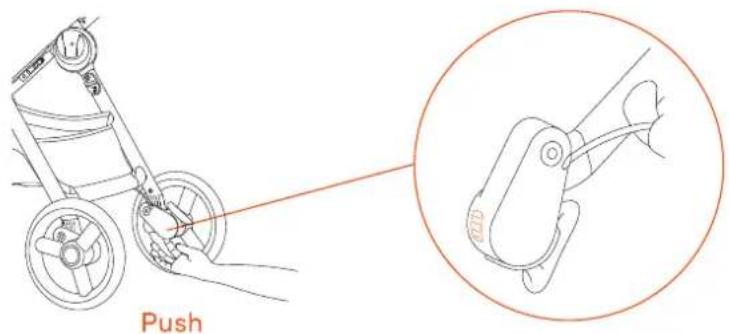

Brakes

Shock absorption

IQ FRAME

Line drawing of a stroller with hand operating the wheel (no text or symbols)

Line drawing of a stroller with wheels and control knobs (no text or symbols)

Handle regulation

Line drawing of a stroller with wheels and handle, showing motion direction (no text or symbols)

13

Disconnecting/connecting of the shopping basket

IQ FRAME

Line drawing of a bicycle's wheel and suspension components (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a bicycle drivetrain with a hand adjusting the wheel (no text or symbols)

Line drawing of a person's seatbelt with two wheels and a red arrow indicating direction (no text or symbols)

Line drawing of a hand holding a tool with a red arrow indicating direction (no text or symbols)

Carry handle

IQ FRAME

Line drawing of a bicycle seat with a highlighted arm and handle (no text or symbols)

Line drawing of a mechanical assembly with a red arrow indicating a specific component (no text or symbols present)

Line drawing of a mechanical assembly with a highlighted orange section (no text or symbols)

Line drawing of a baby walker with hand and wheels (no text or symbols)

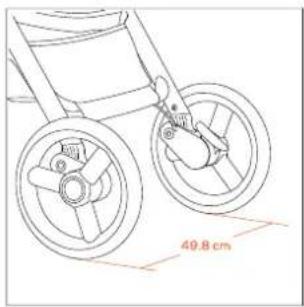

Frame width adjustment

IQ FRAME

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Frame width adjustment

IQ FRAME

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with a red circular arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with wheels and a handle (no text or symbols)

Frame width adjustment

IQ FRAME

Technical line drawing of a mechanical device with gears and levers (no text or symbols)

Mechanical device with rotating arm and guide rails (no text or symbols)

Diagram of a hand using a lever mechanism to lift a cart, with a red arrow indicating motion direction (no text or symbols present)

Mechanical device diagram showing a lever mechanism with a red curved arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical device with no visible text or symbols

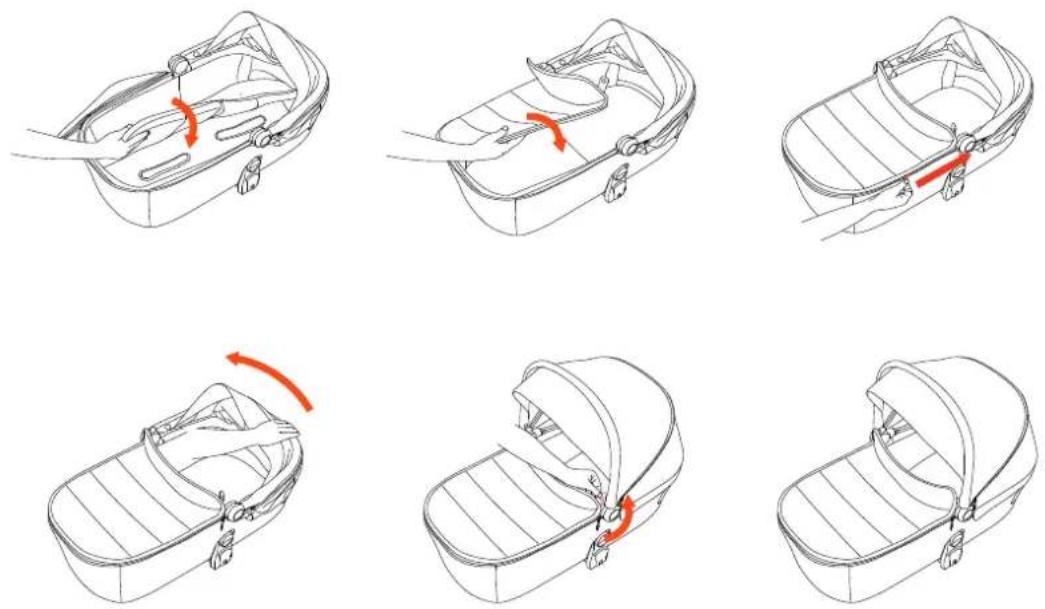

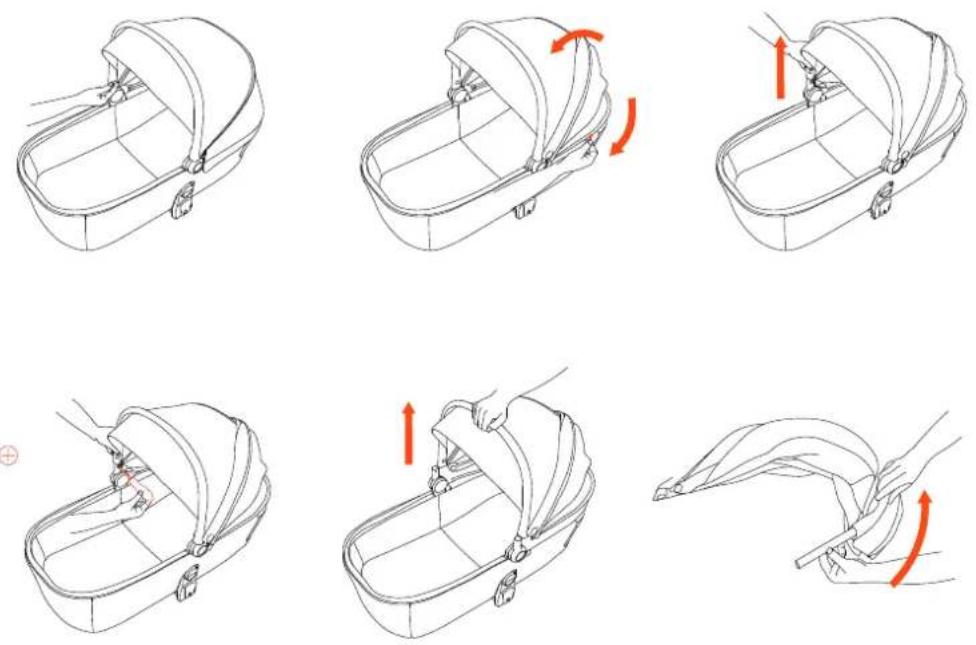

Unpacking of the carrycot

IQ CARRYCOT

Line drawing of a helmet with straps and straps (no text or symbols)

Line drawing of a person's seatbelt being adjusted with a red arrow indicating rotation (no text or symbols)

Diagram of a car seat with a red arrow indicating rotation (no text or symbols)

Line drawing of a car interior with red directional arrows indicating movement or flow (no text or symbols)

Unpacking of the carrycot

IQ CARRYCOT

Line drawing of a hand holding a device with a red arrow indicating the handle (no text or symbols)

Line drawing of a car interior with a hand holding the seat area and a red arrow indicating direction (no text or symbols)

Line drawing of a car interior frame with a red directional arrow indicating movement (no text or symbols)

Line drawing of a car's side panel with a red curved arrow indicating rotation (no text or symbols)

Line drawing of a baby car seat with a red arrow indicating the seat area (no text or symbols)

Line drawing of a baby crib with a wide canopy and side arm (no text or symbols)

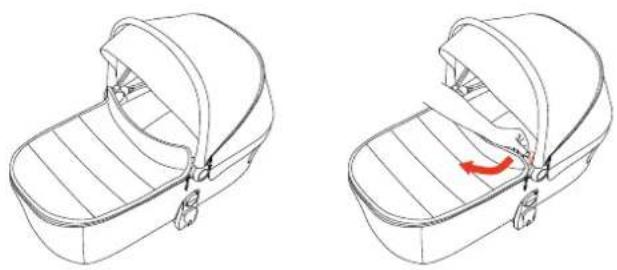

Folding of the carrycot

IQ CARRYCOT

Line drawings of a baby stroller with a red arrow indicating the fold change (no text or symbols present)

Three-step line drawings of a baby car seat with red arrows indicating movement or force (no text or symbols)

Folding of the carrycot

IQ CARRYCOT

Line drawing of a box with a handle and internal compartments, no text or symbols present

Line drawing of a car seat with a handle and seatbelt, showing a red arrow indicating direction (no text or symbols)

Line drawing of a mechanical component with red curved arrows indicating rotation (no text or symbols)

Line drawing of a closed-top computer case with a strap (no text or symbols)

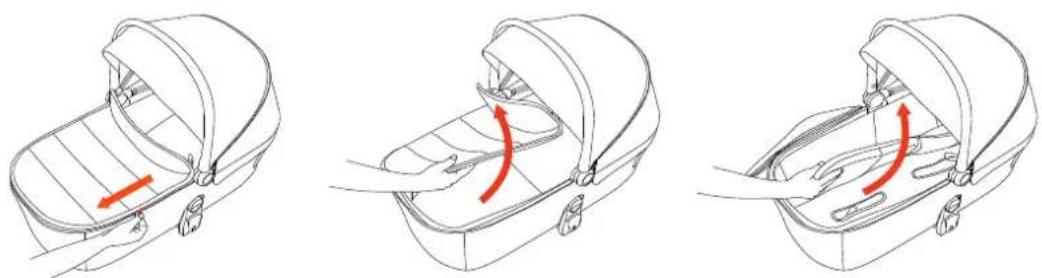

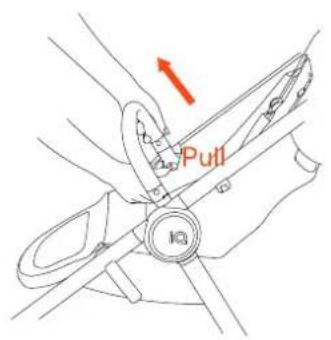

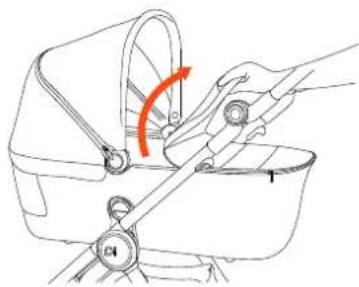

Unfolding of the carrycot

IQ CARRYCOT

Line drawing of a closed-top computer mouse (no text or symbols)

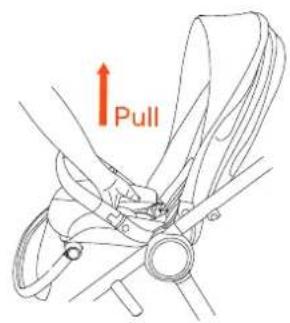

Pull

Line drawing of a shoe with a red arrow indicating rotation (no text or symbols)

Line drawing of a car interior with a hand holding a tool, showing no text or symbols

Line drawing of a hand holding a tool inside a container with an orange arrow indicating motion (no text or symbols)

Unfolding of the carrycot

IQ CARRYCOT

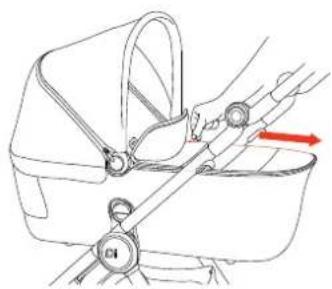

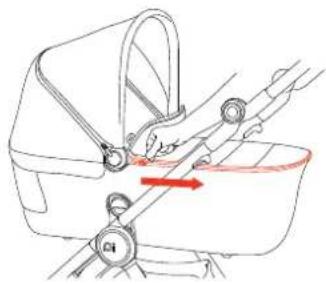

Attachment to the frame

IQ CARRYCOT

Line drawing of a hand holding a curved object with an arrow indicating direction (no text or symbols)

Line drawing of a baby stroller with hand and wheels, no text or symbols present

Line drawing of a baby stroller with wheels and handle (no text or symbols)

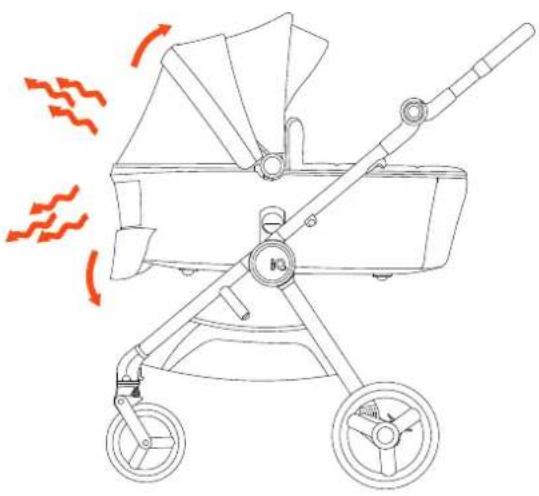

Ventilation

IQ CARRYCOT

Line drawing of a baby stroller with wheels and fan blades, showing red motion arrows (no text or symbols)

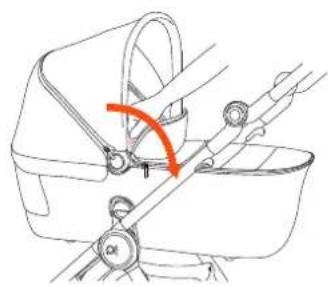

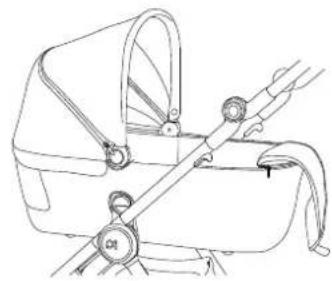

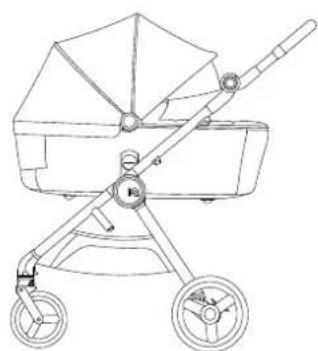

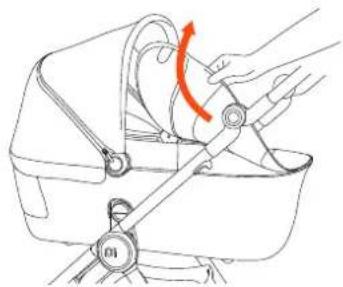

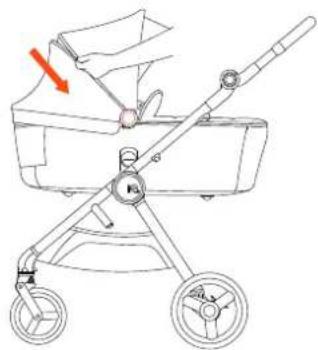

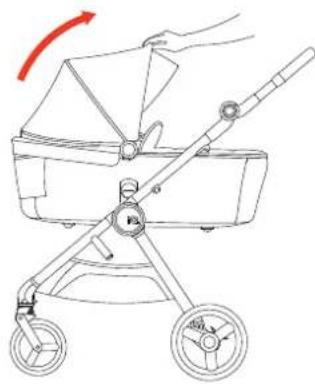

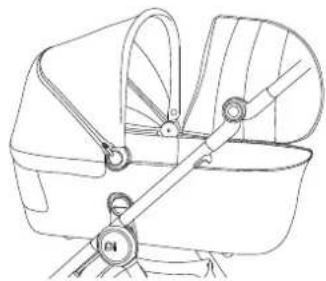

Carrycot's hood adjustment

IQ CARRYCOT

Line drawing of a baby stroller with wheels and a handle, no text or symbols present

Line drawing of a baby stroller with wheels and a handle, showing no text or symbols

Line drawing of a baby stroller with wheels and a handle, no text or symbols present

Carrycot's hood adjustment

IQ CARRYCOT

Line drawing of a baby stroller with wheels and a handle, showing no text or symbols

Line drawing of a baby stroller with a hand holding the basket and a red arrow indicating rotation (no text or symbols)

Line drawing of a baby stroller with two wheels and a handle (no text or symbols)

Carrycot's cover attachment

IQ CARRYCOT

Line drawing of a mechanical device with a red curved arrow indicating rotation or adjustment (no text or symbols)

Line drawing of a car interior with hand positioning and red directional arrow indicating motion (no text or symbols)

Line drawing of a hand using a tool to lift a bucket, with no text or symbols present.

Line drawing of a baby stroller with handle and seat (no text or symbols)

Carrycot's cover attachment

IQ CARRYCOT

Line drawing of a hand holding a bicycle seatbelt with a red arrow indicating motion (no text or symbols)

Line drawing of a hand using a tool to lift a bucket, with an orange arrow indicating rotation (no text or symbols)

Line drawing of a baby stroller with adjustable arms and legs (no text or symbols)

Carrycot's cleaning

IQ CARRYCOT

Carrycot's cleaning

IQ CARRYCOT

Line drawing of a small boat with a red arrow indicating direction, no text or symbols present

Line drawing of a small boat with red arrows indicating direction, no text or symbols present

Technical line drawing of a car interior with red directional arrows indicating movement or force (no text or symbols)

Carrycot's cleaning

IQ CARRYCOT

Line drawing of a person adjusting a small boat with a red arrow indicating motion (no text or symbols)

Line drawing of a small boat hull with a person standing on it (no text or symbols)

Line drawing of a small boat with a person standing on it, showing structural components and a red arrow indicating direction (no text or symbols)

Attachment to the frame

IQ SEAT UNIT

Line drawing of a baby stroller with directional arrow indicating motion (no text or symbols)

Line drawing of a baby stroller with two wheels and a fan blade (no text or symbols)

Line drawing of a baby stroller with four wheels and a handle (no text or symbols)

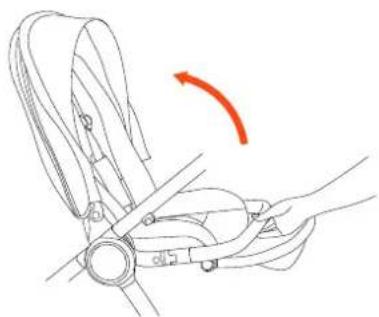

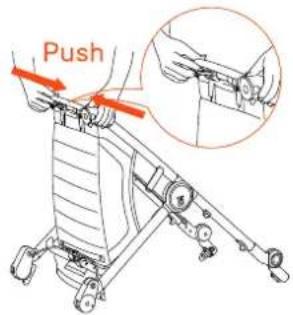

Folding of the frame with seat

IQ SEAT UNIT

Line drawing of a baby stroller with two wheels and a fan blade (no text or symbols)

Diagram of a two-wheeled cart with wheels and a lever, showing rotational motion (no text or symbols)

Diagram of a stroller with two wheels and a handle, showing rotational motion (no text or symbols)

Line drawing of a car seatbelt with a hand adjusting the seat (no text or symbols)

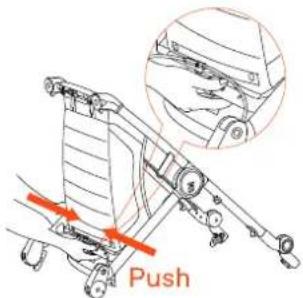

Folding of the frame with seat

IQ SEAT UNIT

Line drawing of a baby stroller with two wheels and a central fan (no text or symbols)

Line drawing of a baby stroller with two wheels and a handle (no text or symbols)

Line drawing of a two-wheeled stroller with wheels and a curved arrow indicating rotation (no text or symbols)

Folding of the frame with seat

IQ SEAT UNIT

Line drawing of a two-wheeled cart with wheels and a handle, showing rotational motion (no text or symbols)

Line drawing of a hand gripping a bicycle seat with a red arrow indicating rotation (no text or symbols)

Line drawing of a baby stroller with two wheels and a handle (no text or symbols)

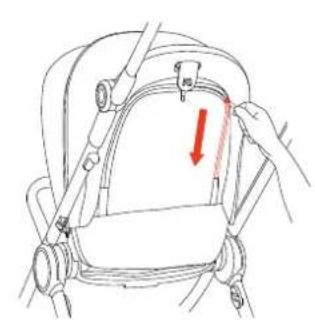

Seat unit's hood adjustment

IQ SEAT UNIT

Line drawing of a stroller with wheels and handle (no text or symbols)

Line drawing of a stroller with a handwheel and fan blade, showing motion direction (no text or symbols)

Line drawing of a stroller with wheels and a central hub, showing no text or symbols

Line drawing of a baby stroller with wheels and a curved arrow indicating rotation (no text or symbols)

Line drawing of a stroller with directional arrows indicating motion (no text or symbols)

Line drawing of a baby stroller with fan-shaped blades and wheels (no text or symbols)

Seat unit's backrest adjustment

IQ SEAT UNIT

Line drawing of a stroller with two wheels and a central fan (no text or symbols)

Line drawing of a stroller with wheels and a hand holding a handle, showing no text or symbols

Line drawing of a stroller with wheels and handle (no text or symbols)

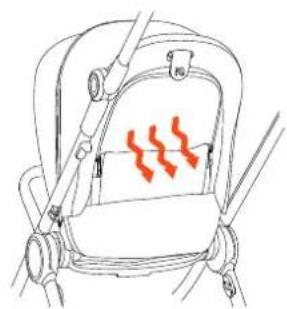

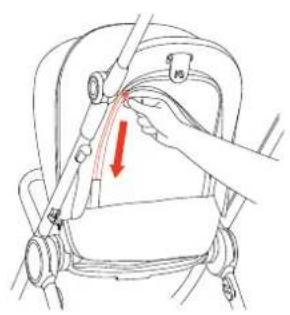

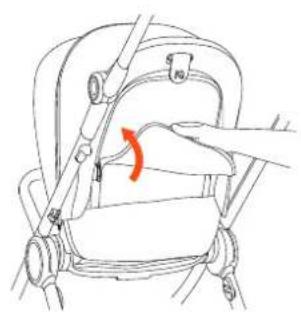

Ventilation of the seat unit's backrest

IQ SEAT UNIT

Line drawing of a person's seatbelt with a red arrow indicating the seatbelt buckle (no text or symbols present)

Diagram of a hand adjusting a mechanical component with a red arrow indicating direction (no text or symbols present)

Line drawing of a hand inserting a cable into a seatbelt, showing the cable being inserted (no text or symbols)

Line drawing of a backpack seat with red smoke or heat symbols indicating airflow or heat (no text or labels)

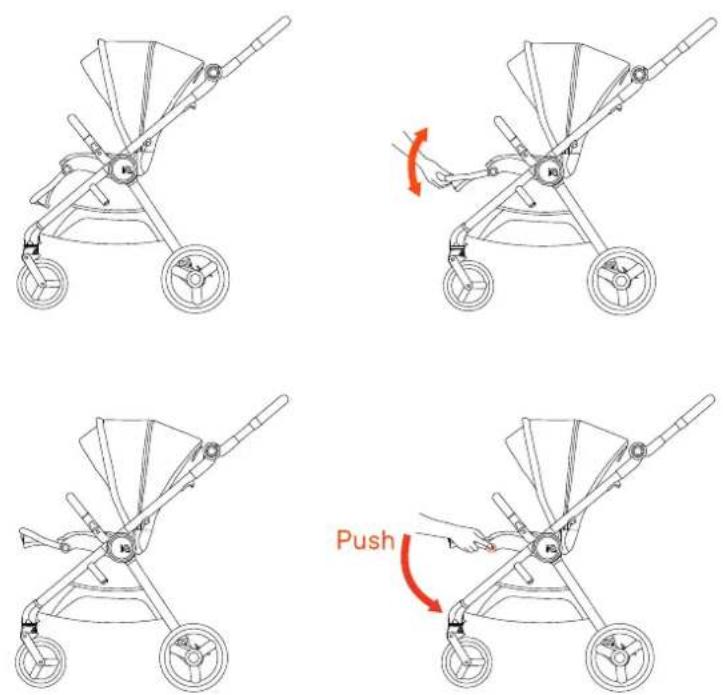

Footrest adjustment

IQ SEAT UNIT

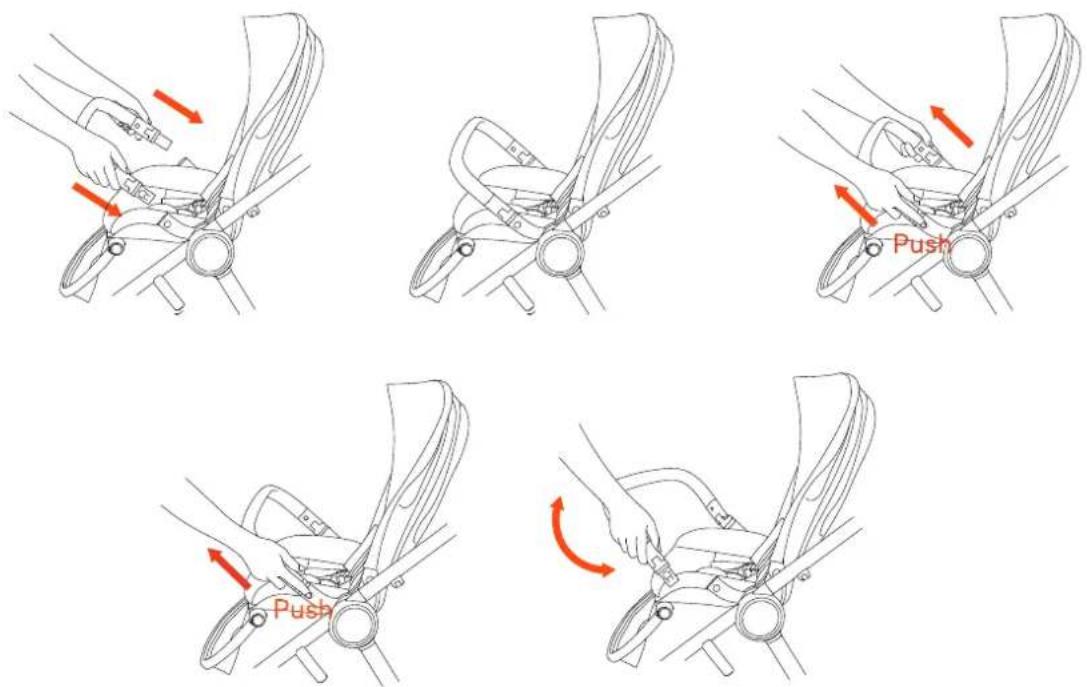

Seat unit's security barrier

IQ SEAT UNIT

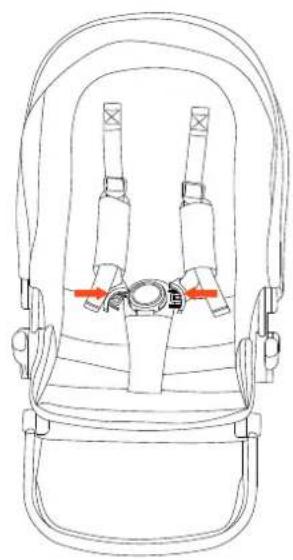

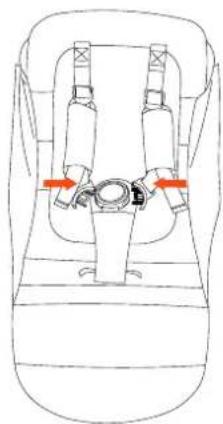

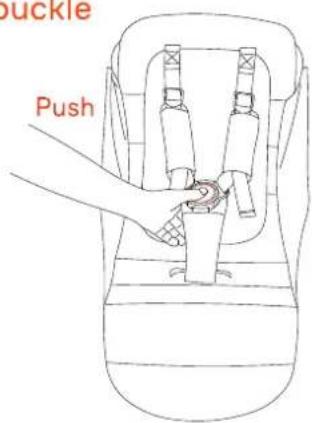

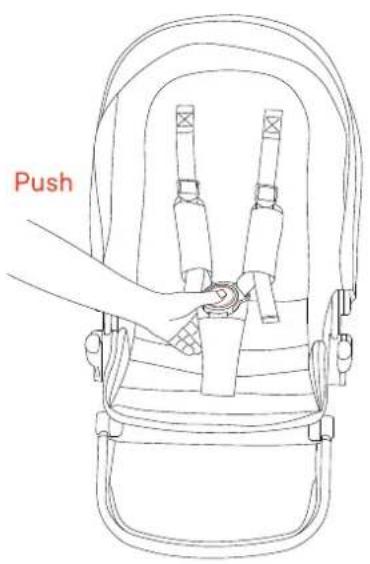

Safety belts buckle

IQ SEAT UNIT

Line drawing of a baby car seat with straps and buttons (no text or symbols)

Safety belts adjustment

IQ SEAT UNIT

Line drawing of a baby seatbelt with a hand adjusting the seat (no text or symbols)

Line drawing of a baby car seat with a hand adjusting the seat (no text or symbols)

Seat unit's cleaning

IQ SEAT UNIT

Line drawing of a car interior with steering wheel and dashboard (no text or symbols)

Line drawing of a car seatbelt with a hand adjusting the seat (no text or symbols)

Line drawing of a hand holding a small object, possibly a device or tool, with no visible text or symbols.

Line drawing of a hand holding a small object next to a backpack with a red curved arrow indicating rotation (no text or symbols)

Line drawing of a hand pressing down on a backpack with a red arrow indicating the point of pressure (no text or symbols)

Line drawing of hands holding a cable with a red arrow indicating direction (no text or symbols)

Seat unit's cleaning

IQ SEAT UNIT

Line drawing of a mechanical device with a hand pressing a button (no text or symbols)

Line drawing of a hand pressing down on a mechanical device component (no text or symbols)

Line drawing of a hand gripping a mechanical arm with a red arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a mechanical device with a red arrow indicating rotation (no text or symbols)

Line drawing of a mechanical device with a hand holding a handle and a red arrow indicating direction (no text or symbols)

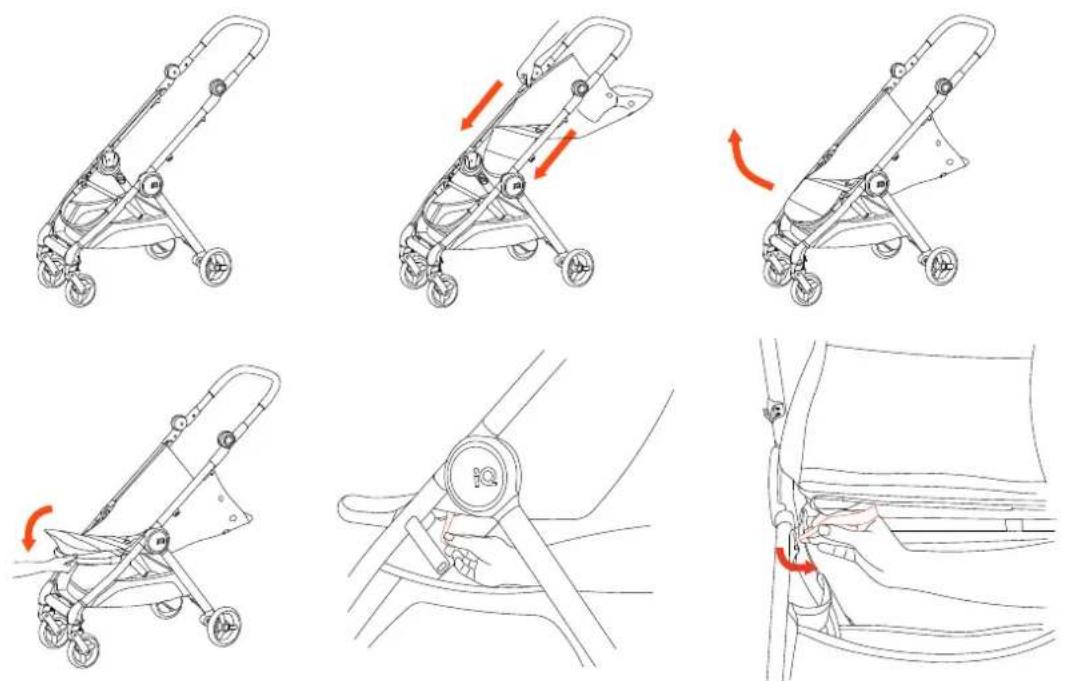

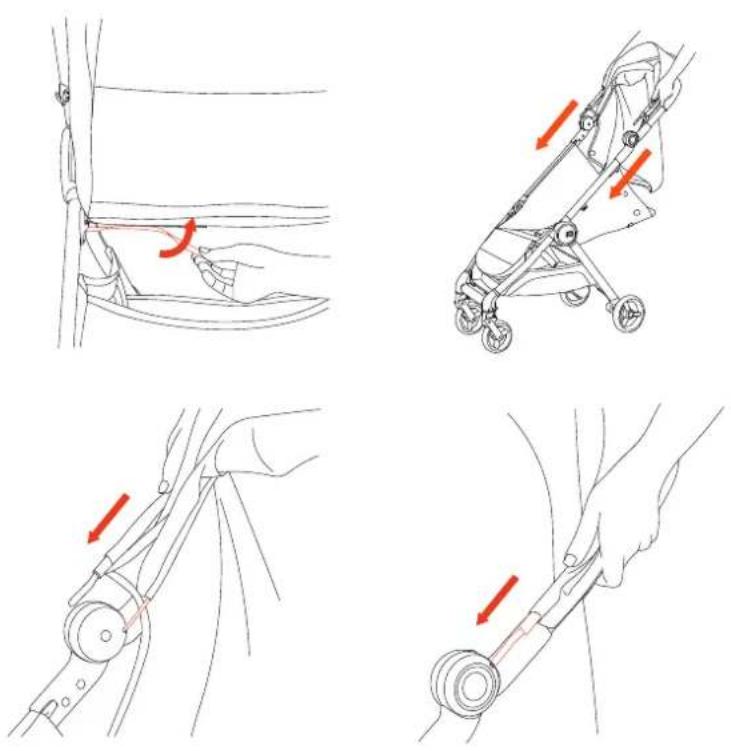

Softgoods assembling

IQ BUGGY

Softgoods assembling

IQ BUGGY

Softgoods assembling

IQ BUGGY

Line drawing of a stroller with wheels and a red curved arrow indicating rotation (no text or symbols)

Line drawing of a stroller with wheels and a red arrow indicating motion (no text or symbols)

Line drawing of a baby stroller with wheels and handle (no text or symbols)

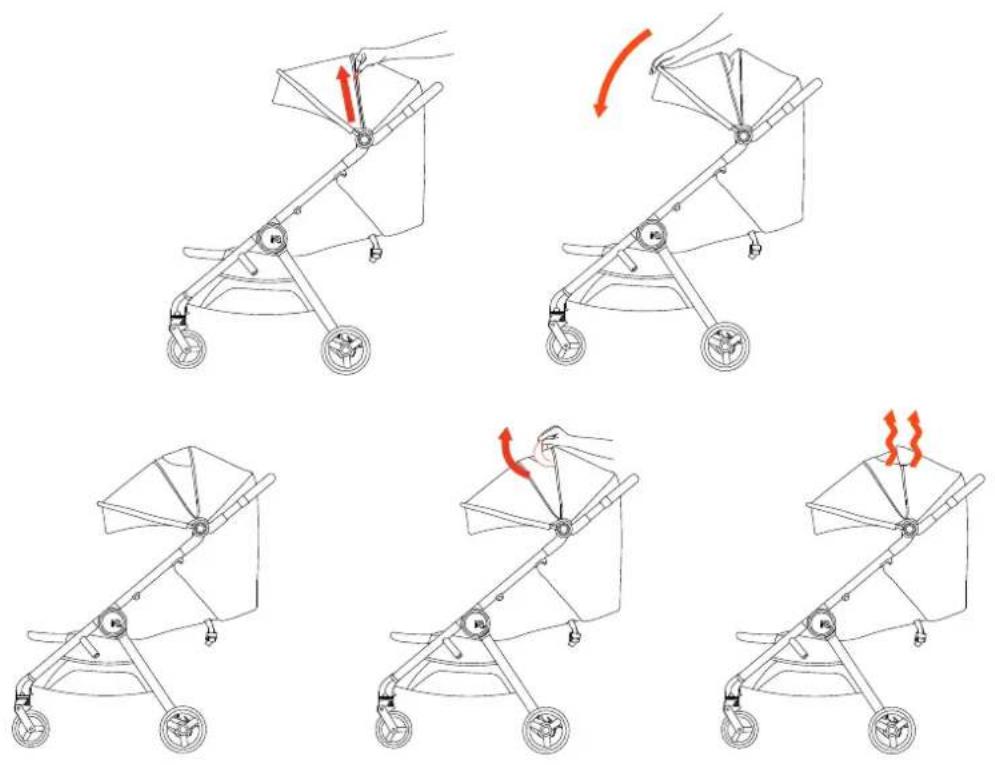

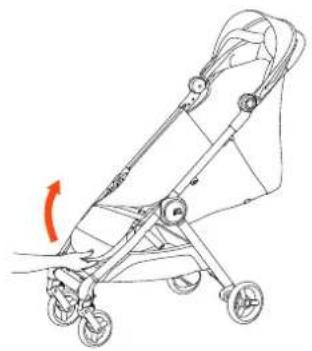

Buggy's hood adjustment

IQ BUGGY

Line drawing of a stroller with wheels and handle (no text or symbols)

Line drawing of a stroller with wheels and a hand holding the seat, showing no text or symbols

Line drawing of a baby stroller with wheels and a red curved arrow indicating rotation (no text or symbols)

Line drawing of a baby stroller with wheels and a canopy (no text or symbols)

Buggy's hood adjustment

IQ BUGGY

Ventilation of the buggy's backrest

IQ BUGGY

Line drawing of a baby stroller with wheels and a red arrow indicating motion (no text or symbols)

Line drawing of a baby stroller with a red curved arrow indicating rotation (no text or symbols)

Line drawing of a baby stroller with two wheels and a canopy cover (no text or symbols)

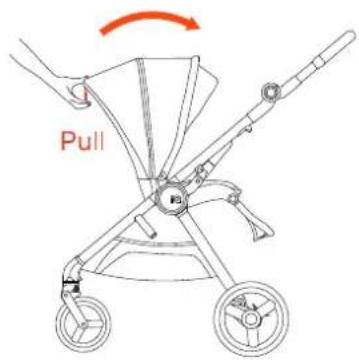

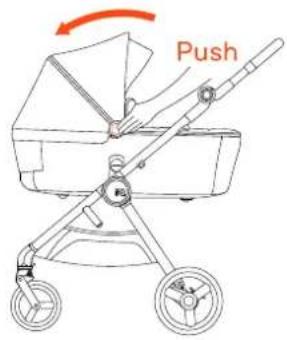

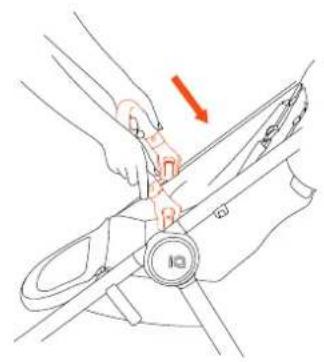

Buggy's backrest adjustment

IQ BUGGY

Line drawing of a baby stroller with two wheels and a canopy (no text or symbols)

Line drawing of a baby stroller with directional arrows indicating motion (no text or symbols)

Line drawing of a baby stroller with wheels and a canopy (no text or symbols)

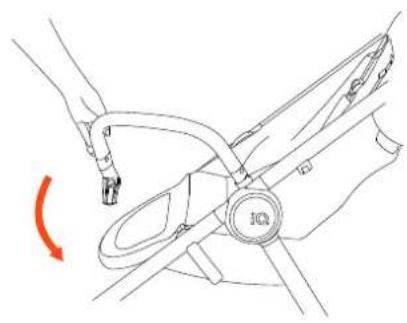

Buggy security barrier

IQ BUGGY

Line drawing of a person using a tool to cut or adjust a mechanical component, with no visible text or symbols.

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a car seatbelt mechanism with hand and belt (no text or symbols)

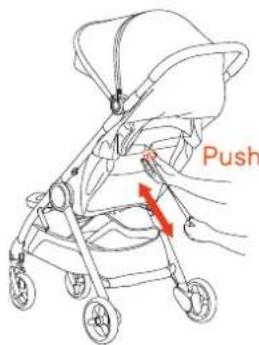

Leg rest adjustment

Line drawing of a stroller with wheels and a red arrow indicating rotation (no text or symbols)

IQ BUGGY

Line drawing of a stroller with wheels and handle (no text or symbols)

Safety belts buckle

Line drawing of a car seat with orange arrows indicating movement or force points (no text or symbols)

Safety belts adjustment

IQ BUGGY

Line drawing of a car seatbelt with a hand adjusting the seatbelt (no text or symbols)

Line drawing of a hand pressing down on a car seatbelt device (no text or symbols)

Folding of the frame with buggy

IQ BUGGY

Line drawing of a mechanical device with wheels and a curved arrow indicating rotation (no text or symbols)

Line drawing of a hand holding a small wheeled device with wheels and a central knob, no text or symbols present.

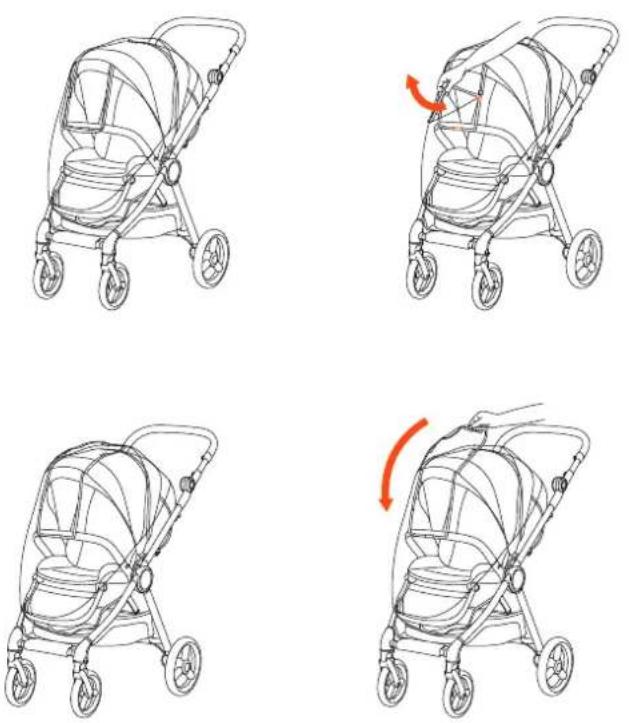

Raincover for carrycot/seat unit

IQ ACCESSORIES

Line drawing of a baby stroller with a red zigzag arrow indicating motion or vibration (no text or symbols)

Line drawing of a baby breg with a feather, no text or symbols present

Line drawing of a hand using a tool to lift a curved object, no text or symbols present

Line drawing of a mechanical device with a handle and lever (no text or symbols)

Line drawing of a mechanical device with a red arrow indicating rotation or motion (no text or symbols)

Line drawing of a stroller with wheels and a handle, emitting red smoke (no text or symbols)

Raincover for carrycot/seat unit

IQ ACCESSORIES

Check for the most recent manuals on our website: anexbaby.com

The information is subject to change without notice. Anex shall not be liable for technical errors or omissions contained in this manual. The purchased product may differ from the product as described in this manual.

AVALEX PTE. LTD.

114 Lavender Street, #08-58/59 CT Hub 2, Singapore 338729 [phone] [e-mail]

anex iq
