BRUGSANVISNING FKB108 MB QUART

Congratulations on your choice of a MB Quart speaker. This "Quick Start Installation" guide is meant to help you "hookup" and play music. For more detailed information on system setting, speaker and subwoofer configuration, and full specifications by model, visit the website at MBQuart.com

CAUTION

Always consider consulting a professional audio installer before installing new speakers. Many car manufacturers locate speakers behind interior panels that require special tools to remove those panels to access the speakers. Some panels will be screwed in, some will use plastic fasteners, many will have both. Be careful and take your time. If you are using the speaker wire supplied with your new speakers make sure that you run the speaker wires through the factory boot. Do not let speaker wire make contact with metal edges of doors or other access holes.

Speaker Dimensions

	A B C	D E F
FKB108	N/A(1.5)*	41°(2.13′)(54)°	76°(70)°(9.07′)	19°(4.82′)(117)
FKB110	N/A(1.9)°	5°(2.08′)(53)°	7°(70)°(3.74′)(9)°	14°(4.02′)(102)
FKB146 N/A	7°(43)°(2.12′)(5)°	4°(2.78′)(70)°			3.46°(5.6°)(88°(142)°	3.86°(6.02°)(88°(153)°
FKB113	6.2°(158)°(2)°	5°(2.48′)(63)°	15°(80)°(4.53′)°	15°(5.14′)(131)°
FKB168 N/A	4°(61)°(2.52′)(6)°	4°(3.15′)(80)°			5°(7.1°)(127°(180)°	5.48°(6.68°)(138°(220)°
FKB116S	6.91°(176)°	3°(7°)(47)°(92)°(6)°	3°(15°)(80)°(5.5°)°	14°(3.64°)(165)°
FKB116	6.91°(176)°	24°(57)°(2.54°)(8)°	3°(15°)(80)°(5.5°)°	14°(2.65°)(167)°
FSB216	6.91°(176)°	24°(57)°(2.54°)(8)°	3°(15°)(80)°(5.5°)°	14°(2.65°)(167)°
FKB169	7.07°(10.24°)(180°(260)°	3.07°(78)°(3.59°)°	3°(3°)°(3.54°)(110)°		6°(6.7°)(162°(221)°	6.5°(9.25°)(165°(235)°

Before you start

It's a good idea to confirm that you have purchased the correct size speakers to fit your vehicle. If you have any reservations about being able to complete the installation yourself, we recommend contacting a professional. The removal of interior panels can be tricky and may require special tools. Be careful as you go.

Factory Speaker Removal

A Access and remove factory door speakers Most modern vehicles have speakers that are mounted directly to the structure of the door. Access is achieved by the removal of the door panel. Some vehicles may only require the removal of a small panel around the speaker itself.

Three line drawings of car windows and doors, showing different interior views (no text or symbols)

B Access and removal of rear factory speakers

Most rear speakers are accessed from within the trunk. Some may require the removal of the rear package tray. Hatchbacks and SUV's will usually require the removal of a side panel.

Line drawing of a car interior frame with no text or symbols

C Fit and Wiring

Once the factory speakers are removed, check the fit and determine if there is enough depth clearance for the new speaker. A good way to do this is to roll the window down and back up while holding the speaker in place. If you decide to run wires, make sure to use factory harness boots and grommets where ever possible.

Line drawing of a car door and side door with no text or symbols

Coax installation

A Factory location behind door panel

Once you are sure the speaker fits and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace door panel.

Diagram showing a car interior with a circular component and a side view of the dashboard (no text or symbols)

B Factory location behind small panel

Once you are sure the speaker fills and has adequate clearance, connect the positive and negative wires to the proper terminals. Securely screw the speaker into place. Replace speaker cover panel.

C Custom location

Some vehicles may not have a door speaker location. While it is possible to install the speakers in this situation, it is more difficult. Consider using a professional for custom installations.

D Rear factory locations

Mount the speakers in same way that the factory speaker was mounted. Attach the positive and negative wires to the proper terminals. Make sure any wires are secured properly.

Line drawing of a car interior showing seat, dashboard, and seatbelt (no text or symbols)

Component installation

Factory location

behind door panel

Vehicles that have premium sound systems will often have separate tweeters in a dash or door location. Try to use this location for mounting the component tweeler if possible.

Custom location

If there is not a suitable factory location for woofer or tweeter to be mounted, custom mounting may be necessary. Before making any permanent changes to your vehicle make sure there is adequate mounting depth.

Tweeter mounting

There are two primary ways the tweeter can be mounted. Surface and Flush mounting. The flush mount configuration is shown here.

Crossover wiring

The crossover is necessary for the proper operation of the component speaker system. Secure the crossover to a surface that is free of interference from window mechanisms and excessive moisture.

MBQuart.com

MUSIC DEFINED

WARRANTY

Maxsonice USA Inc. warrants this product, to the original consumer purchaser, to be free from defects in material and workmanship for a period of one (1) year from the date of purchase. Maxsonice USA Inc. will, at its discretion, repair or replace defective products during the warranty period. Components that prove to be defective in materials and workmanship under proper installation and use must be returned to the original authorized Maxsonice USA Inc. retailer from where it was purchased. A photocopy of the original receipt must accompany the product being returned. The sale price is subject to increase in the value of the property from the sale of the company's subsidiaries of Maxsonice USA Inc. This warranty is limited to defective parts and specifically excludes any incident or consequential damages connected therewith. To view the full warranty, please visit the website.

MB Quart products are designed and engineered in the USA by

MAXXSONICS

www.maxxsonics.com

MEQ FK3 093-01 - re2

Quick Start

Installation Guide

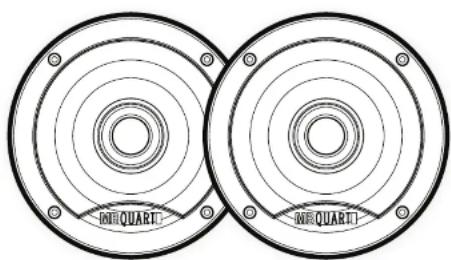

Two identical circular speaker or speaker panels with concentric rings and mounting holes, no text or symbols visible.

FKB108 - FKB110

FKB146 - FK B168

FKB 11 3 - FKB 116

FKB116S - FKB169

FSB216
