BRUGSANVISNING Crescent Cot Grotime

Grotime®

INFA GROUP

Crescent Tallboy 33146

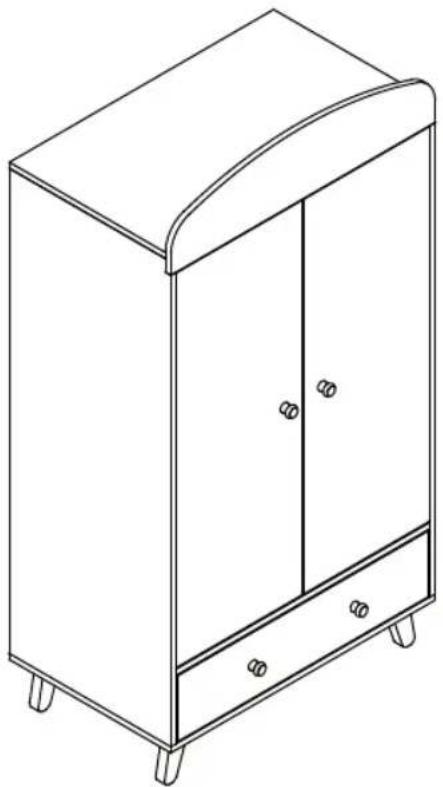

Line drawing of a simple cabinet with two doors and a side drawer, no text or symbols present

Follow all manufacturer's assembly instructions carefully to ensure the safety features to the chest are not compromised.

Grotime

110-114 Old Bathurst Rd, Emu Plains, NSW 2750

P.O. Box 487, Emu Plains, NSW 2750

Customer Care

Email: [e-mail]

AUSTRALIA

NEW ZEALAND

1300 92 4632

067 590 870

www.grotime.com.au

www.grotime.co.nz

⚠️ WARNINGS ⚠️

It is STRONGLY RECOMMENDED that you ANCHOR this Product.

Toppling furniture can cause serious injuries and death.

This product has been fitted with an anchor strap. To prevent your furniture from tipping forward it is strongly recommended that you securely attach this product to a wall or other solid surface, using the anchor strap provided and appropriate fixings.

IMPORTANT:

• Regularly check that anchors are securely maintained.
- Use safety drawer locks to prevent children climbing.
• Stability of tall items may be affected by thick pile carpet or uneven floors.
- Do not place unanchored televisions on furniture.

CAUTION:

• For your safety when attaching the anchor fixings, please note the following:
• Check for any electrical wires or plumbing inside the wall before drilling any holes (if you are unsure, please seek professional advice from a qualified trades person)
• Walls are constructed from different materials, for example, masonry (solid brick) or plasterboard lined cavity walls (hollow). It is important that you use the appropriate wall fixings for your wall type.
• Your local hardware store will have the necessary drills and fixings and can offer advice if needed. If in doubt, engage the services of a qualified trades person to install and anchor the product.

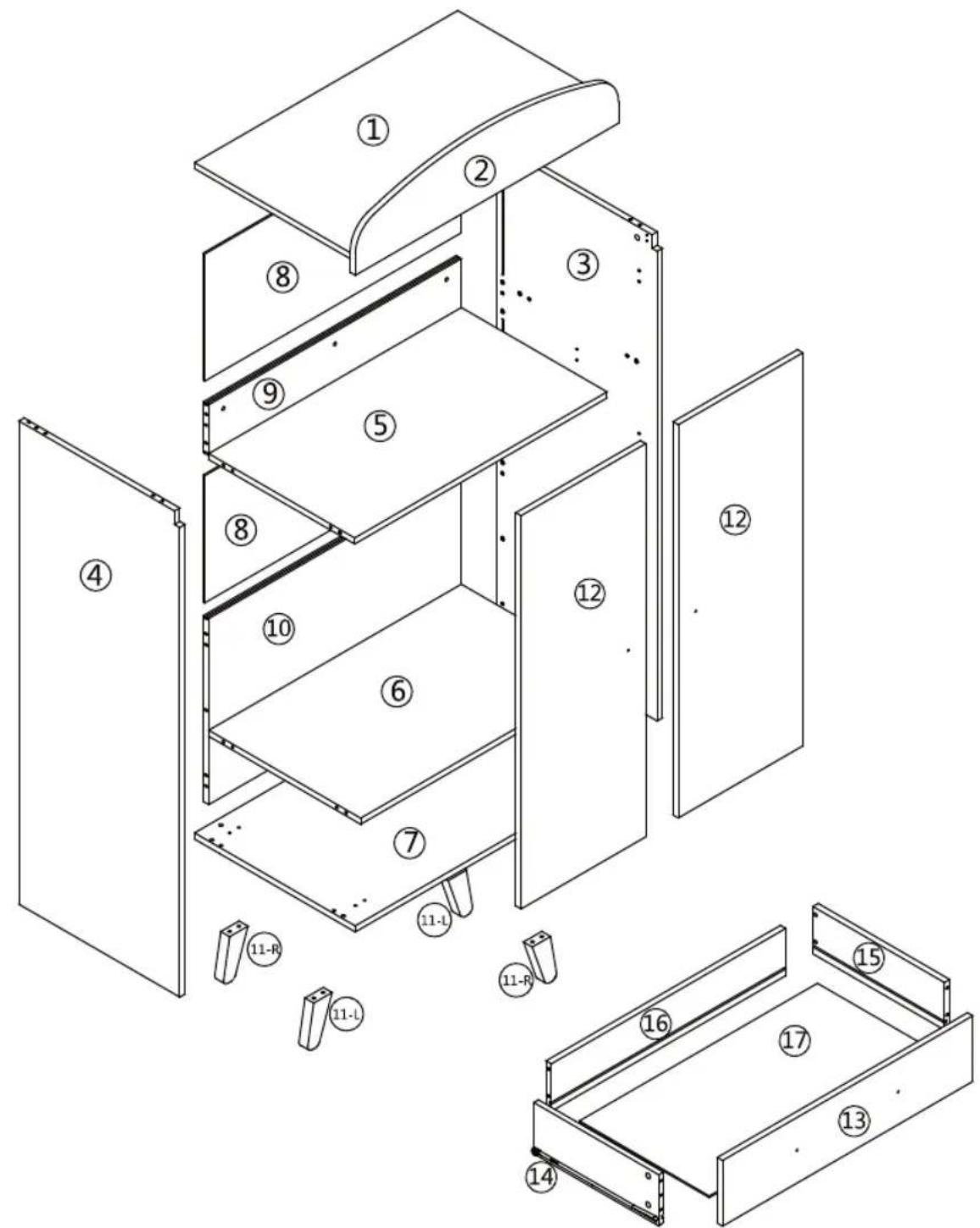

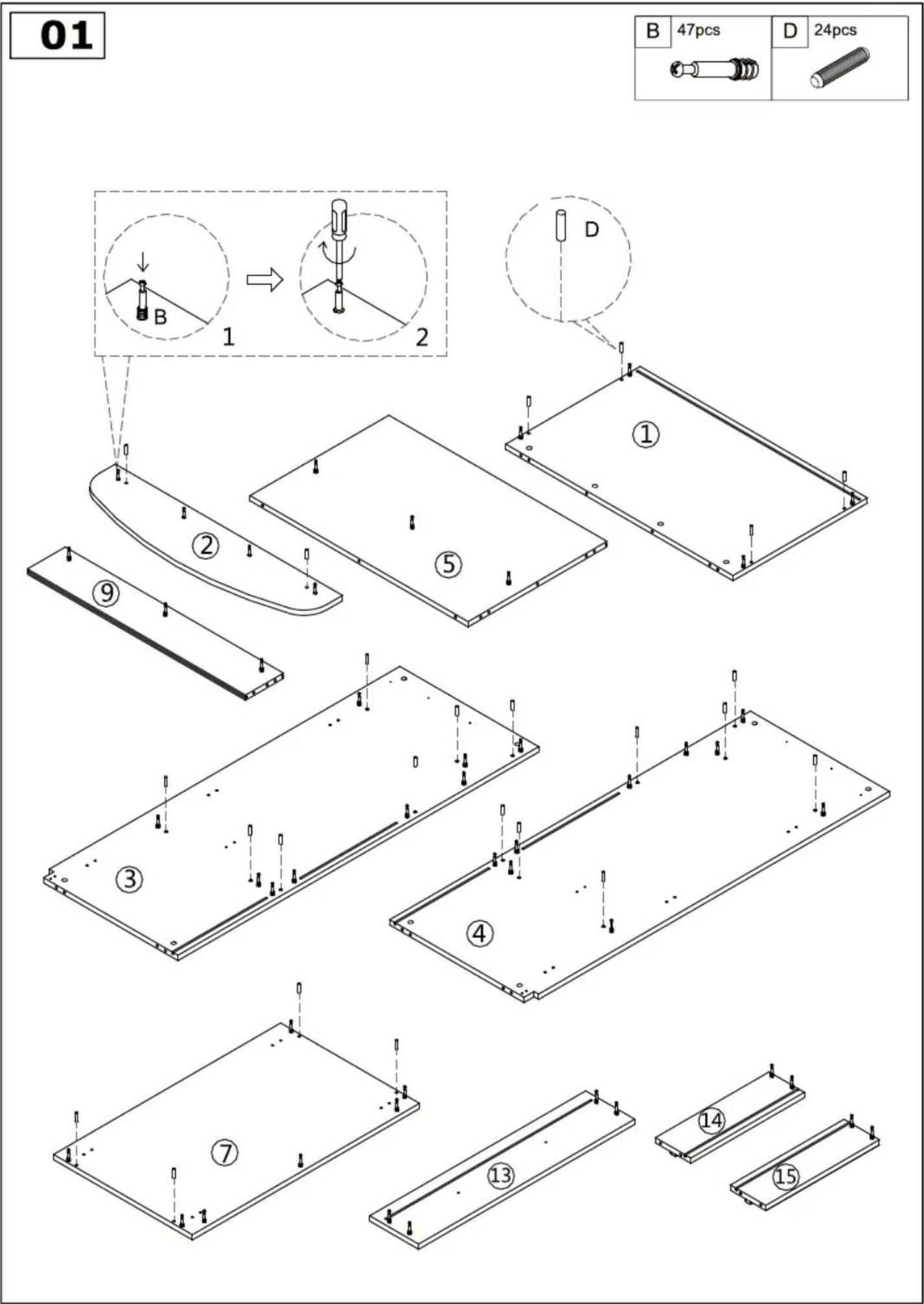

A	M6*35=8pcs	B	4*40=47pcs	C	47pcs[6043]	D	∅8*40=24pcs	E	M3.5*16=56pcs[2KS4]

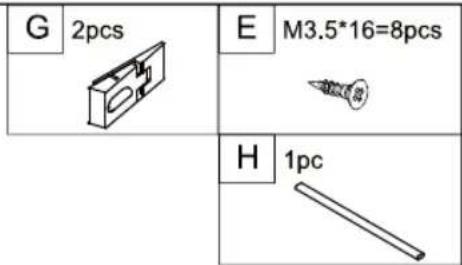

F	6pcs	G	2pcs	H	1 pc	I	M4*25=4pcs	J	4pcs
K	2pcs	L	1pc	M	2pcs	N	ST4*30=1pc	O	1pc
P	1 pcs	Q	1 pcs	R	1set

02

C

6pcs

03

C

9pcs

04

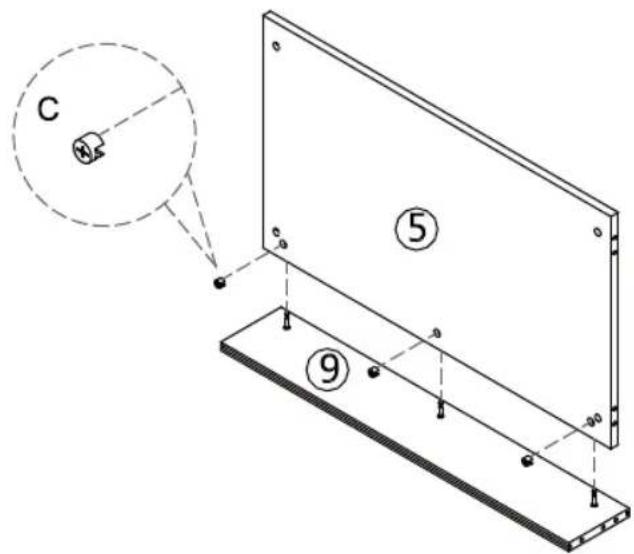

05

C

9pcs

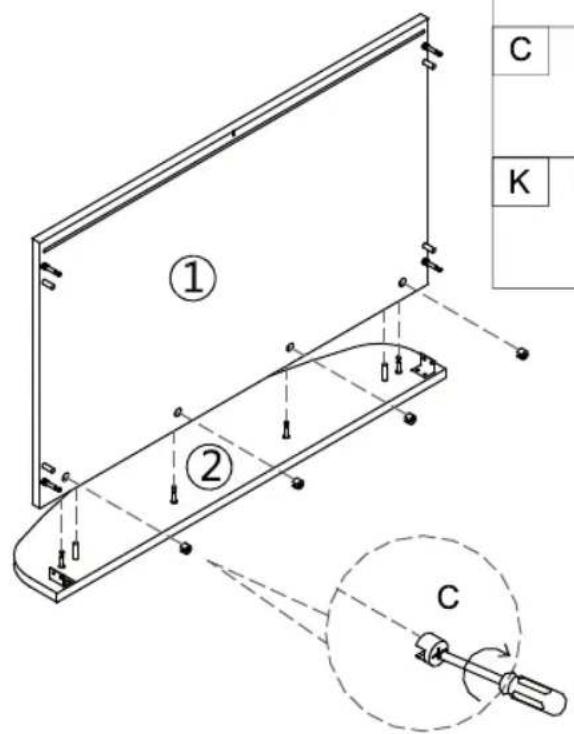

06

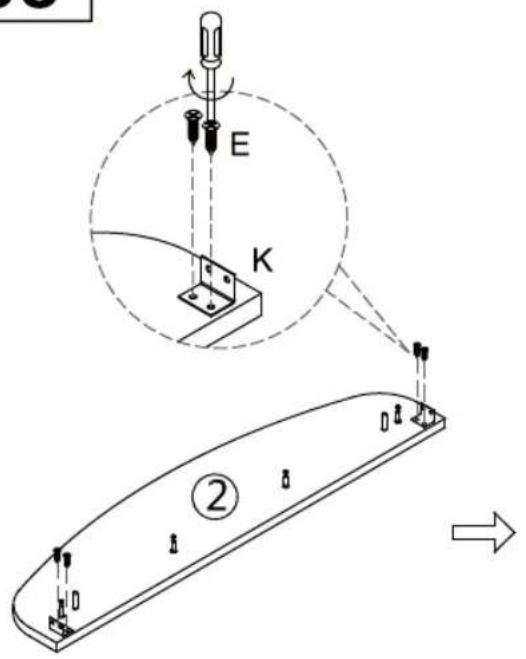

E M3.5*16=4pcs

C 4pcs

K | 2 pcs

07

C

4pcs

08

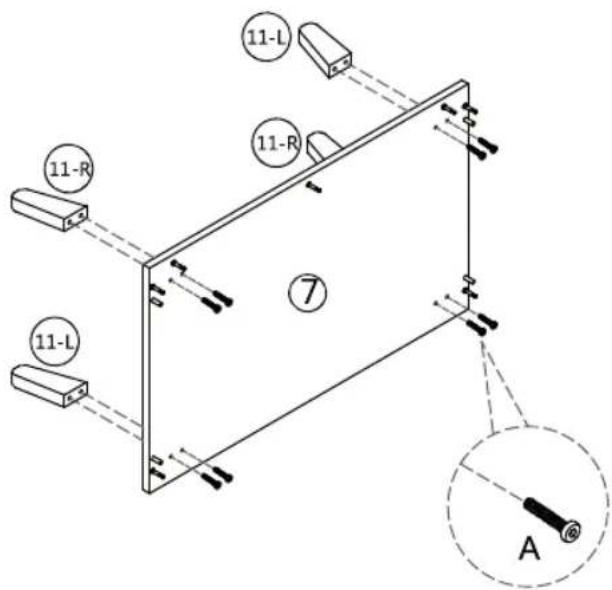

A

M6*35=8pcs

09

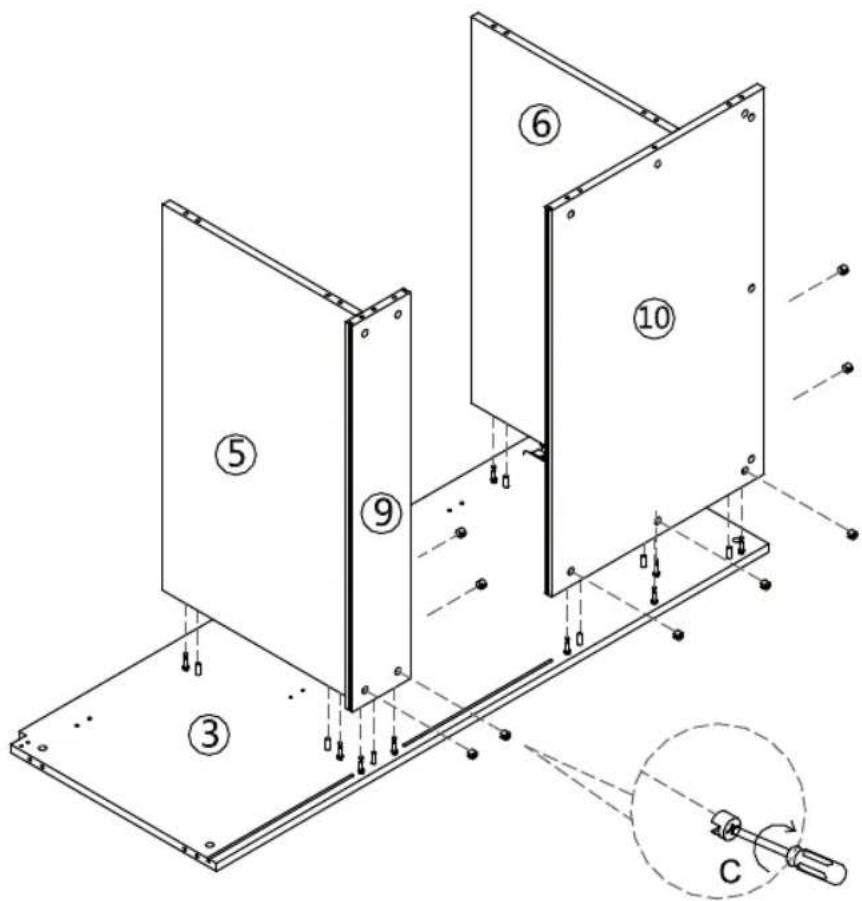

Technical line drawing of a mechanical enclosure or enclosure with internal partitions and mounting brackets (no text or symbols)

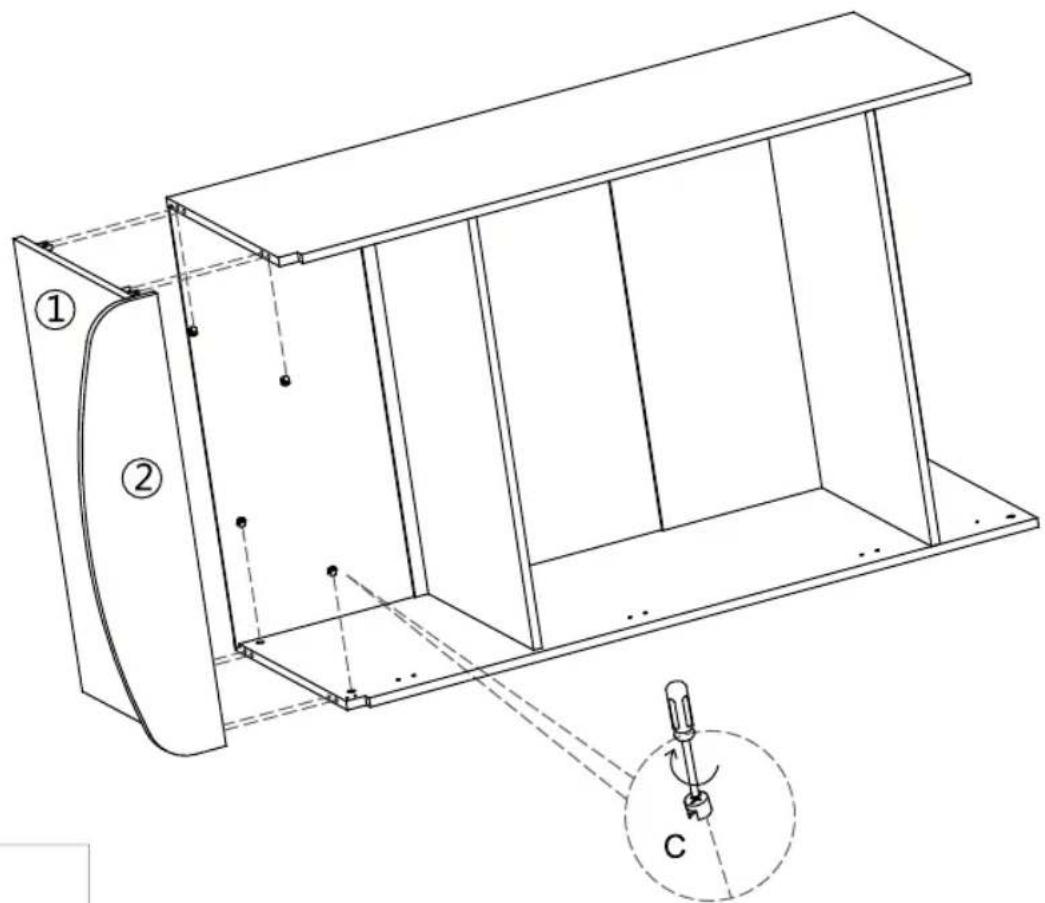

Technical line drawing of a rectangular mechanical or architectural component with internal partitions and a circular inset labeled 'C' (no text or symbols on the diagram itself)

C

7pcs

10

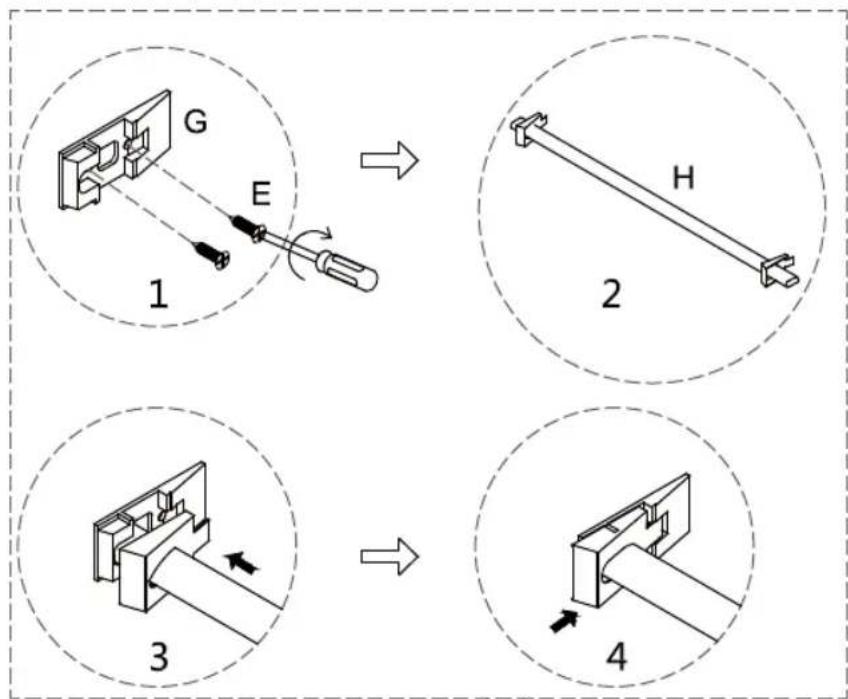

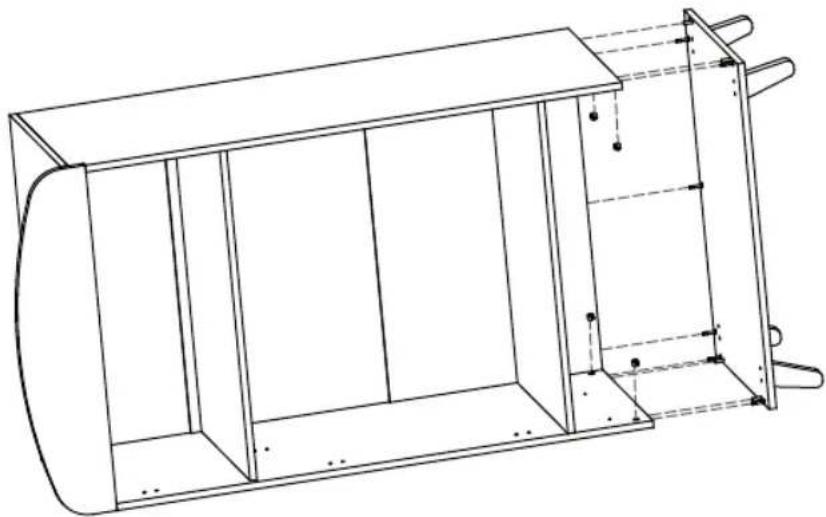

Isometric line drawing of a rectangular metal enclosure with internal compartments and mounting feet (no text or symbols)

11

R

1set

E

M3.5*16=6pcs

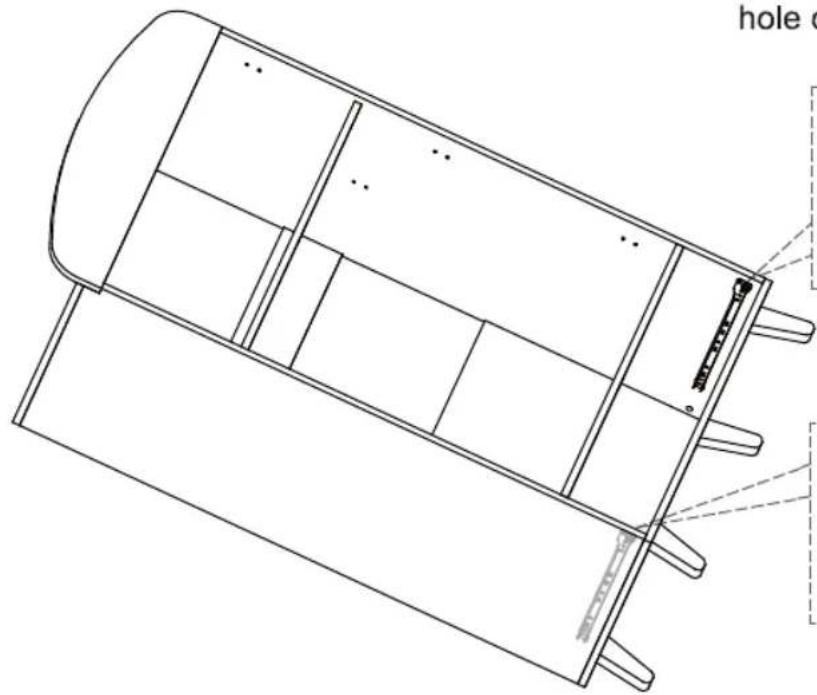

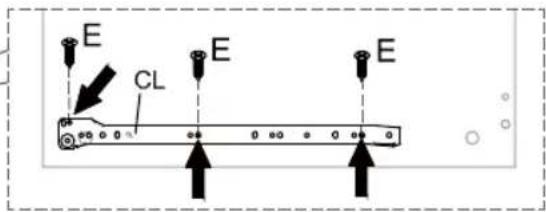

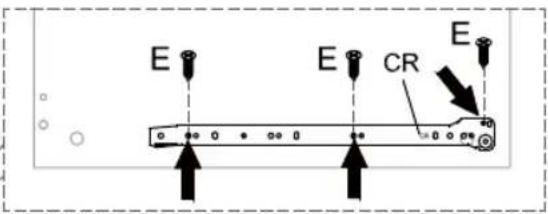

The arrow of slide rail indicates the position correspondence.

Lock the screw E on the upper guide hole of the board.

Technical line drawing of a mechanical component with no visible text or symbols

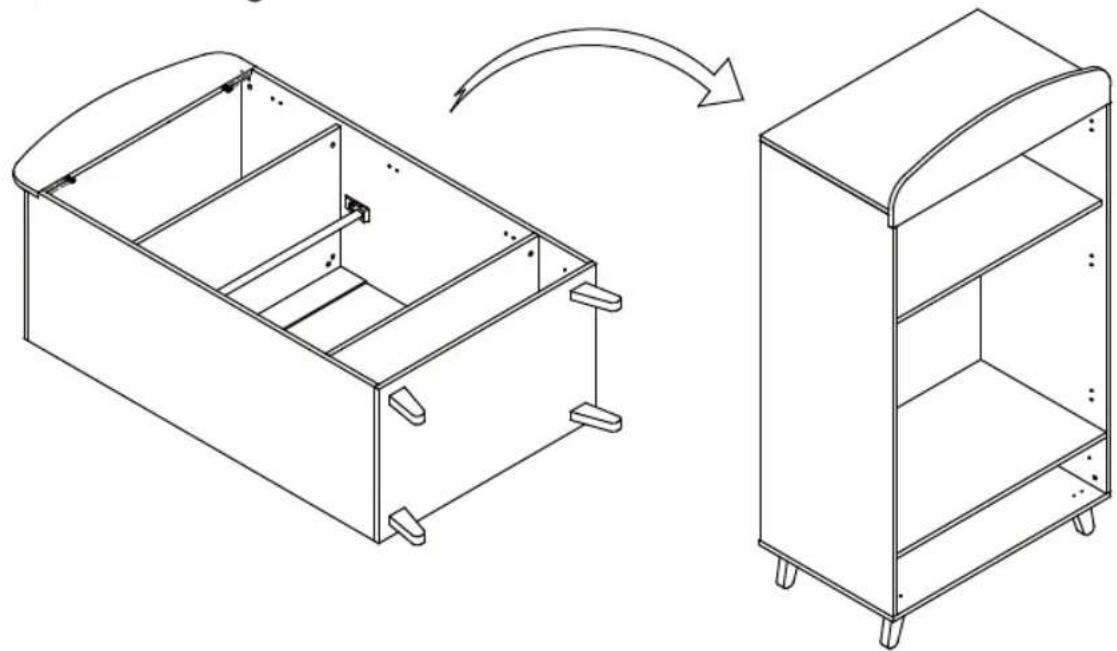

To avoid breaking the legs, two persons are needed for lifting the wardrobe.

Technical line drawing of a two-step folding or assembly process of a rectangular box (no text or symbols)

12

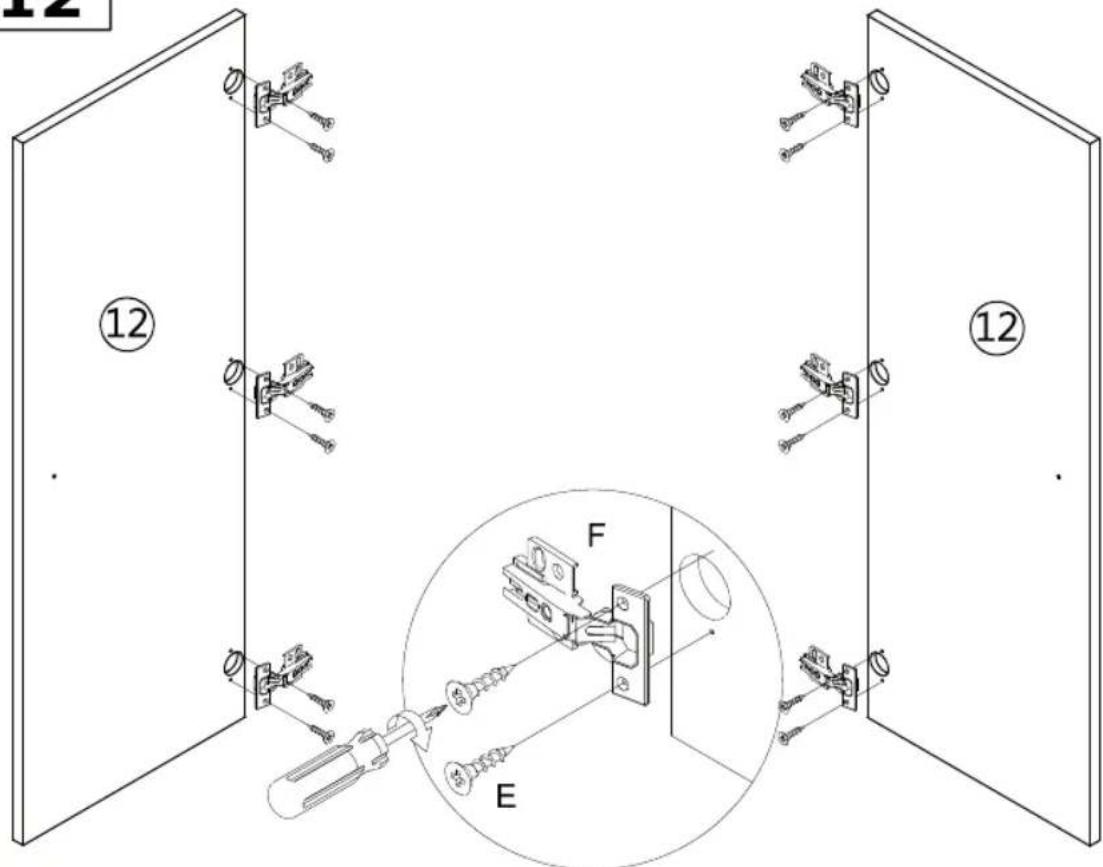

E M3.5*16=12pcs

F 6pcs

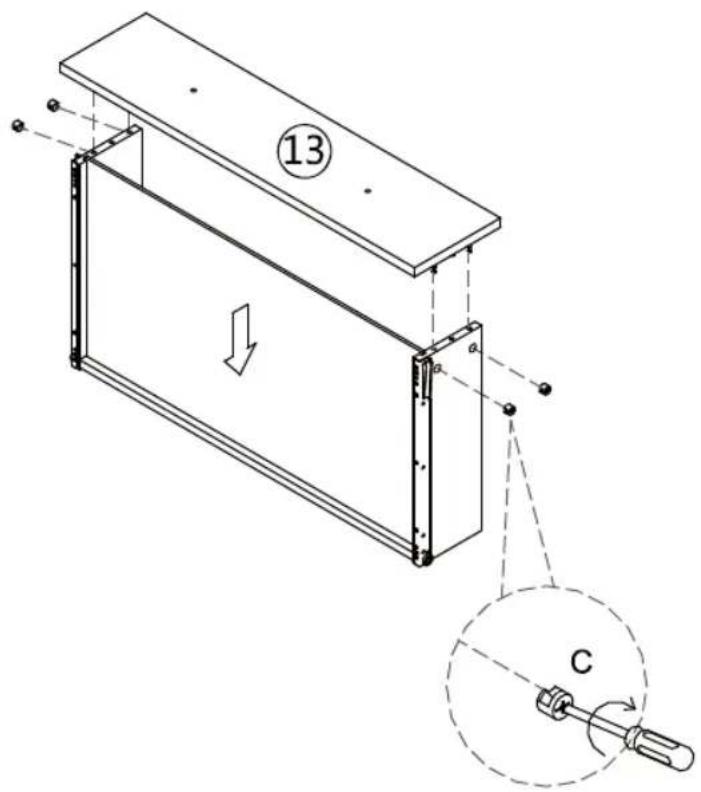

13

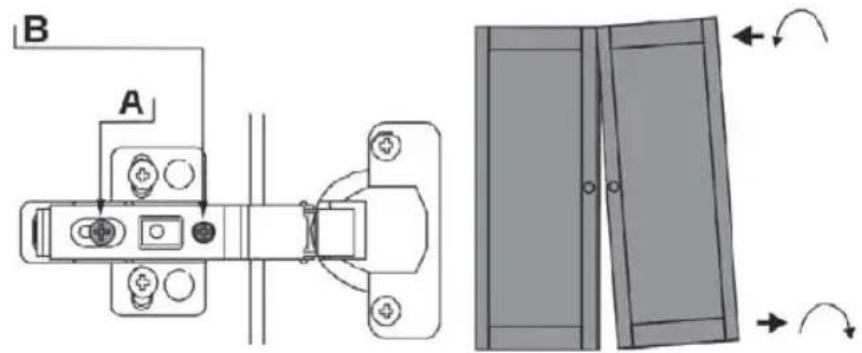

Adjusting the doors

1

Adjusting the gap between the doors. Loosen screw 'A' slightly. Turn Screw 'B' clockwise to move the door away from the side, turn anti-clockwise to move the door towards the side. When gap is equal tighten screw 'A'.

②

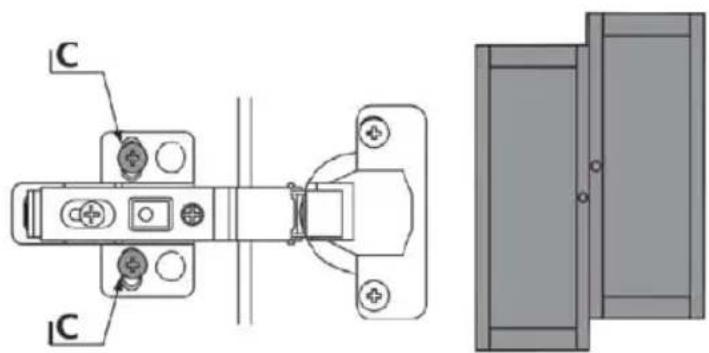

Adjusting the height of the doors. Loosen screws 'C' then slide the hingeplates up or down until the doors are even then tighten the screws.

③

Simple line diagram showing a vertical pole with two curved arrows indicating rotation or force direction (no text or symbols)

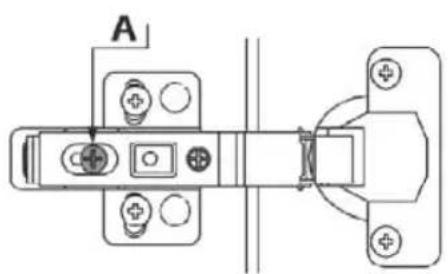

Adjusting the angle of the door. Loosen screw'A' and slide the hinge arm either forwards or backwards until the door is vertical then tighten screw'A'.

14

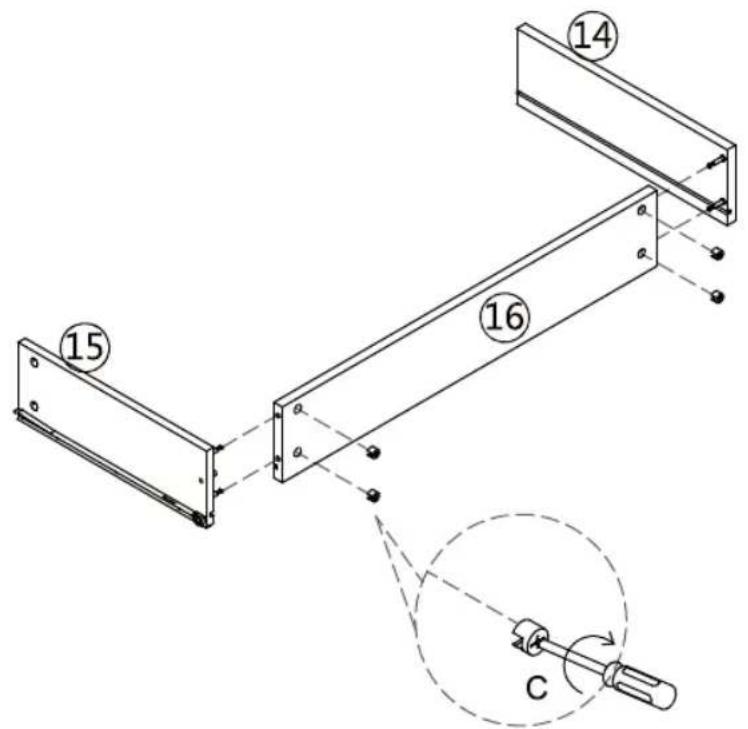

C

4pcs

15

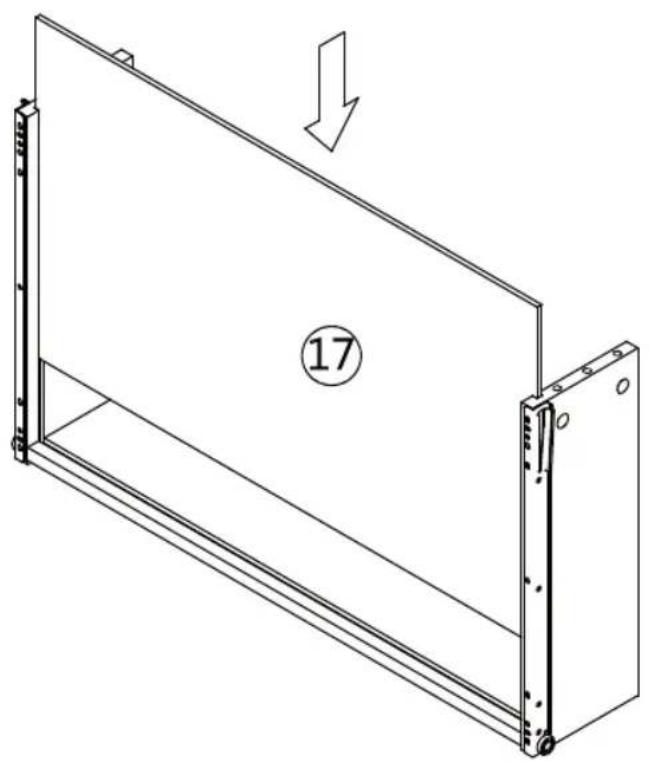

Technical line drawing of a rectangular metal frame with a downward arrow and circled number 17, no text or symbols present.

16

C

4pcs

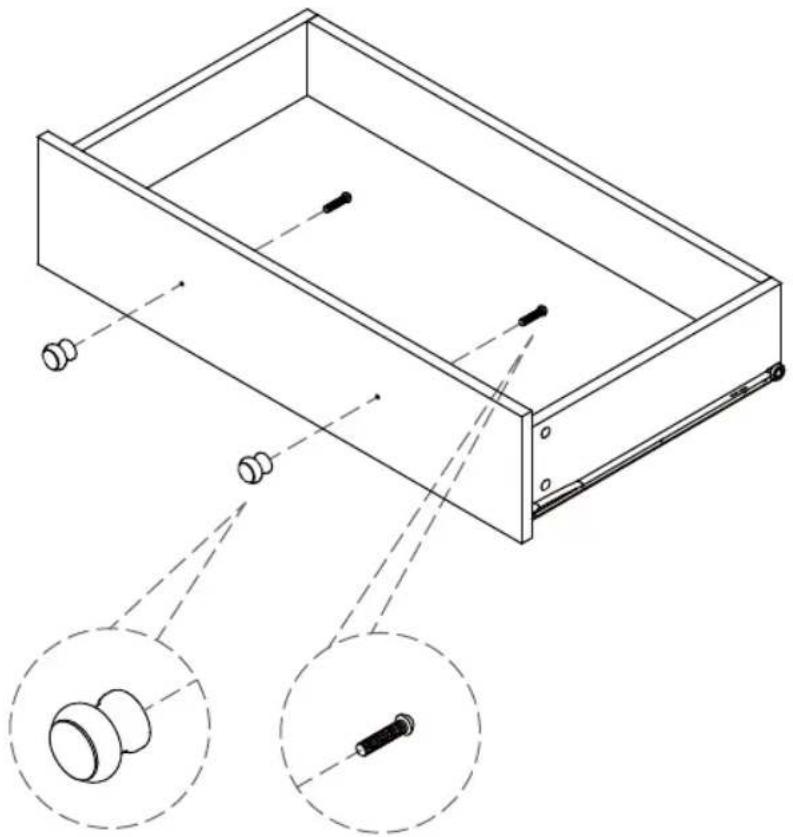

17

Technical line drawing of a mechanical drawer with two inset views showing internal components (no text or symbols)

|

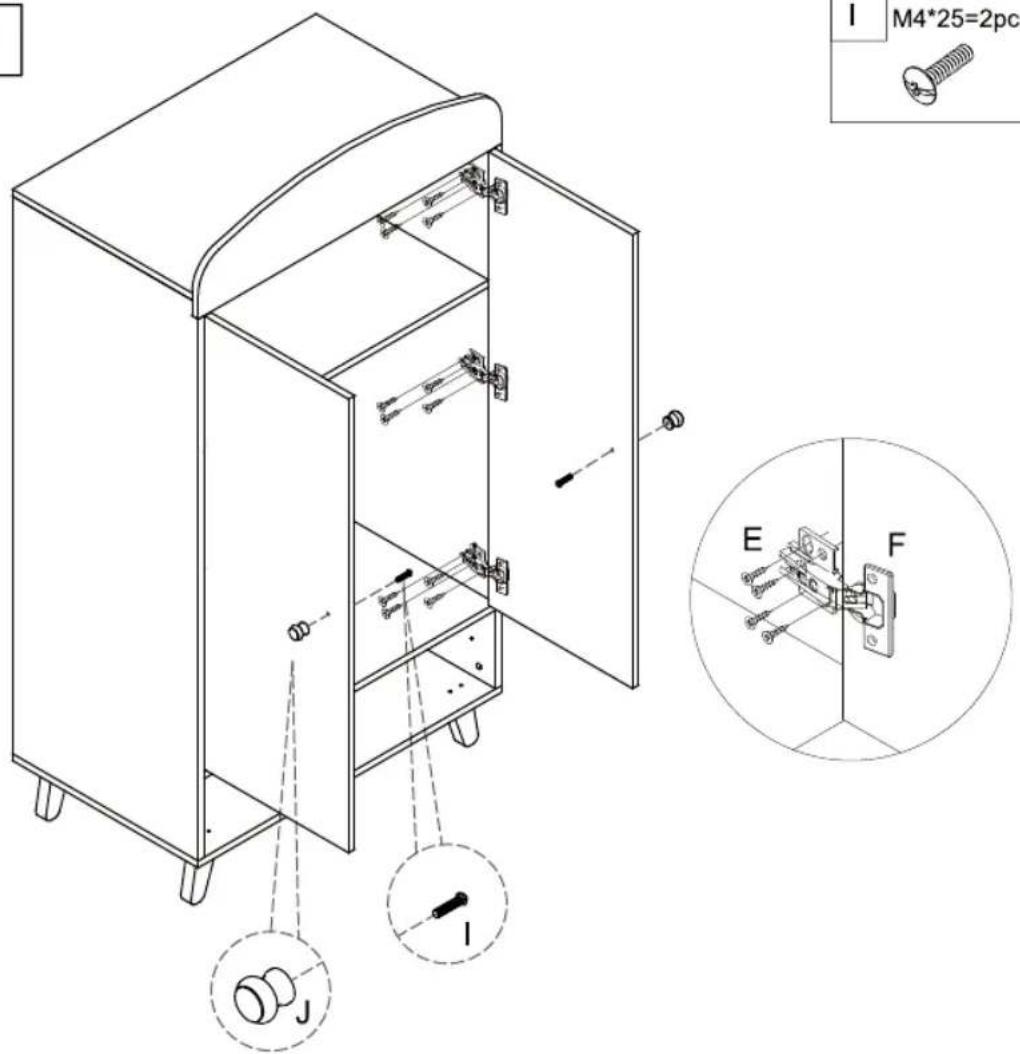

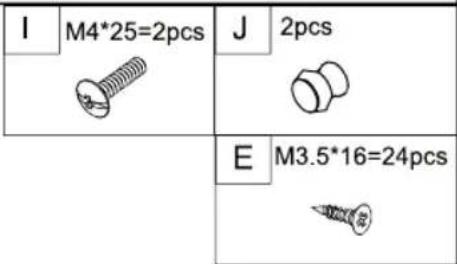

M4*25=2pcs

J

2pcs

18

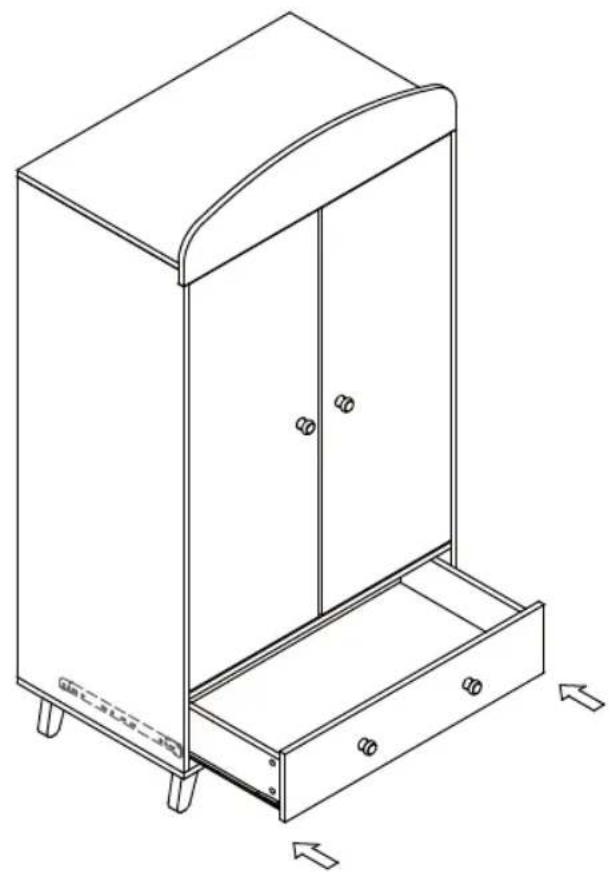

Line drawing of a cabinet with open drawer and door, no text or symbols present

19

Line drawing of a three-tiered modular cabinet or rack unit with handle and wheels (no text or symbols)

1

2

E

M3.5*16=1pc

L

1pc

M

2pcs

N

ST4*30=1pc

O

1pc

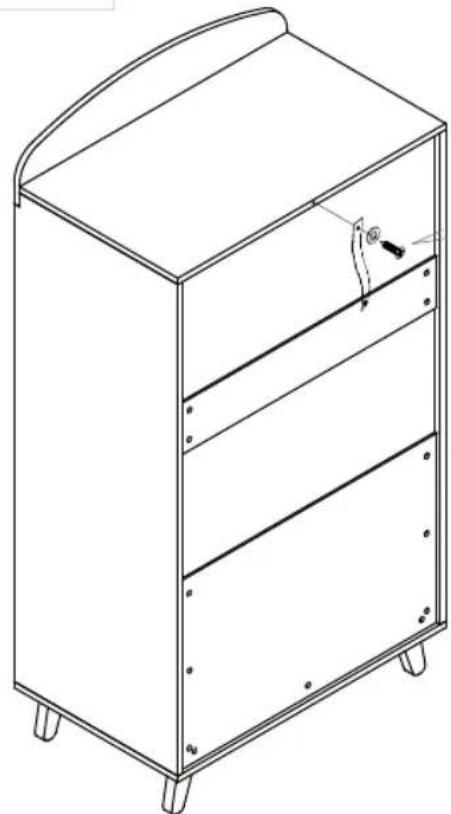

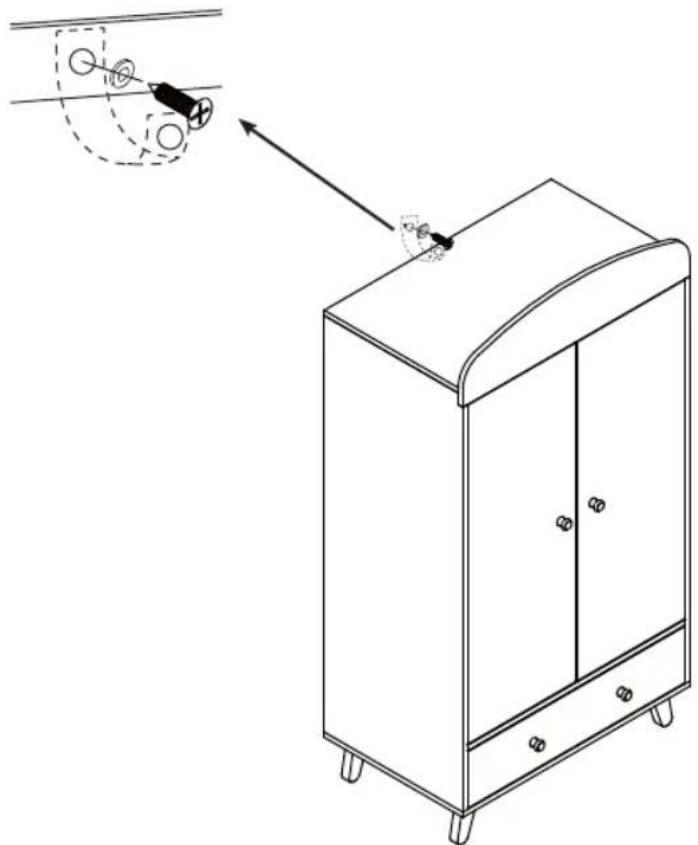

There is an anti-topple strap fixed to the back of the chest.

Choose a suitable wall fixing and then fasten the strap to the wall as shown using the appropriate fixings.

Line drawing of a cabinet with wheels and a magnified inset showing a mechanical component (no text or symbols)

WARNING

WE STRONGLY RECOMMEND THAT THIS PRODUCT BE PERMANENTLY FIXED TO THE WALL OR OTHER SUITABLE SURFACE. PLEASE SEEK PROFESSIONAL ADVICE IF YOU ARE IN DOUBT WHAT FIXING DEVICE TO USE.

FURNITURE TRIP-OVER HAZARDS

Children like climbing on things, especially if there is something up high that they want. Household furniture like bookshelves, chests of drawers and entertainment units can be attractive to climb. So too furniture like tallboys where pulled-out drawers act as stairs for climbing.

The inclusion of the anchoring strap is supplied as per the recommendations of the Best Practice Guide for Furniture and Television Trip-Over Prevention, from the National Retail Association.

WARNING

It is STRONGLY RECOMMENDED that you ANCHOR this product.

Toppling furniture can cause serious injuries and death.

This product has been fitted with an anchor strap. To prevent your furniture from tipping forward it is strongly recommended that you securely attach this product to a wall or other solid surface, using the anchor strap provided and appropriate fixings.

IMPORTANT:

• Regularly check that anchors are securely maintained.
• Use safety drawer locks to prevent children climbing.
• Stability of tall items may be affected by thick pile carpet or uneven floors.
• Do not place unanchored televisions on furniture

CAUTION:

• For your safety when attaching the anchor fixings, please note the following:
• Check for any electrical wires or plumbing inside the wall before drilling any holes (if you are unsure please seek professional advice from a qualified trades person)
• Walls are constructed from different materials, for example, masonry (solid brick) or plasterboard lined cavity walls (hollow). It is important that you use the appropriate wall fixings for your wall type.
• Your local hardware store will have the necessary drills and fixings and can offer advice if needed. If in doubt, engage the services of a qualified trades person to install and anchor the product.

WARRANTY

Infa Group Pty Ltd warrants this product for 12 months from the date of purchase against failure due to manufacturing faults or faulty materials. Misuse, accidental damages, normal wear and tear are not covered by this warranty. When used for commercial use this period is limited to six months. "Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund of a major failure are for compensation for any other foreseeable loss or damage. You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure".

STORAGE:

To store your 33146, please reverse assembly steps. Ensure all components are kept together along with Instruction manual for future use.

KEEP BOOKLET FOR FUTURE REFERENCE

READ ALL INSTRUCTIONS CAREFULLY BEFORE USE OF THIS CHANGE TABLE. ALWAYS FOLLOW THE INSTRUCTIONS. THE CORRECT USE AND MAINTENANCE OF THIS PRODUCT IS ESSENTIAL.

THIS PRODUCT IS NOT INTENDED FOR COMMERCIAL USE.
