Dear Customer.

Congressional area and thank you for checking our Outdoor Kitchen.

We are sure you will find it a pleasure to use. Before you use the Curdsor Kitchen, we recommend that: you read through all sections of this instruction manual which provides the assembly instructions and other relevant care and use information description on

To avoid the risks it is important that the Outdoor Kitchen and BBQs are both installed correctly and that you read the safety instructions carefully of this Kitchen and the BBQ to be installed to avoid misuse and hazards.

We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.

After unpacking the Outdoor Kitchen, please check it is not damaged. If in doubt, do not assemble the kitchen but can add your local customer care centre.

PLEASE NOTE

- This solution and installed REQ is intended for personal, domestic or household use only, not commercial use.

- This kitchen is suitable for installation or with the following building, 1000 series, 2000 series, 3000 series, 7000 series and 8000 series. BeefEater cannot guarantee the performance or safety of this kitchen if installed with any other BBQs

The following hanging bracket kit MUST be installed on the BBQ to support it and ensure safety of the BBQ and kitchen cupboards:

BBQ series Kit number

1x20	BA70HS
2000	BA35HS
3000	BA45HG
7000	HA35HS
8000	HA35HS

Anything behind the rear of the 380 within 450mm shall be made entirely of non-computible material. OR:

The following rear heat shield kit MUST be installed on the BBQ AND anything behind the BBQ shall be protected by 5mm thick fibre cement sheet for the full width of the BBQ and from the base of the BBQ recess upwards for a distance of 1.2m

BBQ series Kit number

1500	BA10RHS
2000	BA10RHS
3000	BA10RHS
7000	BA10RHS
8000	BA10RHS

Where fibre cement sheet is used (a project anything behind the BBQ [e.g. a rear wall], any surface treatment between the BBQ and the protective fibre cement sheet:

Important safety instructions	3
Modular combinations	4
BM25FWG product description	6
DM708WG product description	13
BM135WG product description	14
Notes	18
Workdays	19

Please run the user manual carefully and share in a fancy place for later reference.

The symbols you will see in this booklet have these meanings:

WARNING

This symbol indicates information concerning your personal safety.

CAUTION

This symbol indicates information on how to avoid damaging the appliance.

i IMPORTANT

This symbol indicates tips and information about use of the appliance.

ENVIRONMENT

This symbol indicates tips and information about economical and ecological use of the appliance.

must be able to withstand high temperatures unless [e.g. stainless steel or ceramic tiles with ceramic adhesive and ceramic grout]. Surface treatments such as paints and coloured glass uptake channels should be checked for their ability to withstand high temperatures in addition to being noncorrelated ale.

- This kitchen must be installed in an undercover location that meets the ventilation requirements of an Outdoor Area according to gas installation standard AS/NZS 5601.

- This product may be installed with a 9kg LPG cylinder in the designated cupboard to the right side of the BBQ unit only, adhere to the warning stickers located in the kitchen cupboards accordingly.

- This BBQ is supplied at setup for universal 1 PS, however MB conversion kit is available from ReafEater, conversion must be completed following the instructions supplied with the BBQ by a suitably qualified person.

- This kitchen must be installed and reaired as per the instructions.

IMPORTANT INFORMATION THAT MAY IMPACT YOUR MANUFACTURER'S WAR

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under the Bee/Eater manufacturer's warranty provided with your product. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on the Bee/Eater manufacturer's warranty in the event that your product fault is due to failure to adhere this manual.

Please read the user manual carefully and store in a hardy place for bar references.

i IMPORTANT

Important - check for any damages or marks

If you find the kitchen is damaged, you must report it within 7 days if you wish to claim for damage under the manufacturer's warranty. This does not affect your statutory rights.

ENVIRONMENT

Information on disposal for users

- Most of the packing materials are recyclable. Please dispose of those materials through your local recycling depot or by placing them in appropriate collection containers.

• If you wish to discard this kitchen, please contact your local authorities and ask for the correct method of disposal.

WARNING

The BBQ and kitchen must be installed and serviced only by a suitably qualified and licensed person

Improper installation of the BBQ, adjustment, alteration or maintenance can cause injury or property damage and may affect your ability to claim under the manufacturer's warranty.

i IMPORTANT

- If the BBQ is connected to a reticulated gas supply (LPG or Natural Gas), then the installation shall be undertaken by a competent person in accordance with A5/NZS 5601 and the BBQ's instructions.

WARNING

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open hood and Outdoor Kitchen doors

4. If odeur continues, immediately call your gas supplier or your fire department.

For your safety

1. Do not store or use gasoline or other flammable vapours or liquids in the vicinity of this or any other appliance.

2. An LPG cylinder not connected for use, shall not be stored in the vicinity of, or in any cupboard in this kitchen.

i IMPORTANT

Cleaning instructions:

Use warm soapy water with a soft cloth to clean the kitchen. DO NOT use bleach based cleaners, abrasive cleaners or objects with sharp edge (e.g. scraper) to clean the kitchen surfaces as this may cause damage.

BOK40WG

Combination

Modern minimalist furniture layout with two cabinets and a central bench (no text or symbols)

BOK41WG

Combination

Modern minimalist furniture cabinet with open door and side table (no text or symbols)

BOK43WG

Combination

Modern minimalist furniture setup with open shelf, matching cabinet, and matching drawer (no text or symbols)

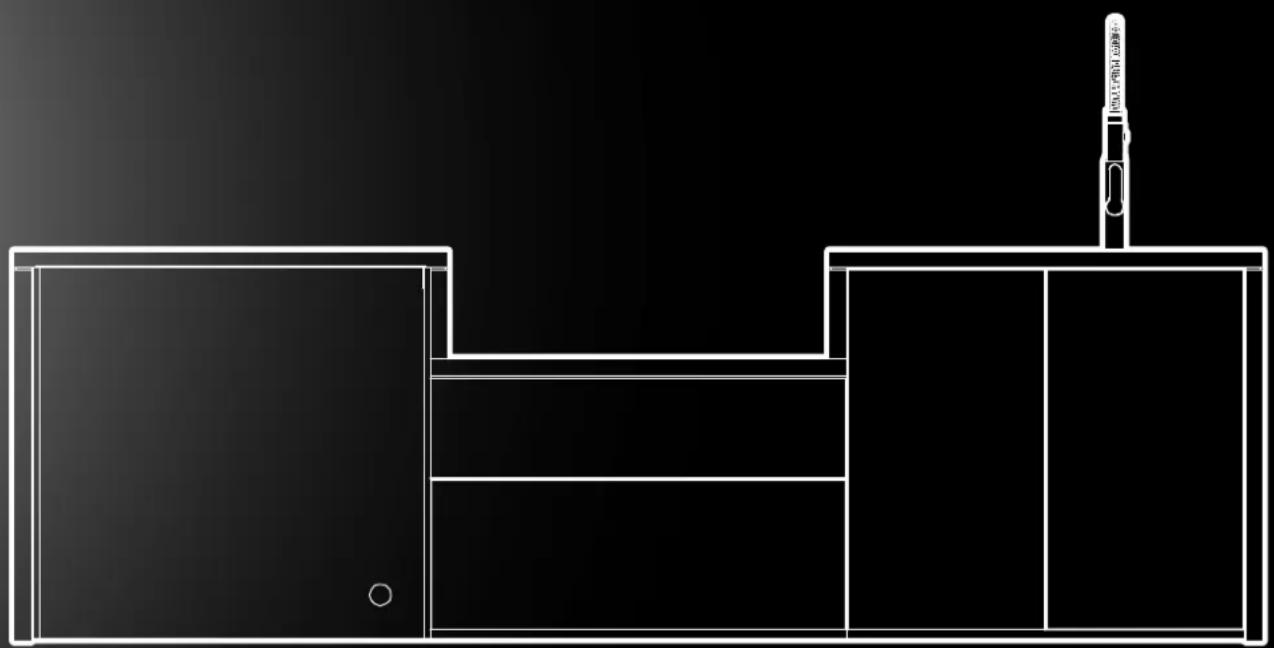

BOK44WG

Combination

Modern kitchen sink with open counter and side table (no text or symbols visible)

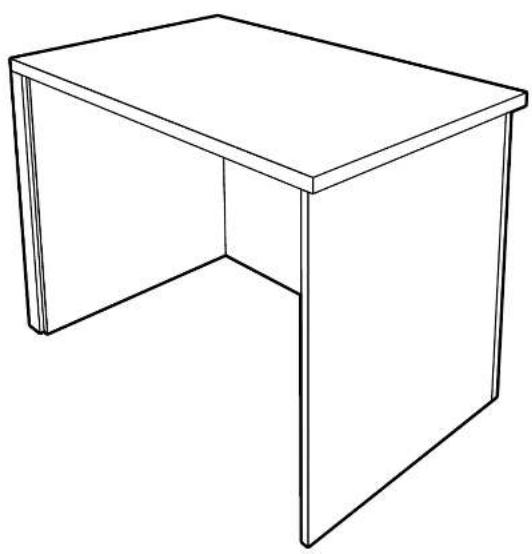

DOUBLE FRIDGE CABINET

BM96FWG

Line drawing of a simple 3D desk with a rectangular top and two side legs (no text or symbols)

Pure geometric diagram of a rectangle with dimension lines and an open circle at the bottom (no text or symbols)

i IMPORTANT
Please dole: Skane: messages may vary -7mm

CAUTION

ASSEMBLY OF THIS UNIT SHOULD BE CARRIED OUT BY A QUALIFIED TRADESMAN

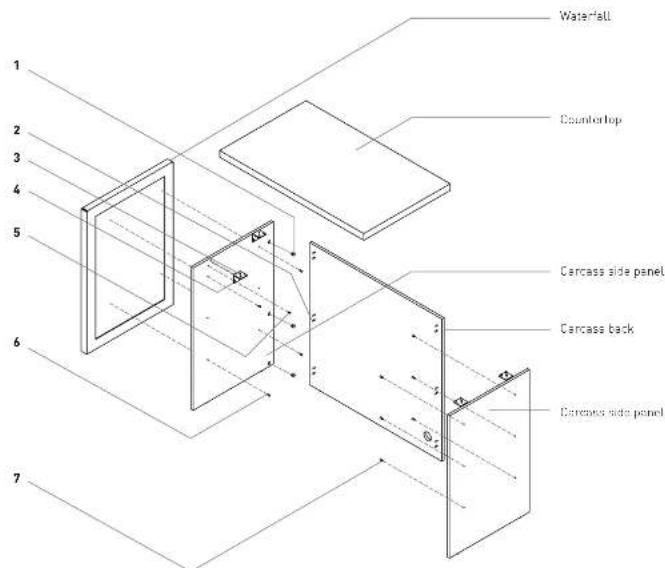

NO. PART NAME QTY.

1		Cam screws	×6
2		Dewels	×4
3		Bracket screws to counter top [M3 x 1mm, counter scale]	×2
4		Counter top bracket	×4
5		Bracket screws to side panels [M4 x 12mm, Damm head]	×2
6		Water ball screws [M4 x 25mm]	×6
7		Screws [M4 x 25mm]	×4
8	∅21	Cam screw pad	×6
9		1.5mm Shims	×2
10		3.5mm Shims	×2
11		5mm Shims	×2

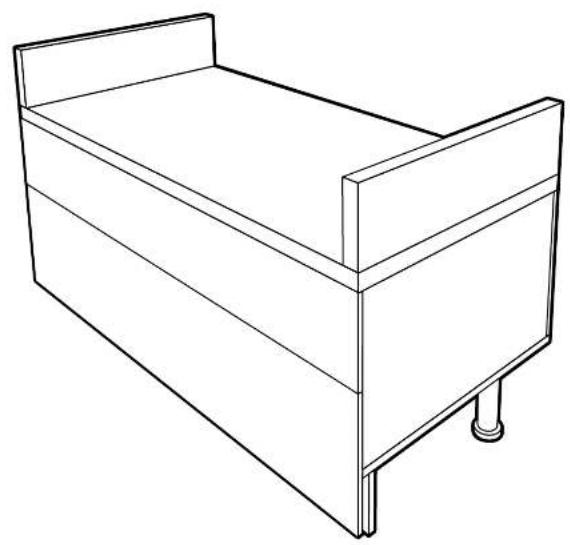

4 BURNER BBQ MODULE WITH DRAWERS

BM4BRWG

Line drawing of a simple bed with two legs and a side shelf (no text or symbols)

IMPORTANT
Please note: Stone dimensions may vary ±2 mm

Simple line drawing of a rectangular frame with a vertical dimension labeled 860 (no text or symbols beyond the measurement)

CAUTION

ASSEMBLY OF THIS UNIT SHOULD BE CARRIED OUT BY A QUALIFIED TRADESMAN

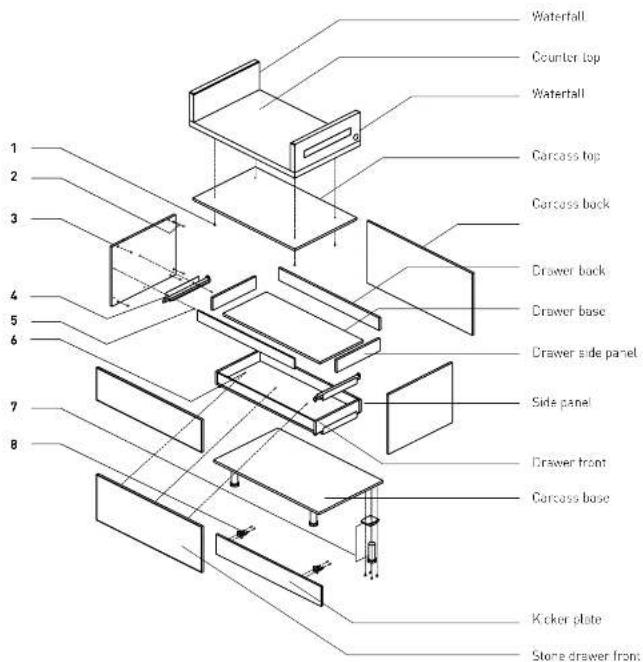

1		Water's U/Counter top screws [M4 x 25mm]	x6
2		Cam screws	x46
3		Dowels	x'16
4		Drawer runners	x7
5	[HBCW]	Screws [M4 x 16mm]	x40
6		Drawer screws	x6
7		Adjustable fan	x5
8		Kick board clips	x2
9	[4×5×1]	Cam screw pad	x6
10	[4×8×2]	Top drawer position jig (P57 x 24mm)	x1
11	[4×7×2]	Bottom drawer position jig (P57 x 11mm)	x1

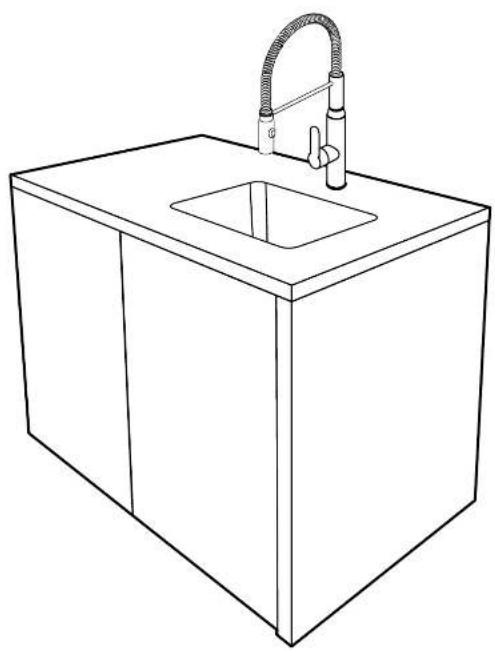

SINK MODULE

BM10SWG

Line drawing of a modern kitchen sink with a curved faucet handle (no text or symbols)

Simple line drawing of a rectangular frame with a vertical divider and a small protrusion on top (no text or symbols)

IMPORTANT

Please note: Stone dimensions may vary ±2mm

CAUTION

ASSEMBLY OF THIS UNIT SHOULD BE CARRIED OUT BY A QUALIFIED TRADESMAN

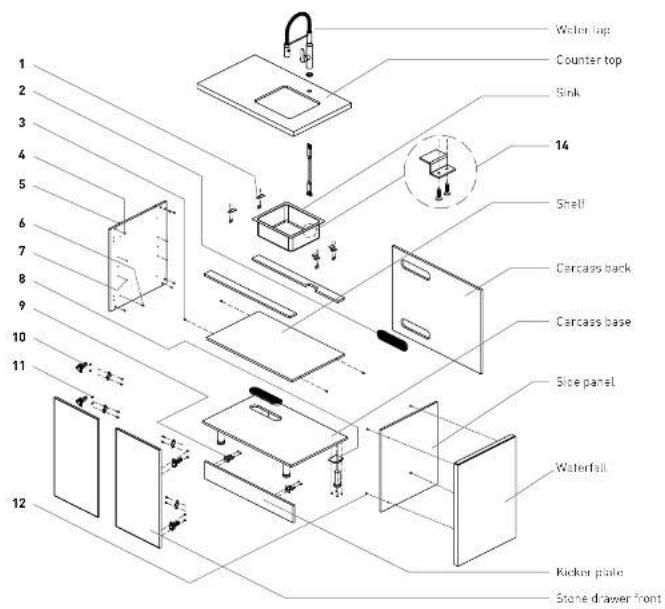

NO. PART NAME QTY.

1		Metal bracket	x4
2		Panel gr.1s	x2
3		Shelf pins	x4
4		Cam screws	x24
5		Dowels	x 2
6		Screws (M4 x 25mm)	x4
7		Shell baric cover	x5
8		Adjustable load	x5
9		Kick board clips	x7
10		Regular hges	x9
11		Screws (M4 x 35mm)	x44
12		Waterfall/Counter top screws	x10
13		Cam screw pad	x6
14		Sink screws (M5 x 20mm)	x8
