BRUGSANVISNING BL4500HA Maruyama
ILLUSTRATED PARTS LIST

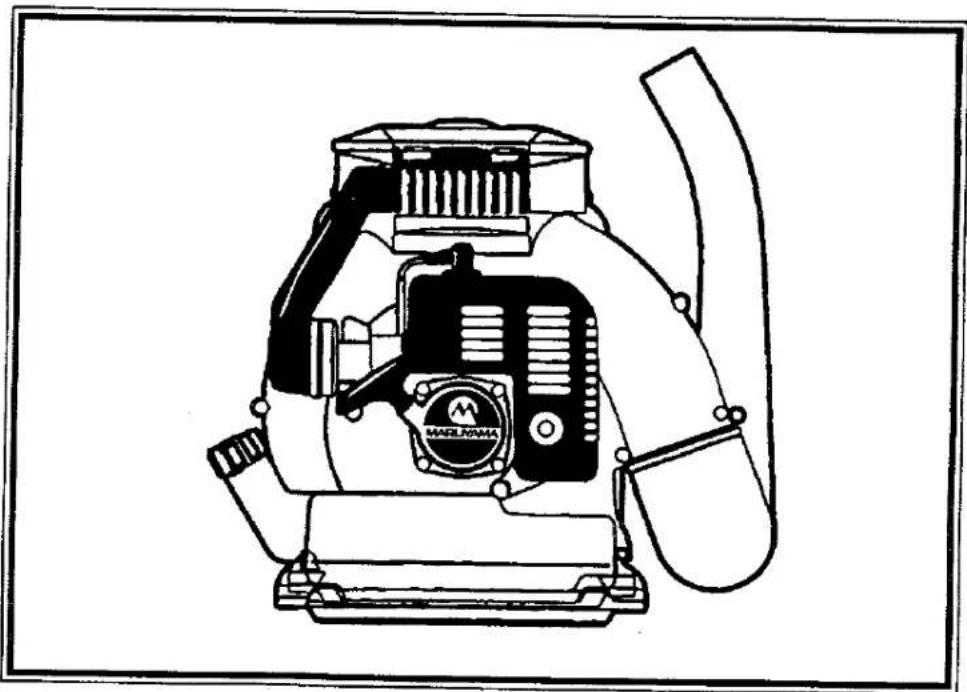

Models BL4500SP & BL4500HA BL5400SP & BL5400HA


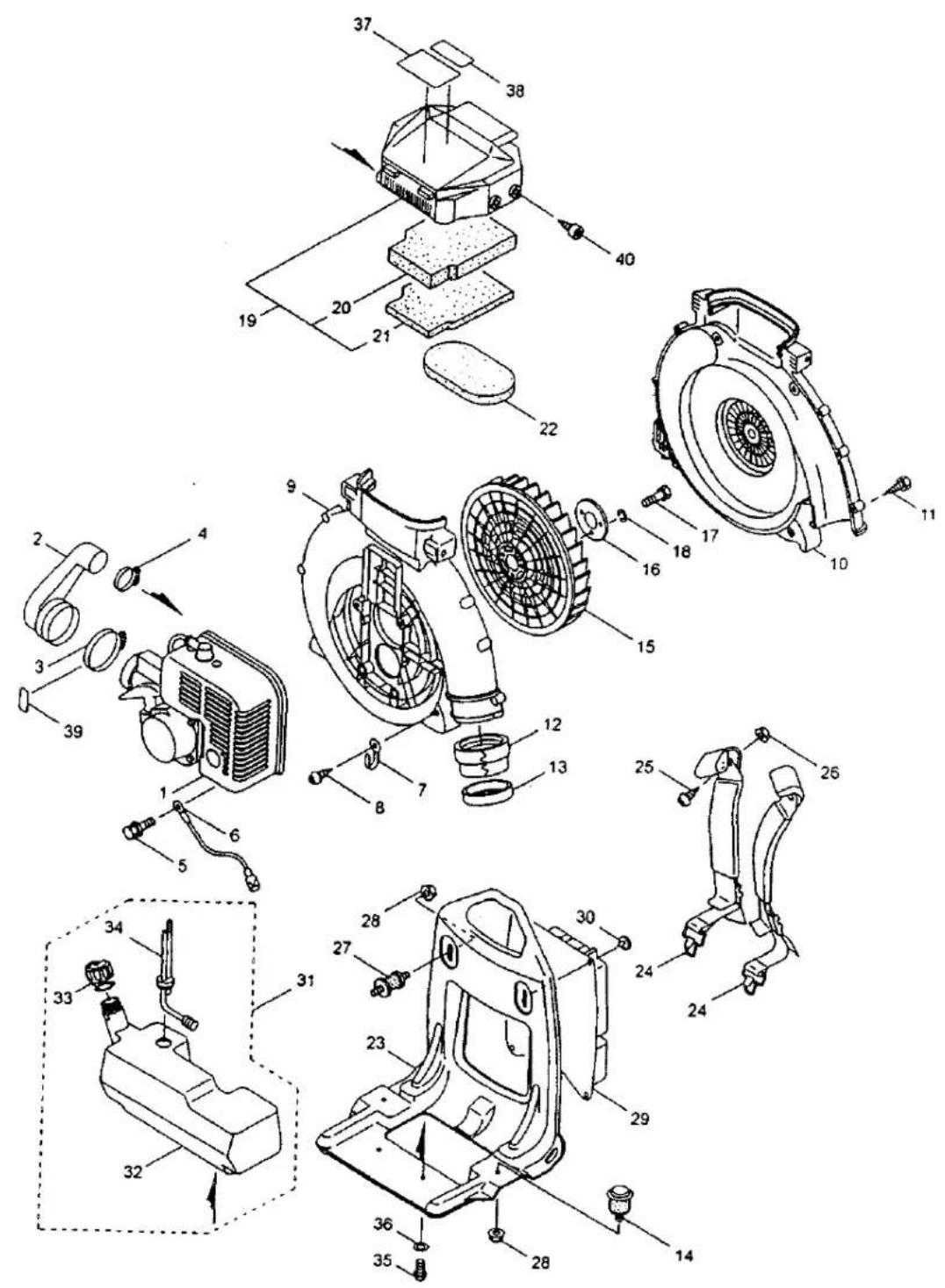

Technical line drawing of a mechanical device with no visible text or symbolsBL5400 & BL4500 MAIN BODY
BL5400 & BL4500 MAIN BODY
| Ref No. | Part No. | Description | Q'ty | Notes |
| 1 | 119384 | Shroud | 1 | BL4500 |
| 1 | 120065 | Shroud | 1 | BL5400 |
| 2 | 119616 | Inlet Pipe | 1 | |
| 3 | 119685 | Band | 1 | #55-70 |
| 4 | 119684 | Band | 1 | #30-40 |
| 5 | 092543 | Bolt | 4 | M6x45 |
| 6 | 108634 | Ground Wire | 1 | |
| 7 | 103550 | Clamp | 1 | |
| 8 | 082697 | Tapping Screw | 1 | M5x10 |
| 9 | 119386 | Fan Case(E) | 1 | BL4500 |
| 9 | 120512 | Fan Case(E) | 1 | BL5400 |
| 10 | 119387 | Fan Case(S) | 1 | |
| 11 | 118530 | Tapping Screw | 11 | M5x25 |
| 12 | 119160 | Collar | 1 | |
| 13 | 119161 | Rubber Band | 1 | |
| 14 | 114454 | Buffer | 2 | 40-M6x14 |
| 15 | 118724 | Fan | 1 | |
| 16 | 118248 | Plate | 1 | |
| 17 | 119558 | Bolt | 3 | M6x40-7T |
| 18 | 012502 | Spring Washer | 3 | M6 |
| 19 | 119364 | Air Cleaner Ass'y. | 1 | INCL. 22,23 |
| 20 | 119664 | Element | 1 | |
| 21 | 119665 | Felt | 1 | |
| 22 | 120536 | Packing | 1 | |
| 23 | 119174 | Knapsack Frame | 1 | |
| 24 | 119668 | Knapsack Band | 2 | |
| 25 | 083445 | Screw | 2 | M6x16 |
| 26 | 550132 | Nut | 2 | M6 |
| 27 | 026223 | Buffer | 2 | 30-M6x14 |
| 28 | 109704 | Nut | 4 | M6 |
| 29 | 100749 | Cushion Pad | 1 | |
| 30 | 840543 | Pad Retainer | 4 | #7 |
| 31 | 119388 | Fuel Tank Ass'y. | 1 | INCL. 34~36 |
| 32 | 120154 | Fuel Tank | 1 | |
| 33 | 119390 | Cap Ass'y. | 1 | |
| 34 | 119391 | Filter Ass'y. | 1 | |
| 35 | 081414 | Screw | 2 | M5x14 |
| 36 | 015479 | Washer | 2 | 5.3x16xt1.6 |
| 37 | 119606 | Label | 1 | BL4500SP |
| 37 | 119607 | Label | 1 | BL4500HA |
| 37 | 120073 | Label | 1 | BL5400SP |
| 37 | 120068 | Label | 1 | BL5400HA |
| 38 | 107483 | Label | 1 | |
| 39 | 119613 | Label | 1 | CHOKE |
| 40 | 082708 | Tapping Screw | 4 | M6x14 |

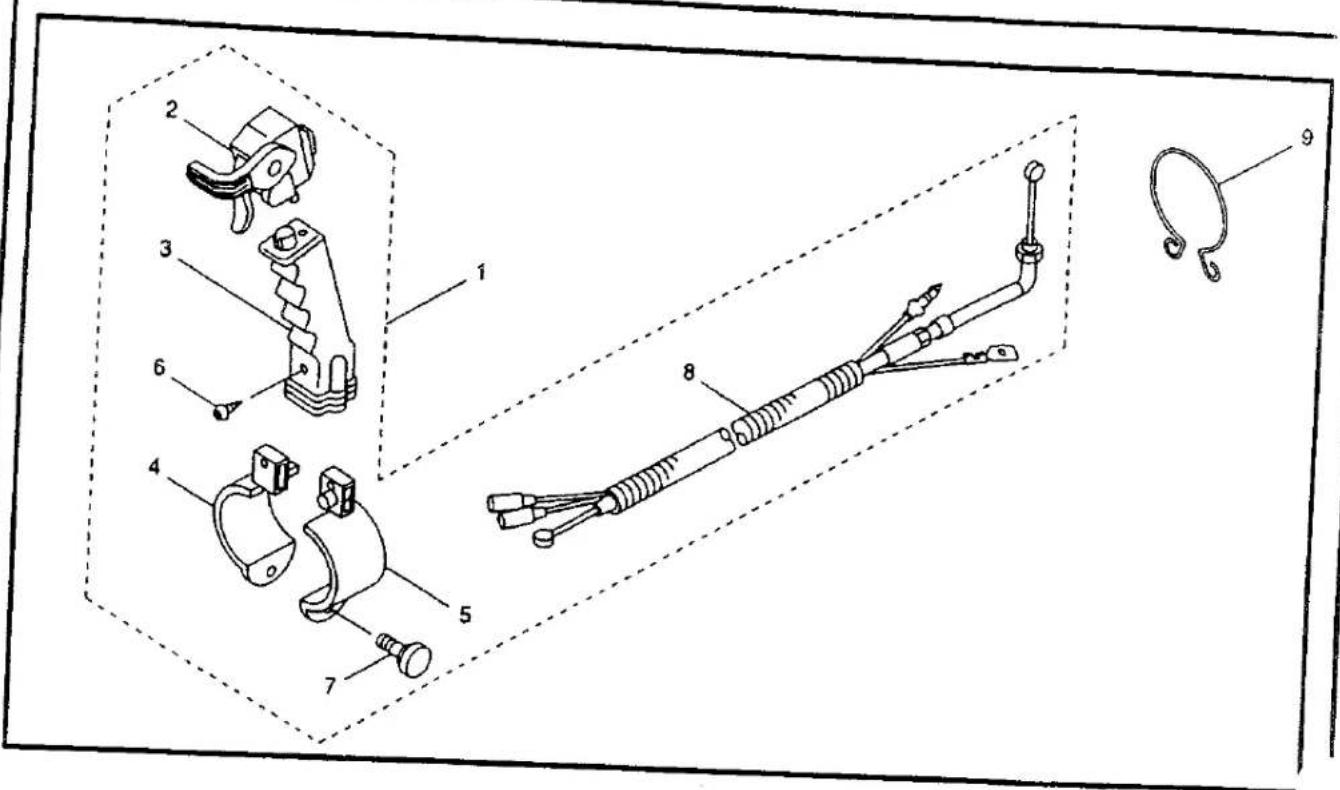

BL4500SP & BL5400SP THROTTLE
| Ref No. | Part No. | Description | Q'ty | Notes |
| 1 | 119619 | Throttle Ass'y. | 1 | INCL. 2-8 |
| 2 | 116049 | Throttle | 1 | |
| 3 | 118811 | Grip | 1 | |
| 4 | 118813 | Band | 1 | |
| 5 | 118814 | Band | 1 | |
| 6 | 082759 | Screw | 1 | M5x20 |
| 7 | 117488 | Knob Bolt | 1 | M6x30 |
| 8 | 119620 | Throttle Cable Ass'y. | 1 | |
| 9 | 119173 | Clamp | 1 |

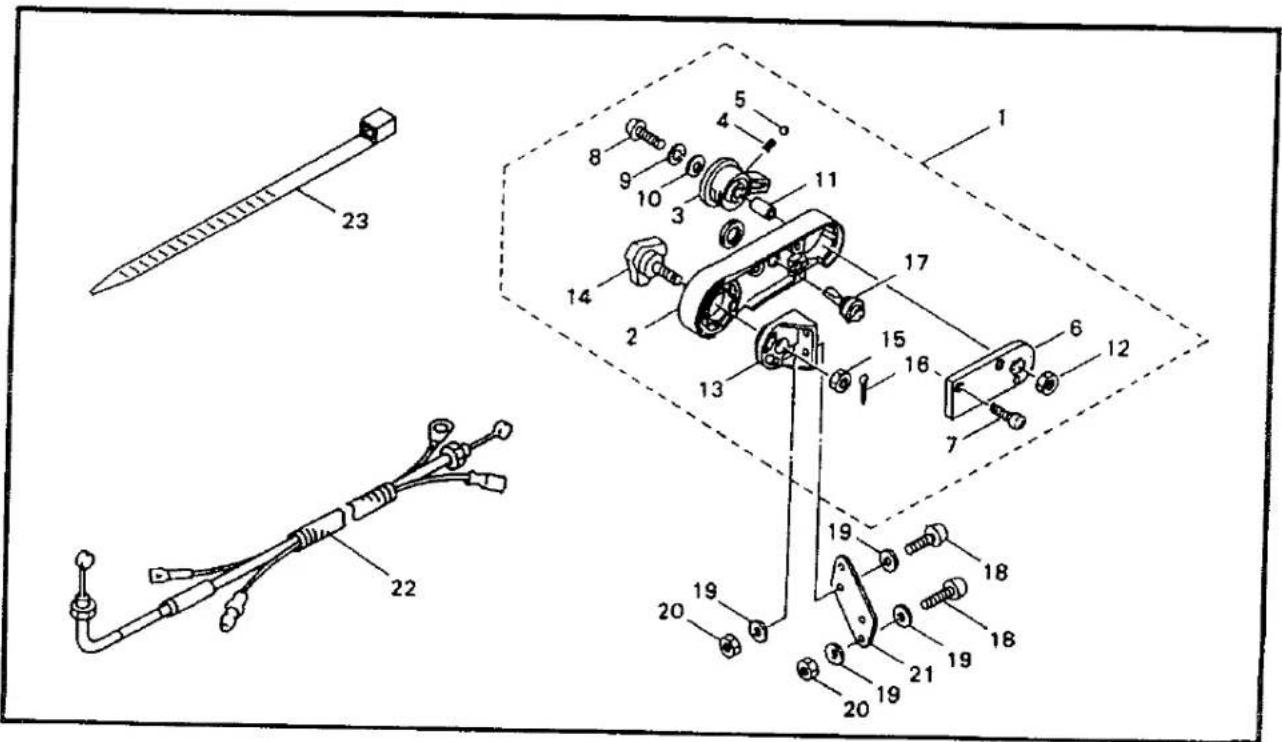

BL4500HA & BL5400HA THROTTLE
| Ref No. | Part No. | Description | Q'ty | Notes |
| 1 | 117622 | Throttle Lever | 1 | INCL. 2-17 |
| 2 | 107126 | Arm | 1 | |
| 3 | 107127 | Lever | 1 | |
| 4 | 107221 | Spring | 1 | |
| 5 | 106498 | Valve Ball | 1 | |
| 6 | 107129 | Slay | 1 | |
| 7 | 019001 | Tapping Screw | 2 | M4x10 |
| 8 | 081457 | Screw | 1 | M6x25 |
| 9 | 012502 | Spring Washer | 1 | M6 |
| 10 | 012488 | Washer | 1 | M6 |
| 11 | 107136 | Collar | 1 | |
| 12 | 081031 | Nut | 1 | M6 |
| 13 | 115605 | Flange | 1 | |
| 14 | 115612 | Knob Boit | 1 | M8x35 |
| 15 | 107581 | Nylon Nut | 1 | M8 |
| 16 | 065842 | Cotter Pin | 1 | 2x15L |
| 17 | 117623 | Switch | 1 | |
| 18 | 081456 | Screw | 4 | M6x20 |
| 19 | 013754 | Washer | 8 | M6 |
| 20 | 112509 | Nut | 4 | M6 |
| 21 | 117603 | Plate | 1 | |
| 22 | 119411 | Throttle Cable Ass'y | 1 | |
| 23 | 108954 | Band | 1 |

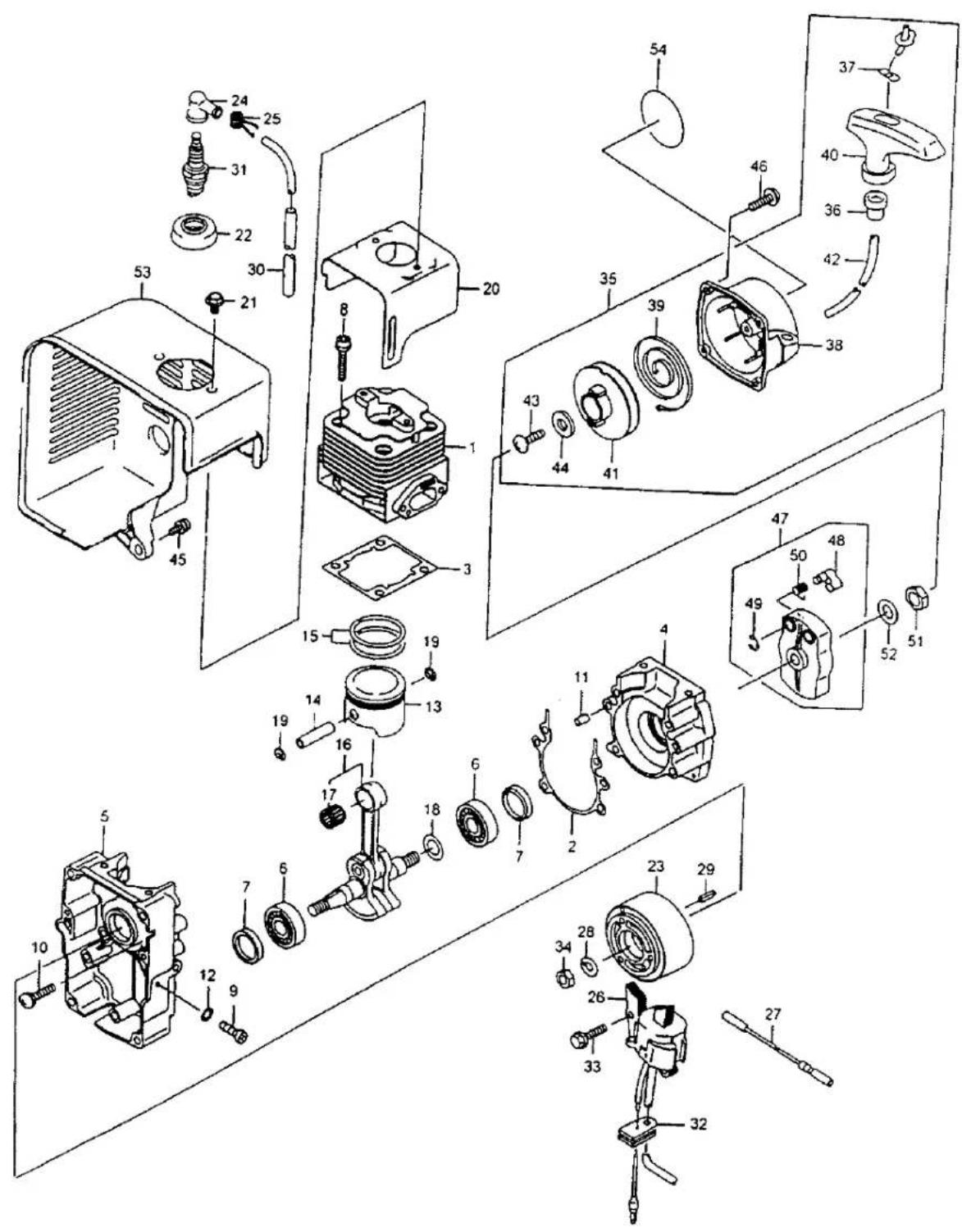

ENGINE
ENGINE
| Ref No. | Part No. | Description | Q'ty | Notes |
| 1 | 626809 | Cylinder | 1 | BL4500 |
| 1 | 597281 | Cylinder | 1 | BL5400 |
| 2 | 570248 | Gasket | 1 | |
| 3 | 597282 | Gasket | 1 | |
| 4 | 570246 | Crankcase | 1 | |
| 5 | 570247 | Crankcase | 1 | |
| 6 | 597283 | Bearing | 2 | #6202C3 |
| 7 | 071320 | Oil Seal | 2 | |
| 8 | 597284 | Bolt | 4 | |
| 9 | 944619 | Screw | 1 | |
| 10 | 599880 | Screw | 4 | |
| 11 | 943349 | Dowel Pin | 2 | |
| 12 | 943893 | Gasket | 1 | |
| 13 | 579537 | Piston | 1 | BL4500 |
| 13 | 570244 | Piston | 1 | BL5400 |
| 14 | 599881 | Piston Pin | 1 | BL4500 |
| 14 | 944769 | Piston Pin | 1 | BL5400 |
| 15 | 943875 | Piston Ring Set | 1 | BL4500 |
| 15 | 943304 | Piston Ring Set | 1 | BL5400 |
| 16 | 626810 | Crankshaft Ass'y. | 1 | BL4500 |
| 16 | 570245 | Crankshaft Ass'y. | 1 | BL5400 |
| 17 | 597289 | Needle Bearing | 1 | |
| 18 | 597285 | Shim (T0.1) | AR | T=0.10 |
| 18 | 597286 | Shim (T0.2) | AR | T=0.20 |
| 18 | 597287 | Shim (T0.4) | AR | T=0.40 |
| 18 | 597288 | Shim (T0.6) | AR | T=0.60 |
| 19 | 943307 | Snap Ring | 2 | |
| 20 | 580182 | Shroud | 1 | BL4500 |
| 20 | 620816 | Shroud | 1 | BL5400 |
| 21 | 626817 | Bolt | 2 | |
| 22 | 573289 | Cover | 1 | BL4500 |
| 22 | 570252 | Cover | 1 | BL5400 |
| 23 | 597291 | Flywheel | 1 | |
| 24 | 591532 | Spark Plug Cap | 1 | |
| 25 | 591533 | Terminal | 1 | |
| 26 | 597262 | Ignition Coil | 1 | |
| 27 | 597263 | Lead Wire | 1 | |
| 28 | 943924 | Washer | 1 | |
| 29 | 998409 | Key | 1 | |
| 30 | 998411 | Tube | 1 | 6x7.4x300L |
| 31 | 626811 | Spark Plug | 1 | BPMR7A |
| 32 | 597293 | Grommet | 1 | |
| 33 | 943457 | Bolt | 2 | |
| 34 | 998410 | Nut | 1 | |
| 35 | 579570 | Recoil Starter Ass'y. | 1 | BL4500 |
| 35 | 998413 | Recoil Starter Ass'y. | 1 | BL5400 |
| 36 | 998438 | Rope Guide | 1 | |
| 37 | 944502 | Washer | 1 | |
| 38 | 579568 | Recoil Case | 1 | BL4500 |
| 38 | 998439 | Recoil Case | 1 | BL5400 |
| 39 | 572955 | Spring | 1 | BL4500 |
| 39 | 998435 | Spring | 1 | BL5400 |
| 40 | 998437 | Grip | 1 |
| Ref No. | Part No. | Description | Q'ty | Notes |
| 41 | 579571 | Reel | 1 | BL4500 |
| 41 | 998434 | Reel | 1 | BL5400 |
| 42 | 579572 | Rope(3.8X850L) | 1 | BL4500 |
| 42 | 998436 | Rope(3.8X1150L) | 1 | BL5400 |
| 43 | 944801 | Screw | 1 | M5x12 |
| 44 | 579574 | Washer | 1 | BL4500 |
| 44 | 998433 | Washer | 1 | BL5400 |
| 45 | 580184 | Screw | 1 | |
| 46 | 624845 | Screw | 4 | M4x16 |
| 47 | 579569 | Starter Pawl Ass'y. | 1 | BL4500 |
| 47 | 998414 | Starter Pawl Ass'y. | 1 | BL5400 |
| 48 | 572938 | Pawl | 1 | |
| 49 | 944226 | E-Ring | 1 | |
| 50 | 579573 | Return Spring | 1 | BL4500 |
| 50 | 998416 | Return Spring | 1 | BL5400 |
| 51 | 943173 | Nut | 1 | BL4500 |
| 51 | 998417 | Nut | 1 | BL5400 |
| 52 | 071190 | Washer | 1 | BL4500 |
| 52 | 071344 | Washer | 1 | BL5400 |
| 53 | 119384 | Shroud | 1 | BL4500 |
| 53 | 120065 | Shroud | 1 | BL5400 |
| 54 | 582171 | Label(MARUYAMA) | 1 | BL4500 |
| 54 | 628096 | Label(MARUYAMA) | 1 | BL5400 |

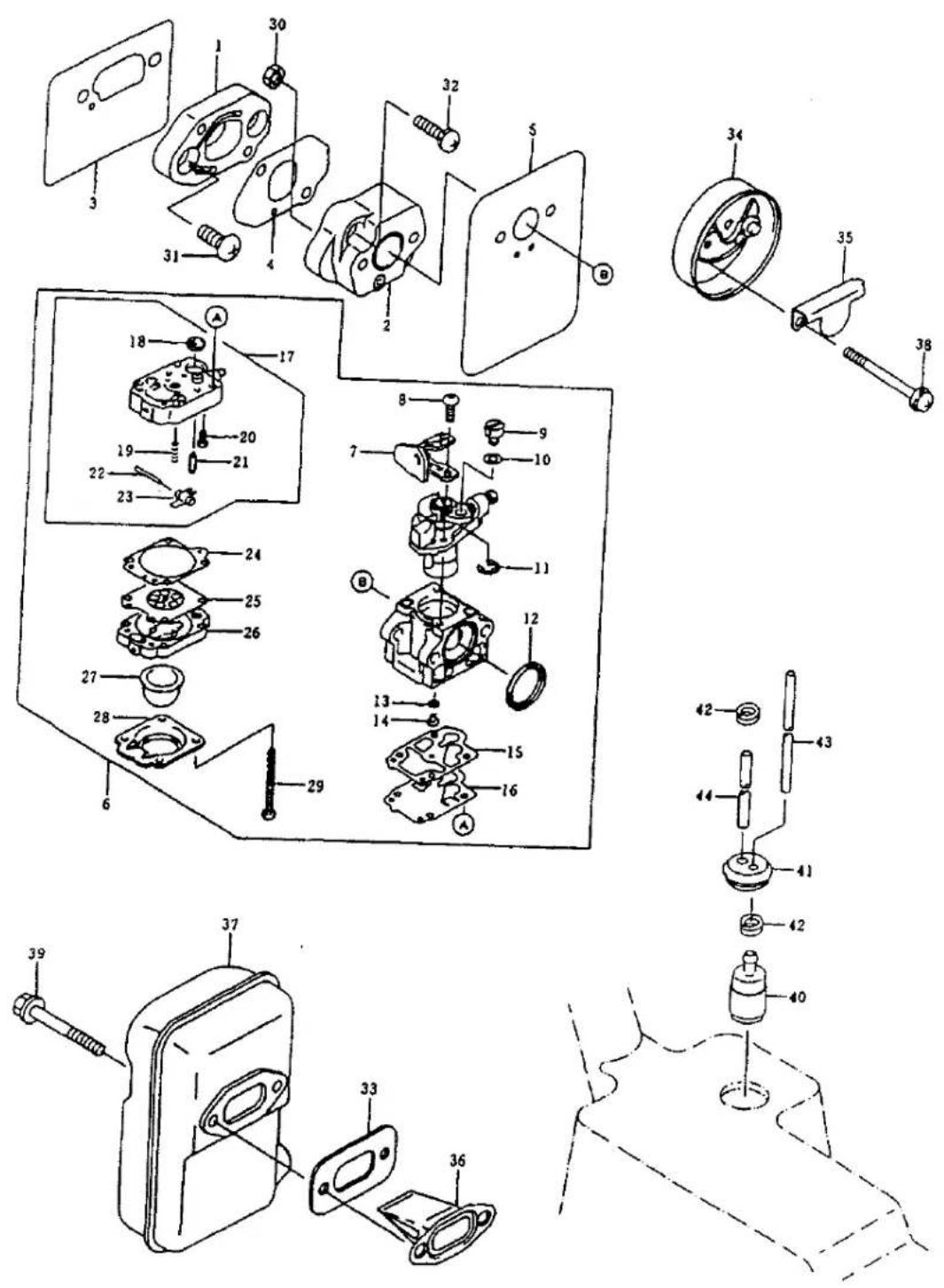

CARBURETOR AND MUFFLER
CARBURETOR AND MUFFLER
| Ref No. | Part No. | Description | Q'ty | Notes |
| 1 | 625867 | Adapter | 1 | |
| 2 | 625866 | Insulator | 1 | |
| 3 | 625862 | Gasket | 1 | |
| 4 | 625863 | Gasket | 1 | BL4500 |
| 4 | 628089 | Gasket | 1 | BL5400 |
| 5 | 625864 | Gasket | 1 | BL4500 |
| 5 | 628090 | Gasket | 1 | BL5400 |
| 6 | 625865 | Carburetor Ass'y | 1 | BL4500 |
| 6 | 628091 | Carburetor Ass'y. | 1 | BL5400 |
| 7 | 624525 | Bracket | 1 | |
| 8 | 577179 | Screw | 2 | |
| 9 | 598415 | Arm | 1 | |
| 10 | 624532 | Washer | 1 | |
| 11 | 577175 | Snap Ring | 1 | |
| 12 | 624528 | Packing | 1 | |
| 13 | 577182 | O-Ring | 1 | |
| 14 | 626813 | Main Jet | 1 | BL4500 |
| 14 | 628092 | Main Jet | 1 | BL5400 |
| 15 | 577184 | Gasket | 1 | |
| 16 | 577185 | Diaphragm | 1 | |
| 17 | 626812 | Body Ass'y | 1 | INCL. 18-23 |
| 18 | 624430 | Filter | 1 | |
| 19 | 624434 | Spring | 1 | |
| 20 | 624432 | Screw | 1 | |
| 21 | 624431 | Float Valve | 1 | |
| 22 | 624433 | Pin | 1 | |
| 23 | 624429 | Lever | 1 | |
| 24 | 598407 | Gasket | 1 | |
| 25 | 944219 | Diaphragm | 1 | |
| 26 | 598413 | Body | 1 | |
| 27 | 577191 | Priming Pump | 1 | |
| 28 | 598409 | Primer Pump Cover | 1 | |
| 29 | 598417 | Screw | 4 | |
| 30 | 594598 | Nut | 2 | |
| 31 | 625868 | Screw | 2 | |
| 32 | 579565 | Screw | 2 | |
| 33 | 579566 | Gasket | 1 | BL4500 |
| 33 | 584743 | Gasket | 1 | BL5400 |
| 34 | 625870 | Air Filter Case Ass'y | 1 | BL4500 |
| 34 | 626902 | Air Filter Case Ass'y. | 1 | BL5400 |
| 35 | 626814 | Baffle | 1 | |
| 36 | 579567 | Spark Arrester | 1 | BL4500 |
| 36 | 628093 | Spark Arrester | 1 | BL5400 |
| 37 | 625869 | Muffler Complete | 1 | BL4500 |
| 37 | 628094 | Muffler Complete | 1 | BL5400 |
| 38 | 626815 | Screw | 1 | BL4500 |
| 38 | 628095 | Screw | 2 | BL5400 |
| 39 | 944440 | Bolt | 2 | M6x65 |
| 40 | 625872 | Fuel Filter | 1 | |
| 41 | 597949 | Grommel | 1 | |
| 42 | 597948 | Clamp | 2 | |
| 43 | 625873 | Tube | 1 | 3x5x250L |
| 44 | 625874 | Tube | 1 | 3x6x130L |

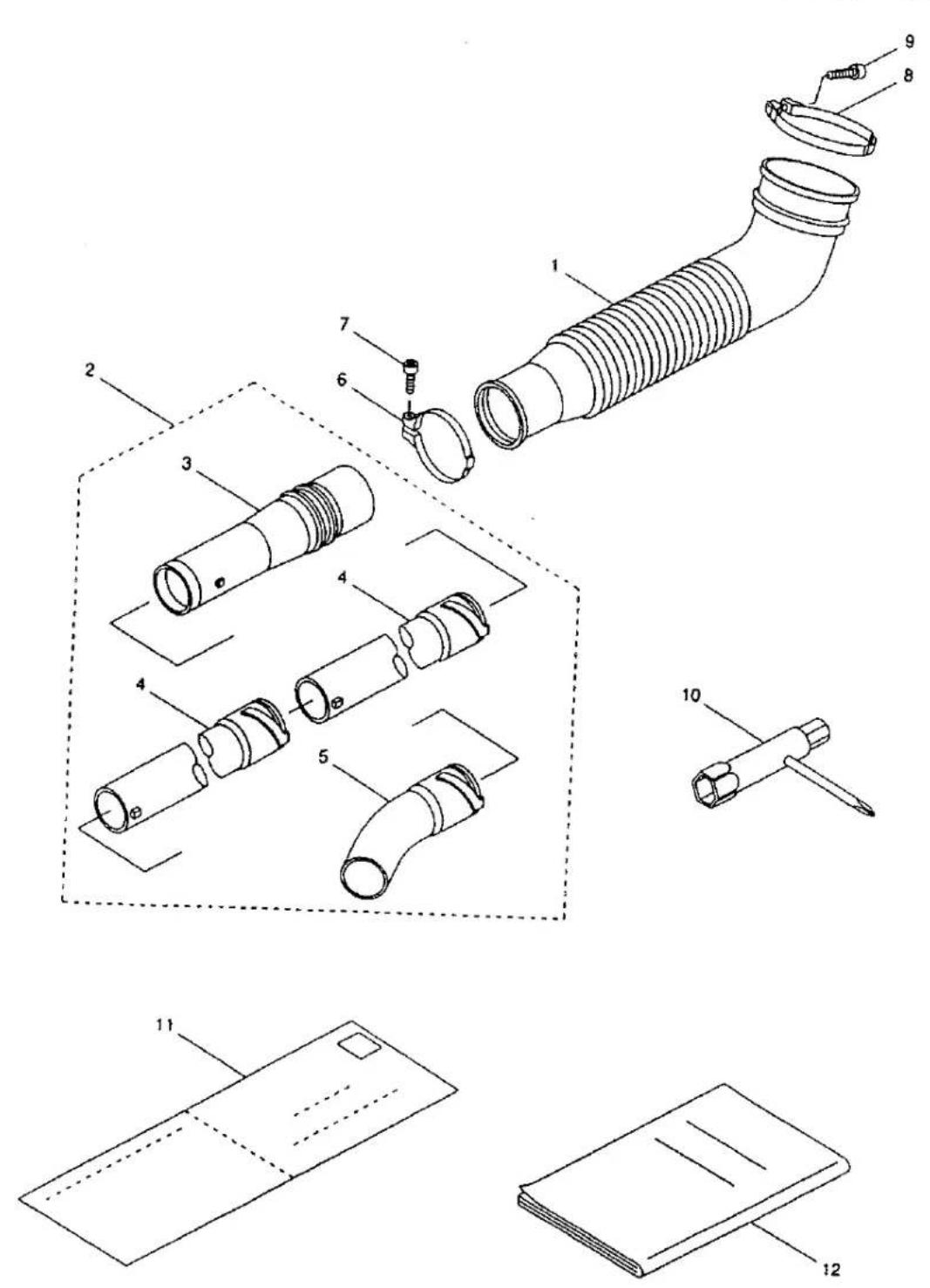

TUBES & ACCESSORIES
TUBES & ACCESSORIES
| Ref No. | Part No. | Description | Q'ty | Notes |
| 1 | 119186 | Flexible Pipe | 1 | |
| 2 | 119366 | Pipe Ass'y | 1 | INCL. 3-5 |
| 3 | 106721 | Swivel Pipe | 1 | |
| 4 | 106762 | Sright Pipe | 2 | 370L |
| 5 | 106725 | Bent Pipe | 1 | |
| 6 | 119525 | Hose Band | 1 | #75 |
| 7 | 088831 | Screw | 1 | M5x16 |
| 8 | 119523 | Hose Band | 1 | #100 |
| 9 | 081417 | Screw | 1 | M5x25 |
| 10 | 210418 | Box Wrench/Driver | 1 | 13x19x(+)DRIVE |
| 11 | 216007 | Warranty Registration Card | 1 | |
| 12 | 119394 | Owners Manual | 1 | BL4500 |
| 12 | 120069 | Owners Manual | 1 | BL5400 |
