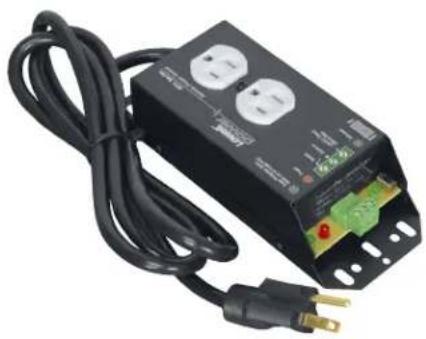

Black electrical control box with power outlet, gold terminal, and black cable (no visible text or symbols)

Ideal for Lowell switches featuring maintained closure (order separately):

RPSB-P Black wall plate w/rocker switch

RPSW-P White wall plate w/rocker switch

RPSW-KP White wall plate w/key switch

RPSB-R Rack panel w/rocker switch

RPSB-KR Rack panel w/key switch

Model No.

RPC-15-S

Remote Power Control

actives remote equipment — external trigger required

REMOTE POWER CONTROLS can be combined with a variety of switches or sequencers for an intrinsically safe, low voltage method of controlling AC power to equipment at remote locations. Controlling power distribution without directly accessing equipment minimizes the potential for unauthorized access, while simplifying activation and deactivation of equipment.

Note: RPCs require an external trigger for activation (order separately).

FEATURES

CHASSIS: Steel chassis with black finish and mounting holes.

Overall Dimensions:

8.00"L × 3.25"W × 1.95"H

POWER:

• Power Rating: 125VAC 60Hz 15A
- Outlets: NEMA 5-15R duplex
•Attached Cord: 6 ft. with NEMA 5-15P plug

SURGE PROTECTION:

• Maximum Surge Current: 20,000A
• VPR: 400V
• Response Time: 1 nanosecond
• EMI/RFI Noise Reduction: 20dB@100kHz
• Protection Mode: Line to Neutral
• Ground Contamination: None

ACTIVATION: Must be connected to an external control to trigger activation and deactivation:

- Dry Contact Closure: Connect to SPST switch, power sequencer, or independent control system with dry contact closure.

Contact Coil Rating:

- Voltage: 24VDC

- Current: 37.5mA

ORIGIN: Made in the U.S.A. with global components

THIRD PARTY APPROVAL: ETL Listed to UL60065 (U.S. and Canada)

INSTALLATION: The RPC is typically installed near the equipment to be controlled. Low voltage cable is run from its terminal strip to a control switch (or other control method).

• Systems can be configured with multiple RPCs controlled by a single "Maintained Closure" switch.
• Systems can also be configured with a single RPC controlled by multiple "Momentary Closure" switches and Lowell's MSM2 module (which converts momentary closure to maintained).

COMPATIBLE DEVICES: (order separately)

- SPST Switch (RPS Series): Low voltage wall-mount or rack-mount switch:

• Switch with maintained closure connects directly to RPC.
• Switch with momentary closure requires Lowell conversion module MSM2 placed between the switch and RPC.

- Power Sequencer (SEQ Series): A low voltage sequencer can be used with the RPC for time-delayed activation and deactivation of connected equipment. Lowell standalone sequencers will require a switch for activation, while Lowell rack-mount sequencers include a switch. See product spec sheets for information.

A&E SPECIFICATIONS

The device for remotely controlling AC power shall be Lowell model RPC-15-S, which shall feature a steel chassis with black powder epoxy finish, 125VAC 60Hz 15A power rating, NEMA 5-15R duplex outlet, 6 ft. cord with NEMA 5-15P plug, and basic surge protection up to 20,000A. The overall dimensions shall be 8.00"L x 3.25"W x 1.95"H. The unit shall require an external trigger for activation (not included).

THIS SPEC

Model No.	Chassis	Outlets	Input	Power Rating	Surge Suppression	External Activation Required	Connections
RPC-15	Standalone	NEMA 5-15R (2)	6' attached cord	125VAC 60Hz 15A	---	Dry contact closure	Terminal Strip
RPC-15-S	Standalone	NEMA 5-15R (2)	6' attached cord	125VAC 60Hz 15A	Yes	Dry contact closure	Terminal Strip
RPC-15-SCD-RJ	Standalone	NEMA 5-15R (2)	6' attached cord	125VAC 60Hz 15A	Yes	Dry contact closure or VT*	TS or RJ45
RPC-15-U	Standalone	IEC C13 (2)	6' detachable cord (2)	100-240VAC 50/60Hz 15A	---	Dry contact closure or VT*	Terminal Strip
RPC-20-CD	Standalone	NEMA 5-20R (2)	6' attached cord	125VAC 60Hz 20A	---	Dry contact closure or VT*	Terminal Strip
RPC-20-SCD	Standalone	NEMA 5-20R (2)	6' attached cord	125VAC 60Hz 20A	Yes	Dry contact closure or VT*	Terminal Strip
RPC-20-SCD-RJ	Standalone	NEMA 5-20R (2)	6' attached cord	125VAC 60Hz 20A	Yes	Dry contact closure or VT*	TS or RJ45
RPC-3N1	Standalone	NEMA 5-15R (8)	6' attached cord	125VAC 60Hz 15A	---	Dry contact closure	Terminal Strip
RPC-4CD	Rack-mount	NEMA 5-15R (8)	6' attached cord	125VAC 60Hz 15A	---	Dry contact closure	Terminal Strip
RPC-20-HW	Standalone	NEMA 20A (2)	6' flexible whip	125VAC 60Hz 20A	---	Dry contact closure or VT*	Terminal Strip
RPC-20-SHW	Standalone	NEMA 20A (2)	6' flexible whip	125VAC 60Hz 20A	Yes	Dry contact closure or VT*	Terminal Strip
RPC-30-SHW	Standalone	Twistlock 30A (1)	6' flexible whip	125VAC 60Hz 30A	Yes	Dry contact closure or VT*	Terminal Strip

* VT indicates the RPC can also accept a voltage trigger provided by an independent control system.

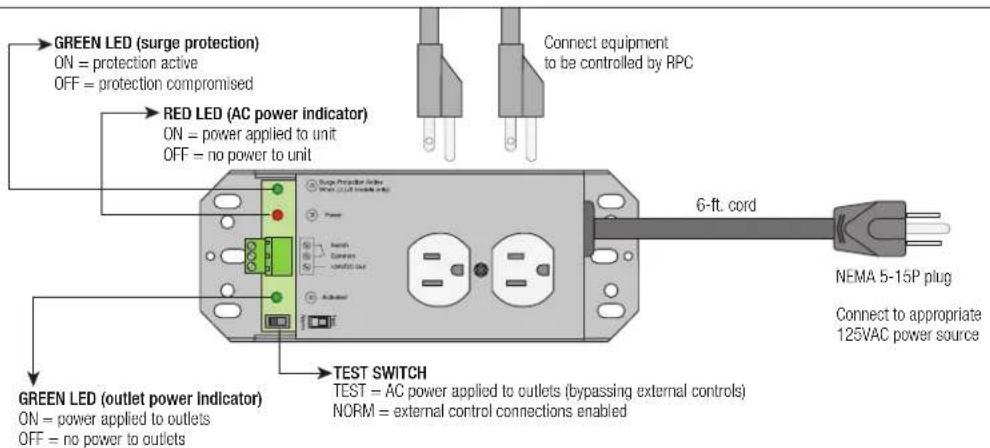

RPC DIAGRAM:

RPC TYPICAL CONTROL METHODS (low voltage, limited current Class 2 wiring):

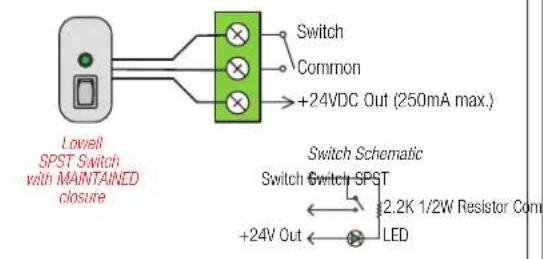

EXAMPLE 1: SPST switch with MAINTAINED closure. See Lowell RPS Series models listed on pg. 1.

EXAMPLE 2: Sequencer or Control System. Lowell SEQ Series sequencer or control system by others.

Follow polarity indicators, if any, on sequencer/controller rating: 24V, 37.5mA) ON = connection applied (closed) OFF = connection removed (open)
Interface with normally closed (N.C.) contact from Fire Alarm Panel.

EXAMPLE 3: Fire Alarm Panel Interface.

Application Example: The RPC provides power to a music/paging system in a retail store. The Fire Alarm Panel forces music/paging system OFF so alarm can be heard.
