BRUGSANVISNING SWP 850 Wingart
Plantiflor®


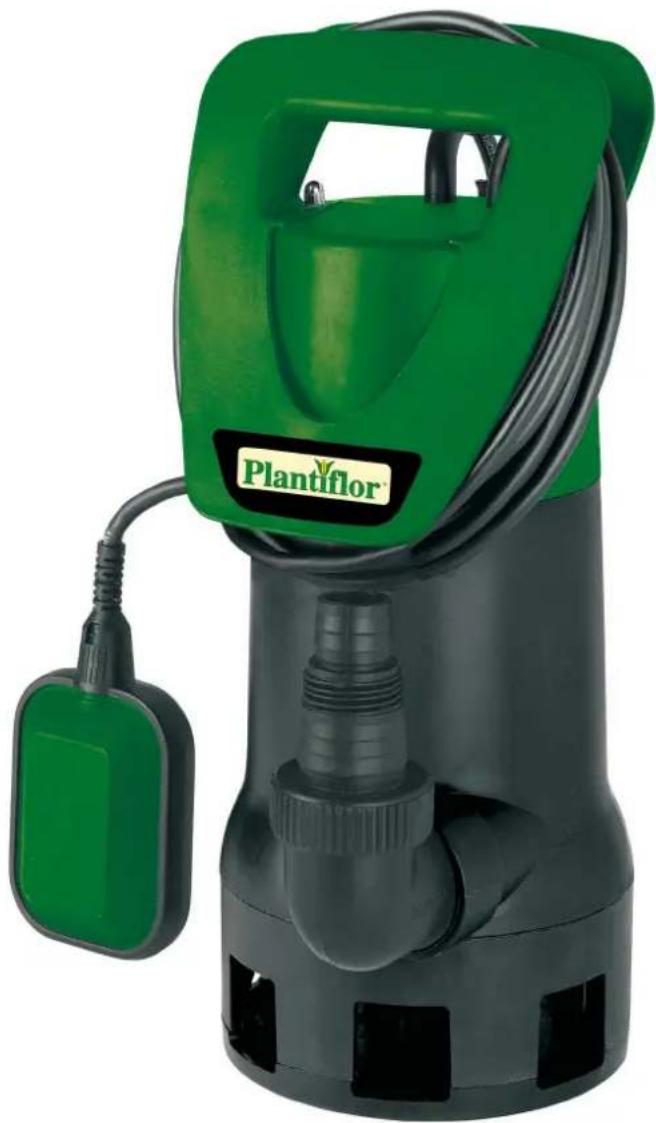

Green Plantiflor water purifier with black body and black filter, no visible text or symbols on the device itself.The powerful and robust dirt water pump for draining garden ponds, flooded basements and construction sites.
Capable of handling foreign particles up to ∅ 35 mm in size. Equipped with a continuously adjustable float switch for infinitely variable control of the ON/OFF switching height and operation differential.
Option of arresting the float switch for continuous operation.

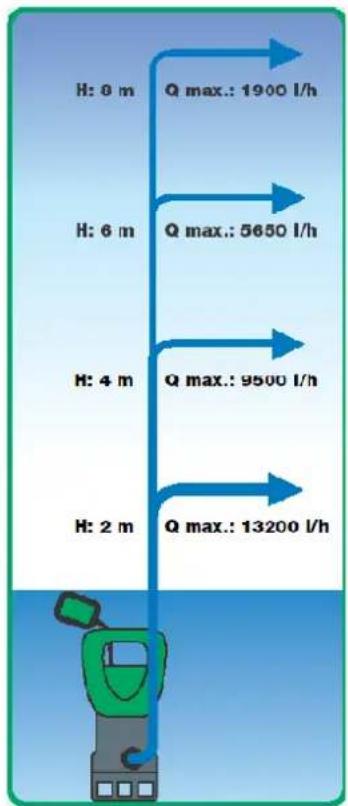

SWP 850 Dirt Water Pump
Logistic informations:
Type: SWP 850
Art.-No.: 41.706.23
Ident-No.: 01017
Bar code: 2052516600005
Packing: 240 x 190 x 410 mm
Sales unit: 4 pcs
20: 1,400 pcs
40: 2,900 pcs
40'HC: 3,240 pcs
Weight: 7.1 kg (gross)
CE
Plantiflor®

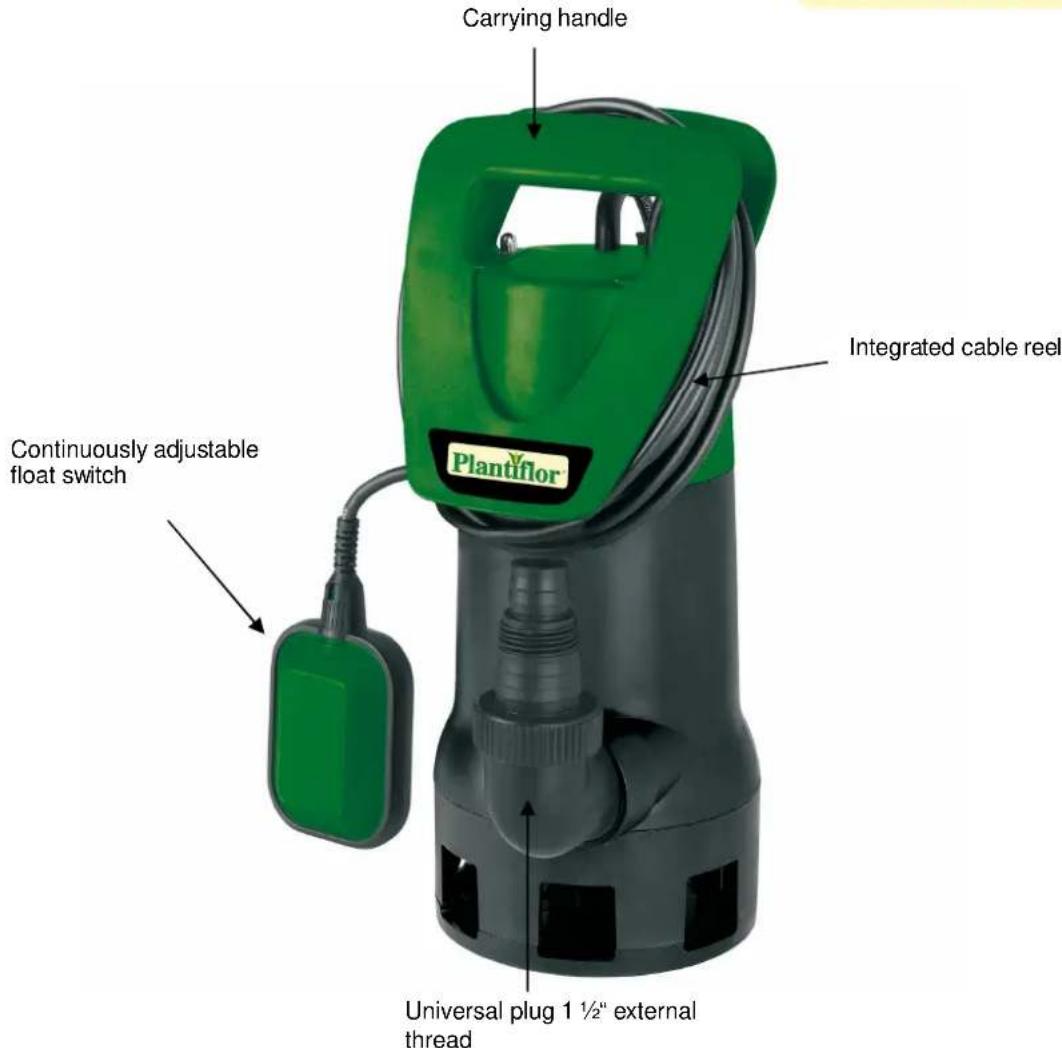

Features:
- Carrying handle with integrated cable reel
- Continuously adjustable float switch
- Housing made of impact resistant, high quality plastics
- Handles foreign particles with grain sizes up to 35 mm
- Universal plug 1 12 external thread
Logistic informations:
Type: SWP 850
Art.-No.: 41.706.23
Ident-No.: 01017
Bar code: 2052516600005
Packing: 240 x 190 x 410 mm
Tool: Dirt Water Pump
Sales unit: 4 pcs
20: 1,400 pcs
40': 2,900 pcs
40'HC: 3,240 pcs
Weight: 7.1 kg (gross)
Technical data:
- Mains: 230 V \~ 50 Hz
- Power: 850 W
- Delivery capacity max.: 17,000 l/h
- Delivery height max.: 9 m
- Immersion depth max.: 5 m
- Hose connection: 1 12 "
- Water temperature max.: 35 °C
- Main cable length: 10 m
- Foreign particle size up to: ∅ 35 mm
