BRUGSANVISNING VI 1000 SCL PowerWalker
PowerWalker VI 600-3000 SCL
Quick Guide
Back Panel:

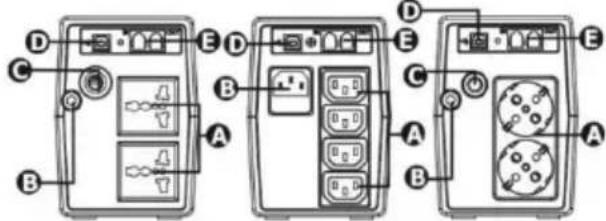

PowerWalker VI 400-800 SCL
PowerWalker VI 1000 SCL

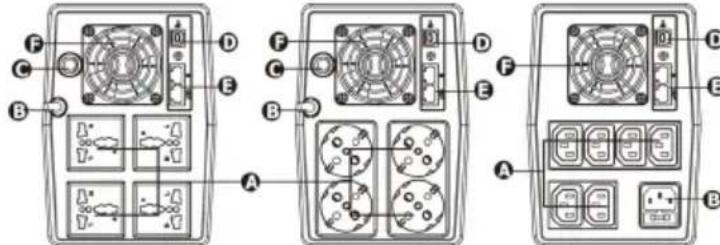

PowerWalker VI 1500-2000 SCL
A. Output sockets
B. AC input
C. Fuse / circuit breaker
D. USB port with HID support
E. Ethernet line surge protection
F. Cooling fan (only for 1500-3000 VA models

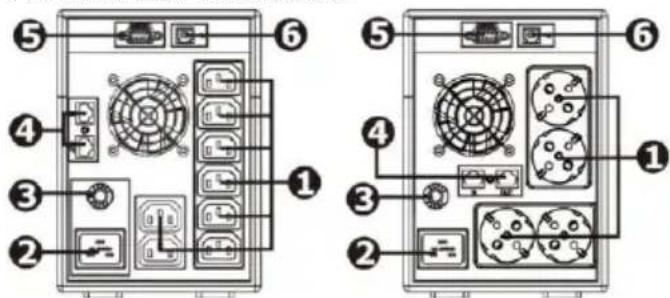

PowerWalker VI 3000 SCL
- Output sockets
- AC input
- Circuit breaker
- Ethernet line surge protection
- RS232 port
- USB port
Usage:
You can turn on and turn off the unit by pressing the power switch.
Models in the range 400-2000 VA have touch display. You can change the display content by touching it. If the backlight shuts off, you may activate it by touching the screen.
PowerWalker VI 3000 SCL does not have touch display, all available data are shown on the screen.
Display:
| UPS Mode | VI 400-2000 SCL touch display | VI 3000 SCL display | Description | |
| Power on |  |  | When UPS is powered on, it will enter this mode for few seconds. | |
| Standby Mode |  |  | No output is provided. | |
| Line Mode |  |  | The screen displays output voltage, input voltage, load level and battery capacity. | |
 |  | |||
| AVR Mode | [19HZK] | blinks | [15SSS] | Voltage regulation activated |
| Overload |  | blinks |  | When overload occurs, alarm will beep every 0.5s |
| Battery Mode |  |  | Output voltage is generated from the battery. Alarm will beep every 10s. | |
Troubleshooting
| Fault Code | Fault condition | Solutions |
| or F03 or F05 | Internal Error | Alarm will continue beeping. Contact technical support. |
| F01 / F02 | Output short-circuit / overload | Disconnect the loads and restart the UPS. |
| F04 or beeping every 2s | Weak battery | Please replace the battery. |
| F06 | Over-temperature | Turn off the unit, wait until it cools down and change to a better ventilated environment. |
Specifications
| Model | VI SCL Series | |
| Input | Voltage | 230 VAC |
| Voltage Range | 162-290 VAC | |
| Frequency Range | 60/50 Hz (Auto Sensing) | |
| Output | Voltage Regulation | +/-10% |
| Transfer Time | Typical 2-6 ms | |
| Waveform | Simulated Sine Wave | |
| Protection | Overload, discharge, and overcharge protection | |
| Humidity | 0-90 % RH @ 0-40°C (non-condensing) | |
| Noise Level | Less than 40 dB | |
| Model | VI 400 SCL | VI 600 SCL | VI 800 SCL | VI 1000 SCL | VI 1500 SCL | VI 2000 SCL | VI 3000 SCL |
| Power | 400VA | 600VA | 800VA | 1000VA | 1500VA | 2000VA | 3000VA |
| Capacity | 240W | 360W | 480W | 600W | 900W | 1200W | 1800W |
| Batteries | 4.5Ah x 1 | 7Ah x 1 | 9Ah x 1 | 7Ah x 2 | 9Ah x 2 | 9Ah x 2 | 9Ah x 2 |
| Charging | 6 hours recover to 90% capacity | 6-8h to 90% | |||||
| Dimension (DxWxH) | 300mm x 101mm x 142mm | 320mm x 130mm x 182mm | 397 x 146 x 205 | ||||
| Net weight | 3.7kg | 4.4kg | 5.0kg | 8.2kg | 10.4kg | 11.0kg | 11.5kg |
