BRUGSANVISNING SPC5010 Stinger

Stinger® offers everything you need.

to make your sound system

perform at it's best!

EXPERT LEVEL PRODUCTS

INTERCONNECTS

POWER WIRE

SPEAKER WIRE

WIRING KITS

HPM DIGITAL CAPACITORS

PRO DIGITAL CAPACITORS

CAPACITORS

BATTERIES

ALTERNATORS

BATTERY TERMINALS

TERMINALS

FUSE HOLDERS

POWER DISTRIBUTION

AMPERAGE & VOLTAGE STATUS BLOCK

FUSED DISTRIBUTION

ROADKILL

CARPET, CLOTH, & VINY

ELECTRONICS

SWINGERWEAR

Stinger ^®

13160 56 ^th Court

Clearwater, FL 33760

727-572-9255

stingerelectronics.com

©2009 AAMP of Florida™, Inc.

HYBRID

POWER

CAPACITOR

SPECIFICATIONS

Model # SPC5050

50 Farad Hybrid Super Capacitor with RED Digital Voltage Meter

Capacitance.... 50.000.000 micro farad (50 Farad)

Working Voltage.... 16 DCV

Surge voltage.... 18 DCV E.S.R. (Equivalent Series Resistance).....0.0015 ohm @ 120hz/ 25°C

Capacitance Tolerance....± 10%

Model # SPC5010

10 Farad Hybrid Super Capacitor with RED Digital Voltage Meter

Capacitance.... 10.000.000 micro farad (10 Farad)

Working Voltage.... 16 DCV

Surge Voltage....18 DCV

E.S.R. (Equivalent Series Resistance).....0.0015 ohm @ 120hz/ 25°C

Capacitance Tolerance....± 10 %

Model # SPC505

5 Farad Hybrid Super Capacitor with RED Digital Voltage Meter

Capacitance.... 5.000.000 micro farad (5 Farad)

Working Voltage.... 16 DCV

Surge Voltage....18 DCV

E. S. R. (Equivalent Series Resistance)... 0.0015 ohm @ 120hz/25°C

Capacitance Tolerance....± 10 %

WARRANTY STATEMENT

Stinger® Hybrid Capacitors are nearly indestructible and will provide years of reliable service if installed and used according to the instructions in this manual. Stinger® ("Company") warrants to the original retail purchaser of this product that should the product or any part thereof be proven defective in material or workmanship within a period of 1 year from date of purchase by original purchaser; such defects will be repaired or replaced, at the Company's option, without charge for parts or labor.

If you believe you have a defective capacitor, contact Stinger® technical support (727-572-9255 ext. 230) to discuss your problem. If it is agreed that the capacitor is defective, the product should be delivered, transportation prepaid to the Authorized Stinger® Dealer it was purchased from for repair or replacement. If you are unable to contact your Authorized Stinger® Dealer, you may contact Stinger® customer service at 727-572-9255 ext. 249 for return authorization instructions.

Items specifically not covered include but are not limited to the following: • Stripped terminals.

• Broken terminal bolts or studs.
- Blown vent plugs as a result of reverse polarity or over-voltage.
•Physical Damage or Improper Installation

THIS WARRANTY DOES NOT APPLY TO ANY PRODUCT OR PART THEREOF WHICH HAS BEEN DAMAGED THROUGH ALTERATION, MISHANDLING, MISUSE, NEGLECT, ACCIDENT, IMPROPER INSTALLATION OR UNAUTHORIZED REPAIR.

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND ANY OBLIGATION, LIABILITY, RIGHT, CLAIM OR REMEDY IN CONTRACT OR TORT, WHETHER OR NOT ARISING FROM THE COMPANY'S NEGLIGENCE, ACTUAL OR IMPUTED. NO PERSON OR REPRESENTATIVE IS AUTHORIZED TO ASSUME FOR THE COMPANY ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT. IN NO EVENT SHALL COMPANY BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

This warranty gives you specific legal rights and you may also have other rights, which vary from state to state, so some of the above limitations or exclusions may not apply to you.

WARNING!!

THIS POWER CAPACITOR MAY EXPLODE AND CAUSE SERIOUS INJURY IF ABUSED OR CONNECTED IMPROPERLY. PLEASE REFER TO THE INSTRUCTIONS CONTAINED IN THIS MANUAL FOR CORRECT MOUNTING, CHARGING/DISCHARGING AND WIRING CONNECTION FOR THIS PRIOR TO INSTALLATION.

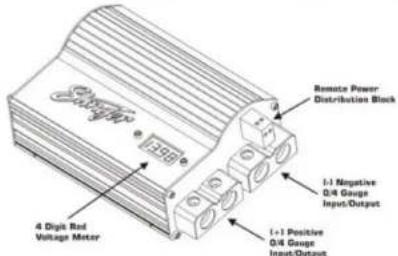

DETAILED FEATURES:

a) 4-digit super bright red voltage meter that can measure 0.01 DCV range.
b) Reverse polarity connection warning buzzer function. If the capacitor is connected incorrectly by reversing the positive and negative wires during the installation process the PCB will issue a 45 second noise to warn you.
c) High quality platinum finished 100% solid brass parts and chrome plated metal logo.
d) Carbon and Electrolytic capacitors, combined to provide the lowest inner E.S.R. and largest instantaneous discharge power.

e) Over voltage limit and low battery voltage limit warning. When the system voltage goes ABOVE 17 DCV or BELOW 10 DCV. The buzzer will sound.

INSTALLATION AND MOUNTING:

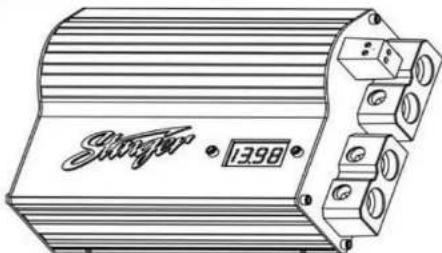

You must first attach the mounting tabs to the capacitor before mounting it. Use the supplied hardware shown in the picture below. Notice the small mounting screw hole in the capacitor chassis.

MOUNTING

CHARGING THE CAPACITOR AND WIRING:

The capacitor must be charged before connecting the Power and Ground cables to the capacitor. Failure to charge the capacitor will result in a large spark generated from the rapid inflow of current.

Figure 1

TO CHARGE THE CAPACITOR:

1. Make Capacitor positive terminal connections with amplifier and tighten the bolt. Do not over tighten the bolts!

Caution : Stripped terminals are not covered under the capacitor's warranty.

1. Connect the ground cables of the battery, amplifier, and capacitor separately to chassis, and then refer to Fig.1.

2. Place the supplied charging bulb or resistor between the positive terminal of the capacitor and the battery's positive terminal. Do this for 10 minutes or until the charging bulb goes out.

Caution: The charging bulb will get hot!

1. Immediately after the charging process, take away the charging bulb from the connecting wire, and connect the positive cable to the positive terminal on the capacitor.

DISCHARGING THE CAPACITOR:

Before removing capacitor we recommend discharging it: First, disconnect either supply wire; grounds or power from the capacitor. Next, place the light bulb, which came with your capacitor, across the power and ground terminals of the capacitor. It may take several minutes for the bulb to extinguish. Once bulb is no longer lit, you can continue disconnecting the wiring and dismount the capacitor.

DISCHARING

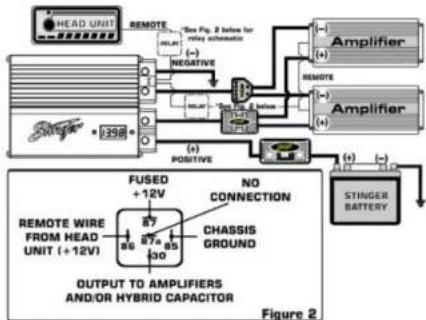

MULTIPLE CAPACITOR WIRING DIAGRAM:

NOTE: Wire standard SPDT (Single Pole Double Throw) relay in either location as shown in above diagram, use figure 2 schematic for reference.
