BRUGSANVISNING AMS96C71BX LA GERMANIA
Americana Series
90 6-Burners Gas Oven Electric Grill BX

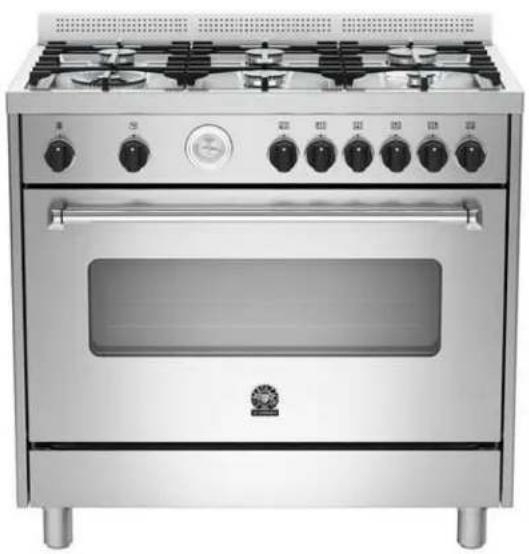

STAINLESS
MATT BURGUNDY
MATT CREAM
MATT BLACK
AMS96C 71 B X
This single-oven cooker has a stainless-steel single-piece worktop with 6 burners.
The gas oven is fan assisted and has 5 functions. A dial thermometer on the fascia monitors the oven temperature.
The oven door is triple-glass with a wide extractable inner glass.
Products and packaging are 99% recyclable
Colours shown will vary depending on your screen settings and resolution. Contact your dealer for further information.
Features Worktop
| Size: | 90 cm |
| Cooking zones: | 6 |
| Gas zones: | 6 |
| Worktop type: | gas |
| Worktop design: | stainless steel squared |
| Worktop controls: | knobs |
| Knobs: | soft touch |
| Burner type: | aluminium |
| Pan supports: | cast iron |
| Flame failure device: | yes |
| One-hand ignition: | yes |
| Upstand: | yes |
| Wok adapter: | yes |
Cooking zones
| Dual wok: | 0.48 kW - 5 kW |
| Rapid: | 1.05 kW - 3 kW (2) |
| Semi-rapid: | 0.60 kW - 1.75 kW (2) |
| Auxiliary: | 0.48 kW - 1 kW (1) |
Oven cavity
| Oven configuration: | single |
| Oven fuel: | gas |
| Oven type: | fan assisted gas |
| Oven grill type: | electric |
Technical specifications
Electrical requirements: 220/240 V - 50/60
Hz

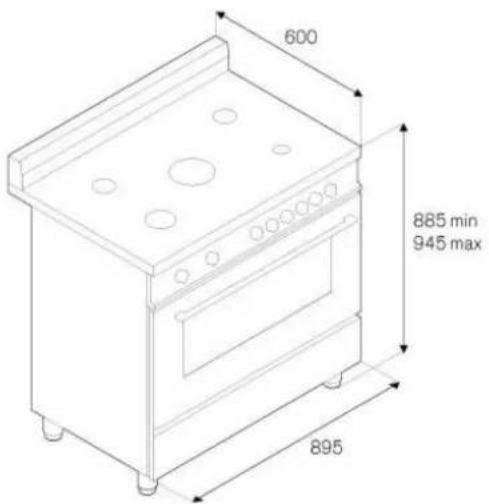

Dimensions
| Oven volume: | 142 l |
| Oven convection system: | single |
| Oven controls: | knobs |
| Inner oven door: | triple |
| Removable inner glass: | yes |
| Oven levels: | 5 |
| Timer: | thermometer |
| Oven door closing: | anti-slam system |
| Wire-shelves: | 2 chromed |
| Tray: | 1 enamelled deep (40 mm) |
| Oven lights: | double |
Bottom
| Legs: | stainless steel |
Warranty
2 Years
