BRUGSANVISNING 381162-01-2 ACV

ACV 381162-01-2 - 1

Double DIN Installation Manual

• Iveco Daily IV/V 05/2006->

colour / part-no.: silver / 381162-01-1 anthracite / 381162-01-2

Compatible with double DIN devices
Double DIN Navigation

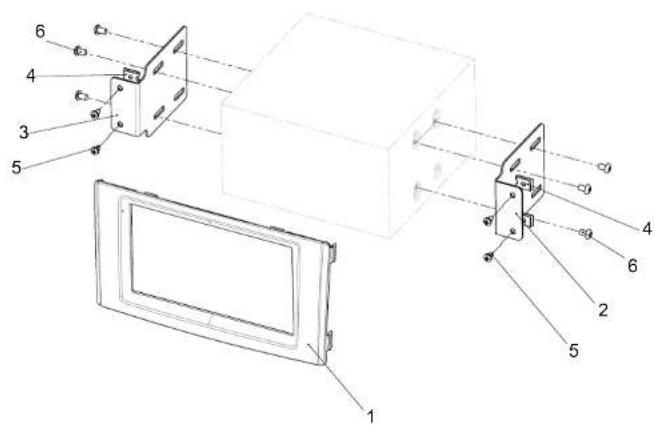

Technical diagram of a device with numbered components, showing exploded view and internal assembly views.

(1) Facia Plate

(4) speed nut

(2) Mounting bracket right

(5) self-tapping convex fillister head screw

(3) Mounting bracket left

(6) flat headed screw

All installation work must be performed by a qualified professional installer only. The manufacturer / dealer is not liable for any kind of incidental or indirect damages.

ACV 381162-01-2 - Double DIN Installation Manual - 2

natural_image Interior view of a car dashboard with a hand adjusting the control panel (no visible text or symbols)

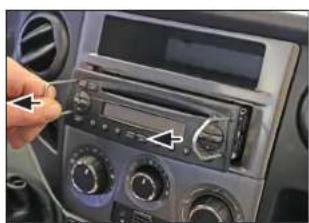

  1. Remove OEM head unit with radio release keys

ACV 381162-01-2 - Double DIN Installation Manual - 3

natural_image Close-up of a mechanical or electronic component with wires and connectors, no visible text or symbols
  1. Remove 2 screws (see arrows)

ACV 381162-01-2 - Double DIN Installation Manual - 4

natural_image Close-up of hands installing a car air vent into a car dashboard (no visible text or symbols)

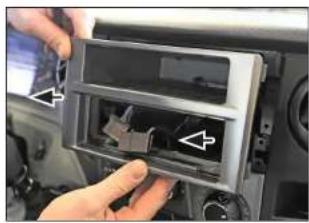

  1. Remove OEM bezel

ACV 381162-01-2 - Double DIN Installation Manual - 5

natural_image Interior view of a computer monitor with visible ports and control panel (no text or symbols)
  1. Put four speed nuts in the openings of dash board

ACV 381162-01-2 - Double DIN Installation Manual - 6

natural_image Close-up of a mechanical component with a white arrow pointing to a square hole (no text or symbols visible)

5. Mount mount double DIN hex

  1. Mount mounting brackets to double DIN head unit

ACV 381162-01-2 - Double DIN Installation Manual - 8

natural_image Close-up of a hand holding a camera module into a CD or DVD drive (no visible text or symbols)
  1. Connect all required circuit points. Push double DIN head unit into dashboard

ACV 381162-01-2 - Double DIN Installation Manual - 9

natural_image Interior view of a vintage electronic device with a monitor and control panel, no visible text or symbols
  1. Fix double DIN head unit with 4 screws (see arrows)

ACV 381162-01-2 - Double DIN Installation Manual - 10

natural_image Interior view of a car dashboard with a digital display and control knobs (no visible text or symbols)
  1. Place facia plate on dashboard to finish installation
