BRUGSANVISNING V303 ABUS

V303/V305/V307/V310/V313 | Gate Valve Lockout User Manual

ABUS V303 - V303/V305/V307/V310/V313 | Gate Valve Lockout User Manual - 1
Security Tech Germany

Material Content:

Gate Valve Lockout V303 1" to 2,5"

Gate Valve Lockout V305 2,5" to 5"

Gate Valve Lockout V307 5" to 6,5"

Gate Valve Lockout V310 6,5" to 10"

Gate Valve Lockout V313 10" to 13"

ABUS V303 - Material Content: - 1

ABUS V303 - Material Content: - 2

ABUS V303 - Material Content: - 3

DANGER LOCKED OUT DO NOT REMOVE

DANGER LOCKED OUT DO NOT REMOVE

Application:

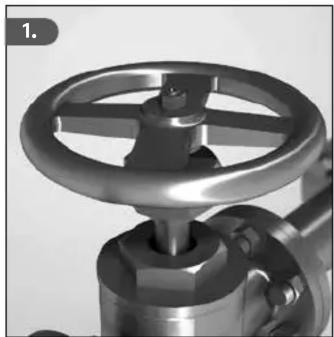

ABUS V303 - Application: - 1

natural_image Close-up of a metallic valve component with a rotary knob (no visible text or symbols)
  1. Turn off the valve. 2. Place the gate value lockout device

LOKERS OUT DO NOT REMOVE

around the valve handle.

3. LOCKED OUT DANGER DO NOT REMOVE

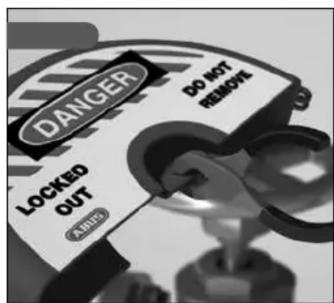

  1. Insert a padlock through the opening and lock it.

  2. Make sure that the valve handle is correctly enclosed and can no longer be operated.

ABUS V303 - Application: - 4

For hand wheels with a spindle, it is possible to create a passage in the center of the two halves of the lockout device. To do so, release the points provided using a pair of pliers (not applicable for V303).

Info 1. Info 2. LOCKED OUT RANGER DO REND

DANGER LOCKED OUT ANSYS DO NOT REMOVE

WARNING:

ABUS V303 - WARNING: - 1

Product should only be used by personnel properly trained in lockout procedures. Product should only be used on the appropriate application (s). Follow product instructions for proper application of each product. Properly trained personnel should check to ensure that product is secure and equipment will not operate. Failure to follow product instructions and warnings may result in serious bodily injury or death.

You will find additional notes and corresponding application videos to every lockout device following the link: http://www.abus.com/eng/Service/Videos/Industrial-safety
