BRUGSANVISNING E29LEDA PDI
PDi®
Communication Systems, Inc
E-Series 29"
Modular Healthcare-grade LED Television
Available with Interactive Patient System or Plug-and-Play DVD Module
This energy saving and modular Healthcare-grade 29" LED HDTV exemplifies the latest in interactive technology for complete patient satisfaction and infotainment, leveraging an ENERGY STAR® qualified TV. PDi's pursuit of excellence in patient entertainment, patient education and patient satisfaction makes the modular E-Series televisions the easy choice for a turn-key solution for interactive patient solutions.

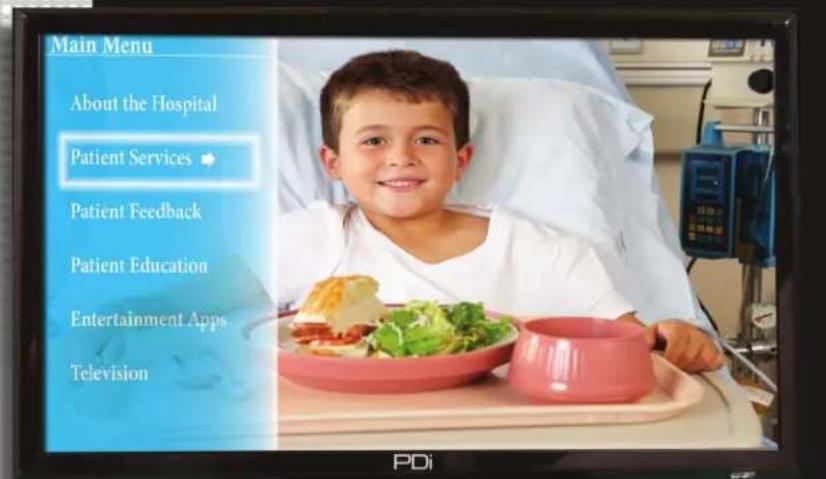

The added benefits of the customizable Android™-based Interactive Patient System include:
Empowers and satisfies patients and their family members through access to prescribed patient education videos and tutorials
☐ Enhances staff communication and efficiency through access to online satisfaction surveys, discharge instructions, and information on facility services.
☐ Offers added entertainment, movies, Apps, and internet access
☐ Plus the built-in USB drive allows patients to enjoy their own music, movies, photos and more!
PDi TVs are all built healthcare-TOUGH! The PDi E-Series LED televisions, available in screen sizes 24", 29", 32" and 42", affirm their credibility through strength, versatility, and affordability. This healthcare-grade TV boasts all the necessary features not found in consumer sets. With pillow speaker connectivity, Pro:Idiom/MPEG4 and increased reliability for longer power-on times, your facility is sure to engage and empower patients resulting in improved patient satisfaction HCAHPS scores, all while staying within the guidelines of UL healthcare requirements.
PDi-E29LEDA Modular LED HDTV
Product Highlights:
• ENERGY STAR® 6.0 Qualified TV
- USB port offers cloning and a patient media player, while a micro-USB eases management of Android settings
• Great picture quality at 1366 x 768 display resolution, plus high-grade components
• Universal pillow speaker feature works with every brand nurse call system
• The PD251-002 DVD module and PD251-026 mounting kit presents a clean, clutter-free look.
- Compatible with PDi-Qube™ wireless table radio and TV remote control
- UL approved for hospital use in the US and Canada (UL/cUL 60065 Annex Q)
- Dimensions 26.6" W x 16.6" H x 1.9" D (67.6cm x 42.2cm x 4.8cm)
• Weighs only 14 lbs (6.4 kg)
• Designed and tested in Springboro, Ohio USA
• Preferred TV Mounts for sets with module: PD168-051, PD168-039(w/PD181-677) or PD181-772
• Alternate Mounts for TV without module: PD181-700 or PD181-701(w/PD181-677)
PDi Communication Systems, Inc.
40 Greenwood Ln Springboro, OH 45066
Toll-free 800.628.9870 | Fax 937.743.9871
www.pdiarm.com
SPECIFICATIONS
Model PDI-E29LEDA
| PANEL | |
| Diagonal Size | 29" (73.7 cm) |
| HDTV Compatible | Yes |
| Aspect Ratio | 16:9 |
| Native Display Resolution | 1366 x 768 |
| Contrast Ratio | 2500:1 |
| Viewing Angle | 176°V / 176°H |
| Response Time | 8.5ms |
| Color Depth | 16.7M |
| Luminance (nits) | 300 |
| Backlight Lamp Life (hours) | 30,000 |
| Backlight Type | LED |
VIDEO BROADCASTING
| ATSC/ NTSC/Clear QAM | Air VHF/UHF,CATV,IRC,HRC |
| MPEG4/Pro:Idiom | YES |
| FM Tuner | 88.1 - 107.9 MHz |
| Supported Formats | 1080p/1080i/720p/576p/576i/480p/480i |
AUDIO
| Speakers/Audio Output Power | 2 x 5W RMS | |
| Analog Channels | Mono/Stereo/SAP | |
| Digital Channels | Multilingual | |
| Tone Control Balance | Yes | |
| HEALTHCARE SPECIFIC FEATURES | ||
| Internal Speaker Disable | YES | |
| Min/Max Volume Limiter | YES | |
| Start/ Power-on Volume | YES | |
| Selectable Pillow Speaker | +12VDC, +5VDC, OFF, -5VDC | |
| Universal Pillow Speaker Recognition | YES | |
| Auto Power On YES | ||
| Channel Enable/Disable | YES | |
| Bed A/B/C/D | YES | |
| Programmable Source Selection | YES | |
| Direct Access to Source from Pillow Speaker YES | ||
| Progressive Scan | YES | |
| Parental Control (V-CHIP) | YES | |
| USB Clone Programmable | YES | |
| 2D Digital Comb Filter YES | ||
| Sleep Timer | YES | |
| Factory Reset | YES | |
| OSD Language | English/French/Spanish | |
A/V INPUT/OUTPUT
| AC | IEC Male, Hospital-grade |
| USB Port | YES |
| RF Input | YES |
| HDMI / HDCP Input | YES, 2 |
| VGA Input | YES |
| PC Audio Input | YES |
| Composite Input with L/R Audio | YES |
| CCI/MTI/MPI Smart Plug | YES |
| DVD MODULE Port | YES |
| Pillow Speaker Output | YES, 3 conductor 1/4" female |
| Service Port | YES |
POWER
| Source | 120V +/-15%, 60 HZ |
| Max Consumption | 45W |
| Standby Consumption - Normal/Low | <15W/<1W |
REGULATORY
| UL/c UL 60065 Annex Q YES | |
| ENERGY STAR 6.C | YES |
| CEC | YES |
| FCC Title 15, Part 47, Subpart B YES |
ACCESSORY
| DVD Module and Mounting Kit (DVD/CD Playback, Read SD/MS/MMC Cards, USB & Dolby Digital) (AC-3) | PD251-002 DVD module and PD251-026 mounting kit | |
| ANDROIDTM-based Computer Module | Yes | |
| Patient Remote with DVD (Remote without DVD) | PD108-427 or PD108-210 (PD108-421) | |
| Program Remote | PD108-420 | |
| User Documents & Warranty Registration Available Online www.pdiarm.com | ||
| 4-Year Gold Vision Service | Available | |
| UNIT CHARACTERISTICS | ||
| Cabinet Color | Black Gloss | |
| Mount Pattern | 200 x 100MM VESA,5MM Thread | |
| Weight (kgs) (with Stand) | 14.1 lbs (6.4 kg) | |
| Unit Dimensions Inches (WxHxD) (cm) | 26.6 x 16.6 x 1.9 (67.6 x 42.2 x 4.8) | |
Design, features and specifications are subject to change without notice.
This ENERGY STAR ^® qualified healthcare television by PDi offers your facility the added benefit of operational cost savings from reduced power consumption, without compromising quality or patient comfort. You can make a difference with this environmentally conscious choice to help preserve our environment for generations to follow. ENERGY STAR is a registered mark owned by the US government.
This product also meets the regulatory compliance requirements of the California Energy Commission.
Side Input Panel

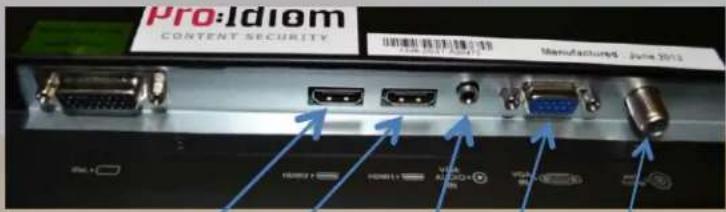

Bottom Connector Panel
HDMI2 HDMI1 VGA Audio In VGA In ANT/TV/CBL
Federal law prohibits removal of this label before consumer purchase.
Television PDi Communication Systems, Inc Model PDi-E29LEDA
Estimated Yearly Energy Cost
Cost Range of Similar Models (24" - 29")
- Based on 11 cents per kWh and 5 hours use per day - Estimated yearly electricity use of this model: 68 kWh - Your cost depends on your utility rates and use
Visit ftc.gov/energy
*The energy efficiency rating of this model was not available at the time the range was published.
2yr factory TV warranty standard or Upgrade to 4yr GVS Plan!
4-year Warranty Coverage Offers:
Replacement PDi TVs within 48 hrs
Replacement/Installation within 72 hrs
On-site Service within 72 hrs
Expedited Repair Service within 48 hrs
PDi...Your Source For Healthcare and Wellness Infotainment™!
©2014 PDi Communication Systems, Inc. All rights reserved. Other products and services may be trademarks or registered trademarks of their respective owners.
For more information contact your local distributor or please call: 1.800.628.9870
Communication Systems, Inc
Document Number: MAR-723-F40v1
