BRUGSANVISNING CDA440T HAGER

HAGER CDA440T - 1

natural_image Technical line drawing of two electrical circuit breakers (no text or symbols)

Safety switch (RCCB's) 25-40-63A

HAGER CDA440T - 2

GB For the tripping times verification tests, in an electrical installation, Hager certifies that the RCDs, of the Hager brand, conforming to standards EN 61008-2-1, EN 61009-2-1, trip under a current of 5^*1 n in accordance with the times imposed in table 41.1 of standard DIN VDE 0100-410 (VDE 0100-410) 2018-10.

HAGER CDA440T - 3

Please note the following

1 - The current rating per pole of the RCCB must not be exceeded by the maximum demand of the protected circuits; refer to clause 1.6.3 "Maximum Demand" in AS/NZS 3000: 2007.
2 - If RCCB trips OFF after installation, locate and repair faulty appliances (cumulative leakage from a number of appliances may exceed the RCCB tripping current, causing RCCB to trip OFF).
3 - The "main neutral" and "main earth" should be checked to ensure good connection.
4 - If RCCB trips intermittently will not reset, or test button will not work, check for low insulation resistance between neutral & earth wiring.

Electrical connection 2 poles.
C1C2N1N2 E N A L N L N

C1 - Circuit1 C2 - Circuit 2
HAGER CDA440T - Please note the following - 2
For a 2 pole 40A unit, where, for example, two power circuits are to be protected, the Hager neutral link KM03A may be connected to the N terminal for convenient splitting of the neutrals.

Electrical connection 4 poles.

Three phase & neutral use
L1 L2 L3 N 1 3 5 7 N T E 2 4 6 8 N L1 L2 L3 N

Three phase use
L1 L2 L3 1 3 5 7 N T E 2 4 6 8 N L1 L2 L3

Single phase use Two circuits
L N L N 1 3 5 7 N T E 2 4 6 8 N L N L N

or T E L L N N 1 3 5 7 N 2 4 6 8 N L L N N

Three circuits
L L L N 1 3 5 7 N T E 2 4 6 8 N

Positive contact indication.
OFF green ON red

Earth leakage fault indication.
Test OFF

Test 2 Feb. 1 Jan. 1, 3, 5...12

Back-up protection chart with MCB's or fuses.

• Refer to Hager general catalog.
• Refer to Hager website.

Single phase connection.
KDN180A KDN180G

Three phase connection.

KDN380A KDN380G

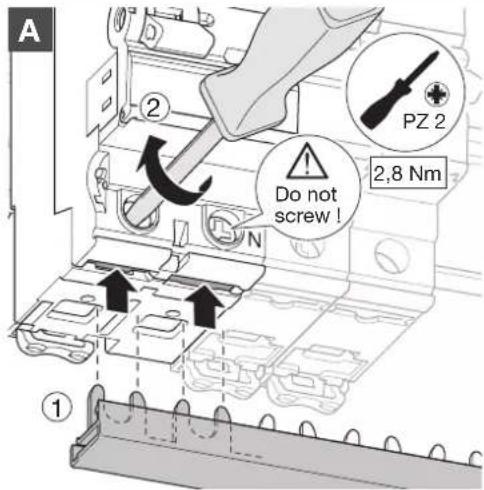

A 2 PZ 2 Do not screw ! 2,8 Nm ①

A 2 2,8 Nm Do not screw ! ①

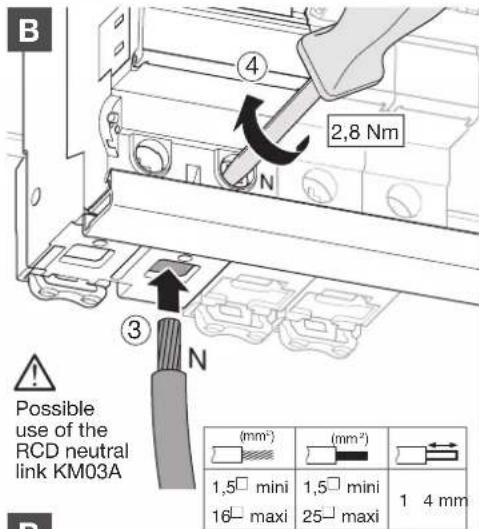

B 4 2,8 Nm N ③ N Possible use of the RCD neutral link KM03A (mm²) (mm²) 1,5□ mini 1,5□ mini 16□ maxi 25□ maxi 1 4 mm

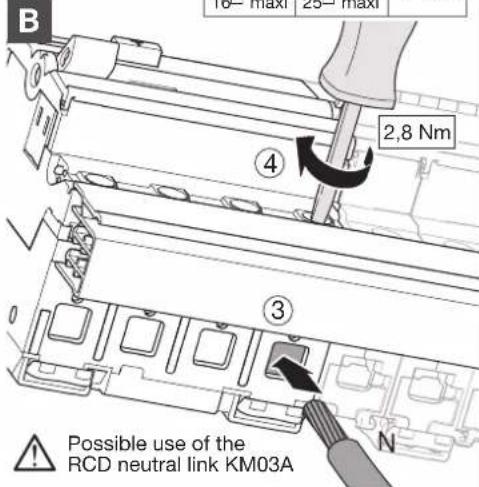

B 10= max | 25= max | 2,8 Nm ④ ③ Possible use of the RCD neutral link KM03A

RCCB 2P-4P: easy device removal with the DIN rail clip.
A OFF N PZ2

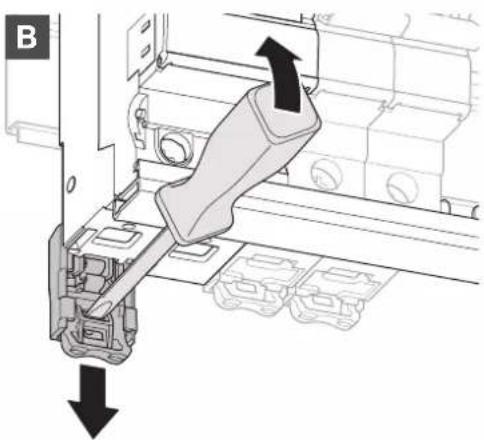

HAGER CDA440T - Please note the following - 18

natural_image Mechanical assembly diagram showing a bracket with directional arrows indicating movement or force (no text or symbols present)

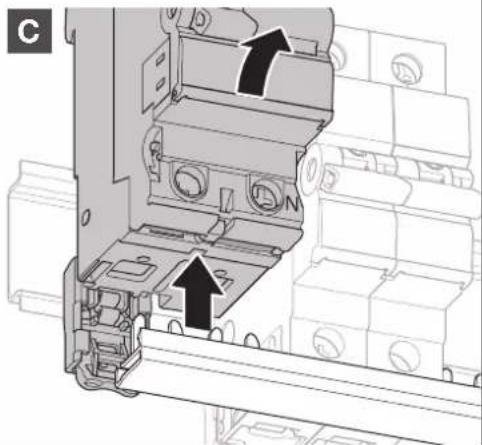

HAGER CDA440T - Please note the following - 19

natural_image Technical diagram of a mechanical assembly with two arrows indicating directional components (no text or symbols present)

HAGER CDA440T - Please note the following - 20

Protection against dust

In case of work activities nearby, make sure that the electrical installation is protected against dust if the enclosure is not IP5x.

CZ001 MZ203... + CZ001 MZ206

Locking device for handle MZN175.Auxiliary possibilitie:
Ø 3,5/ 6 max.
