BRUGSANVISNING RW535 Jet-USA

Product photo of a VET USA water purifier with yellow and black components, no visible text or symbols

RW535 Electric Pressure Washer

User Manual

[Revision 3.0 February 2024]

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases, or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol, or medication.
• This equipment is not intended for use by persons with reduced physical, sensory, or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start, or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors, and vents.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage, or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases, or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids, or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
  • Always use a Residual Current Device (RCD) (GFCI) / Earth Leakage Circuit Breaker / Safety Switch when operating this item (electrical items only).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories, or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service-related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Child Choking Hazard!

- WARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT SUPERVISION REQUIRED.

- Carefully inspect anything a baby or child could gain access to, including this product & packaging.

- Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys, buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces of packaging, staples, tape etc.
• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Electric Pressure Washer Safety

• The appliance has been designed solely for private use outdoors and not for commercial use. Keep this appliance away from heat, direct sunlight, moisture and rain, ice and sharp edges.
• Do not allow anybody that has not been trained to use a pressure washer to operate the machine without first reading the instruction manual.
• WARNING: High-pressure washers must not be used by children or untrained persons.
• Before starting your machine, carefully check for defects. If you find any, do not start your machine and contact your local distributor.
• In particular, ensure that the electric cable insulation is in perfect condition and free of cracks. If the electric cable is damaged, an approved local service centre must replace it.
• WARNING: High pressure jets can be dangerous if they are used incorrectly. The jet must not be directed towards persons, electrical equipment connected to the mains or the appliance itself.

- WARNING: Do not use the appliance close to other people unless they are wearing protective clothing.

- CAUTION: Do not direct the jet towards yourself or other persons to clean clothing or shoes.

- Hold the lance firmly in your hands.

- The operator and persons within close proximity to the cleaning area must take necessary measures to protect themselves from dislodged debris when in use.

- Wear protective gloves and clothing during use.

- WARNING: The appliance has been designed for use with a cleaning agent supplied or recommended by the manufacturer. Using other cleaning products or chemical products may affect the safety of the appliance.

- WARNING: Disconnect the appliance from the power supply before carrying out any maintenance.

- CAUTION: To ensure the safety of the appliance, only use spare parts supplied or approved by the manufacturer.

- Do not use the appliance if the power cable or important parts of the appliance are damaged, for example, the safety device, high pressure hose and handgun.

- Do not use the appliance with wet hands. If the appliance is damp or wet, unplug it immediately. Do not place it in water.

- The tyres and valves on the tyres can be damaged by the high-pressure jet and could burst.

- Never use the machine in an environment where there is a danger of explosion.

- It is forbidden to clean surfaces containing asbestos at high pressure.

- This high-pressure washer must not be used in temperatures below 0^ .

RW535 Electric Pressure Washer

• CAUTION - The hoses, accessories and high-pressure couplings are important for the safety of the machine. Only use hoses, accessories and couplings recommended by the manufacturer.
• WARNING: Inadequate extension cables may be dangerous. Cables and spools must always be completely unwound to avoid letting the cable overheat.
• If an extension cable is used, the plug and socket must be waterproof and conform to the requirements below regarding the length and dimensions of the cable.
• 1,0 ~mm^2 . 12,5 ~m
• 1,5mm^2max.20m
• If the power cable is damaged, it must be replaced by the manufacturer, their service agent or a qualified professional in order to avoid any danger.
• WARNING: This machine is not designed to be used by persons (including children) with reduced physical, sensory or mental capacities or whose lack experience or knowledge.
• WARNING: It is advisable that you supervise children to ensure that they do not play with the appliance.
• CAUTION – Risk of explosion – do not spray flammable liquids, do not direct the jet towards flammable liquids.
• WARNING: Water that has circulated in the anti-back flow system is not considered drinkable.
• WARNING: Do not use the appliance if the power cable or important parts of the appliance are damaged, for example, the safety devices, high pressure hoses and handgun.
• WARNING: If you have an extension cable, it must be waterproof.
• WARNING: When you switch on the machine, a recoil movement is produced due to the force of the water jet. Use two hands to control the lance. Wear safety gloves when using the appliance. Wear suitable protective clothing.
• In case of accidental contact with detergent, wash with water. If the liquid comes into contact with the eyes, also seek medical assistance (the detergent can cause irritations or burns).
  • In the event that the appliance breaks down, do not attempt to repair it yourself but contact a professional technician to avoid any danger.

Main Power Connection

The following must be observed when connecting the high-pressure washer to the power supply:

• Connecting the electrical connection should be done by a qualified electrician conforming to 60364-1 CEI.
• It is recommended that the electrical supply to this machine should comprise a residual current device which interrupts the current if the leakage current exceeds 30 mA for 30ms.

Connecting To the Water Network Warning

According to current guidelines, the unit must never be operated without a system separator on the potable water system. Use a EN 12729 type BA system separator. Water that passes through a system separator is classified as non-potable.

WARNING: Always connect the system separator to the water supply and never directly to the device!

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases, or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	EXHAUST FUMESCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases, or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing, and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp, or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator. Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.	Choking HazardChildren under 8 yrs. Can choke or suffocate on small parts. Adult supervision required.

Table of Contents

Safety 2

Safety Symbols....5

Parts Identification ....8

First Time Instructions....9

Safety Devices....9

Thermal Sensor 9

Operation....10

Garden Hose Connection....10

Mounting the High-Pressure Hose ....10

Mounting the Lance and Nozzle....11

Water Connection....11

Starting and Stopping....11

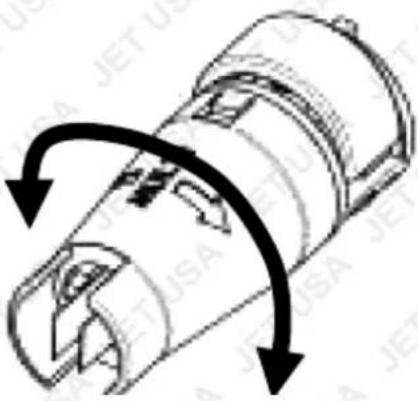

Multi-Nozzle 12

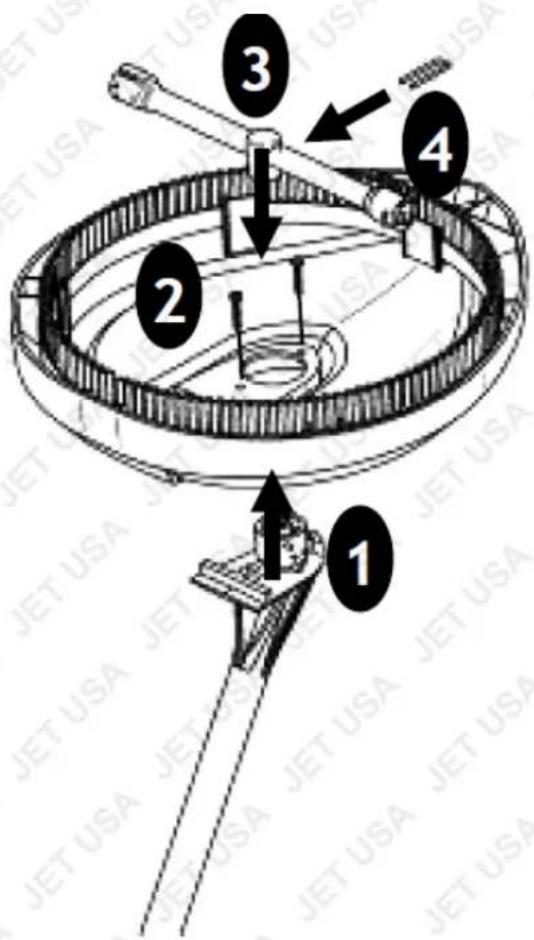

Mounting the Patio Cleaner....13

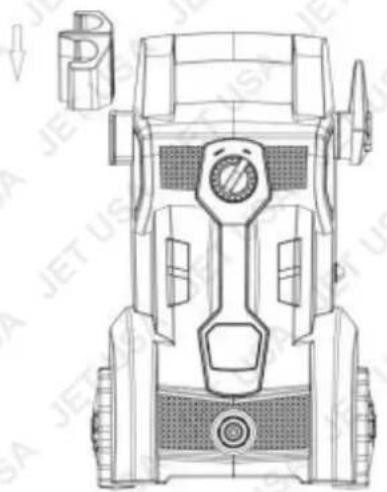

Installation Diagrams....14

After Use....14

Maintenance....15

Environmental Protection 15

General Maintenance 15

Inlet Filter 15

Air Vents 15

Adding Grease to Couplings....15

Troubleshooting ....16

Specifications 17

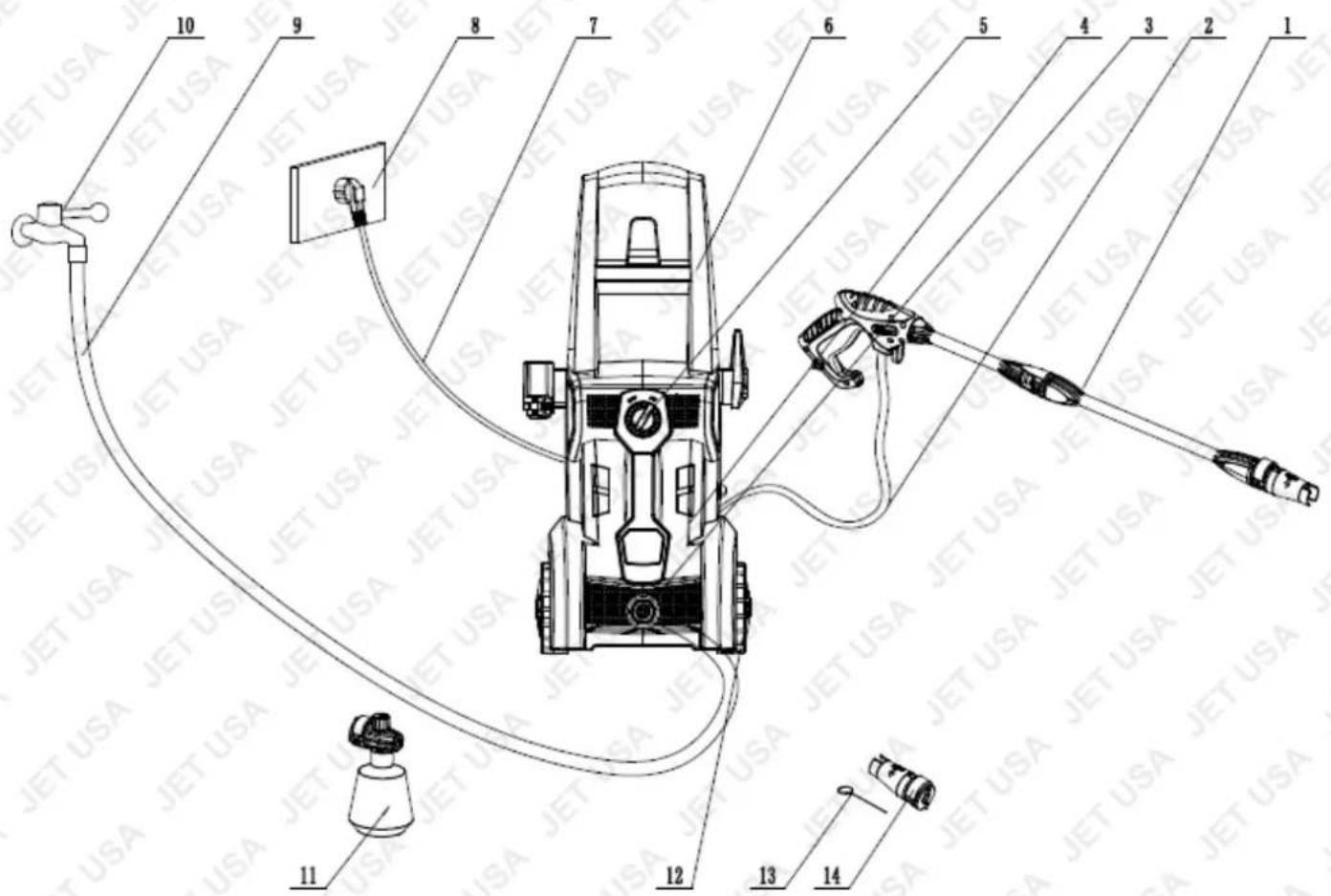

Parts Identification

No.	Name	No.	Name
1	Spray gun	8	Plug
2	High-pressure hose	9	Water inlet hose
3	Water inlet connector	10	Water tap
4	Unit body	11	Detergent bottle
5	Switch	12	Wheel
6	Handle	13	Poke needle
7	Power cable	14	Normal nozzle

First Time Instructions

This section will explain in detail how to make high pressure washer ready for use.

Safety Devices

• The unloader valve can reduce pressure if it exceeds pre-set values.

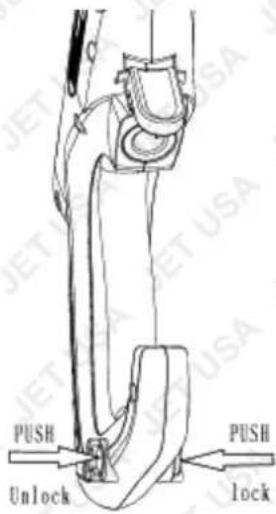

- Locking device on trigger gun: The trigger gun features a locking device. When the knob is activated, the trigger gun cannot be operated.

Thermal Sensor

A thermal sensor protects the motor against overloading. The machine will restart after a few minutes when the thermal sensor has cooled.

Operation

Garden Hose Connection

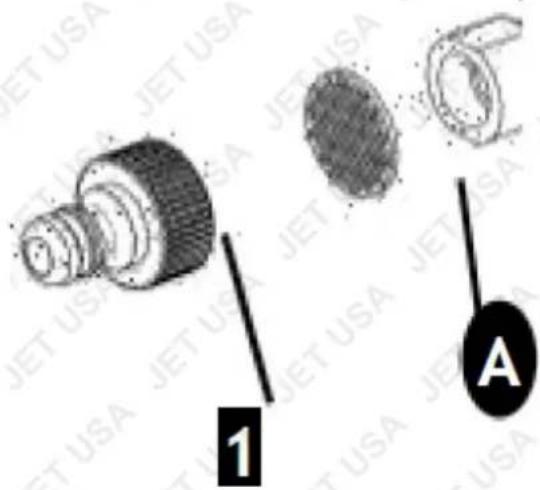

1. Screw the water inlet coupling (1) tight on to the water inlet.

Note: The inlet filter (A) must always be fitted in the water inlet pipe to filter out sand, limestone, and other impurities as these will damage the pump valves.

Caution: Failure to fit the filter will invalidate the warranty.

1. Connect the garden hose with a standard quick coupling.

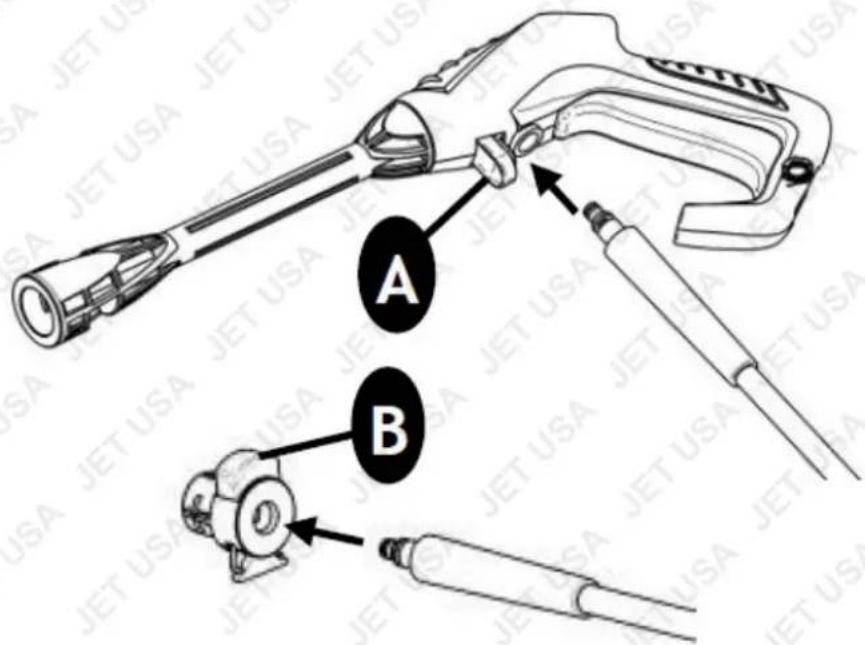

Mounting the High-Pressure Hose

1. Attach the high-pressure hose to the trigger gun and machine.
2. Detach the high-pressure hose by pressing the pawl (A) or button (B).

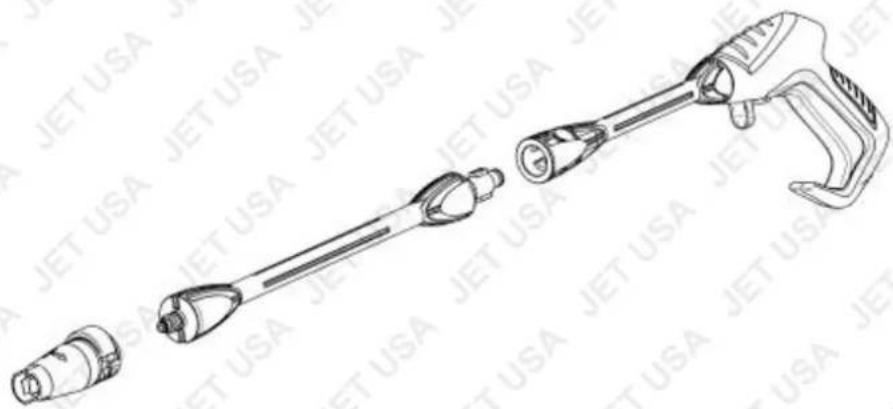

Mounting the Lance and Nozzle

1. Push the lance into the trigger gun.
2. When inserted turn it.

Caution: Make sure the lance is properly fixed to the gun.

1. Attach the nozzles.

Caution: When attaching the nozzle, the button on the nozzle should come out again. Check before activating the trigger that the nozzle is properly fixed.

Technical line drawing of a JET USA spray gun with multiple ports and handle (no text or symbols)

NOTE: All accessories nozzle can be installed as above.

Water Connection

Connecting to the water supply pipe

1. Follow your water supplier's instructions.
2. For connection information, see the specifications and/or online listing.
3. Use a reinforced hose (not supplied) with a standard connection (ext. diameter: 16mm/int. 12mm, maximum length: 25m).

IMPORTANT! Only use water without any impurities. If there is a risk of sand particles in the inlet water (i.e., from your own well), an additional filter should be mounted.

1. Let the water run through the water hose before connecting it to the machine to prevent sand and dirt from penetrating the machine. Note: Check that the filter is fitted in the water inlet pipe and that it is not clogged up.
2. Connect the water hose to the water supply by means of the quick connector (inlet water, max. pressure: 10 bar, max. temperature: 60°C).
3. Turn on the water.

Starting and Stopping

1. The trigger gun and lance are affected by a thrust during operation - therefore always hold it firmly with both hands.

IMPORTANT: Point the nozzle at the ground.

1. Check that the machine is in upright position.

NOTE: Do not place the machine in high grass!

1. Release the trigger lock.
2. Activate the trigger of the trigger gun and let the water run until all air has escaped from the water hose.
3. Press the Start/stop switch.
4. Activate the trigger of the trigger gun.
5. Always adjust the distance and thus the pressure of the nozzle to the surface, which is to be cleaned.
6. Do not cover the machine during operation or use it in a room without adequate ventilation!

NOTE: If the machine is left or not used for 5 minutes, it must be switched off on the start/stop switch "O":

1. Press the start/stop switch "O".

2. Disconnect the electrical plug from the socket.

3. Shut off the water supply and activate the trigger of the trigger gun to relieve the machine of pressure.

4. Lock the trigger gun.

5. When releasing the trigger of the trigger gun, the machine automatically stops. The machine will start again when you re-activate the trigger gun.

Multi-Nozzle

The pressure can for the multi nozzle be adjusted by tuning it.

WARNING: Do not do this under operation to avoid that the hand hits the jet.

Diagram of a mechanical component with curved arrows indicating rotation or movement (no text or symbols)

Mounting the Patio Cleaner

1. Insert the extension lance into to the housing.
2. Fix the extension lance with the two screws to the housing.
3. Insert the rotor arm into the extension lance.
4. Insert the U-pin to fix the rotor arm.

NOTE: Make sure the rotor arm is properly fixed to the extension lance with the U-pin.

Installation Diagrams

Gun Hook Assembly:

Technical line drawing of a mechanical device (no text or symbols present)

Quick connector structure on the unit body. All Accessories can be stored on the unit.

After Use

• The machine should be stored in a frost-free room.
- Pump, hose, and accessories should always be emptied of water prior to storing as follows:

• Stop the machine (press the start/stop switch "O" and detach water hose, high pressure hose and nozzle.
• Restart the machine and activate the trigger of the trigger gun Let the machine run until no more water runs through the trigger gun.
• Stop the machine, unplug and wind-up hose and cable.
• Place trigger gun, lance, nozzles, and other accessories in the holders of the machine. The hook can be used for storage of the hose and cord All accessories can be stored in the washer after using.

WARNING: Never start up a frozen machine. Frost damages are not covered by the warranty!

Maintenance

Environmental Protection

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.

General Maintenance

WARNING! Always disconnect the electrical plug from the socket prior to maintenance or cleaning.

To ensure a long and problem free working life, please take the following advice:

• Wash out water hose, high pressure hose, spray lance and accessories before mounting.
  • Clean the connectors of dust and sand.
• Rinse the detergent spraying attachment after use.
• Clean the nozzles.
  • Any repair should always be made in an authorized workshop with original spare parts.

Inlet Filter

• Clean the water inlet filter regularly once a month or more frequently according to use.
• Carefully loosen the filter with a screwdriver and clean it. Check that it is intact before re-mounting it.
• The inlet filter must always be fitted inside the water inlet pipe to filter out sand, limestone, and other impurities, as they will damage the pump valves.

CAUTION: Failure to fit the filter will invalidate the warranty

Air Vents

The unit should be kept clean to let cooling air pass freely through the machine vents.

Adding Grease to Couplings

To ensure an easy connection and that O-rings do not dry up, the couplings should be greased regularly.

Troubleshooting

Problem	Possible Cause	Recommended Action
Unit will not start	1. The machine is not plugged in.2. Faulty receptacle.3. The fuse has blown.4. Faulty extension cable.	1. Plug the machine in.2. Try another receptacle.3. Replace the fuse Unplug other appliances.4. Try without the extension cable.
Fluctuating pressure	1. The pump is drawing in air.2. Valves dirty, worn or sticking.3. The water supply is not sufficient.4. Pump seals worn.	1. Check that hoses and connections are airtight.2. Contact your service centre.3. Increase water pressure, check for blockages and / or change the large pipe.4. Contact your nearest service centre.
The unit stops	1. The fuse has blown.2. Incorrect mains voltage.3. Thermal sensor activated.4. Partially blocked jet.	1. Replace the fuse.2. Unplug other appliances Check that the mains voltage corresponds to the specifications.3. Leave the machine to cool for 5 mins.4. Clean the jet with a needle and by spraying water rearwardly through the jet.
Blown fuse	1. Fuse too small.2. Increase in the amperage.	1. Replace it with a fuse with higher amp consumption than the washer.2. Try without the extension cable.
Pulsing unit	1. Air in inlet hose / pump.2. Inadequate supply of water generated.3. Partially blocked jet.4. Water filter blocked.5. Folded pipe.	1. Allow machine to run with open trigger until regular working pressure resumes.2. Increase water pressure, check for blockages and / or change the large pipe.3. Clean the jet with a needle and by spraying water rearwardly through the jet.4. Clean the filter.5. Unfold the pipe.
The unit turns on and off by itself	1. Pump fuse and/or trigger out of order.2. No water supply.	1. Contact your nearest service centre.2. Connect the inflow water.
The unit is on, but no water comes out	1. Water filter blocked.2. Blocked jet.	1. Clean the filter.2. Clean the jet with a needle and by spraying water rearwardly through the jet.

Specifications

Motor Type	Water-cooled
Voltage 240V / 50Hz
Maximum Pressure 2600PSI
Max Flow Rate 6.8L/min
Rated Flow Rate	6.5L/min
Max Water Temp	50°C
Hose Length 5m
Power Cord Length 5m
Power Plug Australian Standard
Certificates/Approvals	GS/CE, RoHS, SAA (power plug)

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging, and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear, or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear, or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business, or employee, or financially affect the user, business, or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement, or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

edisons

.com.au

©2024 Jet-USA. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
