SUPERMICR B11SCG-CTF/ZTF Quick Reference Guide 1.00

CONTACT INFORMATION

Website: www.supemicro.com
• General Information: [e-mail]
• Technical Support: [e-mail]
• Phone: [phone], Fax: [phone]

FOR YOUR SYSTEM TO WORK PROPERLY, PLEASE DOWNLOAD APPROPRIATE

DRIVERS/IMAGES/USER'S MANUAL FROM THE LINKS BELOW
- Manuals: http://www.supperiora.com/support/manuals
- Manuals. http://WWW.supertmicro.com/support/manuals
- Drivers & Outides: https://www.supermicro.ca/invai/ Driver - Privacy https://www.ewww.com/health@holising/refeb

- Safety. http://www.supernfico.com/aboutpolicies/safety_information.com

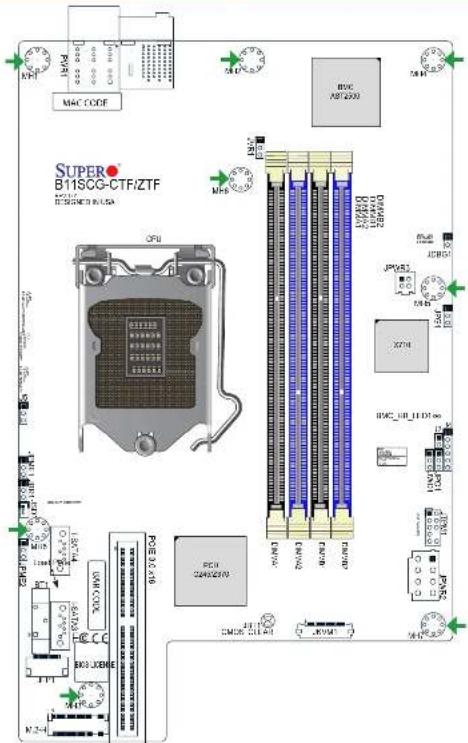

Motherboard Layout and Features

Jumpers, Connectors and LED Indicators

Jumpers
Jumper	Description	Default Setting
JS	PCIe Expansion Option	Pins 1-2 (x8 Slot)(x8 Slot 2 or x18 Slot)
JBR1	BIOS Recovery	Pins 1-2 (Normal)
JST1	Clear CMOS	Short: Clear CMOS Open: Normal
JPG1	VGA Enable/Disable	Pins 1-2 (Enabled)
JPME1	ME Recovery	Pins 1-2 (Normal)
JPME-2	Manufacturing Mode Select	Pins 1-2 (Normal)
JWD1	Watch Dog Enable	Pins 1-2 (Reset)

Connectors

Connector	Description
RT1	Onboard CMOS Battery
I-SATA/II-SATA3	Intel® PCH SATA 3.0 Ports
J4	CPLD Programming Header (Manufacturing Use Only)
JDBC1	VRM Debug Jumper (Manufacturing Use Only)
JFP1	Front Panel Cable Connector
JKVN1	VGA/USB Module Connector
JPQ1	Power Button Bypass (Manufacturing Use Only)
JPWR2	12V GPU Card Power Connector
JPWR3	4-pin Power Connector for SATA/SAS
JSD1	SATA DOM Power Connectors
JTPM1	Trusted Platform Module (TPM)/Port 8G Connector
JVR1	VRM Programming Heater (Manufacturing Use Only)
M.2-H	M.2 Slot
PWR1	Power Receptable to Chassis Backplane

LED Indicators

LED	Description	Status
BMC HS LED1	BMC Heartbeat LED	GREEN Binking: Normal

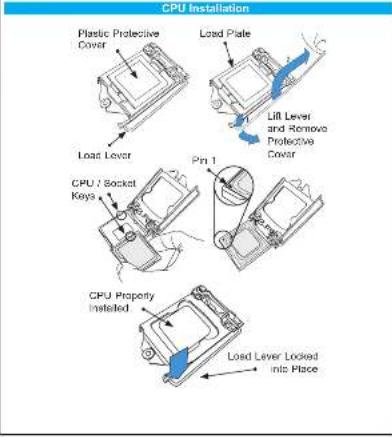

CPU Support and Installation

The B11SCG-CTF motherboard supports the Intel® Xeon® E-2100 processor or an 8th-9th Generation Intel Core G/Portura®/Coloner® processors in a LGA 1151 (H4) socket.

The G11SCG-ZTF supports an 9th/9th generation Intel Core 7/i5i3/Pentium/Calamon processors in an LGA151 (H4) socket.

Memory Support and Installation

The B11SCG-CTT supports up to 128GB of ECC UDIMM memory with speeds up to 2666MHz.

The B'1SCG-ZTF supports up to 64GB of D0R4 Non-ECC UDIMM memory with speeds of up to 2666MHz.

See below for additional memory information.

■ The blue slots must be populated first.
- Always use DDR4 memory of the same type, size, and speed. Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.
- The motherboard will support odd-numbered modules. However, to achieve the best memory performance, a balanced memory population is recommended.

Recommended Population (Balanced)

DIMMA1	DIMMB1	DIMMA2	DIMMB2	Total System Memory
		4GB	4GB	8GB
4GB	4GB	4GB	4GB	16GB
		8GB	9GB	16GB
8GB	8GB	8GB	8GB	32GB
		16GB	16GB	32GB
16GB	16GB	16GB	16GB	84GB
		32GB	32GB	64GB
32GB		32GB	32GB	96GB
32GB	32GB	32GB	32GB	126GB

Note Graphics shown in this quick reference guide are for illustration only. Your components may or may not look exactly the same as drawings shown in this guide.

Note. Refer to Chapter 1 of the User Manual for detailed information on jumpers, connectors, and LED indicators.

Note: Refer to Chapter 2 of the User Manual for detailed information on memory support and CPU method from installation instructions.
