Rectangular trampolines
Assembly manual
Model 352-FL


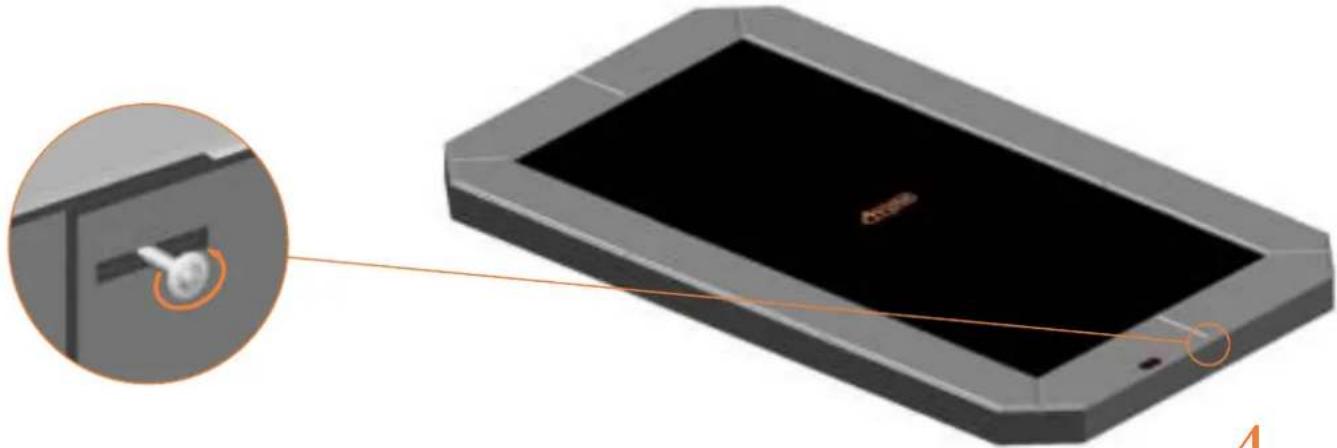

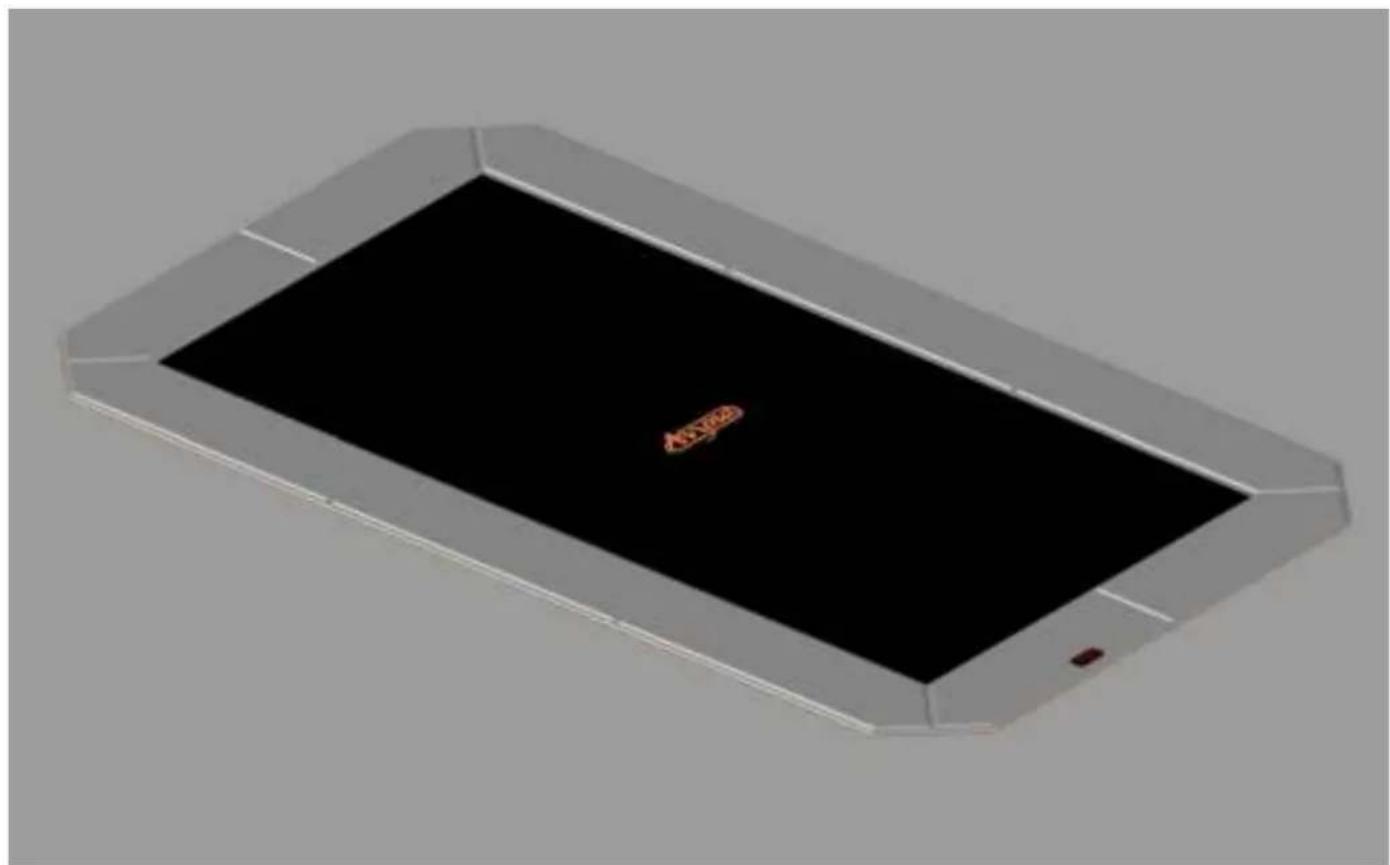

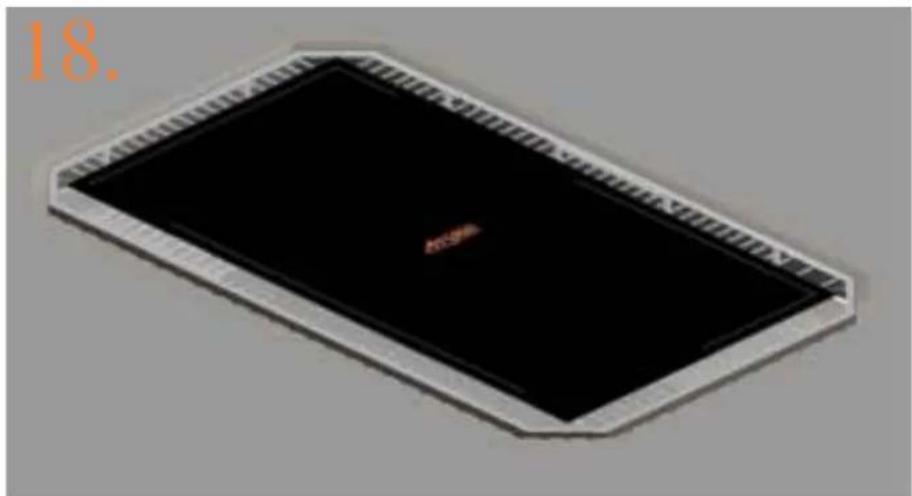

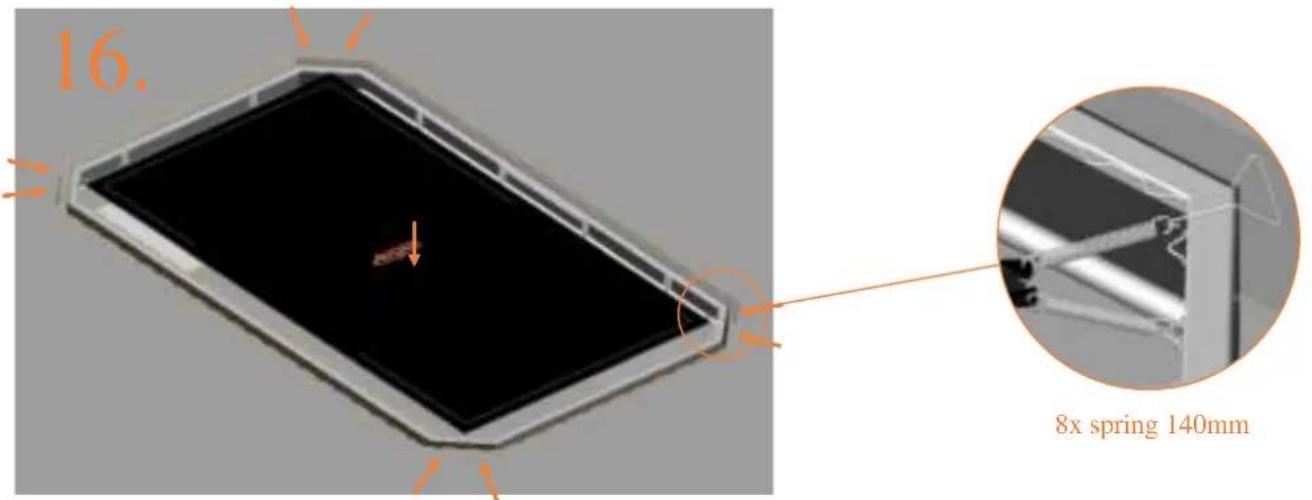

3D rendering of a rectangular electronic device with a black screen and a small red object on the screen (no text or symbols visible)| Model 352-FL APPROX 520x305cm | |||
| Quantity | Part number | ||
| Jumping panel | 1 | TEPL-352-F-222 | ![]() |
| Galvanized spring L=215mm x5.2mm | 120 | TEPL-200-211/A | |
| Galvanized spring L=140mm x5.2mm | 4 | TEPL-200-211/E | |
| Safety pad | 1 | TEPL-352-FL-333 green or AVGR-352-FL-333-gray or AVBL-352-FL-333-BLACK | ![]() |
| Paddener for safety pad | 24 | TEPL-ELA5-B | |
| I-Mix | 6 | TEPL-352-FL-802 / A | |
| I-Mix | 2 | TEPL-352-FL-802 / B | ![]() |
| C-tube | 2 | TEPL-352-FL-113 | |
| R-tube | 2 | TEPL-352-FL-114 | |
| Tool for spring | 1 | TOOL SPRING | |
| Screw/MI | 24 | M8-16 | ![]() |

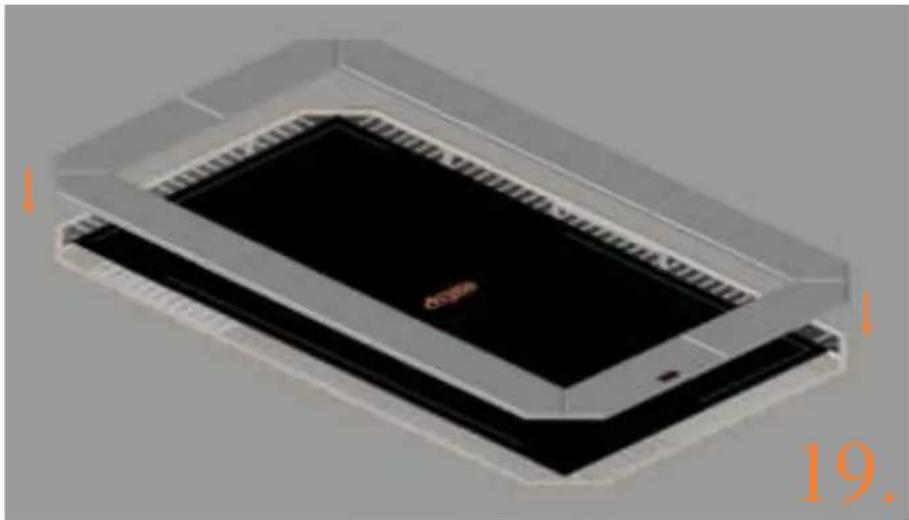

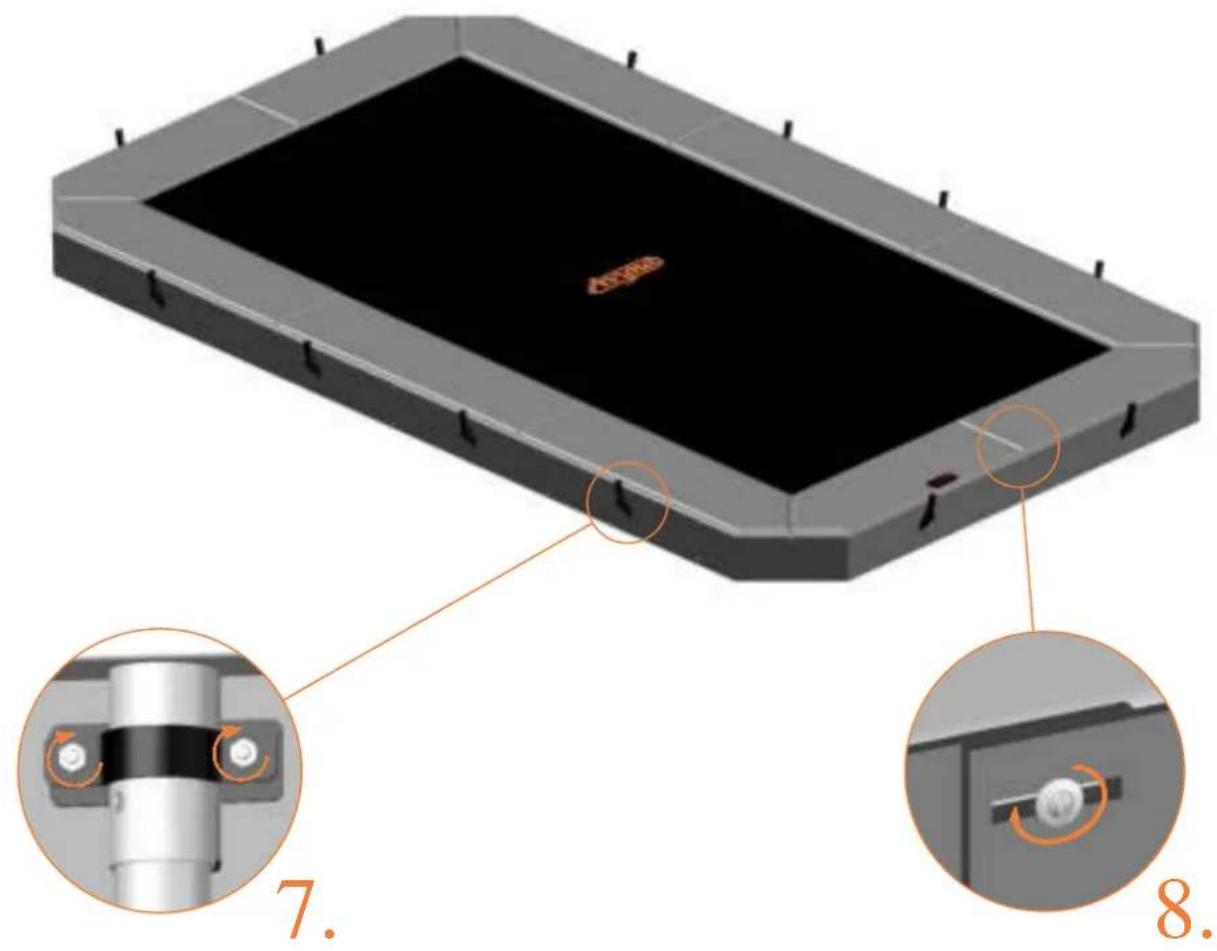

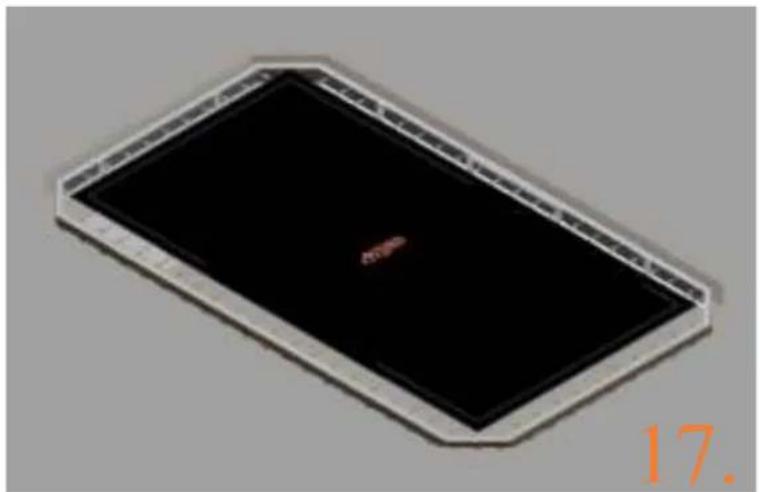

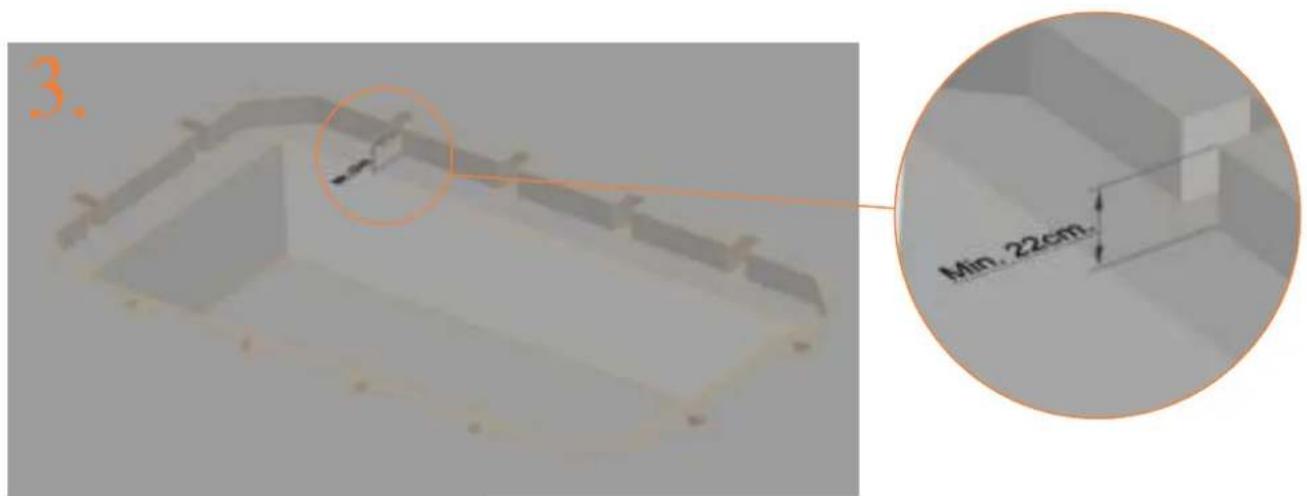

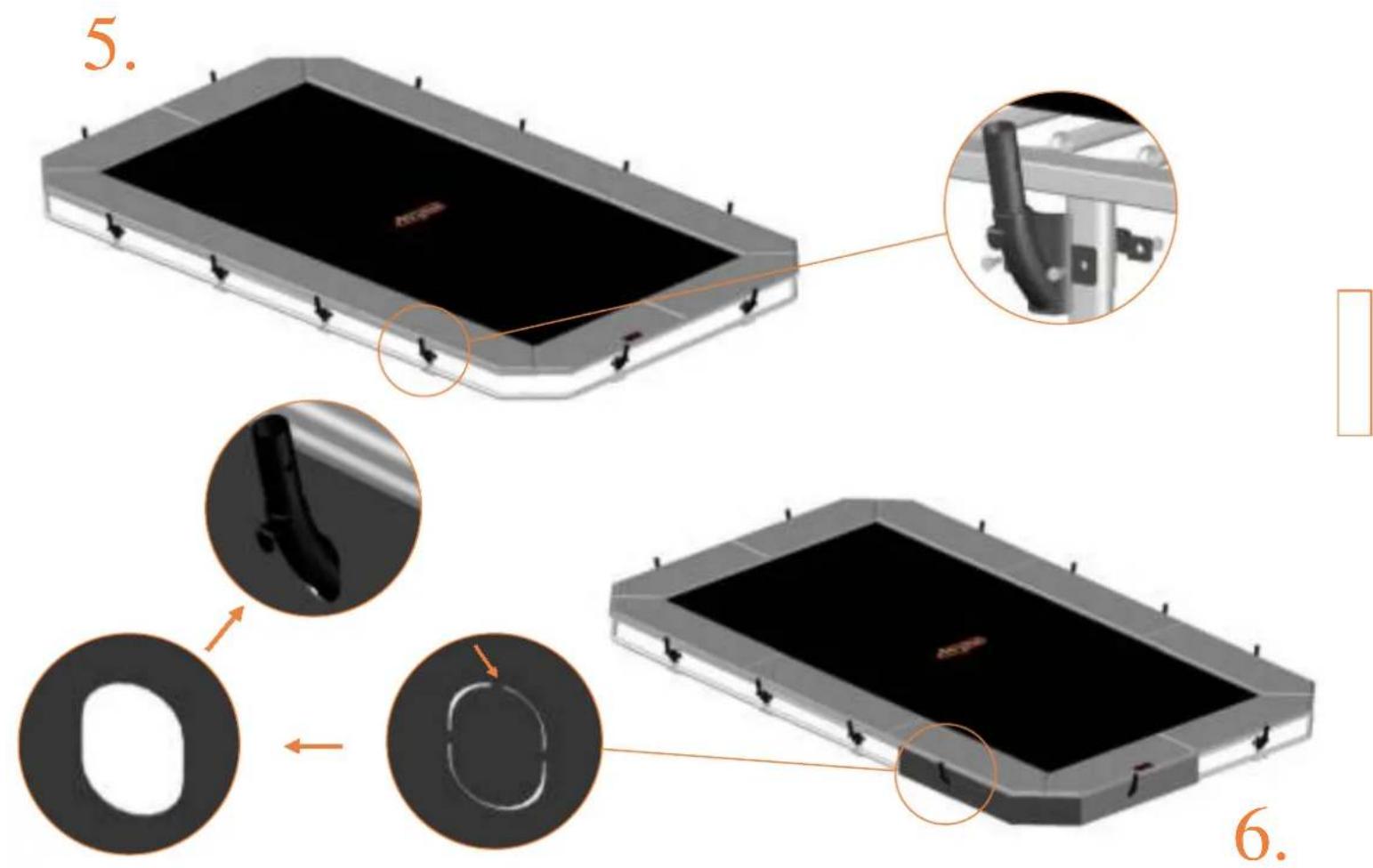

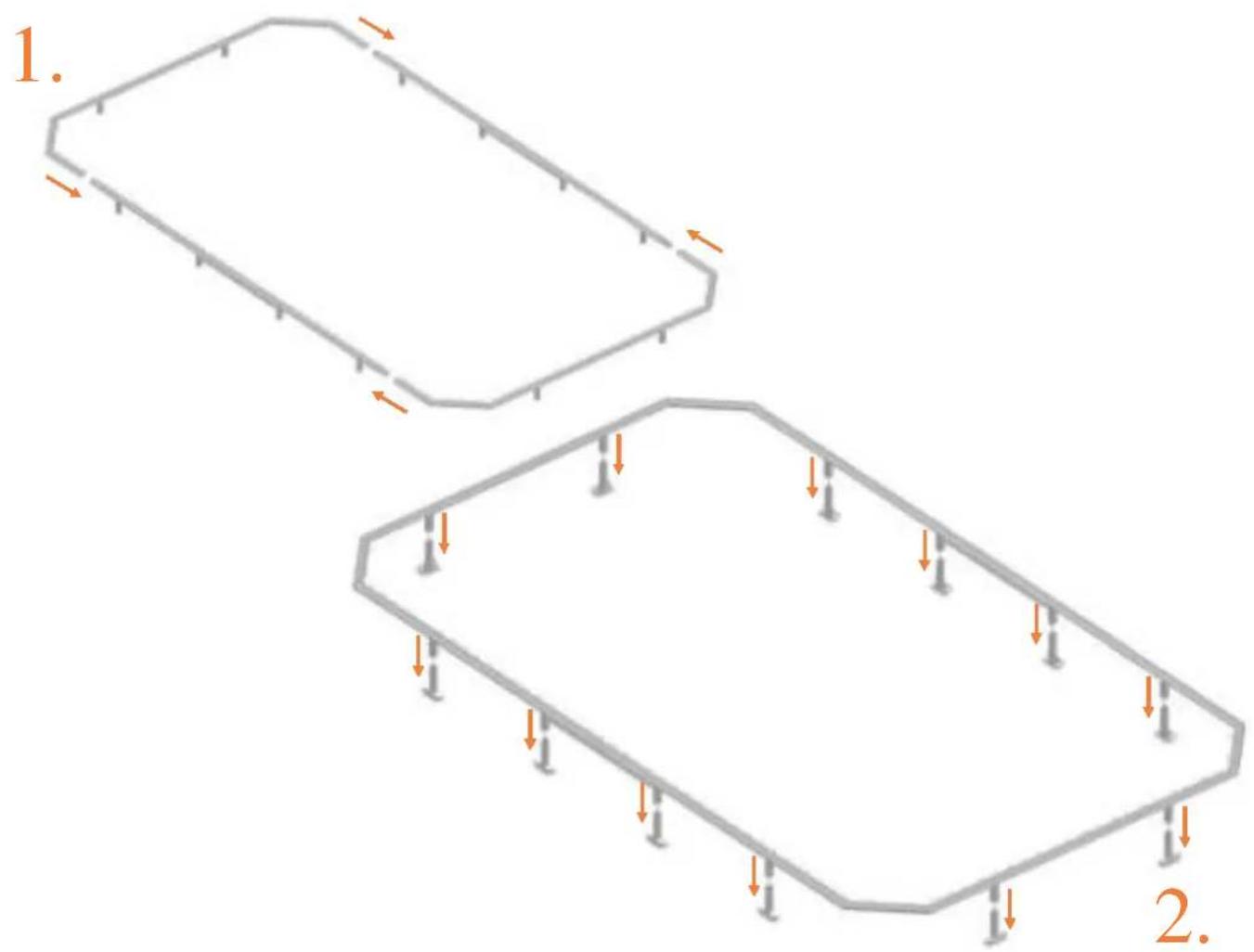

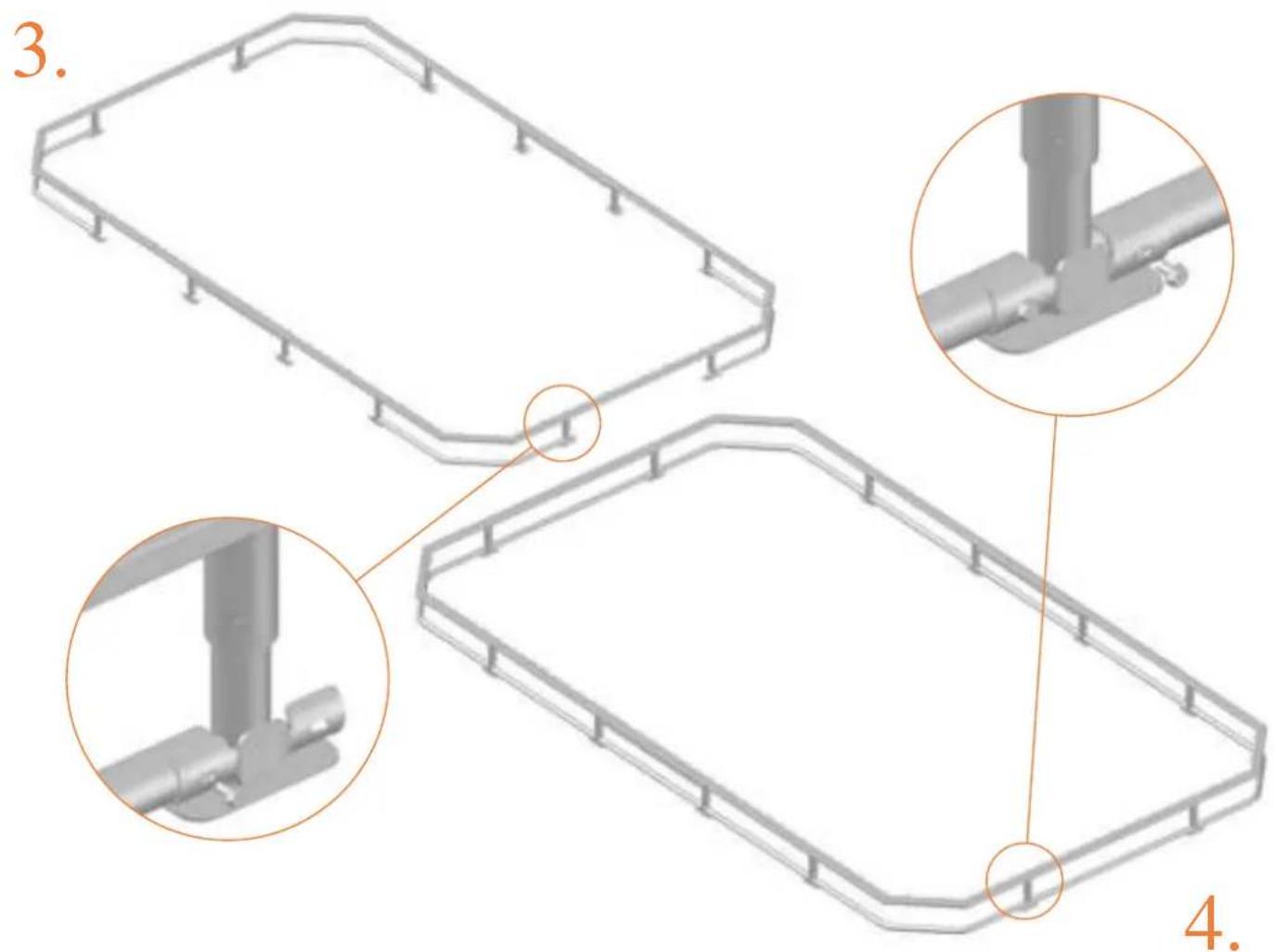

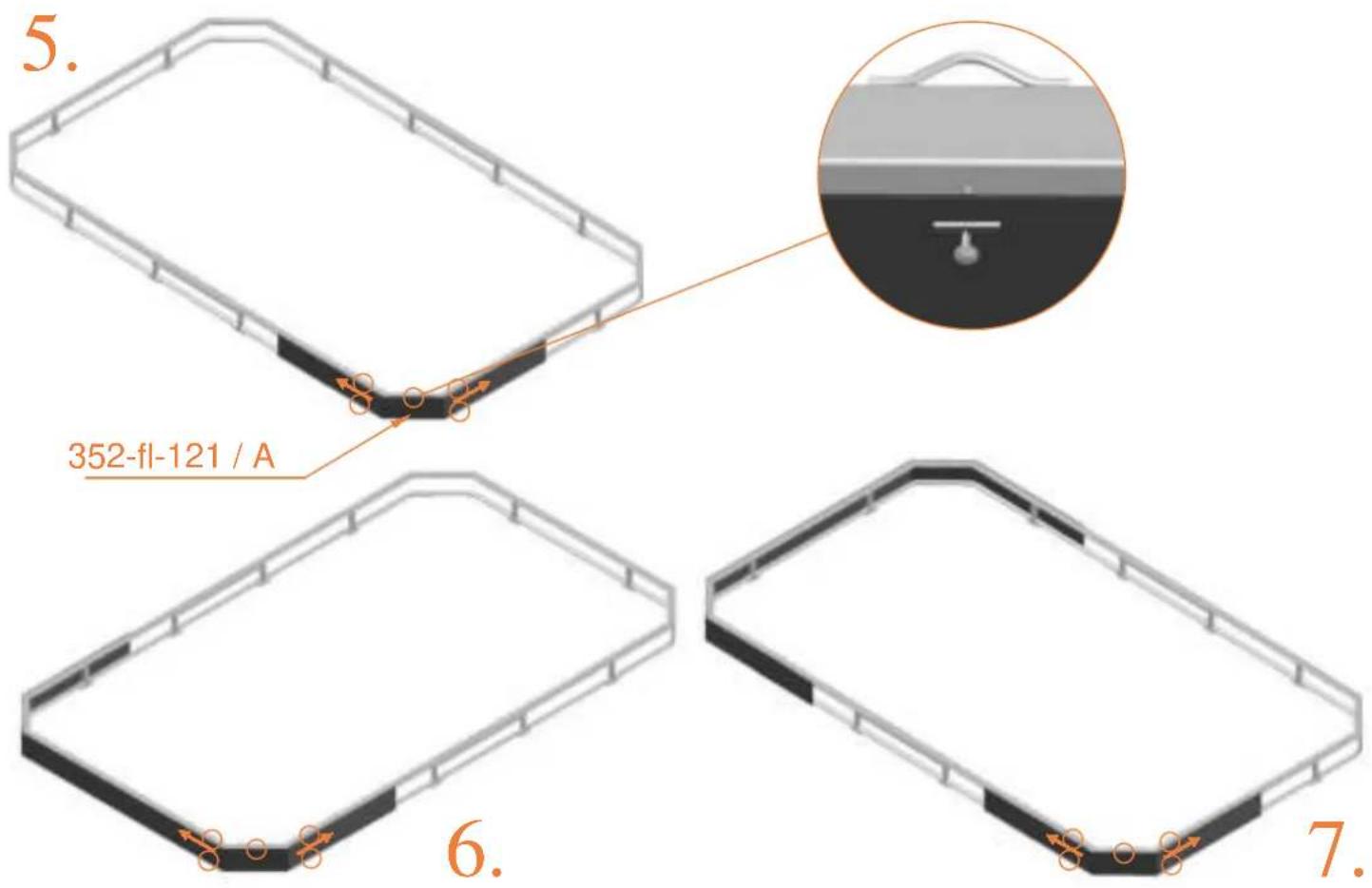

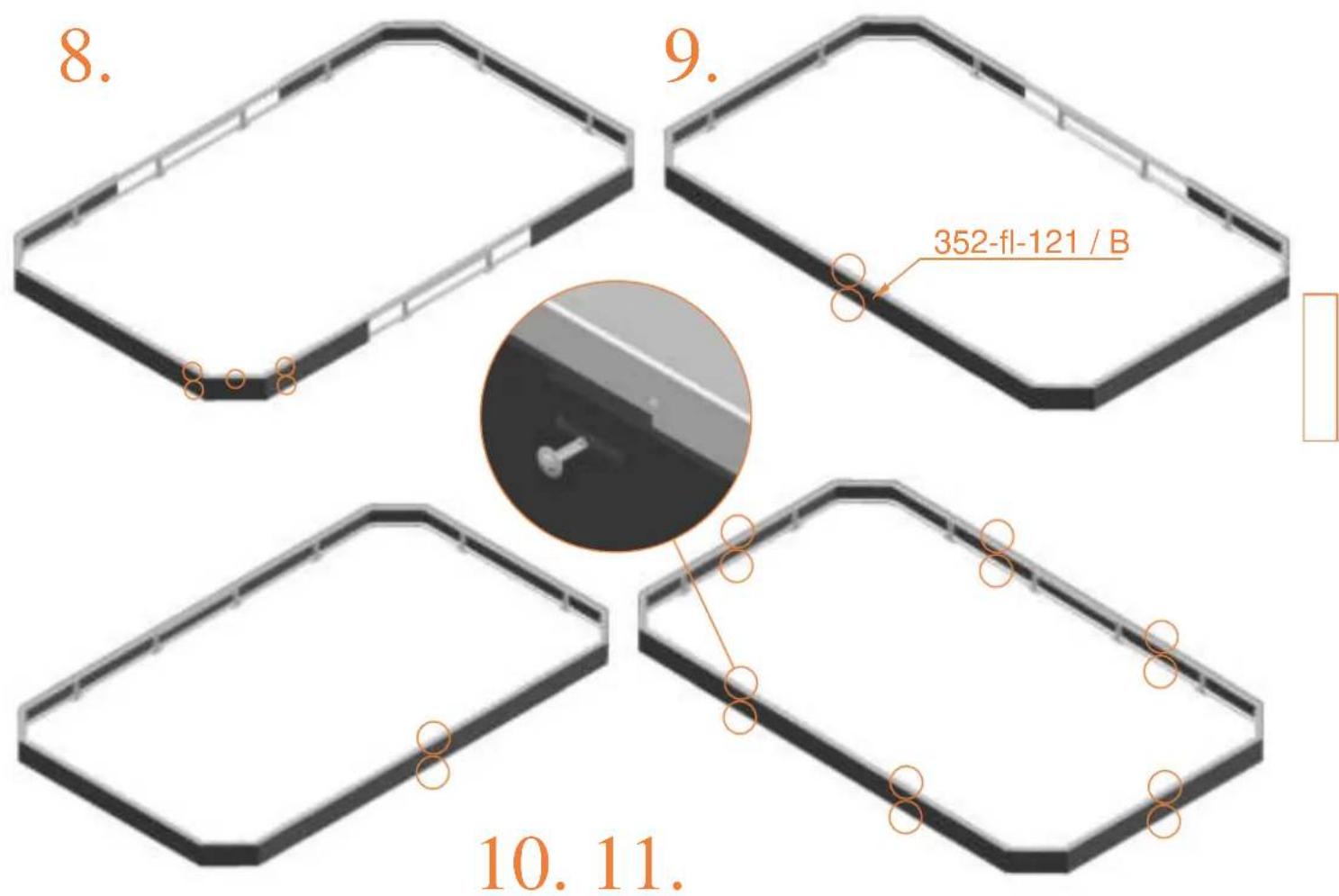

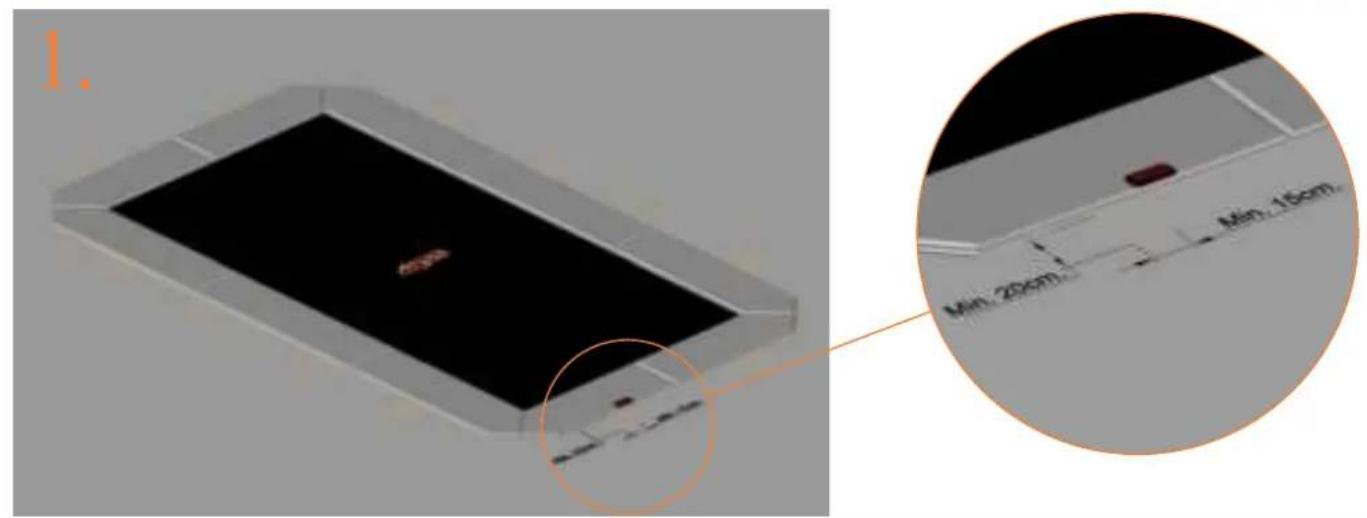

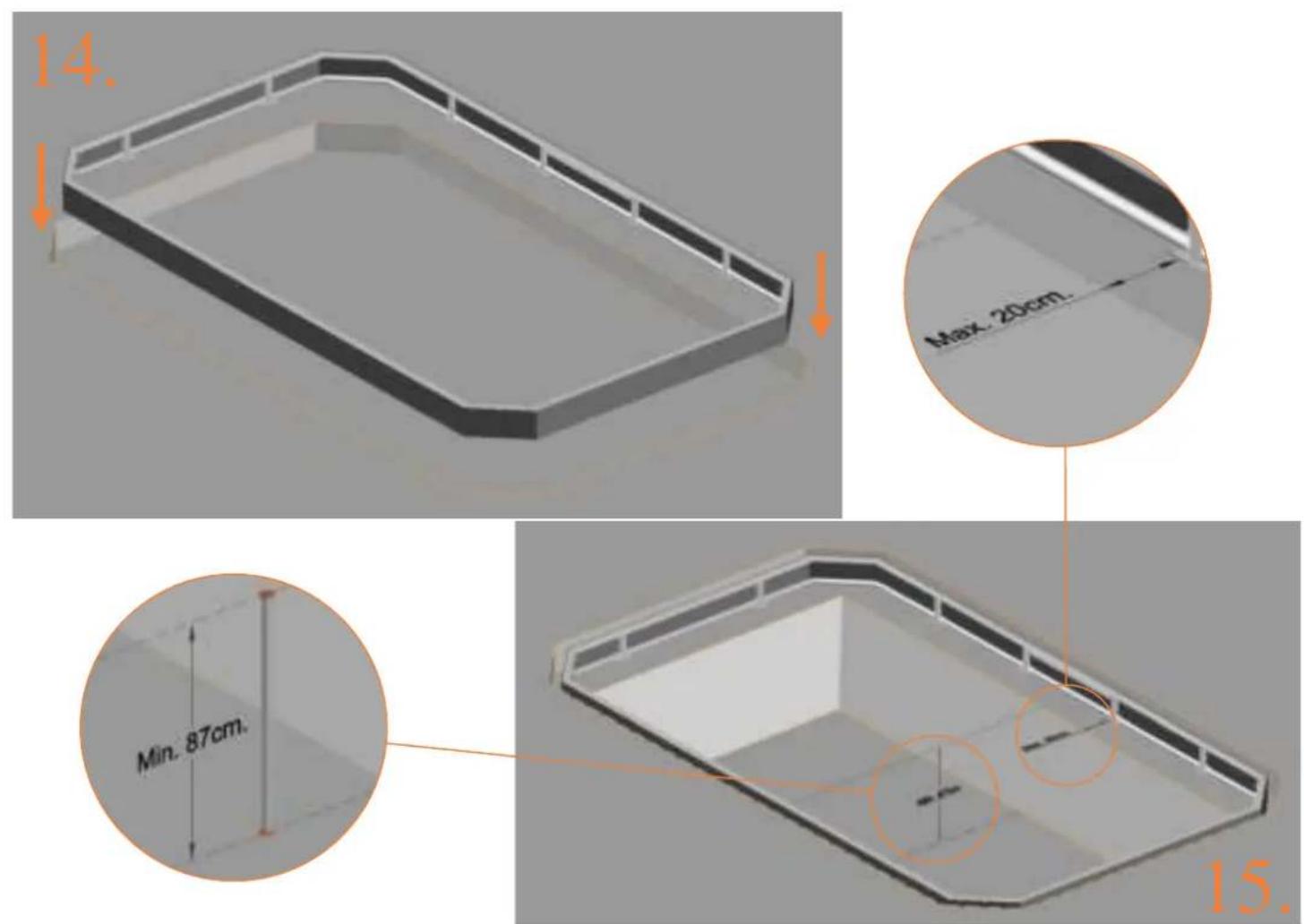

| Plastic plate | 4 | 352-FL-121/A | |
| Model 352-FL APPROX 920x305cm | |||
| Quantity | Pat number | ||
| Plastic plate | 2 | 352-FL-125-B | |
| L tube | 4 | TEPL-352-FL-802 | |
| T tube | 12 | TEPL-352-FL-115 | |
| Measuring rodL = 200mm | 1 | 2300-131/A | |
| Measuring rodL = 870mm | 1 | 2300-131/B | |
| Parture screw | 36 | M4x16 | |
| Padener for safety pad | 24 | TER-ELAS-D | |
| Users Manual | 1 | 208010X01 | |
| Warning Card | 1 | 208040X01 | |
| Turn-up for warning card | 1 | 209010X02 | |
| Safety manual | 1 | 208010X01 | |

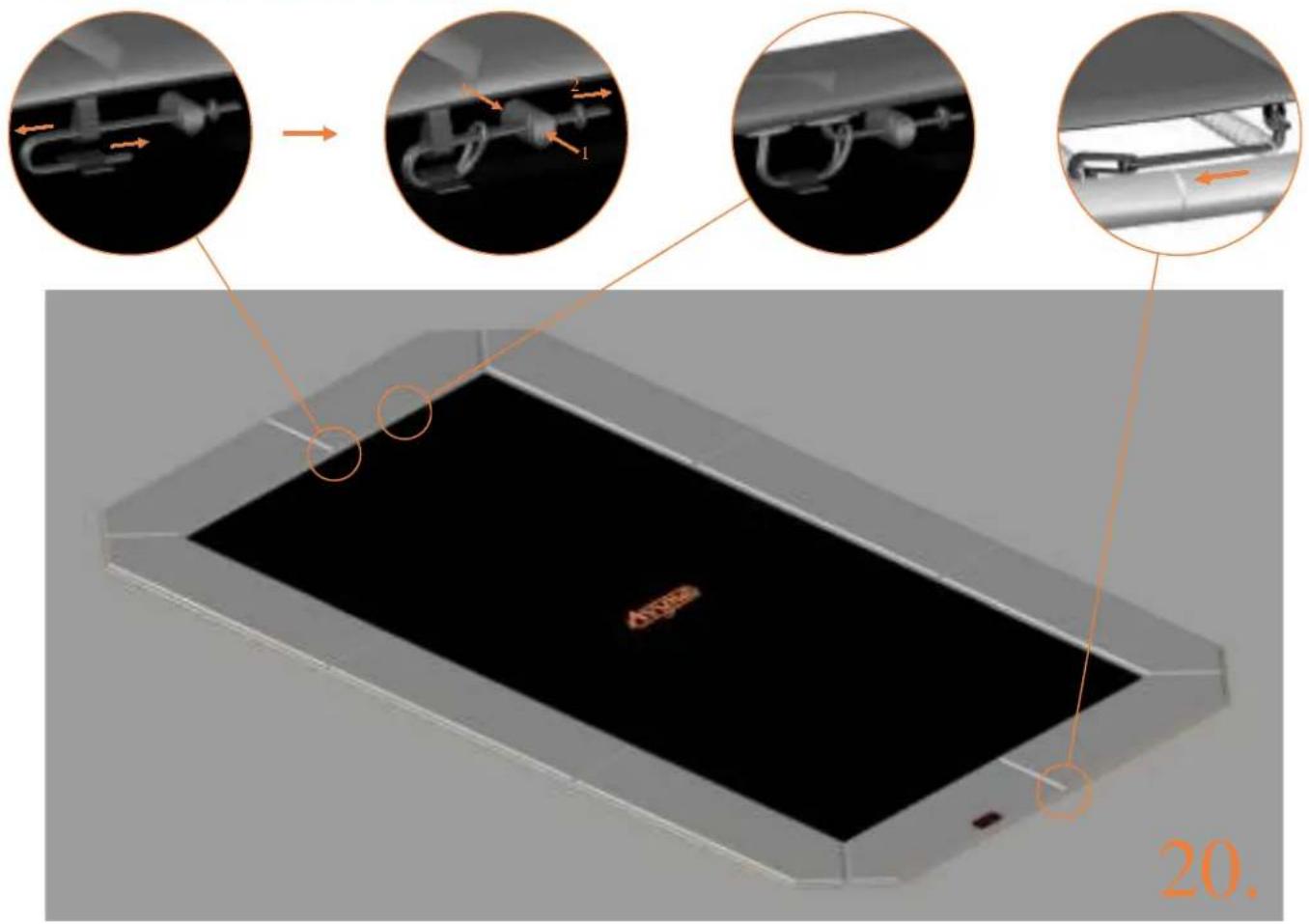

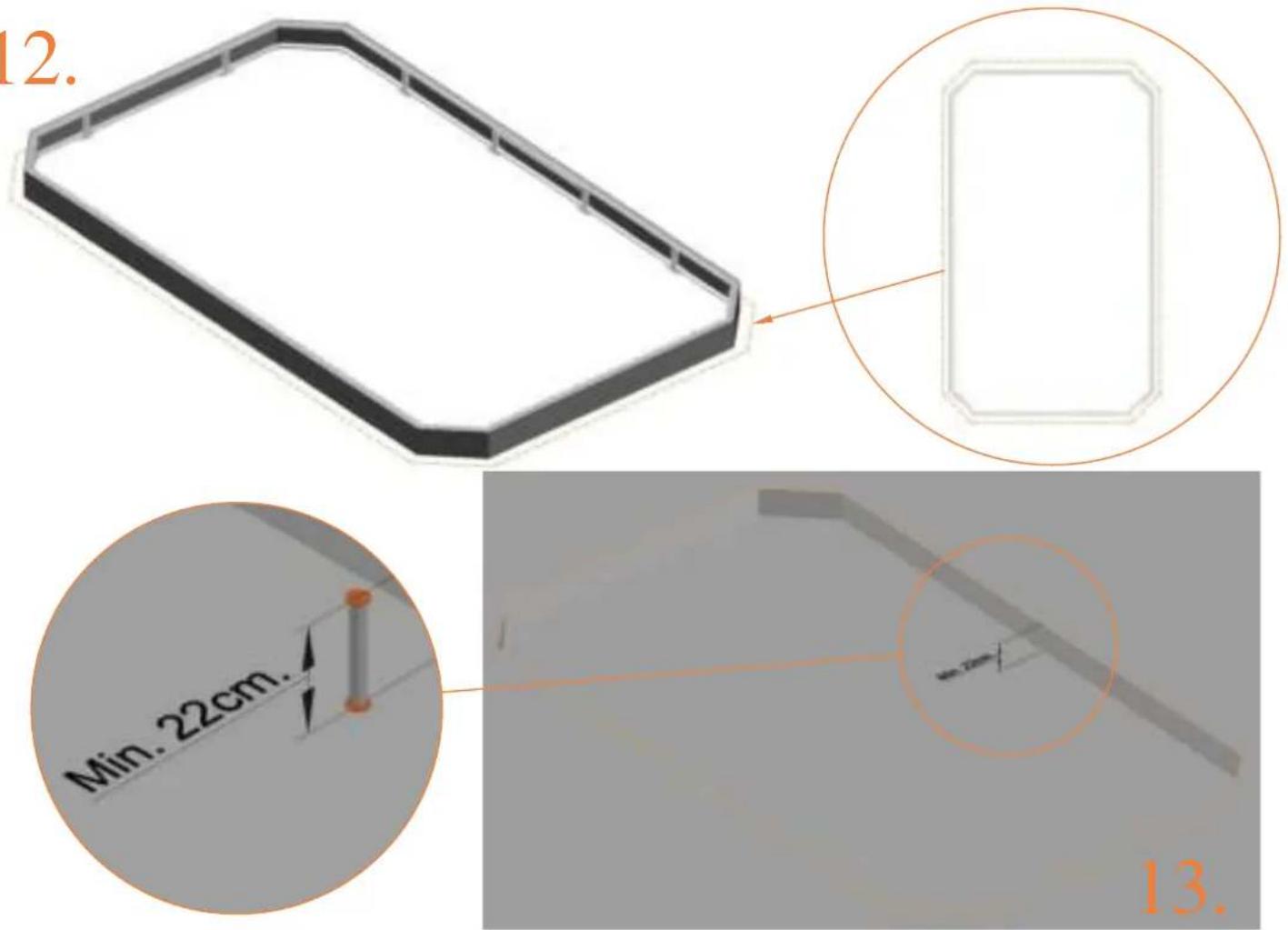

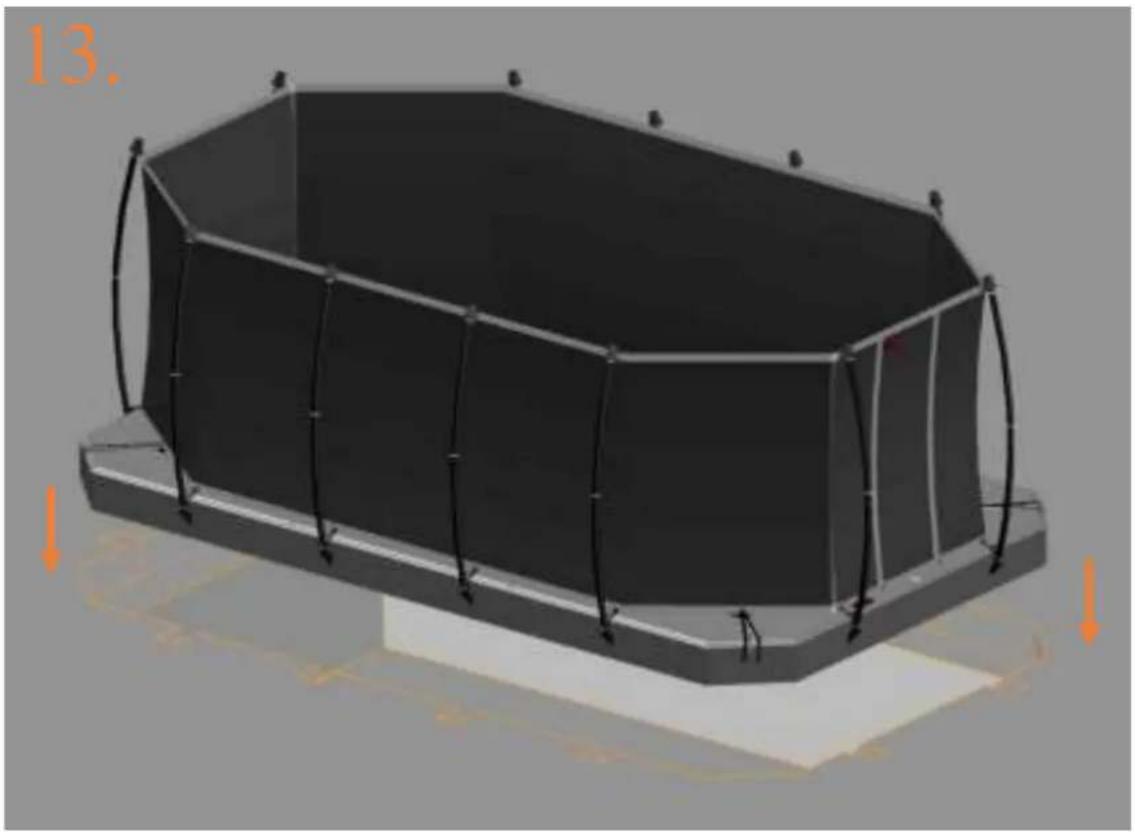

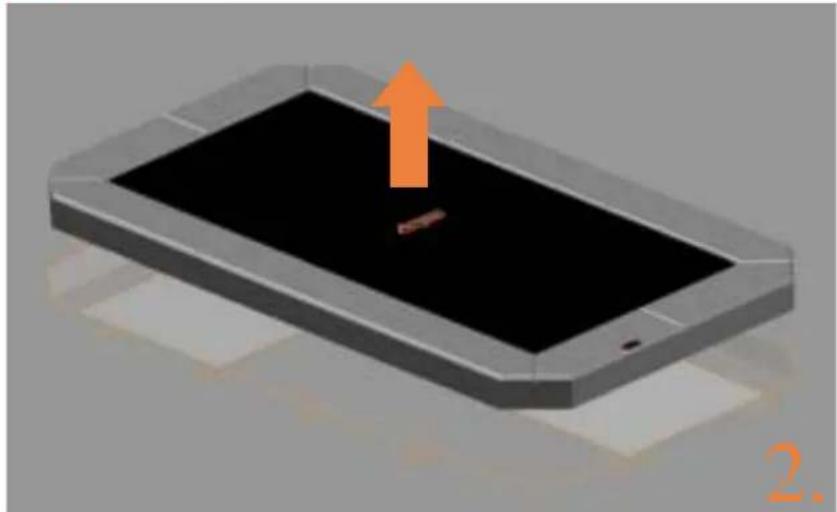

13.

Model 352-FL


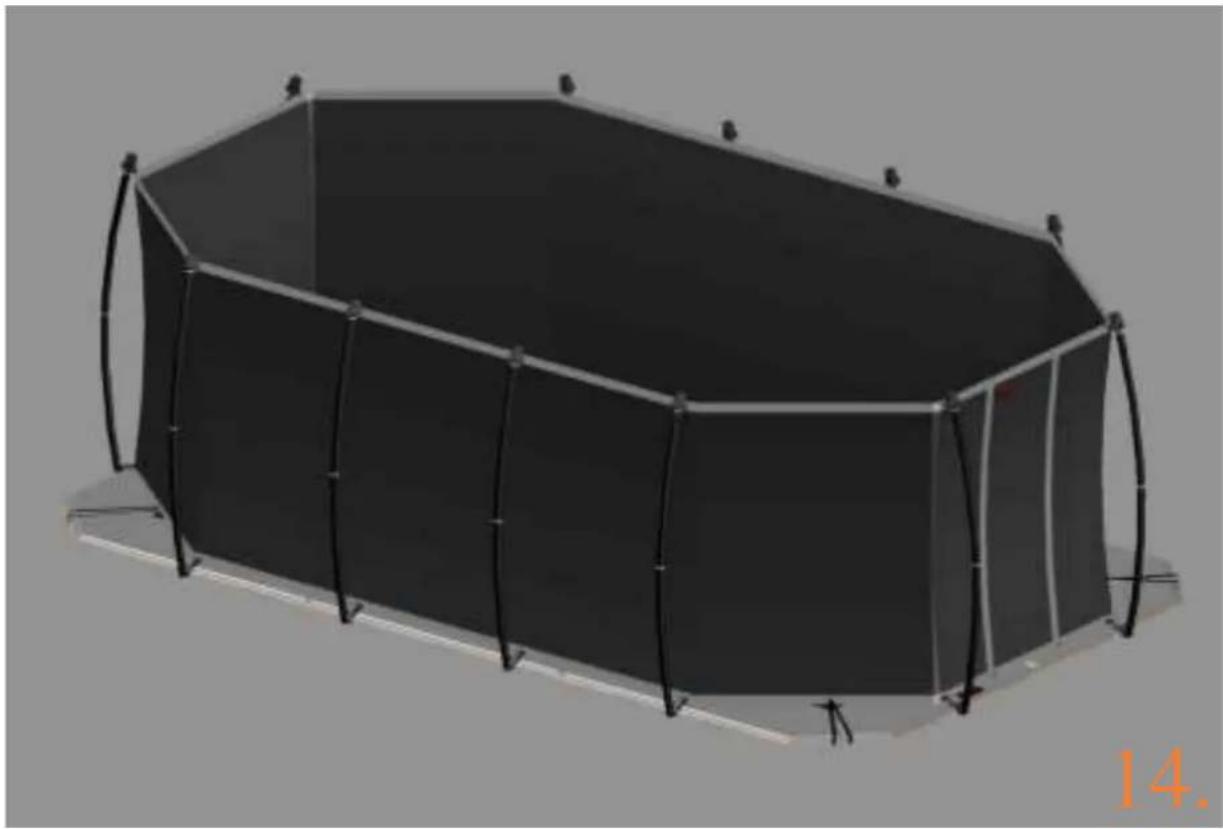

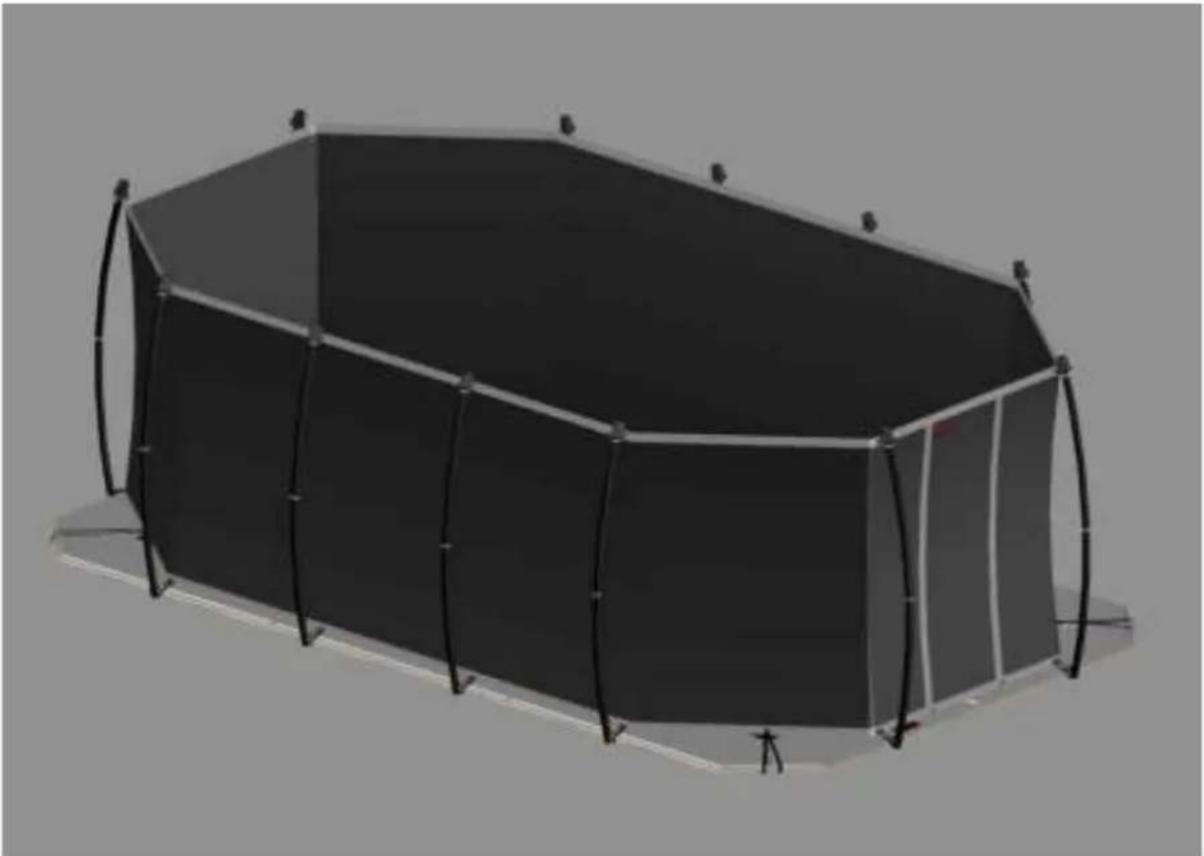

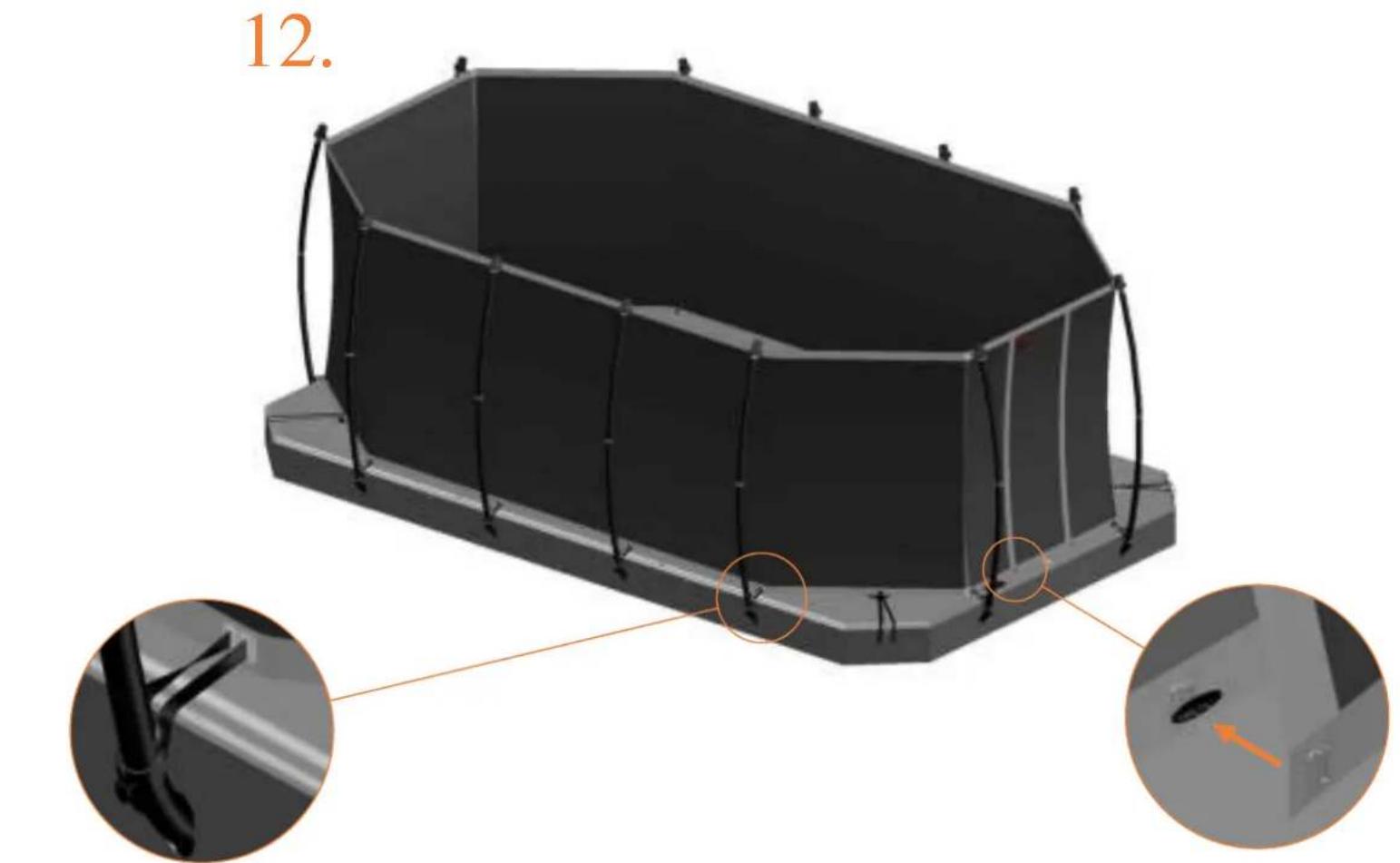

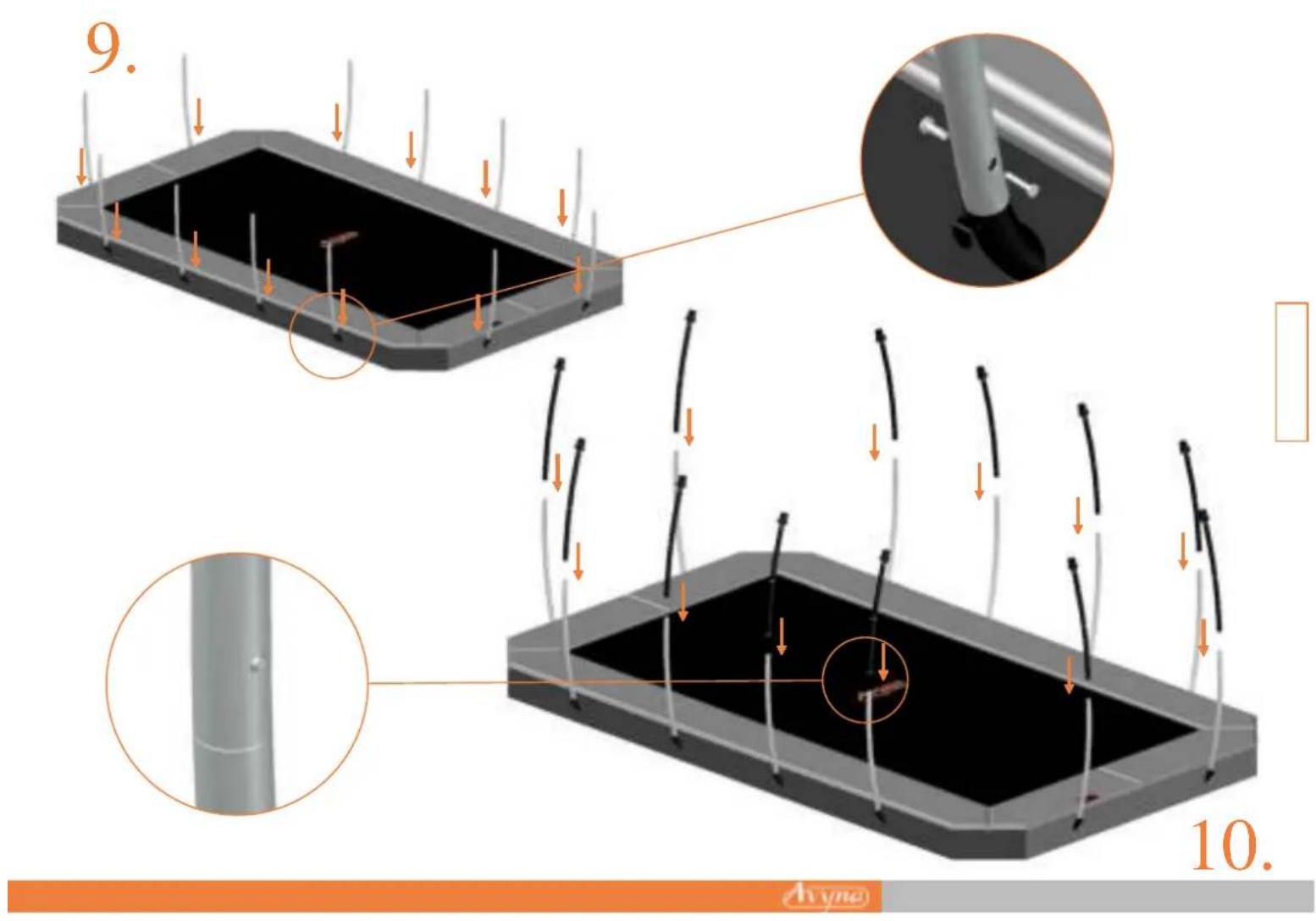

3D rendering of a dark octagonal tent structure with vertical supports and corner markers (no text or symbols)| Model-352-FL Model-352-FL APPROX 520x305cm | |||
| Quantity | Part number | ||
| Pole with sleeve for safety net | 12 | AVBL-352-FL-802 A | ![]() |
| Pole for safety net | 12 | AVBL-352-FL-802 B | ![]() |
| Clamp | 12 | CLAMP-TOOL-SN 352-FL | ![]() |
| Screw M6x30 | 12 | M6x30 | ![]() |
| Safety net | 1 | ANBL-352-FL | ![]() |
| Straps for safety net | 28 | TEPL-BAND24x short: 1,0m4x long: 1,5m | ![]() |
| APPROX 520x305cm | |||
| Quantity | Part number | ||
| Closure for safety net | TEPL-KNOOPJE2 | ![]() | |
| Screw M8 | M8-2524 | ![]() | |
| Allen key | ALLEN-KEY2 | ![]() | |
| Wrench | WRENCH2 | ![]() | |
