BRUGSANVISNING Alaska 120 C+H Proklima

Exterior view of a KUMA air conditioner unit (no visible text or symbols on body)

Close-up of a silver KLINE remote control device with a red circular dial and seven blades (no visible text or symbols on the device body)

Exterior view of a portable electric heating unit with a circular vent and cooling fins (no visible text or symbols)

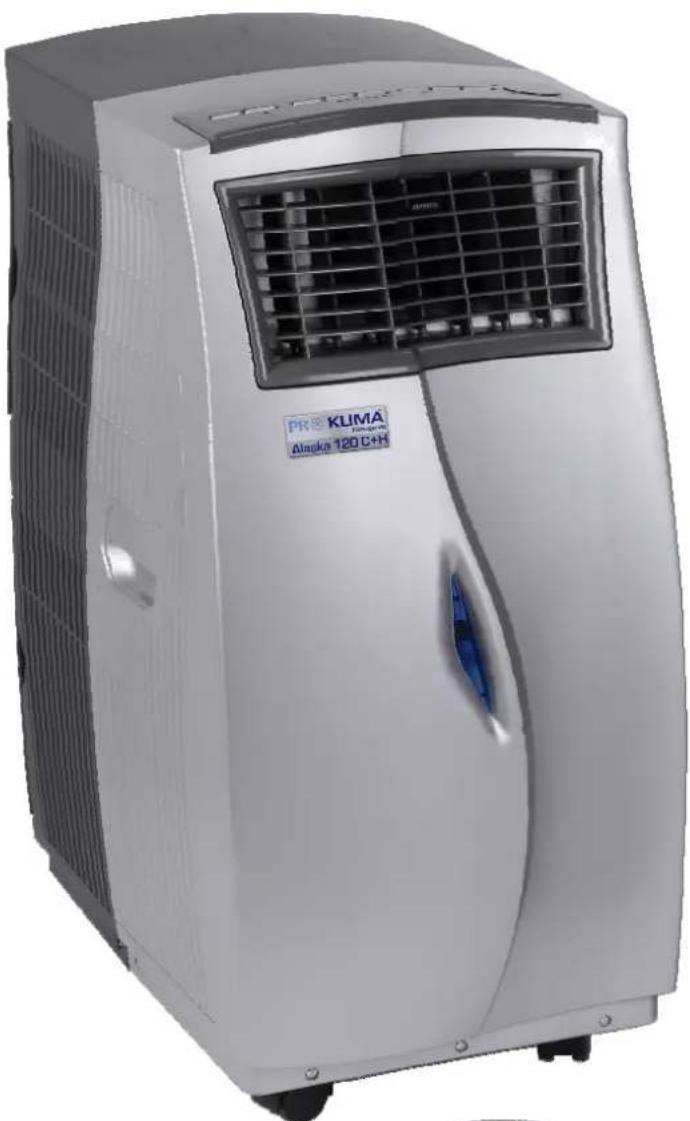

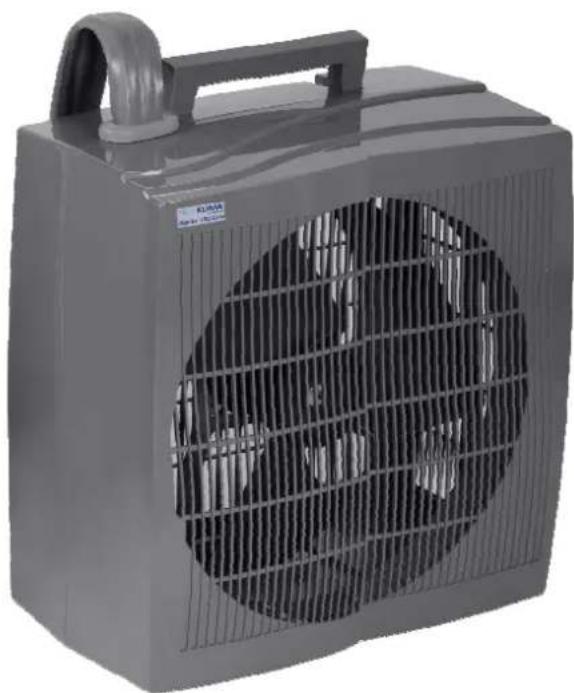

The portable and compact air conditioner consists of two units and provides a comfortable indoor climate. The external unit (liquefier unit) and the inside unit (vaporiser unit) are associated with a 3 meter long cooling line. The external unit is set up in the free or hung up at a outside wall. The mobile inside unit is set up in the area which should be air-conditioned.

The unit is completely assembled and directly ready for use.

With the soft keys or with the remote control all operating levels can be set on the inside unit and also the air conditioner can be switched on/off. The thermostat regulation provides a well-balanced indoor climate. This model is suitable for rooms of max. 100 m ^3 .

Alaska 120 C+H Portable Air Conditioner

Logistic information:

Type: Alaska 120 C+H

Art.-No.: 23.602.25

Ident-No.: 01016

Bar code 4006825 534689

Packaging: 1150 x 400 x 780 mm

Sales unit 1 pc

20": 84 pcs

40": 174 pcs

40 ^'' HC: -- pc

Weight: 45 kg (net)

CE

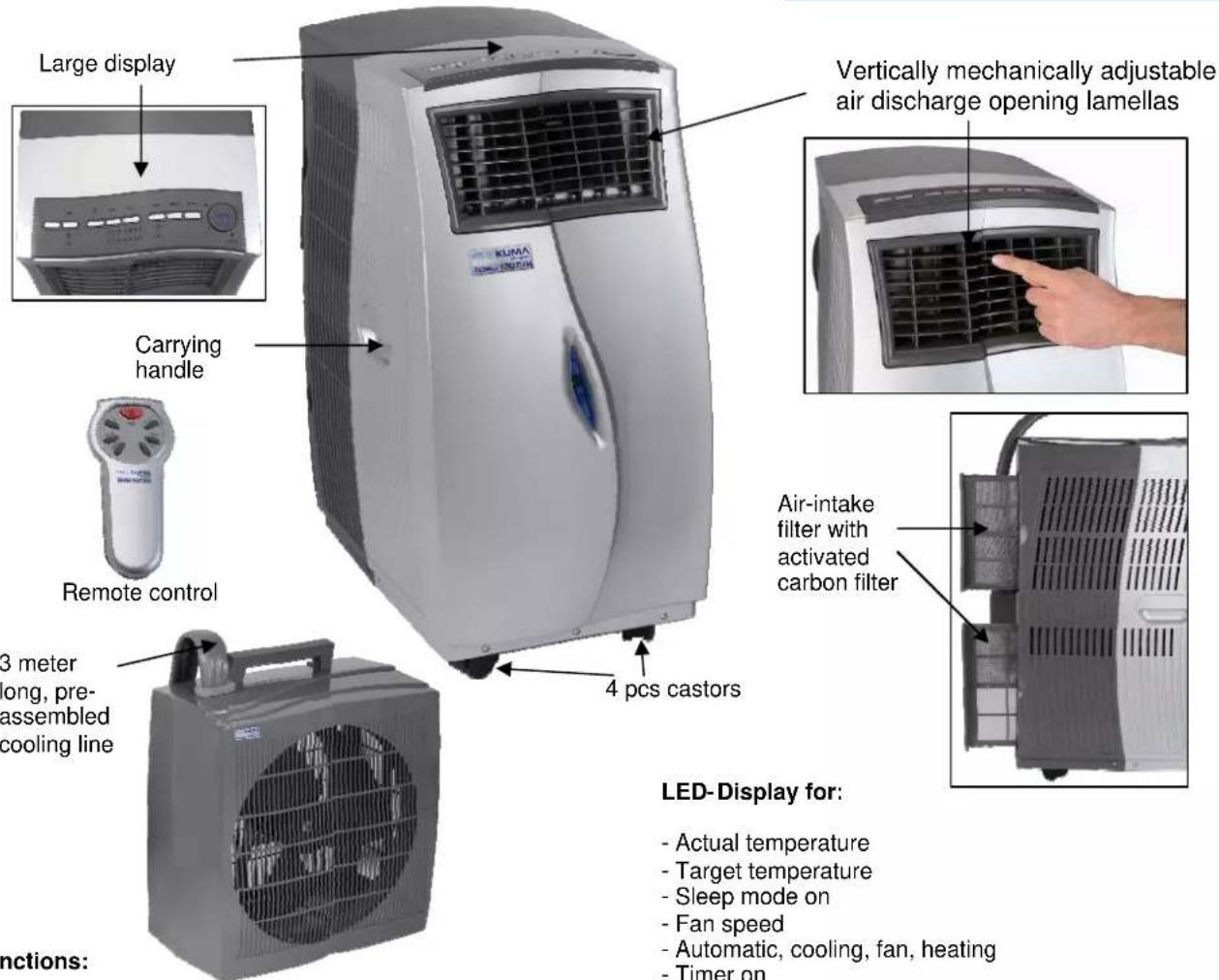

Large display Carrying handle Remote control 3 meter long, pre-assembled cooling line 4 pcs castors Vertically mechanically adjustable air discharge opening lamellas Air-intake filter with activated carbon filter LED-Display for: - Actual temperature - Target temperature - Sleep mode on - Fan speed - Automatic, cooling, fan, heating - Timer on

Functions:

• Unit On / Off
• LED-Display
• Target - temperature attitude: +18°C up to +32°C
• Sleep mode adjustment
• Fan speed: 3-settings
• Operating level section (MODE): automatic, cooling, fan, heating
• Power-on time: 1-24h, Continuous operation

Features:

• large display
• Vertically mechanically adjustable air discharge opening lamellas
• 4 pcs castors
• Air-intake filter with activated carbon filter
• remote control
• 3 meter long, pre-assembled cooling line
• wall fastening for external unit
• 2 pcs flat spanner

Logistics information:

Type:

Alaska 120 C+H

Art.-No.:

23.602.25

Ident-No.:

01016

Bar code

4006825 534689

Packaging:

1150x400x780 mm

Tool:

Sales unit:

20:

40:

40`HC:

Weight:

Portable Air Conditioner

1 pc

84 pcs

174 pcs

-- pc

45 kg (net)

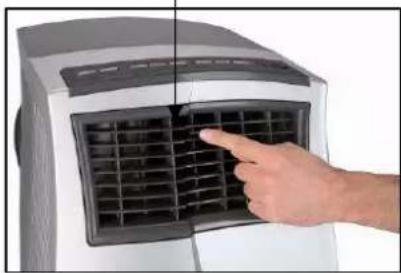

Vertically mechanically adjustable air discharge opening lamellas

Hand pointing at a black air conditioner unit (no visible text or symbols)

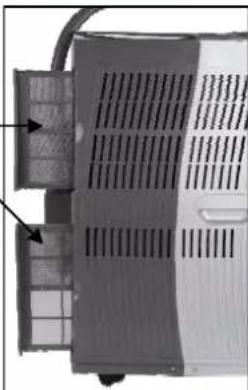

Air-intake filter with activated carbon filt

Close-up of a mechanical ventilation grille with a curved handle and grid pattern (no text or symbols visible)

LED-Display for:

• Actual temperature
• Target temperature
• Sleep mode on
• Fan speed
• Automatic, cooling, fan, heating
• Timer on
• Condensation water tank full

Technical data:

• free of FCKW (R410A)
• cooling quantity: 740 g
• Energy-Efficiency-Class*: C
• EER / COP*: 2.81 / 2.61
• Energy consumption at cooling*: 623 kWh/year
• Mains: 230 V \~ 50 Hz
• Cooling capacity*: 3500 watts
• Heating capacity*: 2980 watts
• Air circulation max.: 680 m³/h
• Exhausted room humidity
  max. (30°C/80% RH): approx. 43l/day
• Noise level inside unit: ≤ 54dB (A)
• Noise level external unit: ≤ 62dB (A)
• Dimensions inside unit approx.: 365x608x746 mm
• Dimensions external unit approx.: 500x310x520 mm
• Weight inside unit (net) approx.: 32 kg
• Weight external unit (net) approx.: 13 kg
• Packaging approx.: 1150x400x780 mm
  *Characteristics of EN 14511
