BRUGSANVISNING DVA DB Technologies

K5

Featuring a Class-D 500 W RMS Digipro® G3 digital amplifier, DVA K5 is capable to reach up to 129 dB SPL and aims merit the success of the

earliest model of the series DVA T4. The new DVA line array module comprises 2 x 1,4" compression drivers, a 6,5" neodymium midrange and a 8" neodymium woofer. Thanks to FIR filters technology, a new dual rotary encoder DSP user interface allows an extremely precise system tuning. The module's electronics and components are housed in a sturdy polypropylene box, reinforced with an internal anti vibration metal structure that allows the cabinet to achieve an excellent acoustic response. DVA K5 comes with a freshly designed frontal grille and an integrated raincover.

ks10

The semi-horn loaded subwoofer DVA K510 is equipped with a single 18" woofer driven by a Class-D Digipro® G3 power amp delivering 1800W Peak m versatility is granted by a up. Crucially, KS10 can be both with KS on a speaker pole) own thanks to the optionally er allows to apply up to 4.5 ms allows to invert the phase by 90 Hz to 120 Hz.

ks20

Featuring a double 18" woofer pairing in a bass reflex housing, the DVA KS20 is equipped with 2 x Digipro® G3 power Peak. The system's internal design brings together the benefits of bass reflex and horn-loaded system in a compact sturdy housing covered with robust black laquer. The 56 Bit DSP manages limiters and delays, for flawless system processing.

DVA KS20 is the perfect low-end complement for larger DVA K5 systems and can also be used vertically for groundstacked configurations thanks to the DRK 20/10 pick points on top.

Exterior view of a multi-tiered industrial or modular device with metallic panels and mounting holes (no visible text or symbols)

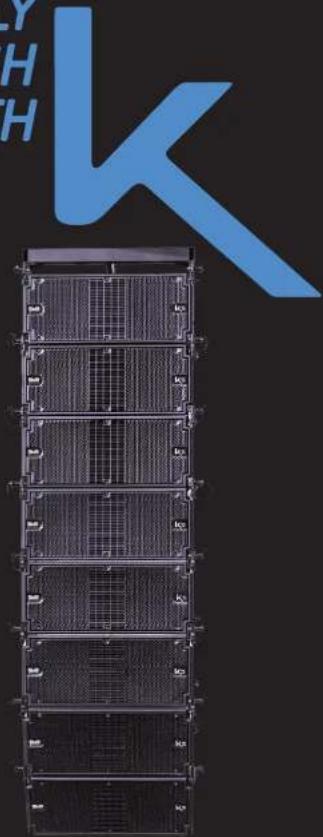

DVA K5 flown with DVA KS10

Exterior view of a black industrial electrical cabinet with metal wiring (no visible text or symbols)

DVA K5 groundstacked with DVA KS20

dBTechnologies' active line array series DVA has set new standards in the sound reinforcement industry since its market launch in 2006.

Equipped with top-notch features and engineered for maximum versatility, DVA T and DVA M series brought the benefits of line array technology to a much wider range of users. Now Italian manufacturer dBTechnologies upgrades the best of technology that determined the success of the whole DVA series in the new DVA K series, composed by the 3-way active line array DVA K5 and active subs DVA KS10 and double 18" DVA KS20.

dbtechnologies.com

dB Technologies

FLY HIGH WITH

Exterior view of a multi-tiered server rack with grid and ventilation panels (no visible text or labels)

dBTechnologies

K5

Exterior view of a black server unit with ventilation grilles and ventilation grilles (no visible text or symbols)

ks10

Exterior view of a black rectangular electronic device with ventilation grilles and ports (no visible text or symbols)

Ks20

Technical Data

Speaker Type 1 Way Active Line Array Module

Acoustical Data

Frequency Response [-3 dB] 70 Hz - 15,000 Hz
Max SPL 126 dB
IF 1 x 8" bendymium oxoler - 2.5" v.c.
MF 1 x 6.5" Neodymium midrange - 2" v.c.
IF 2 x 1" Compression driver - 1.4" v.c.
Directivity [11 x V] 200' x 15", single unit

Amplifier

Amplifier technology Digipro® G3 Class D
RMS Power 500 W
Peak Power 2000 W
Cooling Convection
Power Supply	500 W SMPS with Auto-range PSU.

Processor

Controller DSIP 56 Bit
AD/DA converter	24 bit/48 kHz
Limited	Dual Active Limiter Multihand RMS, Peak, Thermal
Processing (filters)	FIR Linear phase
X-over frequency M-HI	1800 Hz
Slope M-HI	24 dB/Octave
X over frequency LF MF	340 Hz
Slope LF MF	24 dB/Octave

Inputs

Input Section 1x XLR balanced
Output Section 1x XLR balanced
Power Socket 1x Powercon In + 1 x Powercon O	1 x Input Sensitivity Rotary Switch1 x DSP Setup Rotary Encoder (LF Correction)1 x DSP Setup Rotary Encoder (WF-HF Correct)
Controls

Mechanics

Enclosure	Polypropylene PP Metal reinforced
Rigging Points	Integrated rigging hardware (1.5" spray res.)
Dimensions (W x H x D)	580 x 260 x 327 mm(13.2 x 9.6 x 15.08 in)
Weight	14.2 kg (31.3 lbs.)

Technical Data

Speaker Type Active Semi-Horn loaded Flywheel Subwoofer Speaker Type Active Basarflex horn S.

Acoustical Data

Frequency Response [-3 dB] 34 Hz - 120 Hz
Max SPL 134 dB
IF-18" Wroder 4" v.c.
Directivity Onridirectional

Amplifier

Amplifier technology Digipmt® C3 Class D
RMS Power 900 W
Peak Power 1800 W
Cooling Convection
Power Supply	1000 W SMPS wtf1 Auto-range PSU

Processor

Controller DSP 56 Bit
AD/DA converter	24 bit/43 kHz
Limiter	Dual Active Limiter Multiband RMS, Peak, Thermal
X over frequency LT-111	90 - 120 Hz (selectable)
Slope LT-111	24 dB/Octave

Inputs

Input Section 2x X.XR balanced
Output Section 2x X.R balanced
Power Socket, 1x Powercom In + 1 x Powercom Out
Controls	1 x Input Sensitivity Rotary Switch1 x DSP Se up Rotary Encoder (Delay 4.5 ms)1 x Phase Inversion Switch (0" - 180")1 x X-Over Frequency Switch (10 Hz - 120 Hz)1 x Outputs Mode Switch (Link - X-Over)

Mechanics

Enclosure	Multiplex birch plywood
Pole Mount 1 x M20 on top
Rogging Points	Integrates for SKK10 Flybit (optional)2 x Pick points on top to fix DRS10/20 Flybars
Dimensions IW x H x DI	54.5 x 64.0 x .720 mm:(28.6 x 25.6 x 28.8 in)
Weight	48 kg (105.82 lbs.)

Technical Data

Acoustical Data

Frequency Response [-3 d3] 24 Hz - 120 Hz
Max SP: 138 d3
IF 2 x 58" Wooler: 4" x x
Directivity OmniD/rectional

Amplifier

Amplifier technology Digipro® C3 Class-D
RMS Power 1800 W
Peak Power 3600 W
Cooling Convocation
Power Supply	2000 W SMPS with Auto-range PSU

Processor

Controller DSP 56 Bit
AD/DA converter	24 bit/48 kHz
Limiter	Dual Active Limiter Multiband RMS, Peak, Thermal.
X over frequency LF-HT	30 - 120 Hz [selectable]
Slope UI-HT	24 dB/Octave

Inputs

Input Section 2x XLR balanced
Output Section 2x XLR Inflamed
Power Socket 1x Powercom in +1 x Powercom Dul
Controls	1 x Input Sensitivity Rotary Switch1 x DSP Setup Rotary Encoder (Delay 4.5 ms)1 x Phase Inversion Switch (c* = 180)1 x X-Over Frequency Switch (jio Hz - 120 Hz)1 x Outputs Mode Switch (Jink -X-Over)

Mechanics

Enclosure	Mottiplex birch plywood
Pole Mount 1 x M20 on top
Rigging Points	2 x Pick points on side to fix DRK20/20 rigging frames
Dimensions (W x H x DI)	1100 x 580 x 720 mm (kg 23.2 x 28.8 in)
Weight	84 kg (185.19 lbs.)
