BRUGSANVISNING WBE4302BC WESTINGHOUSE
WBE4302BC
425L bottom freezer refrigerator, black with manual humidity-controlled crispe 4.5-star energy rating, SpillSafe glass shelves & FlexStor adjustable storage solutions
Features
- Humidity controlled crisper bin (full-width)
- Adjustable Spillsafe™ tempered glass shelves
- FlexStor™ door bin storage system
- Quick chill function
- Twist Ice & Serve Dispenser
- Internal electronic controls
- Multi-flow air delivery system
- LED lighting


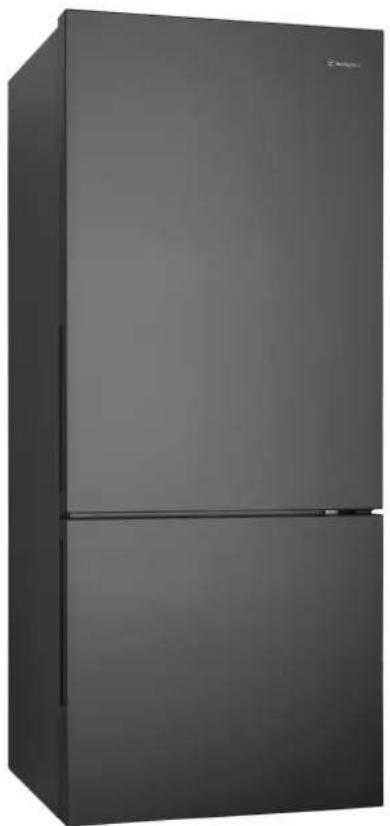

Exterior view of a modern black refrigerator with two doors stacked vertically (no visible text or symbols)DIMENSIONS
Total height (mm) - 1725, Cabinet height (mm) - 1718, Max door height (mm) - 1725, Total width (mm) - 699, Cabinet width (mm) - 693, Total depth (mm) - 723, Cabinet depth (mm) - 641, Depth door open 90degree (mm) - 1360, Air space at sides (mm) - 30, Air space behind (mm) - 50, Air space above total height (mm) - 50, Food Compartment Capacity (L) - AS/NZS 4474.1 2007 (IEC 62552- 2015) * - 300, Freezer Compartment Capacity (L) - AS/NZS 4474.1 2007 (IEC 62552- 2015) * - 125, Total Capacity (L) - AS/NZS 4474.1 2007 (IEC 62552- 2015) * - 425
Minimum Recommended Airspaces
If you have a cupboard above the refrigerator with a rear gap of less than 100mm (Y), recommended minimum clearance at the top of the refrigerator increases from 30mm to 70mm (X).
Please note: Doors are designed to sit proud of cabinetry (not flush).
When positioned in a corner area, spacing of at least 350mm on the hinge side will allow the door to open enough to enable the removal of bins and shelves.
| Dimensions | Product Height | Product Width | Product Depth | Product Depth (Door Open) |
| WBE4302AC-R | 1725 | 699 | 725 | 1560 |
| WBE4302AC-L | 1725 | 699 | 725 | 1560 |
| WBE4302WC-R | 1725 | 699 | 725 | 1560 |
| WBE4302WC-L | 1725 | 699 | 725 | 1560 |
| WBE4302BC-R | 1725 | 699 | 725 | 1560 |
| WBE4302BC-L | 1725 | 699 | 725 | 1560 |
| Airspace | Side - both | Top | Behind |
| WBE4302AC-R | 30 | 50 | 50 |
| WBE4302AC-L | 30 | 50 | 50 |
| WBE4302WC-R | 30 | 50 | 50 |
| WBE4302WC-L | 30 | 50 | 50 |
| WBE4302BC-R | 30 | 50 | 50 |
| WBE4302BC-L | 30 | 50 | 50 |
IMPORTANT
These dimensions are a guide only. All measurements are in millimetres (mm). For complete installation instructions, refer to the manual provided with product. © 2022 Electrolux Home Products Pty Ltd. ABN 51 034 762-34t. W_DIM_WBE4302AC-WC-BC_May22
Mærke : WESTINGHOUSE
Model : WBE4302BC
Kategori : Køleskab
