BRUGSANVISNING IB-MSG303BL-T Icy Box

Two industrial lighting systems: a circular LED component mounted on a black stand and a mechanical arm with red laser beam (no text or symbols visible)

ICY BOX

IB-MSG303BL-T

Gaming monitor stand with USB 3.0 media hub and RGB light effect

Key features

• For one monitor up to 32" (81 cm)
• The stylish light effect fits perfectly into any gaming environment
- Two easily accessible USB 3.0 ports and two multi-media ports
• Variable hight adjustment for an ergonomic sitting position
• Built-in spring tension gauge for perfect weight adjustment of the monitor
- Optional mounting with clamp base or table feed-through

3D rendering of a black robotic arm with a red and blue joint, mounted on a circular base (no text or symbols visible)

Packing content

IB-MSG303BL-T, allen wrench, set of screws, USB cable, manual

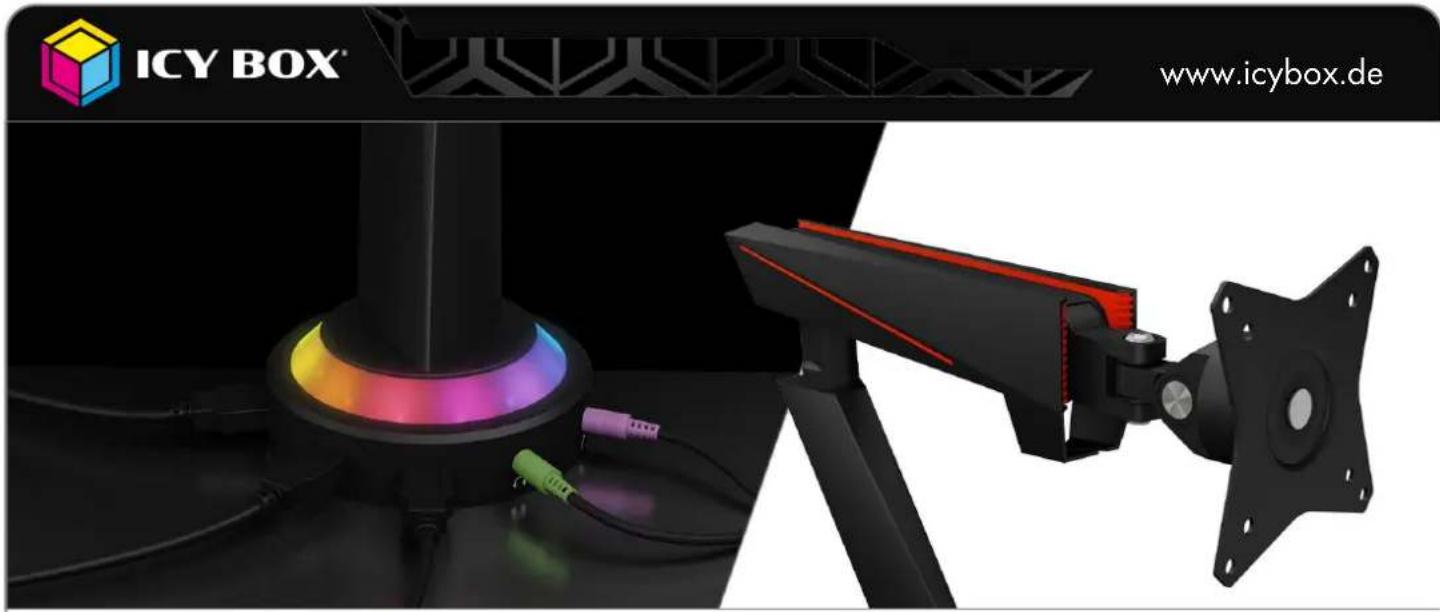

More than just a monitor stand

Create atmosphere in your room with this gaming monitor stand. With its trendy RGB light effect, it fits perfectly into any environment. It also adds two more USB 3.0 ports and a microphone and headphone jack to your end device. Thanks to the built-in spring tension gauge, the monitor can be perfectly adjusted to its weight.

Technical data

Model

IB-MSG303BL-T

Article no.

60870

EAN code

4250078172031

Brand

ICY BOX

Colour

Matt black

Material

Aluminium, plastic, steel

Maximum size of monitor

32" (81 cm)

Number of monitors

1

Max. weight of monitor

Up to 8 kg

Mounting

Table feed-through or clamp base

VESA® compatible

75x75, 100x100

Swivel (Hinge) - VESA®

+180°--180°

Tilt (Hinge) - VESA®

+40° - -40°

Rotate (Pivot) - VESA®

360°

Base - Rotate (Pivot)

+ - 180°

Wall mount - Rotate (Pivot)

+ - 180°

Tilt (arm)

+ - 180°

Tilt	+40° - -40°

Swivel (Hinge)

+90° - -90°

Max arm extend

480 mm

Max arm height

450 mm

Table thickness

For clamp base: 10 – 85 mm

For table feed-through: 10 - 80 mm

Product display featuring a colorful LED-lit mechanical device mounted on a black stand, with no visible text or symbols in the main image area.

ICYBOXIB-MSG303BL-T

Gaming monitor stand with USB 3.0 media hub and RGB light effect

Mechanical assembly diagram showing a black frame with red and black components, no visible text or symbols

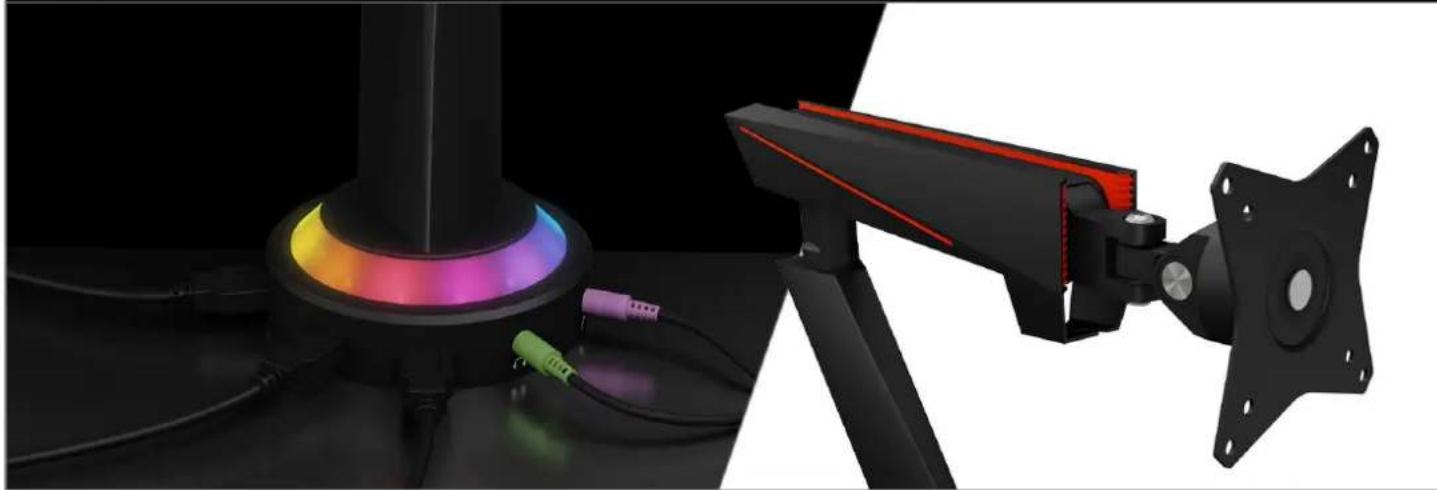

Brings light into the dark

The IB-MSG303BL-T impresses with good workmanship, a modern and eye-catching design and its lighting in the base of the monitor stand, which creates a particularly pleasant ambience in your gaming room. The colours play through the palette of the rainbow.

Close-up of a glowing purple-blue sensor mounted on a black cylindrical base with connected cables and a small green connector (no visible text or symbols)

Even more connections!

This monitor stand adds two more USB 3.0 ports to your end device. A third USB 3.0 port provides the necessary power. You also have the option of connecting a microphone and headphones, extremely convenient for your gaming applications!

Close-up of a mechanical assembly with a yellow directional arrow indicating a movement or force (no visible text or symbols)

Firmly and securely mounted

The monitor stand can be securely attached to the tabletop in two ways. If your desk has a cut-out, you can attach the monitor stand to table tops with a thickness of 10 to 80 mm by means of a table feed-through. For tabletops with a thickness of 10 to 85 mm, you can also mount it securely using a clamp base. The accessories are included in the scope of delivery.

Logistical data

Packing unit: 4 pcs./carton

Total weight: 19.64 kg/carton

Gross weight (with packing): 4.705 kg

Net weight: 3.500 kg

Dimension/carton: 543x350x546 mm

Dimension (with packing): 520x320x130 mm

Dimension of article: 320x520x130 mm

Country of origin: China
