BRUGSANVISNING KIN360 Pro Osann

|

osann

Osann GmbH

Gewerbestreße 22

D-78244 Gottmadingen

TEL:[phone]

Email: [e-mail]

Web: www.osann.de

CONTENTS

Line drawing of a baby car seat assembly (no text or symbols)

01 1 Notice
02 2 Important information
06 3 About car seat
08 4 Installation of rear facing 40-105cm (isofix+support leg+harness)
13 5 Installation of forward facing 76-105cm (Isofix+support leg+harness)
18 6 Maintenance.

01/Notice

1 car seat belts-shoulder belt.

2 car seat belts-lap belt.

Do Not use two-points car seat belt. Please use Three-ponit car seat belts.

correct device/suitable ☒ Wrong device/unsuitable

This car seat is suit for the three-point car seat belt with the standard of GB27887 or ECE R 16.

1 You can not install the car seat in front of the airbag.

1. Please only install the car seat with three-point car belt device.

02/ Important information

1. In order to protect your children, Please read the instructions carefully.

2. The car seat suit baby from 40cm to 105cm (around new born baby to 4 years old).

XIN360 Pro	40-105cm	Isofix + support leg+ harness(rear facing)
	76-105cm	Isofix+supportleg+ harness(forwardfacing)

1. Certification

This car seat is suit for the three-point car seat belt with the standard of GB27887 or ECE R 16
4. notice for using
Please learn the instruction carefully, in order to avoid any mistake.
4.1 Please use the harness from 40cm to 105cm baby.
4.2 Please use the three-point car seat belts.
4.3 Make sure all the vehicle belts and harness straps are tight and not twisted before using.
4.4 Make sure the belt is tight with the baby to avoid falling down, especially the pelvis is firmly engaged.
4.5 Replace a new baby car seat after the accident.
4.6 Do not modify the car seat due to the safety.
4.7 Please avoid the sunlight if without the cover, or will hurt the baby skin.

4.8 Never leave the baby along in the car seat.
4.9 It shall be recommended that any luggage or other objects liable to cause injuries in the event of a cloolision shall be properly secured.
4.10 The car seat can not be used without the seat cover.
4.11 The car seat suit the baby less than 105cm.
4.12 It can be rear facing before 105cm with harness, But can not be in the seat with Air Bag. And please install the car seat in back row for forward facing after 76cm.
4.13 Keep the manual instruction for further using
4.14 Please use the car seat only in car, not at home.
4.15 Please fix the car seat though no baby inside.
4.16 Make sure all the part of car seat locating in correct position, not trapped by a movable seat or in a door of the vehicle.
4.17 Please take out the baby from the car seal before the adjusting.
4.18 Never use a second hand baby car seat.
4.19 Please choose correct forec bearing point as the manual described, or will be in danger.
4.20 Choose the right fixed point for ISOFIX, any doubt, contact with the retailer.

The baby car seat without certification or after modification are dangerous, meanwhile it is dangerous if without the manual from the retailer. If the three-ponint car seat belts are conflict with the force bearing point of the baby car seat, it can not be used. Any doubt, Please contact with the manufacturer.

NOTICE:

i-Size universal Isofix (40-105cm) : Isofix+support leg+harness

NOT TO USE REARWARD FACING ECRS IN SEATING POSITIONS WHERE THERE IS AN ACTIVE FRONTAL AIRBAG INSTALLED.

IMPORTANT - DO NOT USE FORWARD FACING BEFORE THE CHILD'S AGE EXCEEDS 15 MONTHS (Refer to instructions).

This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No. 129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users' manual.

If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.

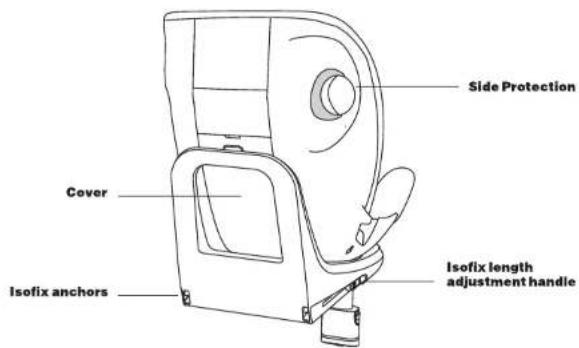

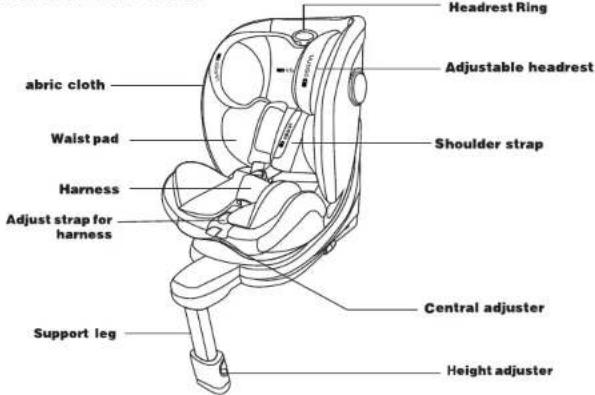

03/About car seat

04/Installation of rear facing 40-105cm

suit baby from 40cm to 105cm - rear facing(isofix+support leg+harness)

1. Extract the support leg

2. Release the support leg at most length

3. It is right if show green

4. It is wrong if show red

5. Pull the central adjuster to recline

6. Any gear position can be rotation for rear facing

7. Pull the central adjuster to rotation

8. Rotate the car seat for rear facing to most recline position.

Kindly read the car manual about the isofix anchor point. (Note: not all the car seat have the isofix anchor point, the child restraint system can not use if without the fixture)

9. Connect the isofix guider with the fixture(optional)

10. Release the isofix of two sides to longest

11. Holding the baby car seat and connect the isofix with the fixture

12. It means locked when hear click

13. Make sure the Indicator at same gear No

14. You have to restart the connection if the indicator is red

15. Push the baby car seat next to backrest of the car seat tightly

16. Pull the baby car seat to make sure the isofix locked

17. Make sure the isofix anchor is fixed

18. Make sure the car seat is installed correctly

19. Pull the strap adjuster

20. Pull the shoulder belts meanwhile

21. Press the red button to disengage the buckle

22. Leave the harness to two side and put baby into car seat

23 Adjust the headrest ring

24. Adjust the proper height for the baby head

25. Incorecct height is unsafe

26. Engage the buckle

27 Pull down the adjust strap to proper length

Make sure the space between the child and the shoulder belt is one hand of thickness

Children from 40 to 76cm need a waist pad and a small seat cushion.

05/Installation of forward facing 76-105cm

suit baby from 76cm to 105cm forward facing(isofix+support leg+harness)

1. Extract the support leg

2. Release the support leg at most length

3. It is right if show green

4. It is wrong if show red

5. Pull the central adjuster to proper position

6. Gear 1 to Gear 4 are optional for forward facing

Kindly read the car manual about the isofix anchor point (Note: not all the car seat have the isofix anchor point, the child restraint system can not use if without the fixture)

7. Connect the isofix guider with the fixture(optional)

8. Release the isofix of two sides to longest

9. Holding the baby car seat and connect the isofix with the fixture

10. It means locked when hear click

11 Make sure the indicator at same gear No

12. You have to restart the connection if the indicator is red

13. Push the baby car seat next to backrest of the car seat tightly

14. Pull the baby car seat to make sure the isofix locked

15. Make sure the isofix anchor is fixed

16. Make sure the car seat is installed correctly

17. Pull the strap adjuster

18. Pull the shoulder belts meanwhile

22. Adjust the proper height for the baby head

23.Incorrect height is unsafe

24.Engage the buckle

19. Press the red button to disengage the buckle

20 Leave the harness to two side and put baby into car seat

21. Adjust the headrest ring.

25. Pull down the adjust strap to proper length

Make sure the space between the child and the shoulder belt is one hand of thickness

06/ Maintenance

Hide the harness and take apart the pad

Take apart the cloth cover on head rest

Undo the button and take apart the cloth cover below the head rest

The opposite way is how to put on the cloth cover

Failure performance of safety buckle are as follows:

① When you press the red button, the button is popped slowly.
② The lock tongue of safety buckle can not be inserted into the buckle or inserted automatically pop up.
③ The security button will not be issued when the "click" sound.
④ The lock tongue of security buckle is difficult to insert.
⑤ A great force was needed to open the safety buckle.

Child safety seat five-point safety buckle is very important for the security of children. Improper use of damage to children, do not use oil or other lubricants on safety buckles. Safety buckle failure is usually due to foreign objects or stolen goods into the safety buckle inside.

HAND WASH ONLY(40'Warm)

Use Mild Degtergent

Do nont Iron, Dry Clean, Bleach or Tumble Dry

DO NOT USE BLEACH ABRASIVE

OR UPHOLSTERY CLEANING AGENTS

preserving for baby car seat

1. Check all the parts of car seat before using, make sure it is in good condition
   to reduce the accident rate.
2. Make sure the belts are not loose before using.
3. Do not put the baby car seat in too cold, heat or too wet situation.
   4 Keep the manual well.

The issue after the accident

Please replace a new baby car seat, Please contact with the retailer if any doubt.
