BRUGSANVISNING TV-36 Carson

CARSON®

TriView™

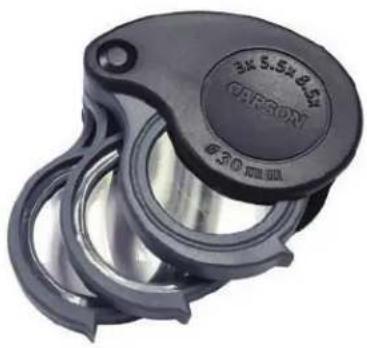

3x, 5.5x, 8.5x Folding Loupe with Built-in Case

Congratulations on selecting your new TriView™ Folding Loupe! In order to achieve optimum performance, please follow instructions for proper use and care.

Close-up of a black and silver mechanical component with no visible text or symbols

TV-36

PRODUCT SPECIFICATION:

Magnification:	3x/5.5x/8.5x
Lens Diameter:	30mm (1.2")
Weight:	0.08 lbs
Dimensions:	4.3 x 1.1 x 1.6"

FOR BEST RESULTS: Always use with Carson logo facing up.

USING THE MAGNIFIER:

To achieve 3x magnification, use the top lens.

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

To achieve 5.5x magnification, use the top and bottom lenses together.

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

To achieve 8.5x magnification, use all three lenses stacked.

Technical line drawing of a mechanical component with concentric rings and a handle (no text or symbols)

Note: The higher the magnification, the closer your eye must be to the lens and closer the magnifier must be to your viewing surface.

CARE:

Clean using microfiber lens cloth. Do not use any abrasives, chemical cleaners, or solvents.

Customer Service:

If you experience any difficulties, please contact us and we will be happy to help you.

[e-mail]

[e-mail] [e-mail]

For warranty information, visit www.carson.com/warrant

www.carson.com

Carson Optical 2070 5th Avenue, Ronkonkoma, NY 11779 | Tel: [phone]
