BRUGSANVISNING 48-22-9404 MILWAUKEE

MILWAUKEE 48-22-9404 - 1

EXAMPLE:

Component Parts (Small #) Are Included When Ordering The Assembly (Large #).

SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
REVISED BULLETIN
DATE Feb. 2018
1/4" and 3/8" SAE and METRIC SOCKET SETS

CAT.NO.	48-22-9004	1/4" SAE and Metric 50 pc. Combo Socket Set	Page 1
	48-22-9008	3/8" SAE and Metric 56 pc. Combo Socket Set	Page 2
	48-22-9404	1/4" SAE 26 pc. Socket Set	Page 3
	48-22-9408	3/8" SAE 28 pc. Socket Set	Page 4
	48-22-9504	1/4" Metric 28 pc. Socket Set	Page 5
	48-22-9508	3/8" Metric 32 pc. Socket Set	Page 6

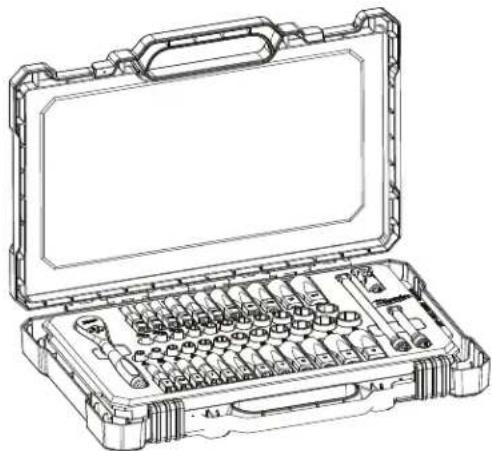

Line drawing of a mechanical tool kit with open casing and internal components (no text or symbols)

Catalog No. 48-22-9004
1/4" SAE and Metric
50 piece Combo Socket Set

Technical schematic diagram of a mechanical or electrical component with labeled parts and numbered components

PART NO. DRIVE SIZE SOCKET/PART DESCRIPTION

45-34-9000	1/4" Drive Socket	SAE Standard 5/32"
45-34-9001	1/4" Drive Socket	SAE Standard 3/16"
45-34-9002	1/4" Drive Socket	SAE Standard 7/32"
45-34-9003	1/4" Drive Socket	SAE Standard 1/4"
45-34-9004	1/4" Drive Socket	SAE Standard 9/32"
45-34-9005	1/4" Drive Socket	SAE Standard 5/16"
45-34-9006	1/4" Drive Socket	SAE Standard 11/32"
45-34-9007	1/4" Drive Socket	SAE Standard 3/8"
45-34-9008	1/4" Drive Socket	SAE Standard 7/16"
45-34-9009	1/4" Drive Socket	SAE Standard 1/2"
45-34-9010	1/4" Drive Socket	SAE Standard 9/16"
45-34-9011	1/4" Drive Socket	SAE Deep 5/32"
45-34-9012	1/4" Drive Socket	SAE Deep 3/16"
45-34-9013	1/4" Drive Socket	SAE Deep 7/32"
45-34-9014	1/4" Drive Socket	SAE Deep 1/4"
45-34-9015	1/4" Drive Socket	SAE Deep 9/32"
45-34-9016	1/4" Drive Socket	SAE Deep 5/16"
45-34-9017	1/4" Drive Socket	SAE Deep 11/32"
45-34-9018	1/4" Drive Socket	SAE Deep 3/8"
45-34-9019	1/4" Drive Socket	SAE Deep 7/16"
45-34-9020	1/4" Drive Socket	SAE Deep 1/2"
45-34-9021	1/4" Drive Socket	SAE Deep 9/16"

43-24-9100	1/4" Drive Socket	3" Extension Bar
43-24-9101	1/4" Drive Socket	6" Extension Bar
42-04-9102	1/4" Drive Socket	Universal Joint
48-22-9014	1/4" Drive Socket	Socket Ratchet Wrench

42-55-9100

44-20-0035

31-01-9100

14-46-1125

SAE/Metric Carrying Case-Middle

Carrying Case Latch

1/4" 50 Pc. SAE/Metric Tool Tray

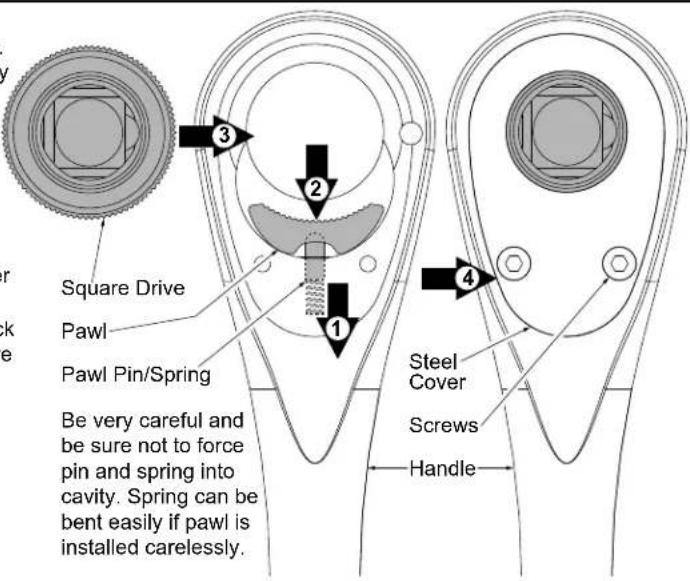

1/4" Socket Drive Replacement Kit

(See Page 7)

PART NO. DRIVE SIZE SOCKET/PART DESCRIPTION

45-34-9030	1/4" Drive Socket	Metric Standard 5MM
45-34-9031	1/4" Drive Socket	Metric Standard 5.5MM
45-34-9032	1/4" Drive Socket	Metric Standard 6MM
45-34-9033	1/4" Drive Socket	Metric Standard 7MM
45-34-9034	1/4" Drive Socket	Metric Standard 8MM
45-34-9035	1/4" Drive Socket	Metric Standard 9MM
45-34-9036	1/4" Drive Socket	Metric Standard 10MM
45-34-9037	1/4" Drive Socket	Metric Standard 11MM
45-34-9038	1/4" Drive Socket	Metric Standard 12MM
45-34-9039	1/4" Drive Socket	Metric Standard 13MM
45-34-9040	1/4" Drive Socket	Metric Standard 14MM
45-34-9041	1/4" Drive Socket	Metric Standard 15MM
45-34-9042	1/4" Drive Socket	Metric Deep 5MM
45-34-9043	1/4" Drive Socket	Metric Deep 5.5MM
45-34-9044	1/4" Drive Socket	Metric Deep 6MM
45-34-9045	1/4" Drive Socket	Metric Deep 7MM
45-34-9046	1/4" Drive Socket	Metric Deep 8MM
45-34-9047	1/4" Drive Socket	Metric Deep 9MM
45-34-9048	1/4" Drive Socket	Metric Deep 10MM
45-34-9049	1/4" Drive Socket	Metric Deep 11MM
45-34-9050	1/4" Drive Socket	Metric Deep 12MM
45-34-9051	1/4" Drive Socket	Metric Deep 13MM
45-34-9052	1/4" Drive Socket	Metric Deep 14MM
45-34-9053	1/4" Drive Socket	Metric Deep 15MM

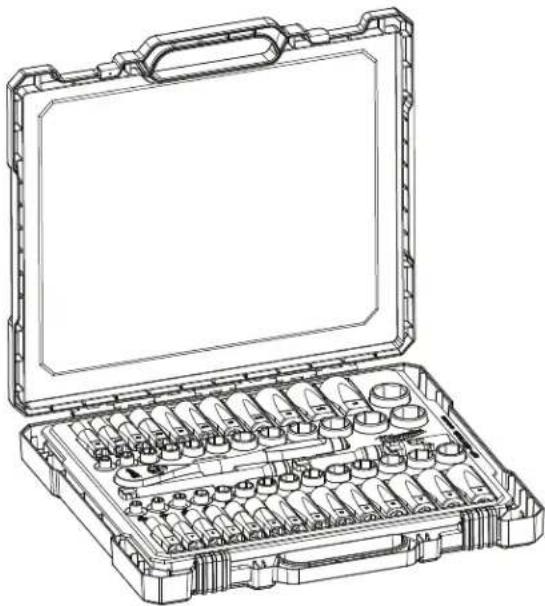

Line drawing of an open hard-shell tool kit with multiple bolt holes (no text or labels)

Catalog No. 48-22-9008
3/8" SAE and Metric
56 piece Combo Socket Set

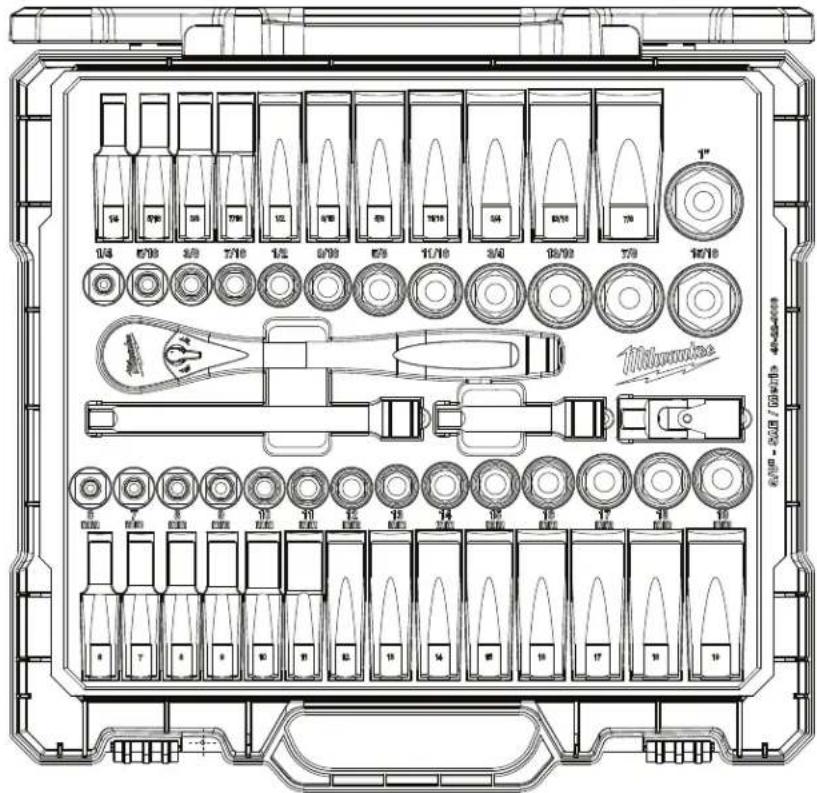

Technical diagram of a mechanical assembly with labeled parts and tool positions

PART NO. DRIVE SIZE SOCKET/PART DESCRIPTION

45-34-9060	3/8" Drive Socket	SAE Standard 1/4"
45-34-9061	3/8" Drive Socket	SAE Standard 5/16"
45-34-9062	3/8" Drive Socket	SAE Standard 3/8"
45-34-9063	3/8" Drive Socket	SAE Standard 7/16"
45-34-9064	3/8" Drive Socket	SAE Standard 1/2"
45-34-9065	3/8" Drive Socket	SAE Standard 9/16"
45-34-9066	3/8" Drive Socket	SAE Standard 5/8"
45-34-9067	3/8" Drive Socket	SAE Standard 11/16"
45-34-9068	3/8" Drive Socket	SAE Standard 3/4"
45-34-9069	3/8" Drive Socket	SAE Standard 13/16"
45-34-9070	3/8" Drive Socket	SAE Standard 7/8"
45-34-9071	3/8" Drive Socket	SAE Standard 15/16"
45-34-9072	3/8" Drive Socket	SAE Standard 1"
45-34-9073	3/8" Drive Socket	SAE Deep 1/4"
45-34-3125	3/8" Drive Socket	SAE Deep 5/16"
45-34-3750	3/8" Drive Socket	SAE Deep 3/8"
45-34-4375	3/8" Drive Socket	SAE Deep 7/16"
45-35-5000	3/8" Drive Socket	SAE Deep 1/2"
45-34-5625	3/8" Drive Socket	SAE Deep 9/16"
45-34-6250	3/8" Drive Socket	SAE Deep 5/8"
45-34-6875	3/8" Drive Socket	SAE Deep 11/16"
45-34-7500	3/8" Drive Socket	SAE Deep 3/4"
45-34-9074	3/8" Drive Socket	SAE Deep 13/16"
45-34-9075	3/8" Drive Socket	SAE Deep 7/8"

43-24-9102	3/8" Drive Socket	3" Extension Bar
43-24-0006	3/8" Drive Socket	6" Extension Bar
42-04-9103	3/8" Drive Socket	Universal Joint
48-22-9038	3/8" Drive Socket	Socket Ratchet Wrench

42-55-9101	SAE/Metric Carrying Case-Large
44-20-0035	Carrying Case Latch
31-01-9101	3/8" 56 Pc. SAE/Metric Tool Tray
14-46-1137	3/8" Socket Drive Replacement Kit(See Page 7)

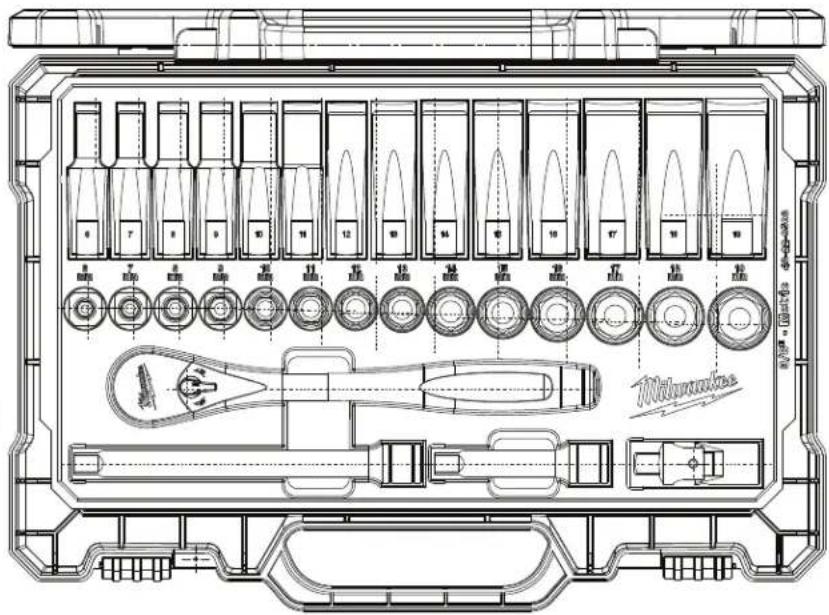

PART NO. DRIVE SIZE SOCKET/PART DESCRIPTION

45-34-9076	3/8"	Drive Socket	Metric Standard 6MM
45-34-9077	3/8"	Drive Socket	Metric Standard 7MM
45-34-9078	3/8"	Drive Socket	Metric Standard 8MM
45-34-9079	3/8"	Drive Socket	Metric Standard 9MM
45-34-9080	3/8"	Drive Socket	Metric Standard 10MM
45-34-9081	3/8"	Drive Socket	Metric Standard 11MM
45-34-9082	3/8"	Drive Socket	Metric Standard 12MM
45-34-9083	3/8"	Drive Socket	Metric Standard 13MM
45-34-9084	3/8"	Drive Socket	Metric Standard 14MM
45-34-9085	3/8"	Drive Socket	Metric Standard 15MM
45-34-9086	3/8"	Drive Socket	Metric Standard 16MM
45-34-9087	3/8"	Drive Socket	Metric Standard 17MM
45-34-9088	3/8"	Drive Socket	Metric Standard 18MM
45-34-9089	3/8"	Drive Socket	Metric Standard 19MM
45-34-9090	3/8"	Drive Socket	Metric Deep 6MM
45-34-9091	3/8"	Drive Socket	Metric Deep 7MM
45-34-9092	3/8"	Drive Socket	Metric Deep 8MM
45-34-9093	3/8"	Drive Socket	Metric Deep 9MM
45-34-0010	3/8"	Drive Socket	Metric Deep 10MM
45-34-9094	3/8"	Drive Socket	Metric Deep 11MM
45-34-0012	3/8"	Drive Socket	Metric Deep 12MM
45-34-0013	3/8"	Drive Socket	Metric Deep 13MM
45-34-0014	3/8"	Drive Socket	Metric Deep 14MM
45-34-0015	3/8"	Drive Socket	Metric Deep 15MM
45-34-9095	3/8"	Drive Socket	Metric Deep 16MM
45-34-0117	3/8"	Drive Socket	Metric Deep 17MM
45-34-0118	3/8"	Drive Socket	Metric Deep 18MM
45-34-0119	3/8"	Drive Socket	Metric Deep 19MM

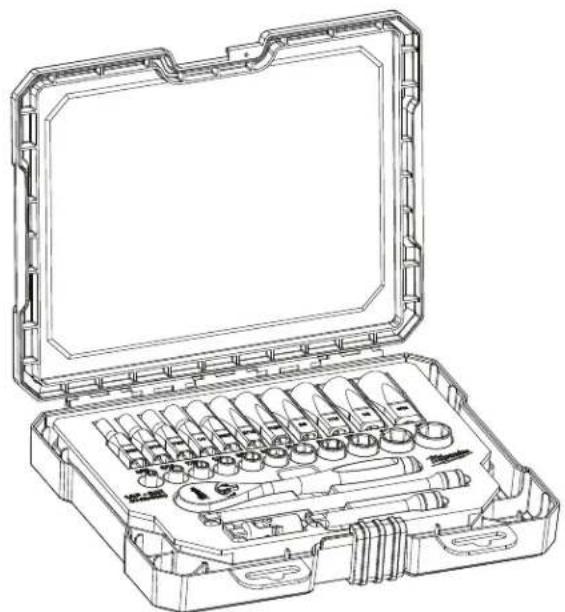

Technical line drawing of a mechanical tool kit with open casing and internal components (no text or symbols)

Catalog No. 48-22-9404
1/4" SÄE 26 piece Socket Set

PART NO. DRIVE SIZE SOCKET/PART DESCRIPTION

45-34-9000	1/4" Drive Socket	SAE Standard 5/32"
45-34-9001	1/4" Drive Socket	SAE Standard 3/16"
45-34-9002	1/4" Drive Socket	SAE Standard 7/32"
45-34-9003	1/4" Drive Socket	SAE Standard 1/4"
45-34-9004	1/4" Drive Socket	SAE Standard 9/32"
45-34-9005	1/4" Drive Socket	SAE Standard 5/16"
45-34-9006	1/4" Drive Socket	SAE Standard 11/32"
45-34-9007	1/4" Drive Socket	SAE Standard 3/8"
45-34-9008	1/4" Drive Socket	SAE Standard 7/16"
45-34-9009	1/4" Drive Socket	SAE Standard 1/2"
45-34-9010	1/4" Drive Socket	SAE Standard 9/16"
45-34-9011	1/4" Drive Socket	SAE Deep 5/32"
45-34-9012	1/4" Drive Socket	SAE Deep 3/16"
45-34-9013	1/4" Drive Socket	SAE Deep 7/32"
45-34-9014	1/4" Drive Socket	SAE Deep 1/4"
45-34-9015	1/4" Drive Socket	SAE Deep 9/32"
45-34-9016	1/4" Drive Socket	SAE Deep 5/16"
45-34-9017	1/4" Drive Socket	SAE Deep 11/32"
45-34-9018	1/4" Drive Socket	SAE Deep 3/8"
45-34-9019	1/4" Drive Socket	SAE Deep 7/16"
45-34-9020	1/4" Drive Socket	SAE Deep 1/2"
45-34-9021	1/4" Drive Socket	SAE Deep 9/16"

43-24-9100	1/4" Drive Socket	3" Extension Bar
43-24-9101	1/4" Drive Socket	6" Extension Bar
42-04-9102	1/4" Drive Socket	Universal Joint
48-22-9014	1/4" Drive Socket	Socket Ratchet Wrench

42-55-9102	SAE/Metric Carrying Case-Small
44-20-0035	Carrying Case Latch
31-01-9102	1/4" 26 Pc. SAE Tool Tray
14-46-1125	1/4" Socket Drive Replacement Kit
(See Page 7)

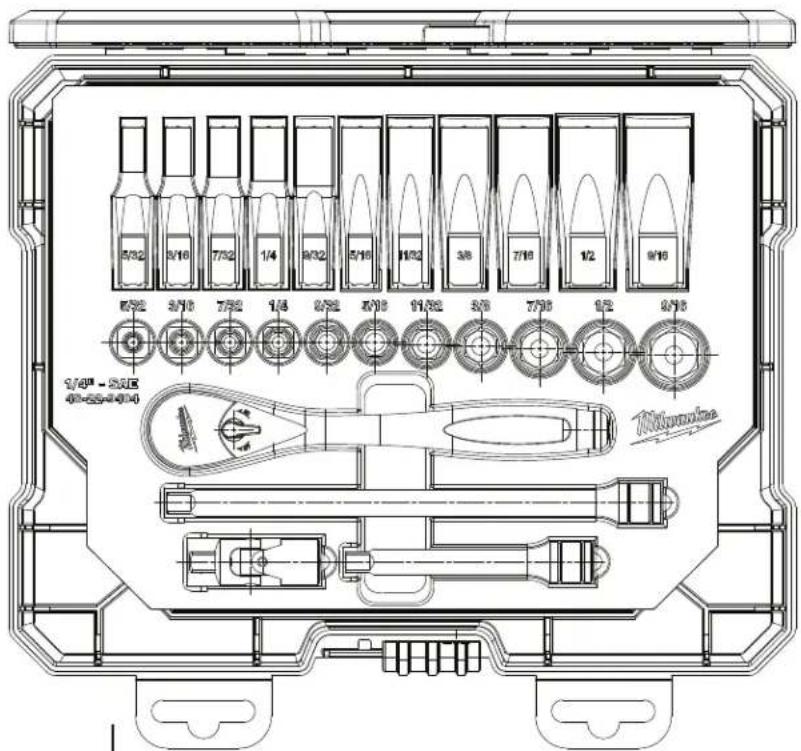

8/32 9/16 7/32 1/4 9/32 5/16 11/32 3/8 7/16 1/2 9/16 8/32 9/16 7/32 1/4 9/32 5/16 11/32 3/8 7/16 1/2 9/16 3/8" - 2.5E 40-25-40-40 Mikumulna

Technical line drawing of a mechanical tool kit with open casing and multiple cylindrical components (no text or symbols)

Catalog No. 48-22-9408
3/8" SAE 28 piece Socket Set

1/4 2/10 3/8 7/10 1/3 3/10 6/8 10/10 5/4 12/10 7/8 10/10 1" Mikwokka

PART NO. DRIVE SIZE SOCKET/PART DESCRIPTION

45-34-9060 3/8" Drive Socket SAE Standard 1/4"

45-34-9061 3/8" Drive Socket SAE Standard 5/16"

45-34-9062 3/8" Drive Socket SAF Standard 3/8"

45-34-9063 3/8" Drive Socket SAE Standard 7/16"

45-34-9064 3/8" Drive Socket SAE Standard 1/2"

45-34-9065 3/8" Drive Socket SAE Standard 9/16"

45-34-9066 3/8" Drive Socket SAE Standard 5/8"

45-34-9067 3/8" Drive Socket SAE Standard 11/16"

45-34-9068 3/8" Drive Socket SAE Standard 3/4"

45-34-9069 3/8" Drive Socket SAE Standard 13/16"

45-34-9070 3/8" Drive Socket SAE Standard 7/8"

45-34-9071 3/8" Drive Socket SAE Standard 15/16"

45-34-9072 3/8" Drive Socket SAE Standard 1"

45-34-9073

3/8" Drive Socket

SAE Deep 1/4"

45-34-3125 3/8" Drive Socket SAE Deep 5/16"

45-34-3750 3/8" Drive Socket SAE Deep 3/8"

45-34-4375 3/8" Drive Socket SAE Deep 7/16"

45-35-5000 3/8" Drive Socket SAE Deep 1/2"

45-34-5625 3/8" Drive Socket SAE Deep 9/16"

45-34-6250 3/8" Drive Socket SAE Deep 5/8"

45-34-6875 3/8" Drive Socket SAE Deep 11/16"

45-34-7500 3/8" Drive Socket SAE Deep 3/4"

45-34-9074 3/8" Drive Socket SAE Deep 13/16"

45-34-9075 3/8" Drive Socket SAE Deep 7/8"

43-24-9102

3/8" Drive Socket

3" Extension Bar

43-24-0006 3/8" Drive Socket 6" Extension Bar

42-04-9103 3/8" Drive Socket Universal Joint

48-22-9038 3/8" Drive Socket Socket Ratchet Wrench

42-55-9100

SAE/Metric Carrying Case-Middle

44-20-0035

Carrying Case Latch

31-01-9103

3/8" 28 Pc. SAE Tool Tray

14-46-1137

3/8" Socket Drive Replacement Kit

(See Page 7)

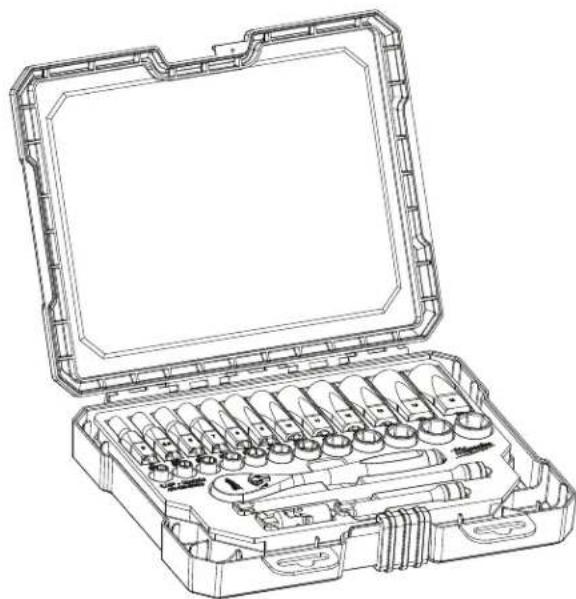

Line drawing of an open tool kit with multiple cylindrical components and a blank opening (no text or symbols)

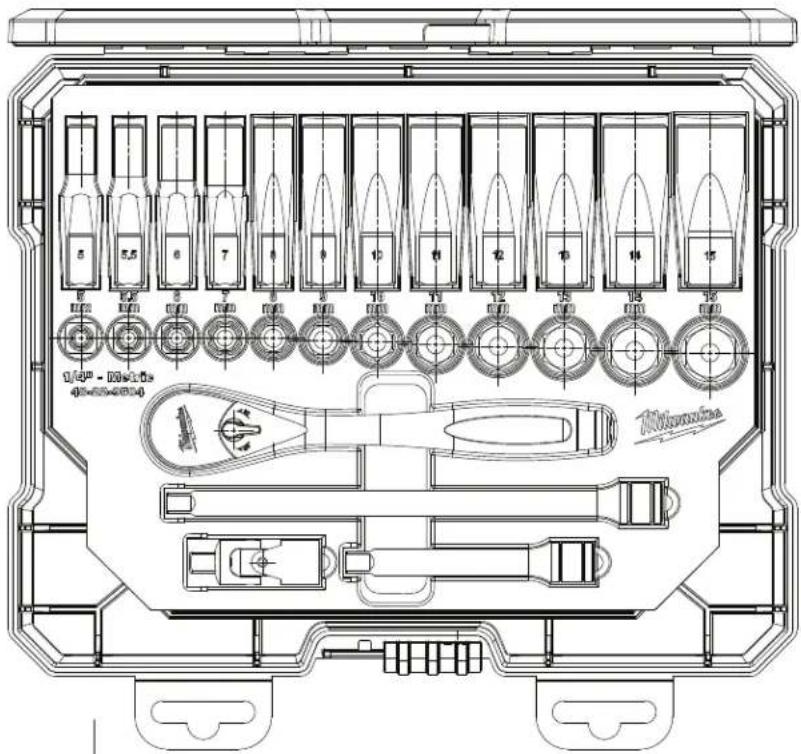

Catalog No. 48-22-9504 1/4" Metric 28 piece Socket Set

1/4" - 10mA 40mA-20mA Motor drive

PART NO. DRIVE SIZE SOCKET/PART DESCRIPTION

45-34-9030	1/4" Drive Socket	Metric Standard 5MM
45-34-9031	1/4" Drive Socket	Metric Standard 5.5MM
45-34-9032	1/4" Drive Socket	Metric Standard 6MM
45-34-9033	1/4" Drive Socket	Metric Standard 7MM
45-34-9034	1/4" Drive Socket	Metric Standard 8MM
45-34-9035	1/4" Drive Socket	Metric Standard 9MM
45-34-9036	1/4" Drive Socket	Metric Standard 10MM
45-34-9037	1/4" Drive Socket	Metric Standard 11MM
45-34-9038	1/4" Drive Socket	Metric Standard 12MM
45-34-9039	1/4" Drive Socket	Metric Standard 13MM
45-34-9040	1/4" Drive Socket	Metric Standard 14MM
45-34-9041	1/4" Drive Socket	Metric Standard 15MM
45-34-9042	1/4" Drive Socket	Metric Deep 5MM
45-34-9043	1/4" Drive Socket	Metric Deep 5.5MM
45-34-9044	1/4" Drive Socket	Metric Deep 6MM
45-34-9045	1/4" Drive Socket	Metric Deep 7MM
45-34-9046	1/4" Drive Socket	Metric Deep 8MM
45-34-9047	1/4" Drive Socket	Metric Deep 9MM
45-34-9048	1/4" Drive Socket	Metric Deep 10MM
45-34-9049	1/4" Drive Socket	Metric Deep 11MM
45-34-9050	1/4" Drive Socket	Metric Deep 12MM
45-34-9051	1/4" Drive Socket	Metric Deep 13MM
45-34-9052	1/4" Drive Socket	Metric Deep 14MM
45-34-9053	1/4" Drive Socket	Metric Deep 15MM

43-24-9100	1/4" Drive Socket	3" Extension Bar
43-24-9101	1/4" Drive Socket	6" Extension Bar
42-04-9102	1/4" Drive Socket	Universal Joint
48-22-9014	1/4" Drive Socket	Socket Ratchet Wrench

42-55-9102	SAE/Metric Carrying Case-Small
44-20-0035	Carrying Case Latch
31-01-9104	1/4" 28 Pc. Metric Tool Tray
14-46-1125	1/4" Socket Drive Replacement Kit(See Page 7)

Technical line drawing of an open hard-shell tool kit with multiple screw holes and a handle (no text or labels)

Catalog No. 48-22-9508 3/8" Metric 32 piece Socket Set

Milanoke

PART NO. DRIVE SIZE SOCKET/PART DESCRIPTION

45-34-9076	3/8"	Drive Socket	Metric Standard 6MM
45-34-9077	3/8"	Drive Socket	Metric Standard 7MM
45-34-9078	3/8"	Drive Socket	Metric Standard 8MM
45-34-9079	3/8"	Drive Socket	Metric Standard 9MM
45-34-9080	3/8"	Drive Socket	Metric Standard 10MM
45-34-9081	3/8"	Drive Socket	Metric Standard 11MM
45-34-9082	3/8"	Drive Socket	Metric Standard 12MM
45-34-9083	3/8"	Drive Socket	Metric Standard 13MM
45-34-9084	3/8"	Drive Socket	Metric Standard 14MM
45-34-9085	3/8"	Drive Socket	Metric Standard 15MM
45-34-9086	3/8"	Drive Socket	Metric Standard 16MM
45-34-9087	3/8"	Drive Socket	Metric Standard 17MM
45-34-9088	3/8"	Drive Socket	Metric Standard 18MM
45-34-9089	3/8"	Drive Socket	Metric Standard 19MM
45-34-9090	3/8"	Drive Socket	Metric Deep 6MM
45-34-9091	3/8"	Drive Socket	Metric Deep 7MM
45-34-9092	3/8"	Drive Socket	Metric Deep 8MM
45-34-9093	3/8"	Drive Socket	Metric Deep 9MM
45-34-0010	3/8"	Drive Socket	Metric Deep 10MM
45-34-9094	3/8"	Drive Socket	Metric Deep 11MM
45-34-0012	3/8"	Drive Socket	Metric Deep 12MM
45-34-0013	3/8"	Drive Socket	Metric Deep 13MM
45-34-0014	3/8"	Drive Socket	Metric Deep 14MM
45-34-0015	3/8"	Drive Socket	Metric Deep 15MM
45-34-9095	3/8"	Drive Socket	Metric Deep 16MM
45-34-0117	3/8"	Drive Socket	Metric Deep 17MM
45-34-0118	3/8"	Drive Socket	Metric Deep 18MM
45-34-0119	3/8"	Drive Socket	Metric Deep 19MM

43-24-9102	3/8" Drive Socket	3" Extension Bar
43-24-0006	3/8" Drive Socket	6" Extension Bar
42-04-9103	3/8" Drive Socket	Universal Joint
48-22-9038	3/8" Drive Socket	Socket Ratchet Wrench

42-55-9100	SAE/Metric Carrying Case-Middle
44-20-0035	Carrying Case Latch
31-01-9105	3/8" 32 Pc. Metric Tool Tray
14-46-1137	3/8" Socket Drive Replacement Kit(See Page 7)

9 2 11 13 4 3 15 s

Place pawl spring into pawl pin. Insert pawl spring/pin into cavity of handle.
Carefully depress spring/pin (being sure not to bend spring) and install pawl as shown.
Place pressure on pawl to maintain spring compression and install the square drive.
Install square drive o-ring, cover o-ring and steel cover. Secure with two machine screws. Check for proper functionality of square drive.

Square Drive Pawl Pawl Pin/Spring Be very careful and be sure not to force pin and spring into cavity. Spring can be bent easily if pawl is installed carelessly. Steel Cover Screws Handle

1/4" Socket Drive Replacement Kit No. 14-46-1125 FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 1/4" Pawl (1)
2 1/4" Steel Cover (1)
3 1/4" Handle (1)
4 O-Ring for 1/4" Cover (1)
7 1/4" Pawl Pin (1)
9 Screw (2)
11 O-Ring for 1/4" Square Drive (1)
12 ---- Spring for 1/4" Pawl (1)
13 1/4" Square Drive (1)
15 14-46-1125 1/4" Socket Drive Replacement Kit (1) 58-22-1137 Instruction Sheet (1)

No. 48-22-9038 3/8" Socket Ratchet Wrench Shown

3/8" Socket Drive Replacement Kit No. 14-46-1137 FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 3/8" Pawl (1)
2 3/8" Steel Cover (1)
3 3/8" Handle (1)
4 O-Ring for 3/8" Cover (1)
7 3/8" Pawl Pin (1)
9 Screw (2)
11 O-Ring for 3/8" Square Drive (1)
12 ---- Spring for 3/8" Pawl (1)
13 3/8" Square Drive (1)
15 14-46-1137 3/8" Ratchet Service Kit (1) 58-22-1137 Instruction Sheet (1)

Indholdsfortegnelse Klik på en titel for at få adgang til den

EXAMPLE
1/4" SOCKET DRIVE REPLACEMENT KIT NO. 14-46-1125 FIG. PART NO. DESCRIPTION OF PART NO. REQ
3/8" SOCKET DRIVE REPLACEMENT KIT NO. 14-46-1137 FIG. PART NO. DESCRIPTION OF PART NO. REQ

Vejledningsassistent

Drevet af Anthropic

Venter på din besked

Produktinformation

Mærke : MILWAUKEE

Model : 48-22-9404

Kategori : Værktøj
