BRUGSANVISNING 48-44-0070 MILWAUKEE

Milwaukee® EXAMPLE: Component Part

SERVICE PARTS LIST

BULLETIN NO.

54-40-8220

SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTSREVISED BULLETIN DATE
18 GAUGE SHEAR HEAD ASSEMBLYOct. 2019
CATALOG NO. 48-08-0500STARTINGSERIAL NO.WIRING INSTRUCTION

EXAMPLE:

MILWAUKEE 48-44-0070 - EXAMPLE: - 1

Component Parts (Small #)

Are Included When Ordering

The Assembly (Large #).

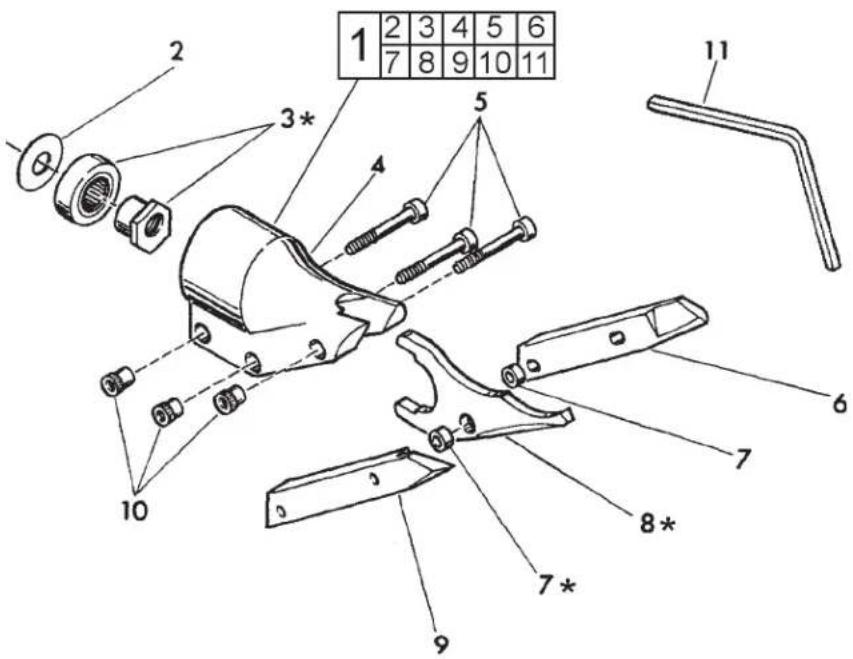

Technical diagram of a mechanical assembly with numbered parts and a grid of numbered items, likely for assembly or manufacturing purposes.

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

1 48-08-0500 Shear Head Assy. (Includes 2 thru 11) (1)
2 06-75-2115 10-24 x 1-1/4 Skt. Hd. Cap Screw (3)
3 43-76-0400 Shear Housing (1)
4 45-88-7310 Washer (1)
5 43-16-0100 Eccentric Assembly (1)
6 43-84-0460 Knurled Insert (3)
7 48-44-0170 Blade - Right Side (1)
8 42-40-0520 Bushing (2)
9 48-44-0150 Blade - Center (1)
10 48-44-0160 Blade - Left Side (1)
11 49-96-0070 5/32 Hex Allen Wrench (1)

FIG. LUBRICATION:

* 3,7,8 During assembly, use a dab of Type "E" Grease, No. 49-08-4122 to lubricate flats, pivot hole and sides of center blade (8), eccentric assembly (3) and bushing (7).

When servicing Shear Head Assembly No. 48-08-0500 pay close attention to the placement of the Bushings. One is to be placed in the hole of the Center Blade and is to be held in place with the front most screw on the Shear Housing. The other bushing is to be located below the small concave notch of the Center Blade and is to be secured with the middle screw on the Shear Housing. Prior to assembly, it is recommended to use Type 'E' Grease, No. 49-08-4122 on the following areas: Place a dab of grease in the pivot (bushing) hole and on the bushing notch of the Center Blade. Place a dab of grease on the rear flats of the Center Blade.

Coat both bushings completely with grease.

Place a liberal amount of grease on the entire Eccentric Assembly.

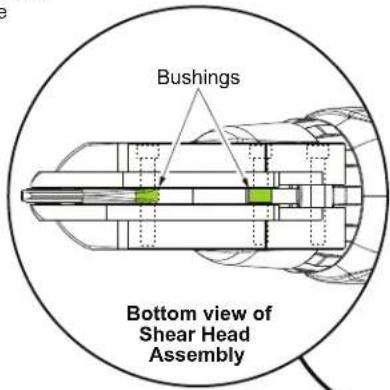

Bushings Bottom view of Shear Head Assembly

Technical illustration of a drill bit assembly with green tool pins and a 100mm head screw (no text or symbols)

REMOVING SHEAR HEAD ASSEMBLY FROM TOOL

Illustration shown without tool attached for clarity of spreader wrench placement on shear head Prior to using the spreader wrench, this screw must be loosened two turns. Remove this screw. Front View Insert the end of the spreader wrench into the bottom rear opening of shear head assembly as shown.…

SERVICE TOOLS:

Spreader Wrench No. 61-30-0300

for 14 Gauge Shear Head 48-08-0505

used on Shear No. 2636-20

for 18 Gauge Shear Head 48-08-0507

used on Shear 2637-20

Spreader Wrench No. 61-30-0310

for 18 Gauge Shear Head 48-08-0500

used on Shears 2635-20 and 6852-20
