BRUGSANVISNING 7X50 AGM
7X50
DAYTIME BINOCULARS
The AGM 7x50 daytime binoculars offer 7x magnification, waterproof construction, and a built-in range finding reticle. It is purposed for military, law enforcement or outdoor adventurer's needs.
The AGM binoculars provide powerful magnification and crystal clear optics that deliver a full range of color and clarity. The multi-coated optics of the binoculars are designed to enhance the resolution and contrast of your image in extremely bright conditions. The built-in universal range finder allows for accurate target measurements and range estimates.
■ Powerful magnification
■ Designed for professional use
■ Built-in universal rangefinder
■ Multi-coated optics
■ Full rubber body armoring
■ Individual eye focus
■ Limited 3-Year Warranty
Package Includes:
Binocular, Lens Cap, Eye-Cap, Neck Strap, Operation and Maintenance Manual, Soft Carrying Case


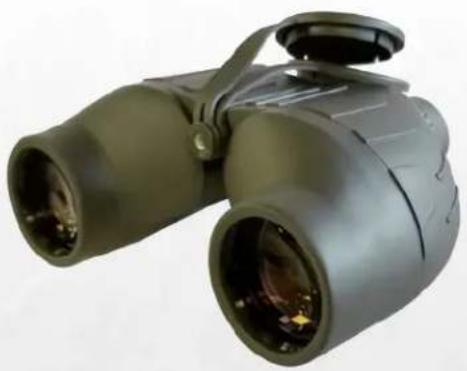

Exterior view of a modern binoculars with green lenses (no text or symbols visible)| Magnification 7x | |
| Prisms system Porro / Bak-4 | |
| Number of Elements & Groups 7 pieces in 5 groups | |
| Objective lens diameter 50mm | |
| FOV (angular) 7.5° | |
| FOV at 1000 m / 1000 yd 131 m / 393 ft | |
| Minimum Focus Distance 9.8 m | |
| Exit pupil 7.1 mm | |
| Eye relief 22.8 mm | |
| Relative Brightness 50,4 | |
| Twilight Factor | 18,7 |
| Resolution | ≤ 4.5" |
| Relative brightness | 50.4 |
| Focus System Individual | |
| Diopter Adjustment | -5 to +5 dpt |
| Interpupillary Distance | 56 to 72 mm |
| Eye Cups Type | Fold down Eyecups |
| Body Housing Material | Strengthened PVC |
| Waterproof | 0.5 m for 30 min |
| Nitrogen Filled Yes | |
| Weight | 1.4 kg (3.0 lbs) |
| Size | 200 × 150 × 85 mm (7.9 × 5.9 × 3.3 in) |
| Tripod mount | Yes |

