BRUGSANVISNING SUPC2MBP80KX Tripp Lite

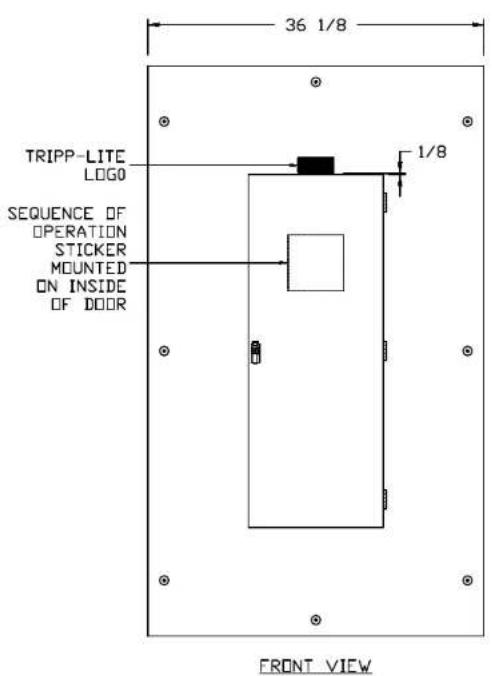

PARALLEL CABINET WITH SYSTEM MAINTENANCE BYPASS

SHEET 1 OF 3

TRIPP·LITE

TRIPP·LITE POWER PROTECTION

1111 WEST 35TH STREET • CHICAGO ILLINOIS 60609 • 773-869-1600 • FAX [phone]

1	ADDED CBSB BREAKER DIMENSION & GROUND LUGS	09-09-2010	JOB: TRIPP LITE POWER PROTECTION, CHICAGO, ILLINOIS
2	ADDED TRIPP-LITE LOGO & SHT 3 OF 3	09-14-2010	CONTR:
3	REVISED LOAD AND GROUND LUGS	06-30-2011	DISTR:
4	REVISED NEUTRAL & GROUND BARS, RELOCATED TRIPP-LITE LOGO (RSH)		DATE: 08-31-2010	DRAWN BY: RH
			C.D.#:	S.D.#:
REVISIONS		DATE	CAD NO.: TLP2MBP400A01	DRAWING NO.: 113215

PARALLEL CABINET WITH SYSTEM MAINTENANCE BYPASS (PCSMB)

MUS

SYSTEM OUTPUT

TYPE*

CABINET DESIGNATOR

STOCK NUMBER

ASSEMBLY NUMBER

DESIGN VOLTAGE

CBOL & CBSB

CBP1 CBP2 CBP3 CBP4

O/P BUS RATING (AMPS)

UPS QTY

SIZE

FRAME (C-H)

SIZE

FRAME (C-H)

SIZE

FRAME (C-H)

SIZE

FRAME (C-H)

SIZE

FRAME (C-H)

2x40K

60KVA

CS

PC2MBP40K AC823

550186 208

300AT/400AF

KD3300

150AT/225AF

FD3150

150AT/225AF

FD3150

----

400

2

2x80K

60KVA

RS

PR2MBP80K

208

300AT/400AF

KD3300

300AT/400AF

KD3300

300AT/400AF

KD3300

----

400

2

2x60K

20KVA

CS

PC2MBP80KX AC819

550185

380/400/415

250AT/400AF

KD3250

125AT/225AF

FD3125

125AT/225AF

FD3125

----

400

2

2x80K

50KVA

CS

PC2MBP80KX AC818

550184

380/400/415

300AT/400AF

KD3300

150AT/225AF

FD3150

150AT/225AF

FD3150

----

400

2

3x60K

50KVA

CS

PC3MBP80KX 380

400/415 350

AT/400AF

KD3350

125AT/225AF

FD3125

125AT/225AF

FD3125

125AT/225AF

FD3125

----

400 3

3x60K

20KVA

RS

PR3MBP80KX 380

400/415 250

AT/400AF

KD3250

125AT/225AF

FD3125

125AT/225AF

FD3125

125AT/225AF

FD3125

----

400 3

3x60K

50KVA

RS

PR3MBP80KX 380

400/415 300

AT/400AF

KD3300

150AT/225AF

FD3150

150AT/225AF

FD3150

150AT/225AF

FD3150

----

400 3

4x60K

90KVA

RS

PR4MBP80KX 380

400/415 350

AT/400AF

KD3350

125AT/225AF

FD3125

125AT/225AF

FD3125

125AT/225AF

FD3125

125AT/225AF

FD3125

400

NOTES

R N:1 REDUNDANT MUS
C CAPACITY MUS

CABINET DESIGNATOR	STOCK NUMBER	ASSEMBLY NUMBER	KAIC @ RATED VOLTS ENCL DIMS (IN) & WEIGHT (LBS) SHIPPING DIMS (IN) & WEIGHT (LBS)
			@ RATED VOLTS	CBOL & CBSB	CBPn	HEIGHT	WIDTH	DEPTH	TOTAL WEIGHT	HEIGHT	WIDTH	DEPTH	TOTAL WEIGHT
SUPC2MBP40K AC8223		550186	240	65	65	61.25	36.13	11.80	370	62.00	36.88	12.50	375
SUPR2MBP60K			240	65	65	61.25	36.13	11.80	370	62.00	36.88	12.50	375
SUPC2MBP60KX AC8219		550185	480	35	35	61.25	36.13	11.80	370	62.00	36.88	12.50	375
SUPC2MBP60KX AC8218		550184	480	35	35	61.25	36.13	11.80	370	62.00	36.88	12.50	375
SUPC3MBP60KX			480	35	35	61.25	36.13	11.80	370	62.00	36.88	12.50	375
SUPR3MBP60KX			480	35	35	61.25	36.13	11.80	370	62.00	36.88	12.50	375
SUPR3MBP60KX			480	35	35	61.25	36.13		370	62.00	36.68	12.50	375
SUPR4MBP60KX			480	35	35	61.25	36.13	11.80	370	62.00	36.88	12.50	375

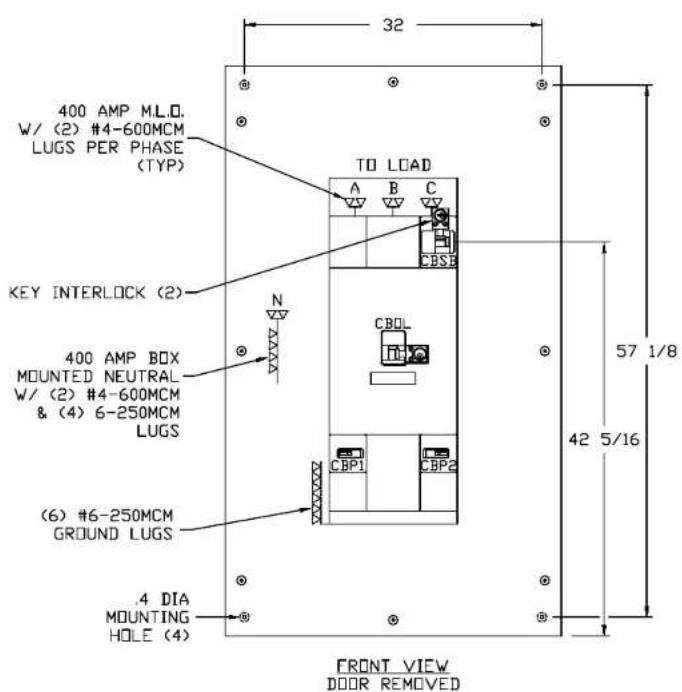

PANEL TYPE: CDP (UL 67 LISTED INTERIOR)
SERVICE: SEE TABLE ABOVE
ALTERNATE VOLTAGES: 208V, 380/400/415V.
ALTERNATE VOLTAGE STICKERS: PROVIDE STICKERS WITH ALTERNATE VOLTAGES TO BE APPLIED IN FIELD AS REQUIRED.
STICKERS INCLUDED IN BAG WITH KEYS.
ENCLOSURE: NEMA 1 (UL 50 LISTED ENCLOSURE)
BOX: 12 GAUGE PAINTED STEEL, NO KNOCKOUTS.
TRIM: 12 GAUGE PAINTED STEEL. HELD TO BOX WITH ADJUSTABLE TRIM CLAMPS - SURFACE MOUNTING.
DOOR: EQUIPPED WITH SIERRA GEIRHI SNAPLOCK
FINISH: GRAY POLYESTER POWDERCOAT APPLIED TO SURFACES TREATED WITH AN IRON PHOSPHATE AND CHROME FREE SEALER.
BUS : ELECTROLYTIC COPPER OF 98% CONDUCTIVITY. BASED ON 1000 AMPS PER SQUARE INCH DENSITY.
VIRE RENDING GUTTER MEETS OR EXCEEDS NEC TABLES 312-6(a). 312-6(b)
BREAKERS: CUTLER-HAMMER THERMAL-MAGNETIC. 3 POLE. AS INDICATED SEE TABLE ABOVE FOR BREAKER TYPE. AMPERES.
AND A. I. C. RAT
BREAKER TERMINAL LUG (2) 2/0-250MCM OR (1) 2/0-500MCM PER PHASE.
KEY INTERLOCK: KIRK TYPE F, CBSB LOCKED IN THE OPEN POSITION, CBOL LOCKED IN THE CLOSED POSITION.
SHIPPING NOTE: TRIPP-LITE STOCK NUMBER TO BE MARKED ON PACKAGING.

SHEET 2 OF 3

TRIPP·LITE POWER PROTECTION
1111 WEST 35TH STREET • CHICAGO ILLINOIS 60609 • 773-869-1600 • FAX [phone]

1	ADDED TRIPP-LITE LOGO & SHT 3 OF 3	09-14-2010	JOB: TRIPP LITE POWER PROTECTION, CHICAGO, ILLINOIS
2	REPLACED OLD TABLE WITH (2) NEW TABLES (RSH)	07-19-2011	CONTR:
3	REVISED TABLES & ADDED NOTES (RSH)	07-21-2011	DISTR:
			DATE: 08-31-2010	DRAWN BY: RH
			C.D.#:	S.D.#:
REVISIONS		DATE	CAD NO.: TLP2MBP400A01	DRAWING NO.: 113215

PCSMB SEQUENCE OF OPERATION

TO ISOLATE UPS OUTPUTS FROM BUS

1) PUT ALL UPS INTO STATIC BYPASS BY TURNING OFF

THEIR INVERTERS. (SEE OWNERS MANUAL FOR PROPER PROCEDURE).

2) CBSB - RETRACT KIRK KEY BOLT, REMOVE KEY AND CLOSE CBSB.

3) CBOL - USE KEY TO UNLOCK AND RETRACT BOLT THEN OPEN CBOL.

(ALL UPS OUTPUTS CAN NOW BE ISOLATED).

4) OPEN UPS OUTPUT BREAKERS TO ISOLATE FROM OUTPUT BUS.

TO RECONNECT UPS OUTPUTS TO BUS:

1) VERIFY ALL UPS ARE IN STATIC BYPASS WITH THEIR

INVERTERS OFF (SEE OWNERS MANUAL FOR PROPER PROCEDURE).

2) CLOSE UPS OUTPUT BREAKERS TO CONNECT TO OUTPUT BUS.

3) CBOL - RETRACT KIRK KEY BOLT, REMOVE KEY AND CLOSE CBOL.

(ALL UPS OUTPUTS ARE CONNECTED TO OUTPUT BUS).

4) CBSB - USE KEY TO UNLOCK AND RETRACT BOLT THEN OPEN CBSB.

5) SEQUENCE ALL UPS TO FULL ON-LINE MODE.

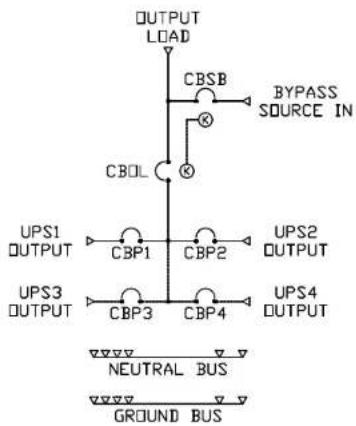

CABINET SYSTEM SCHEMATIC

SHEET 3 OF 3

TRIPP·LITE

TRIPP·LITE POWER PROTECTION

1111 WEST 35TH STREET • CHICAGO ILLINOIS 60609 • 773-869-1600 • FAX [phone]

1	ADDED THIS SHEET	09-14-2010	JOB: TRIPP LITE POWER PROTECTION, CHICAGO, ILLINOIS
			CONTR:
			DISTR:
			DATE: 09-14-2010	DRAWN BY: RH
			C.D.#:	S.D.#:
REVISIONS		DATE	CAD NO.: TLP2MBP400A01	DRAWING NO.: 113215
